Product name:
Differential pressure Deltabar FMD77
Product series:

FMD77

Product brand:
E+H/Endress+Hauser
Product feature:
• Large variety of process connections and diaphragm materials • Highest safety with gas-tight feedthrough, supporting SIL2/3 and certified to IEC 61508 • New TempC diaphragm minimizes the effects of ambient and process temperature fluctuations • Easy menu-guided commissioning via local display, 4 to 20 mA with HART, PROFIBUS PA, and FOUNDATION Fieldbus • HistoROM data management concept for fast and easy commissioning, maintenance, and diagnostics • Cost savings with modular design for easy replacement of the sensor, display, or electronics • Seamless and independent system integration via HART, PROFIBUS PA, and FOUNDATION Fieldbus
Favorite
Compare
Measuring principle:
The measurement principle of a differential pressure transmitter is based on measuring the pressure difference between two process points. The transmitter is connected to different points in the process through two pressure ports: the high-pressure side (HP) and low-pressure side (LP). When gas or liquid acts on the two sides, the resulting differential pressure (ΔP) causes mechanical deformation of the internal sensing element, such as a metal diaphragm. This deformation is converted into an electrical signal using capacitive or resistive strain-gauge technology. The signal is then processed by signal-conditioning circuitry for amplification, linearization, temperature compensation, and other corrections, ultimately producing an industry-standard 4–20 mA analog output or a digital signal such as HART.
Product positioning:
Foundamental
Using scenario:

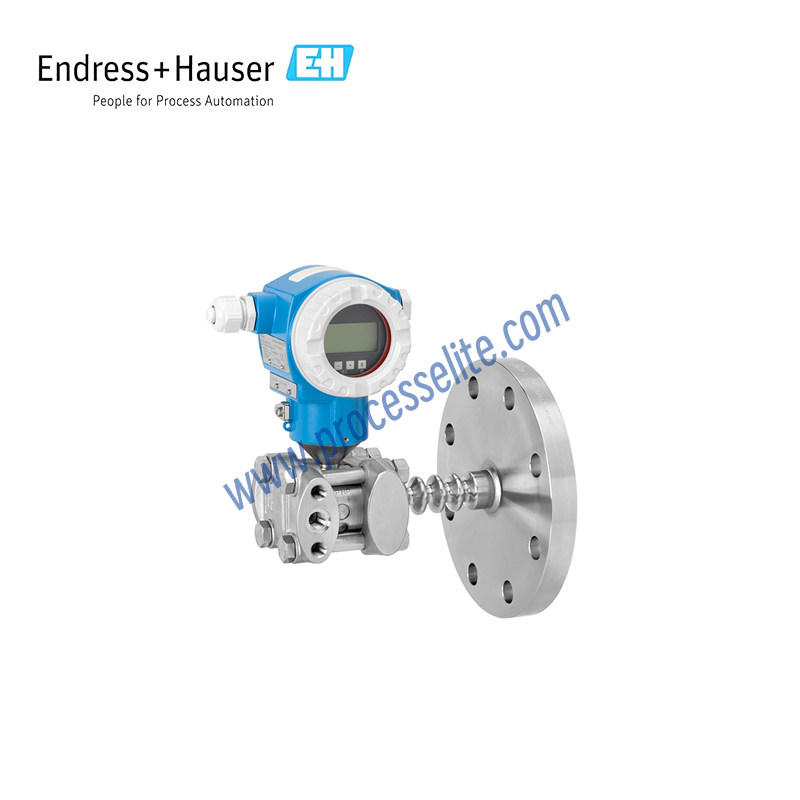

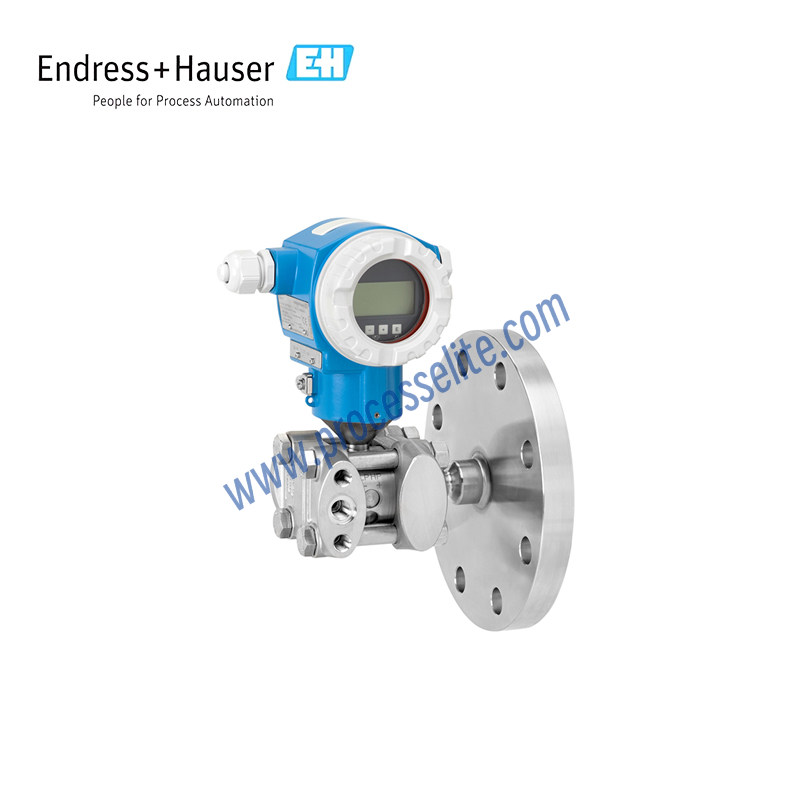

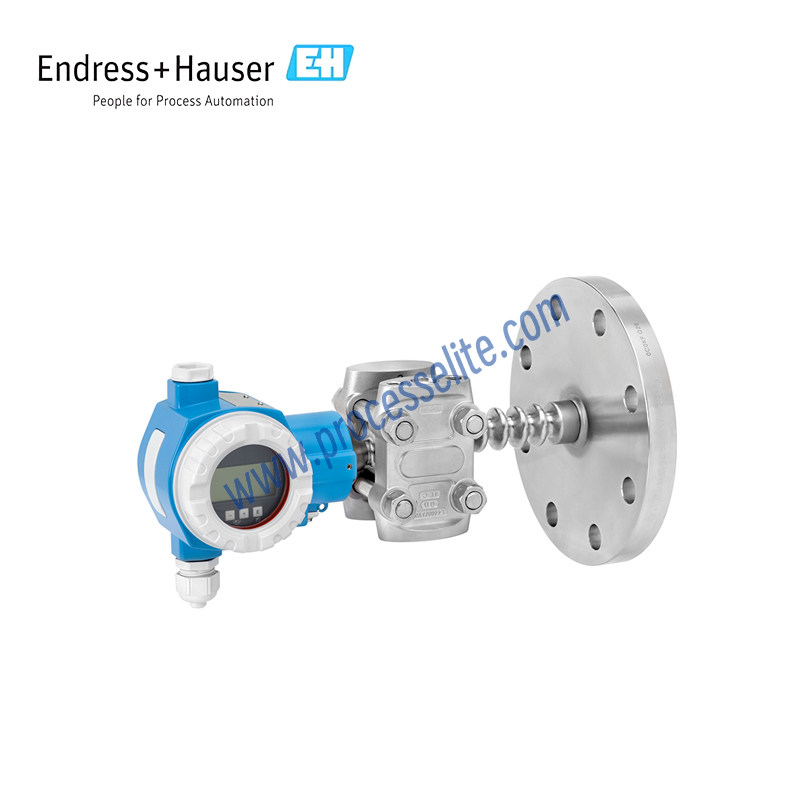

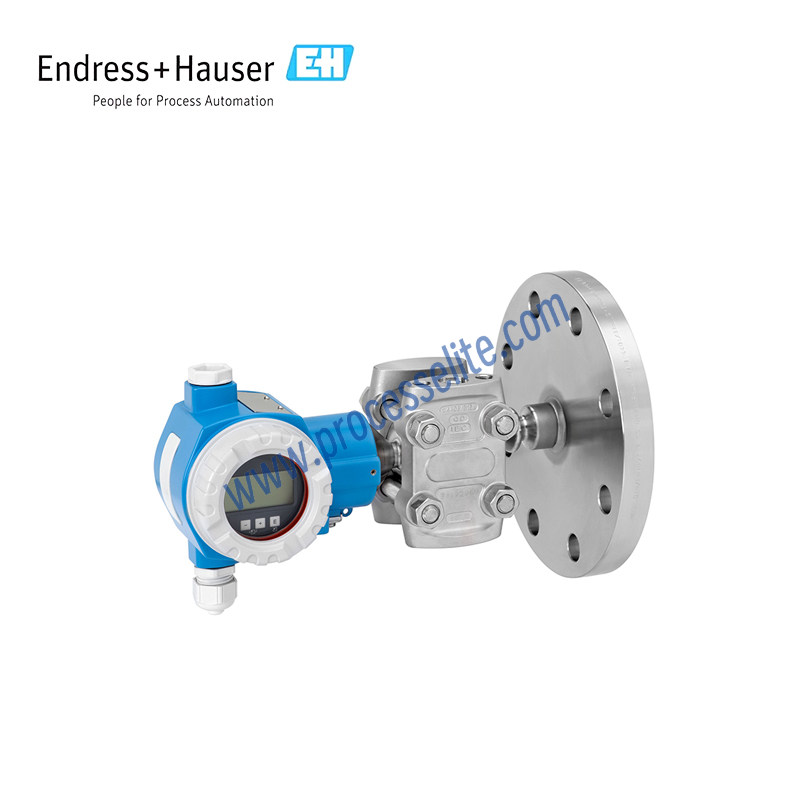

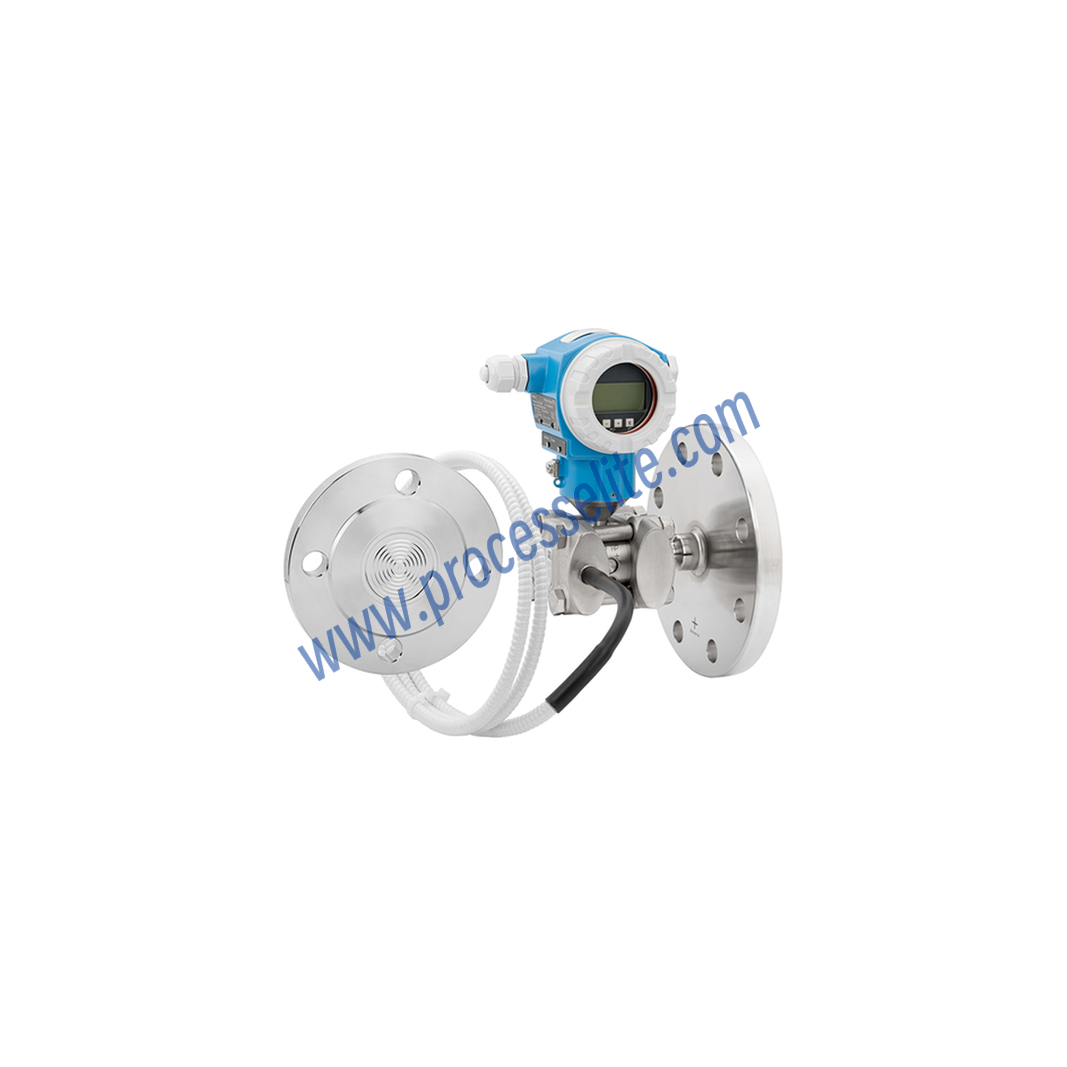

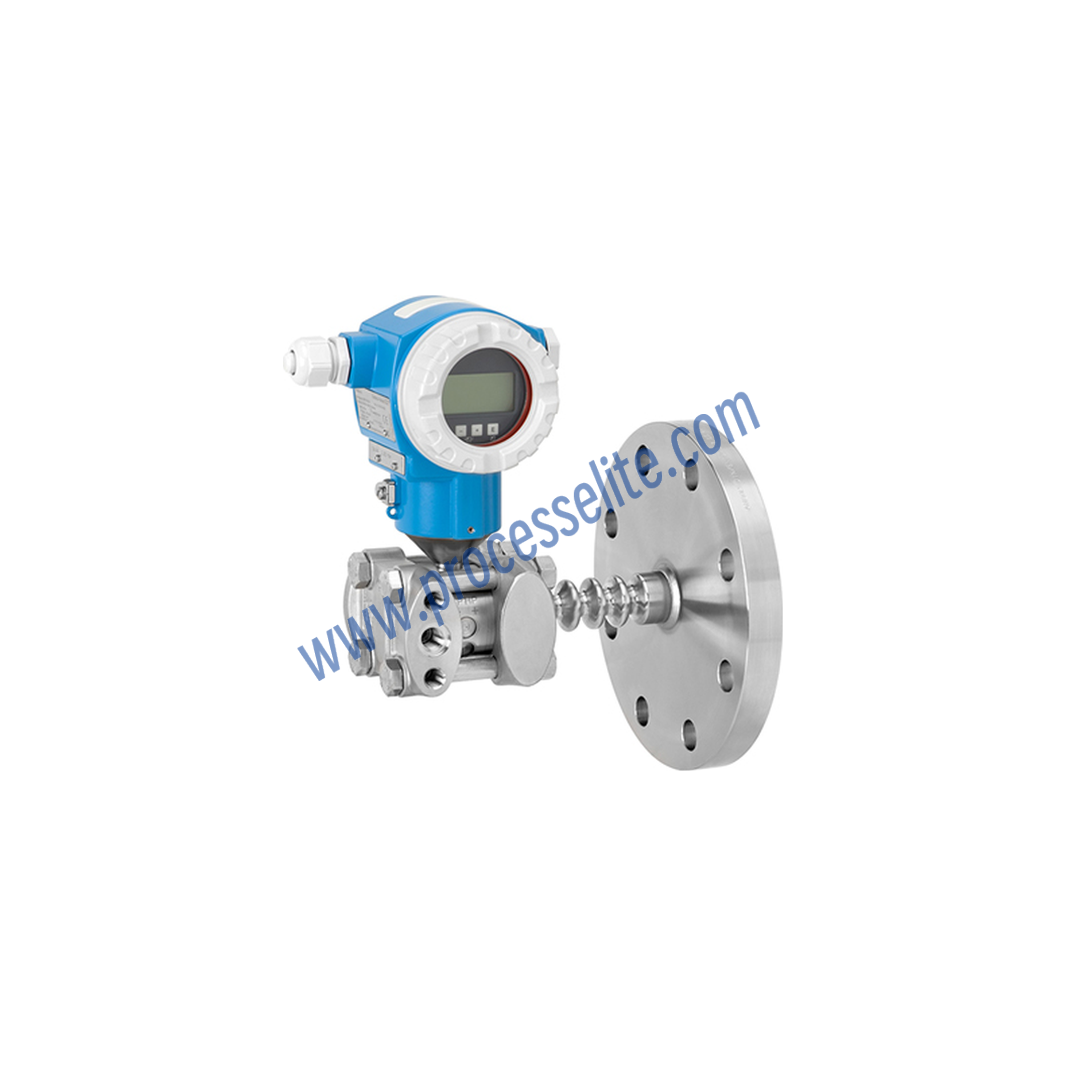

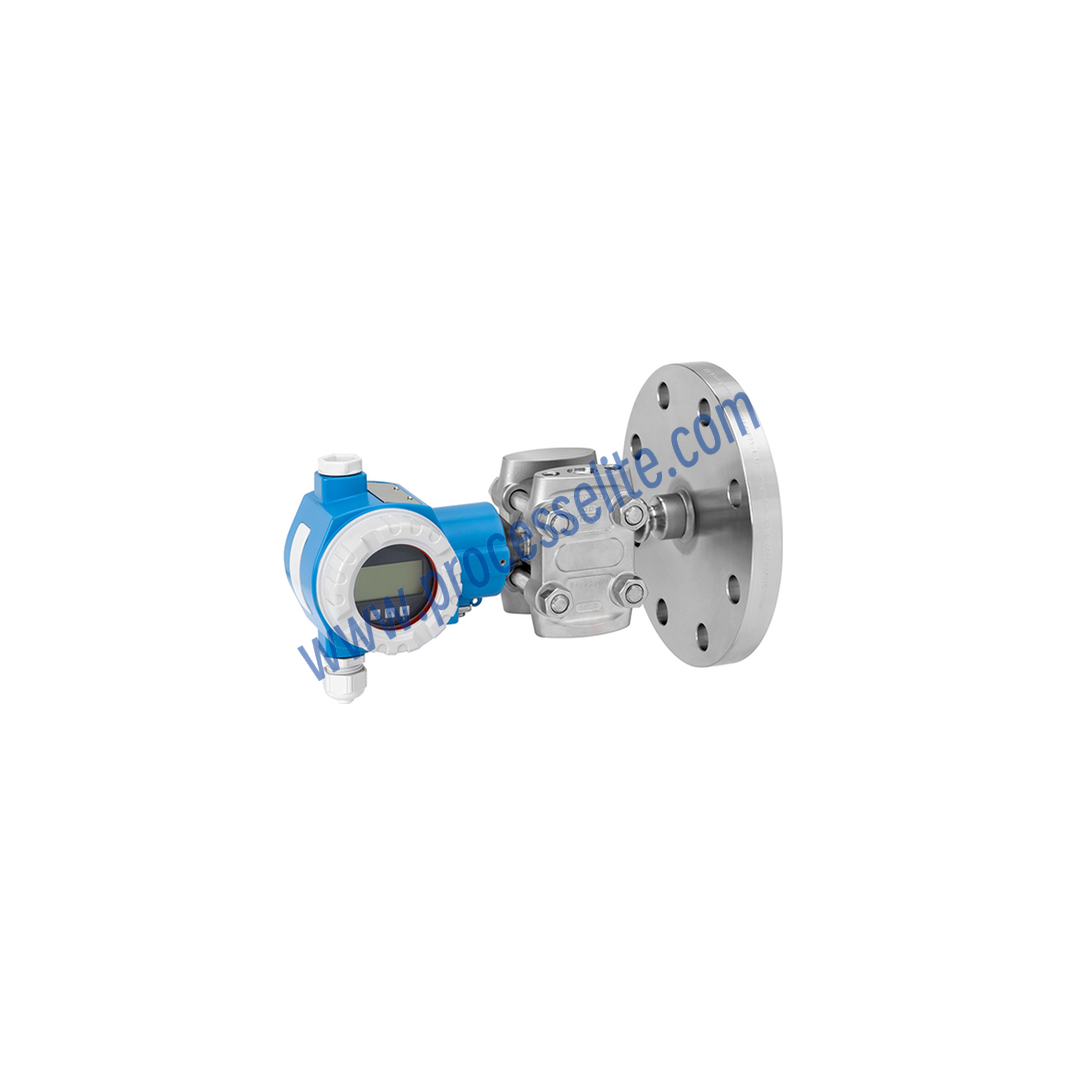

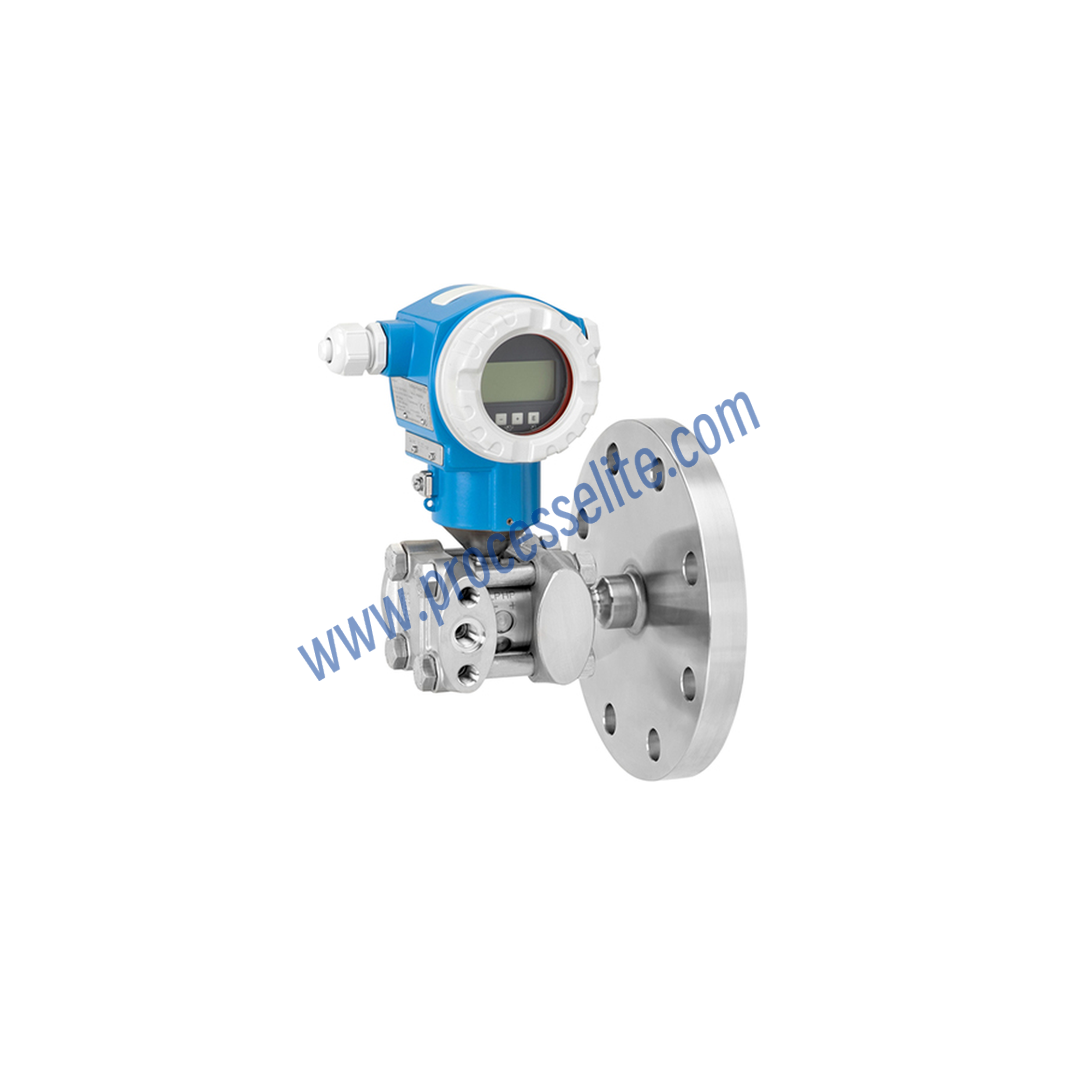

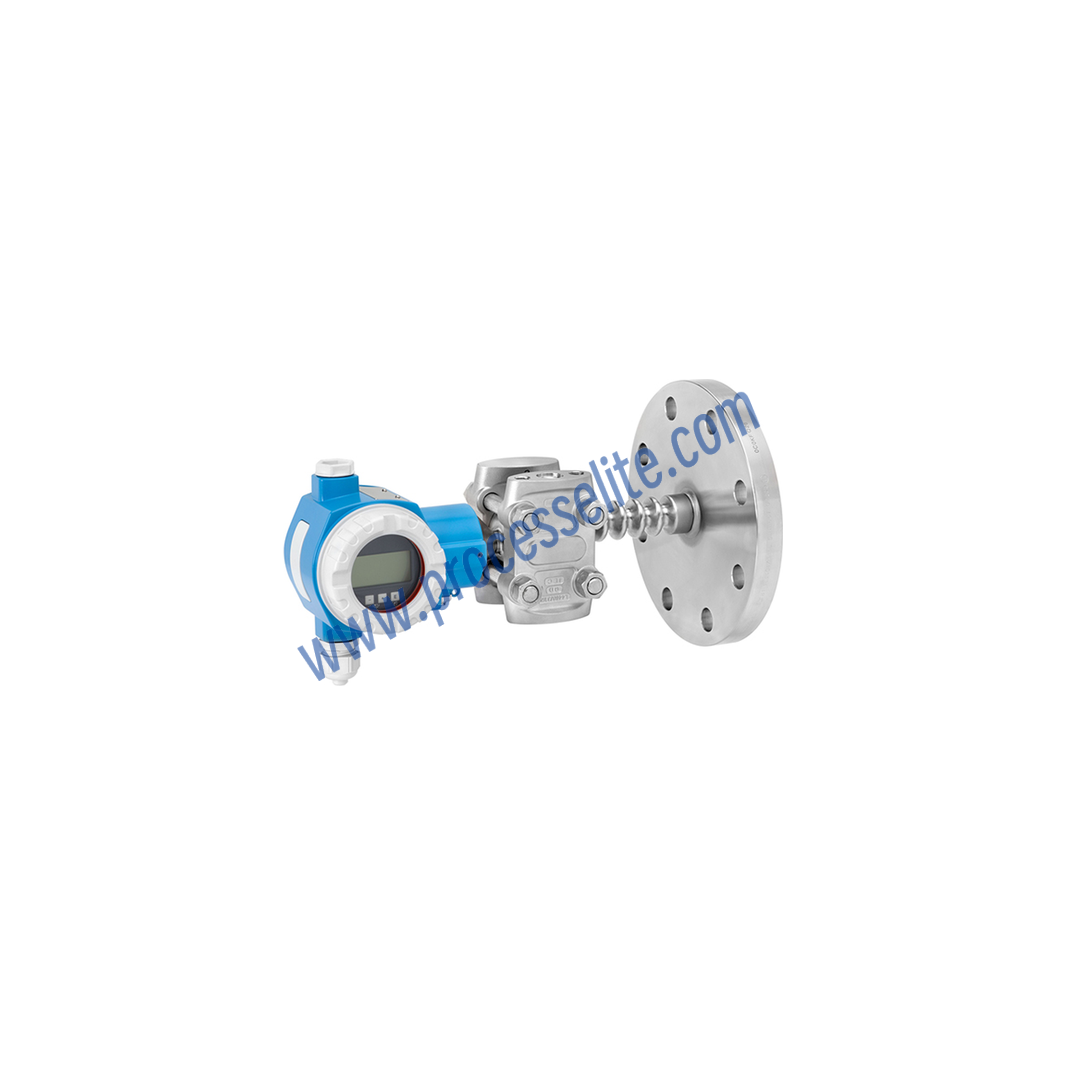

The Deltabar FMD77 Differential Pressure Transmitter features a metal sensor with single-flange diaphragm seal or dual-flange diaphragm seal configurations, with a capillary on the low-pressure side. It is primarily designed for continuous level measurement in process industries. The integrated HistoROM data module enables convenient management of process and device parameters. The transmitter complies with IEC 61508 and meets SIL 3 functional safety requirements.
