PTP33B

A pressure switch mainly operates based on the deformation characteristics of elastic sensing elements. Pressure switch sensors include ceramic diaphragm sensors and metal diaphragm sensors. Ceramic diaphragm sensors are non-filled sensors. The process pressure directly acts on the robust ceramic diaphragm, causing deformation. The deformation changes the capacitance between the electrodes on the ceramic substrate and the ceramic diaphragm, which is converted into an electrical signal. Metal diaphragm sensors deform under process pressure. The filling fluid transfers the pressure to the Wheatstone bridge, converting the deformation of the sensing element into an electrical signal. The deformation is converted into an electrical signal through capacitive sensing or strain gauge technology. The signal is then processed by the signal conditioning circuit for amplification, linearization compensation, and temperature correction. Finally, the transmitter outputs an industrial standard 4–20 mA analog signal.

Foundamental

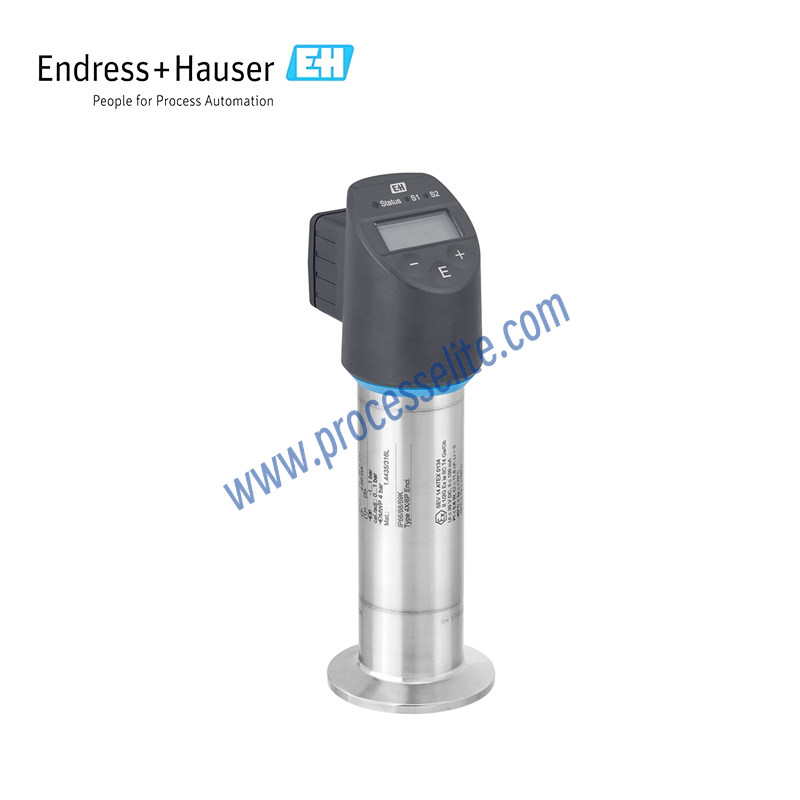

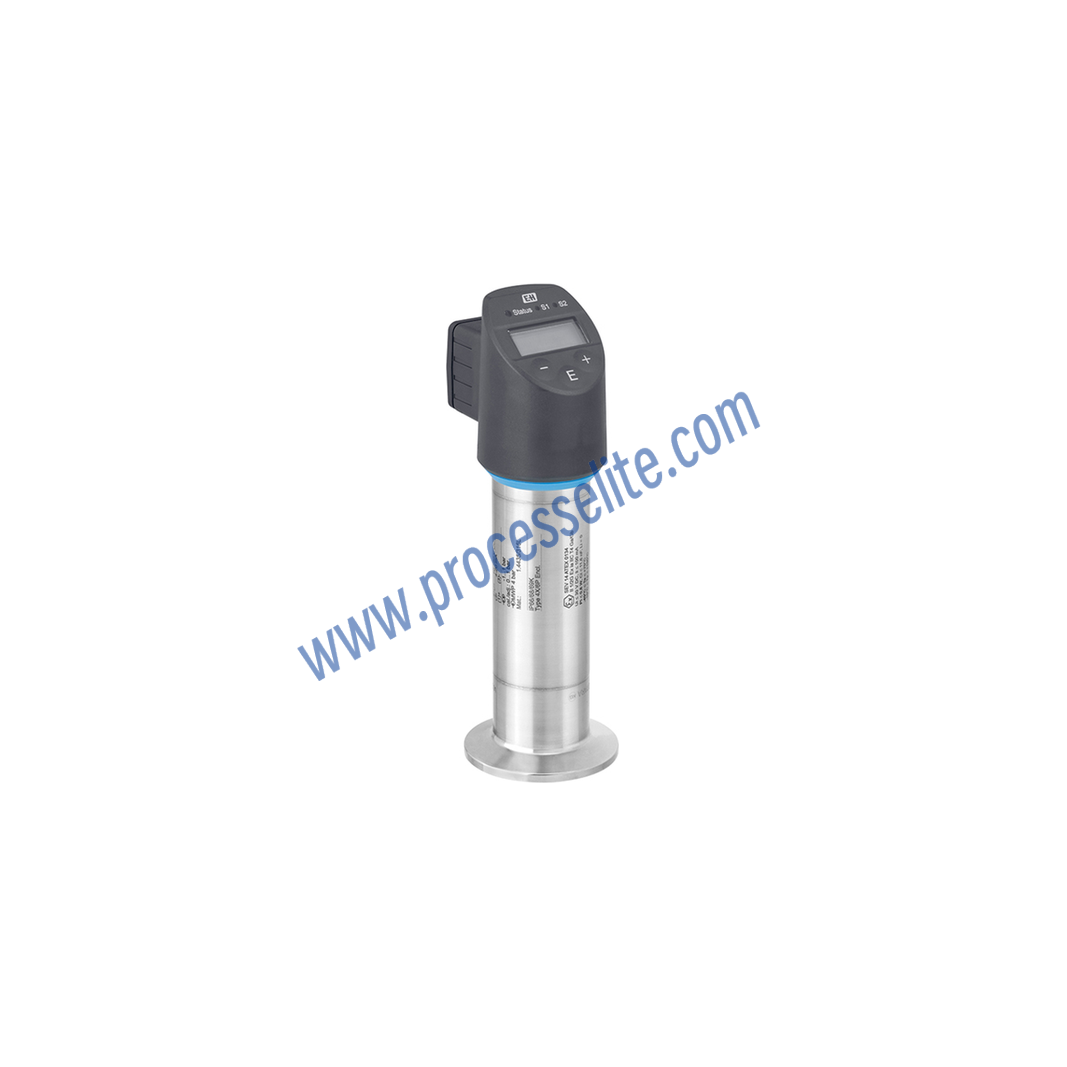

The Ceraphant PTP33B is a cost-effective pressure switch with a metal diaphragm sensor, enabling reliable absolute and gauge pressure monitoring. The compact pressure switch features high stability and excellent overload resistance. The stainless steel housing version of the PTP33B is certified according to 3-A and EHEDG standards. IO-Link functionality enables easy device integration and parameter configuration.
