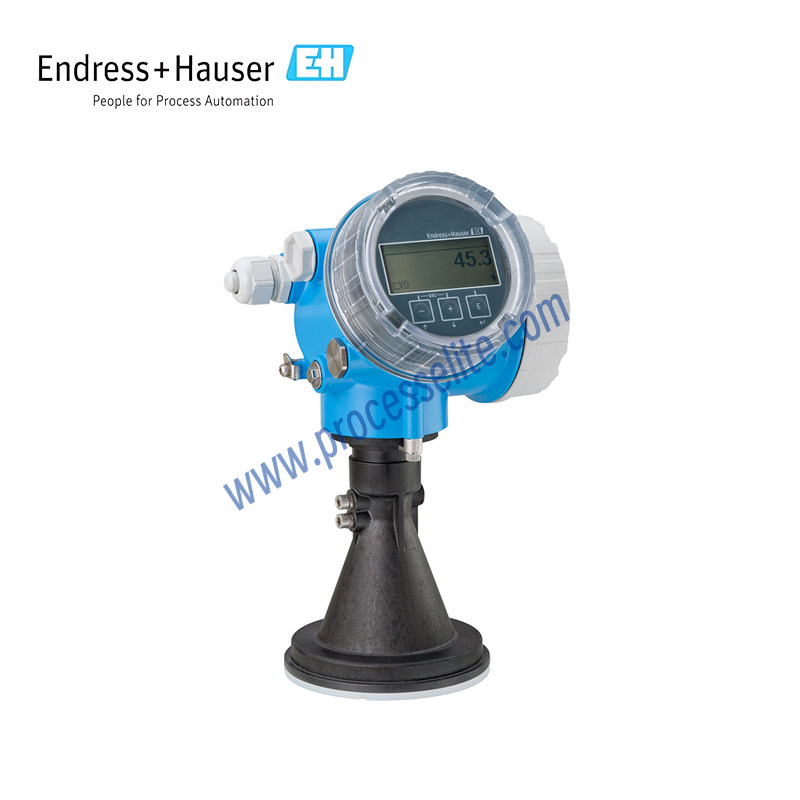

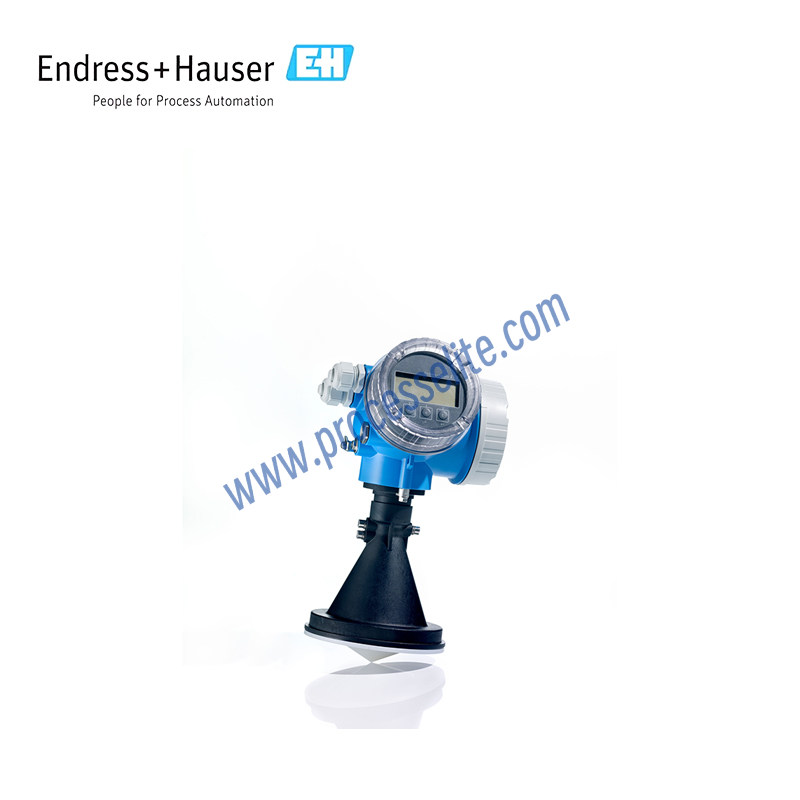

Radar Level Transmitter

E+H/Endress+Hauser

• Encapsulated PVDF or PP-coated horn antenna • Process connections: 1½" threaded, mounting bracket, or loose flange • Temperature range: -40 to +130°C (-40 to +266°F) • Pressure range: -1 to +3 bar (-14.5 to +43.5 psi) • Maximum measuring range: 30 m (98 ft), up to 40 m (131 ft) with dynamic power enhancement • Accuracy: ±2 mm • K-band: 26 GHz • International explosion protection, WHG overfill prevention, SIL, and 5-point linearity certificate • Reliable non-contact measurement, unaffected by changes in medium or process conditions • HistoROM integrated data storage for fast commissioning, maintenance, and diagnostics • High measurement reliability with Multi-Echo Tracking, even with vessel obstructions • IEC 61508-compliant hardware and software; SIL2 for single devices and up to SIL3 with homogeneous redundancy • Heartbeat Technology for safe and efficient plant operation throughout the entire lifecycle • Seamless integration into control and asset management systems with intuitive guided operation • SIL and WHG certified proof testing to save time and costs
