Radar Level Transmitter

E+H/Endress+Hauser

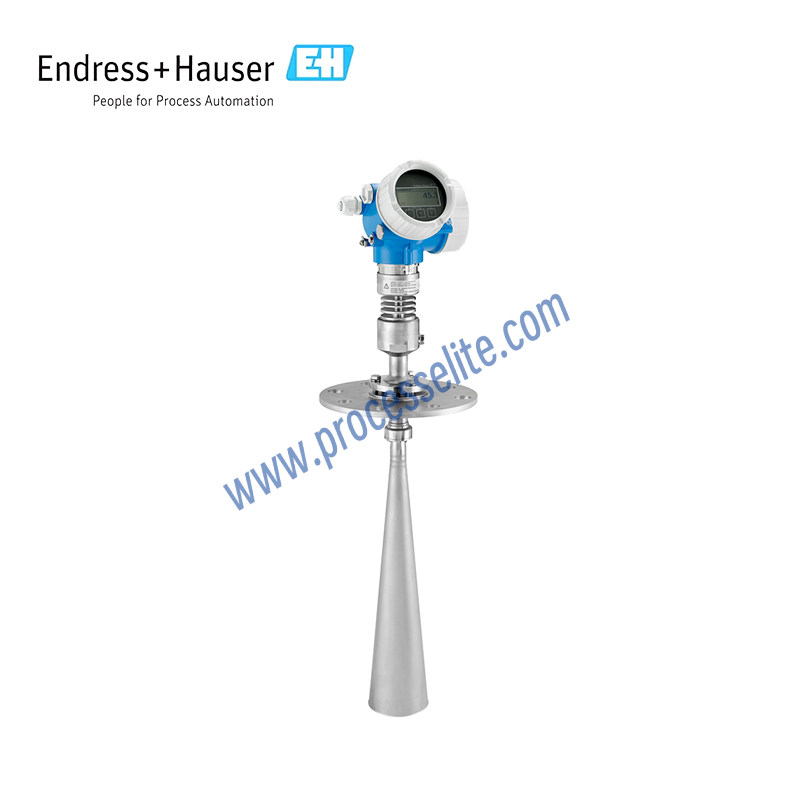

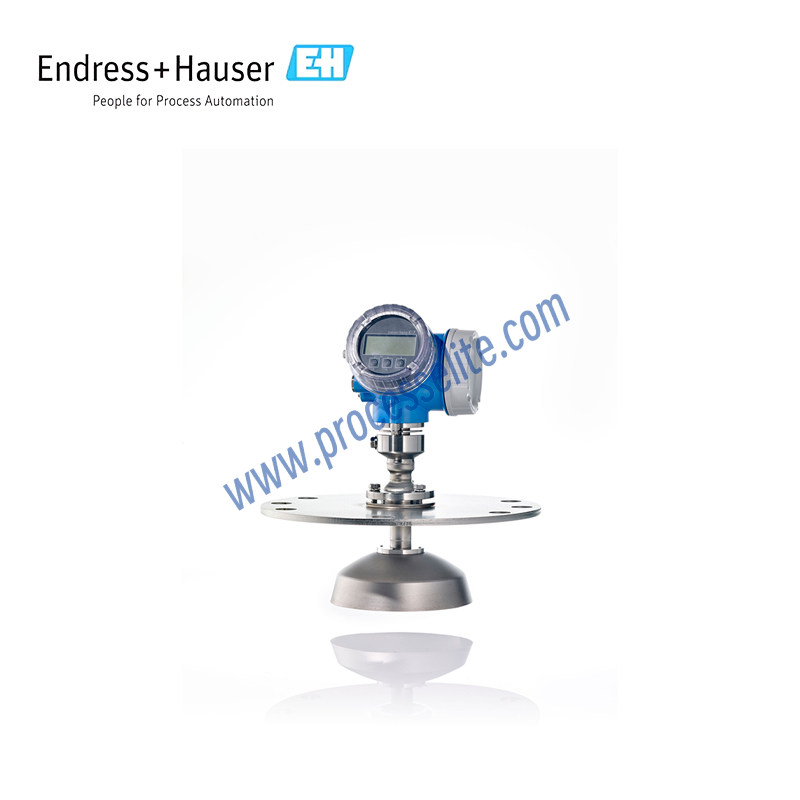

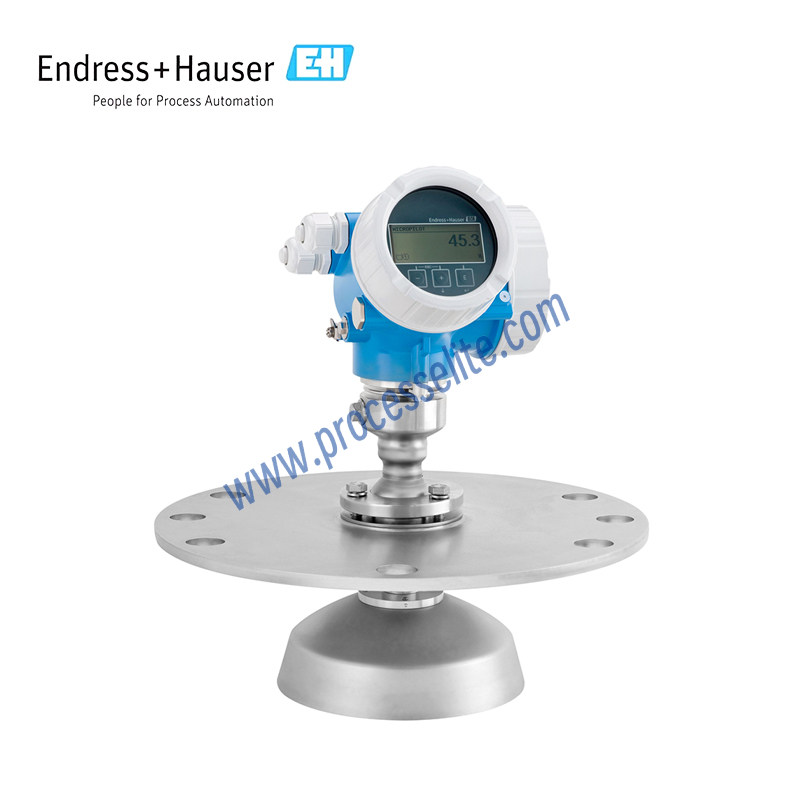

• Horn or parabolic antenna. Equipped with an auxiliary air purge connection, measurement remains unaffected even under heavy dust deposition or product adhesion. • Process connections: 1½" thread or flange • Temperature range: −40 to +400 °C (−40 to 752 °F) • Pressure range: −1 to +16 bar (−14.5 to +232 psi) • Maximum measuring range: 70 m (230 ft) • K‑band: 26 GHz • International hazardous‑area approvals, SIL, 5‑point linearisation protocol • Hardware and software development complies with IEC 61508. Single‑device SIL2; SIL3 achievable with homogeneous redundancy. • Integrated HistoROM data storage module facilitates fast commissioning, maintenance and diagnostics. • High measurement reliability based on multi‑echo tracking algorithm; delivers accurate measurement even with obstacles inside the silo. • Heartbeat Technology enables efficient and safe plant operation over the entire life cycle. • Seamless integration into control or asset management systems; intuitive menu‑guided operation (on‑site or via control system). • Stable and reliable measurement, immune to changes in medium and process conditions. • Globally recognised SIL and WHG approvals save your time and total cost of ownership.
