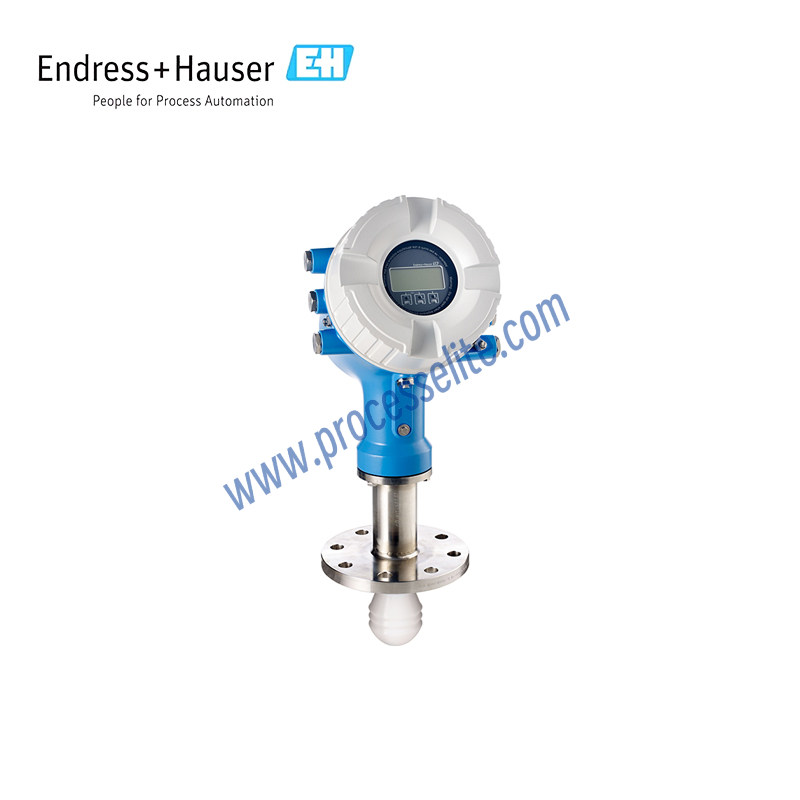

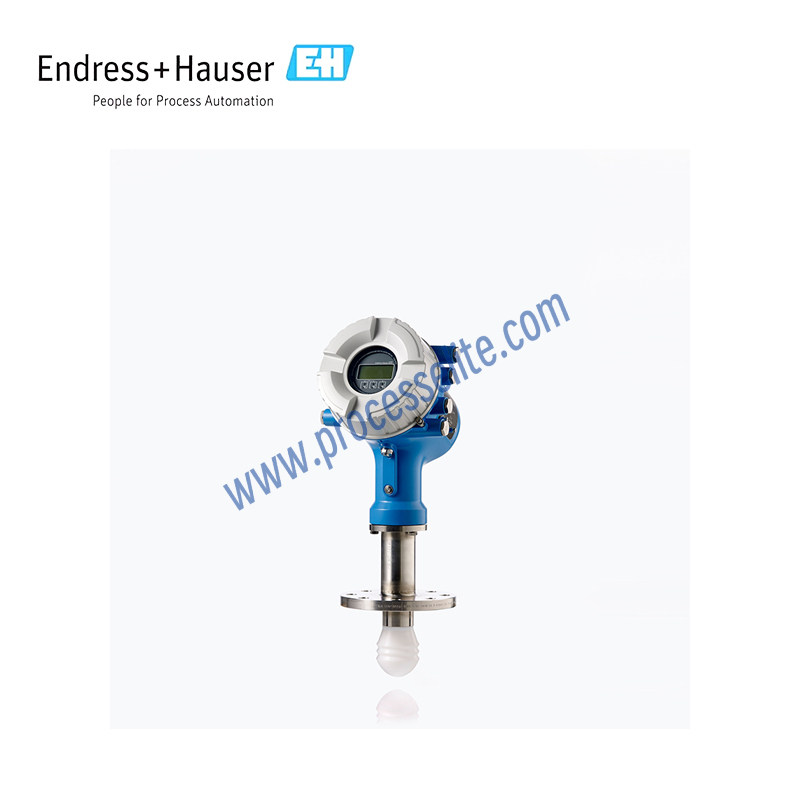

Radar Level Transmitter

E+H/Endress+Hauser

• 80 GHz drip-off antenna for free-space measurement, up to 70 m (230 ft) range, with a narrow beam angle for installations close to the tank wall • Process connection: Flanged • Temperature range: -40 to +200°C (-40 to +392°F) • Pressure range: Vacuum to +16 bar (vacuum to +232 psi) • Accuracy: ±0.5 mm (±0.02") • Operating frequency: 80 GHz • International explosion protection, custody transfer, WHG overfill protection, and SIL certifications • IEC 61508-compliant hardware and software, supporting up to SIL3 in homogeneous redundant systems • Compliant with international metering standards such as OIML R85 and API MPMS • NMi and PTB certifications available for custody transfer applications • Easy DCS integration via open protocols for simple installation and reliable operation • Highly focused 80 GHz beam minimizes interference from tank walls and internal structures
