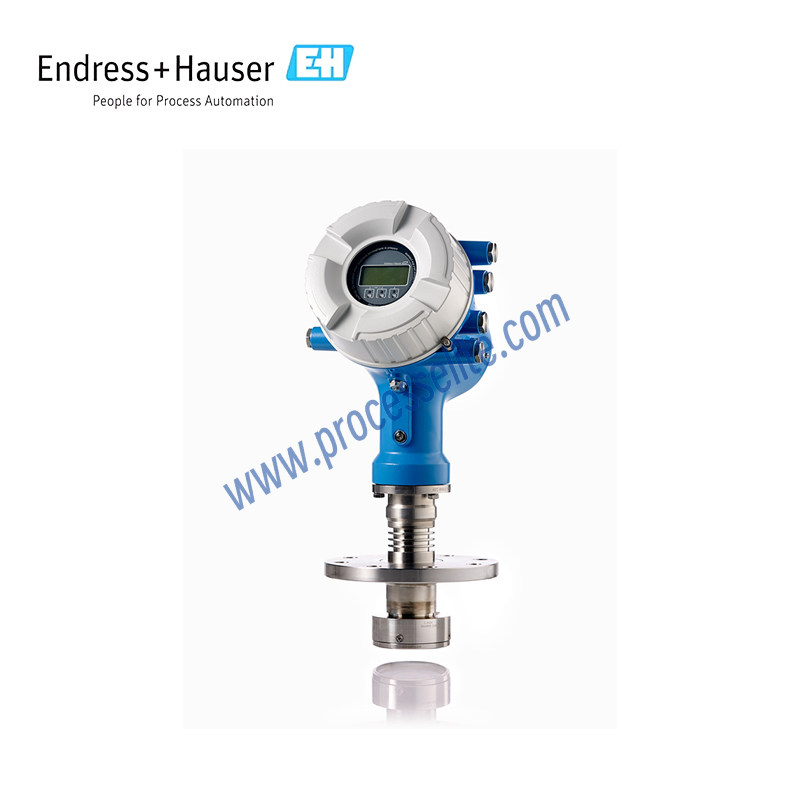

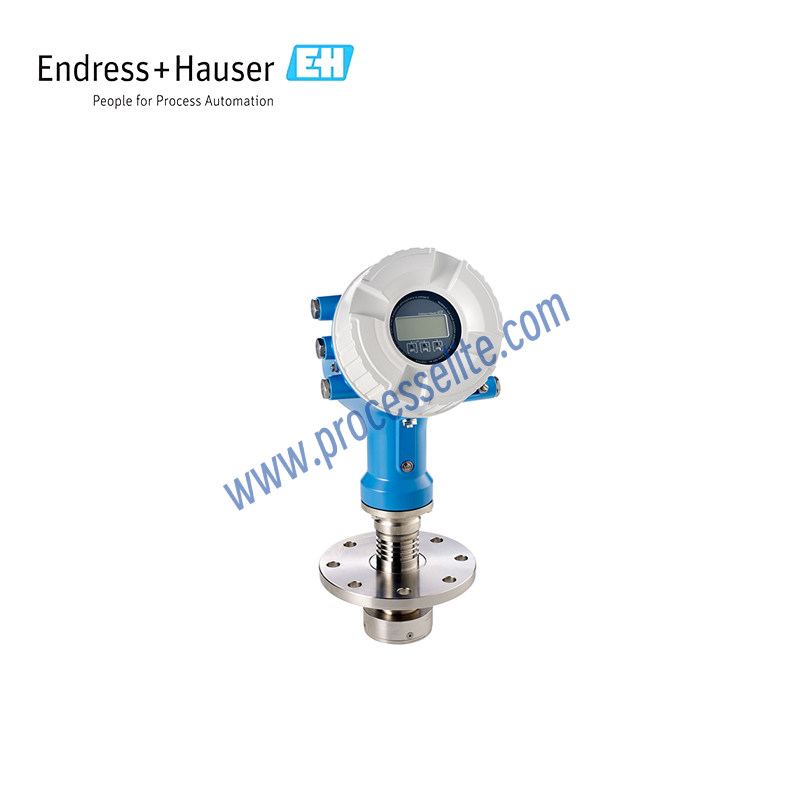

Radar Level Transmitter

E+H/Endress+Hauser

• Planar antenna, particularly suitable for stilling well applications • Process connection: Flanged • Temperature range: -40 to +150°C (-40 to +302°F) • Pressure range: Vacuum to +25 bar (vacuum to +362 psi) • Maximum measuring range: 40 m (131 ft) • Accuracy: ±0.5 mm (±0.02") • Operating frequency: 6 GHz • International explosion protection and custody transfer certifications, WHG overfill protection, and SIL certification • IEC 61508-compliant hardware and software, supporting up to SIL3 in homogeneous redundant systems • Designed in accordance with international metering standards such as OIML R85 and API MPMS • Local and national certifications, including NMi and PTB for custody transfer applications • Easy integration into DCS systems via open protocols, with simple installation and reliable operation • Unique planar antenna design minimizes measurement errors caused by condensation buildup
