All >> Level measurement >> Radar Level Transmitter

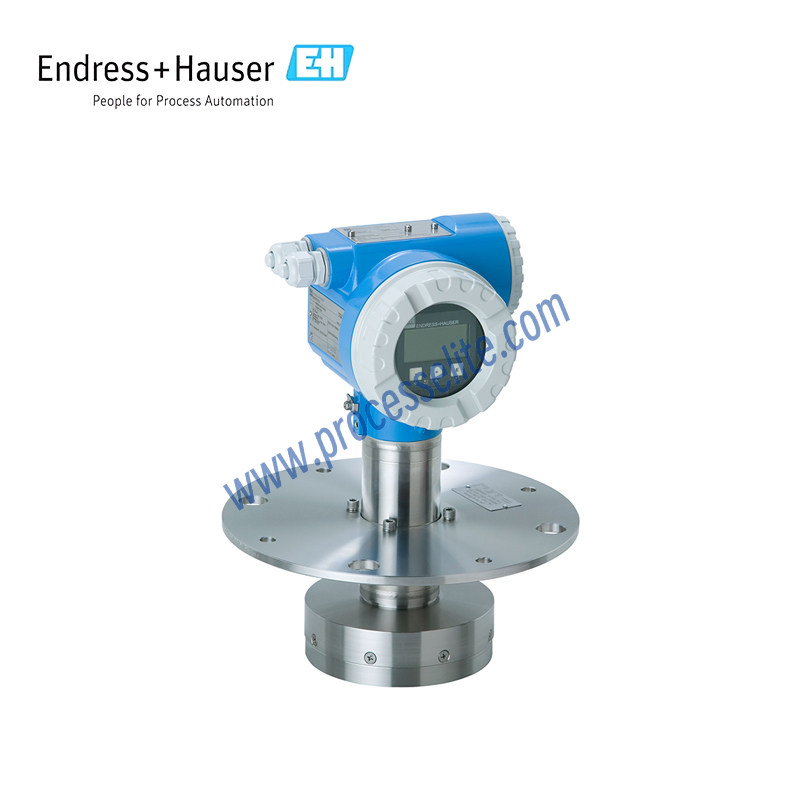

*Picture for reference only !
Product name:
Radar Level Transmitter
Product series:

FMR532

Product brand:
E+H/Endress+Hauser
Product feature:
• Planar antenna, ideal for horizontal measurement applications, measuring range up to 38 m (124 ft) • Process connection: Flanged • Temperature range: -40 to +150°C (-40 to +302°F) • Pressure range: Vacuum to +25 bar (vacuum to +362 psi) • Accuracy: < ±1 mm; 0.8 mm (2σ) • C-band: 6 GHz • International explosion protection, custody transfer, WHG, SIL, and marine certifications • National custody transfer certification (NMi and PTB) • Standalone operation or integration into tank gauging systems via NRF590 tank-side display • Easy on-site operation via menu-guided alphanumeric display • Convenient commissioning, documentation, and diagnostics via FDT/DTM technology (FieldCare • Four-wire design with HART communication and 24 V DC intrinsically safe power supply • Unique drooping antenna design minimizes measurement errors caused by condensation buildup
Favorite
Compare
Measuring principle:
Radar measurement is based on the time-of-flight (ToF) principle, using a top-down, non-contact measurement system to determine the distance from the reference point to the medium surface. The antenna transmits a short pulse that is reflected from the surface and received by the radar level transmitter. By measuring the time difference between transmission and reception, the instrument calculates the distance and accurately determines the level. The measured distance is then converted into the actual level based on the preset empty-tank height. The ToF method is cost-effective and suitable for short-range measurement.
Product positioning:
Discontinued from the market
Using scenario:
Micropilot FMR532 is NMi and PTB certified for custody transfer and inventory control applications, meeting the relevant requirements of R85 and API 3.1B. Equipped with a planar antenna, the FMR532 is particularly suitable for stilling well installations. It features four-wire technology, HART communication, and 24 V DC intrinsically safe power supply for cost-effective and easy installation.
