Product name:
Radar Level Transmitter
Product series:

FMR540

Product brand:
E+H/Endress+Hauser
Product feature:
• Parabolic or horn antenna, maximum measuring range up to 40 m (131 ft) • Process connection: Flanged • Temperature range: -40 to +200°C (-40 to +392°F) • Pressure range: Vacuum to +16 bar (vacuum to +232 psi) • Accuracy: < ±1 mm • Operating frequency: 26 GHz • International explosion protection, custody transfer, WHG, and SIL certifications • Suitable for tank gauging systems and standalone operation • HART communication, 24 V DC intrinsically safe power supply • Easy commissioning and diagnostics via on-site display or FieldCare
Favorite
Compare
Measuring principle:
Radar measurement is based on the time-of-flight (ToF) principle, using a top-down, non-contact measurement system to determine the distance from the reference point to the medium surface. The antenna transmits a short pulse that is reflected from the surface and received by the radar level transmitter. By measuring the time difference between transmission and reception, the instrument calculates the distance and accurately determines the level. The measured distance is then converted into the actual level based on the preset empty-tank height. The ToF method is cost-effective and suitable for short-range measurement.
Product positioning:
Discontinued from the market
Using scenario:

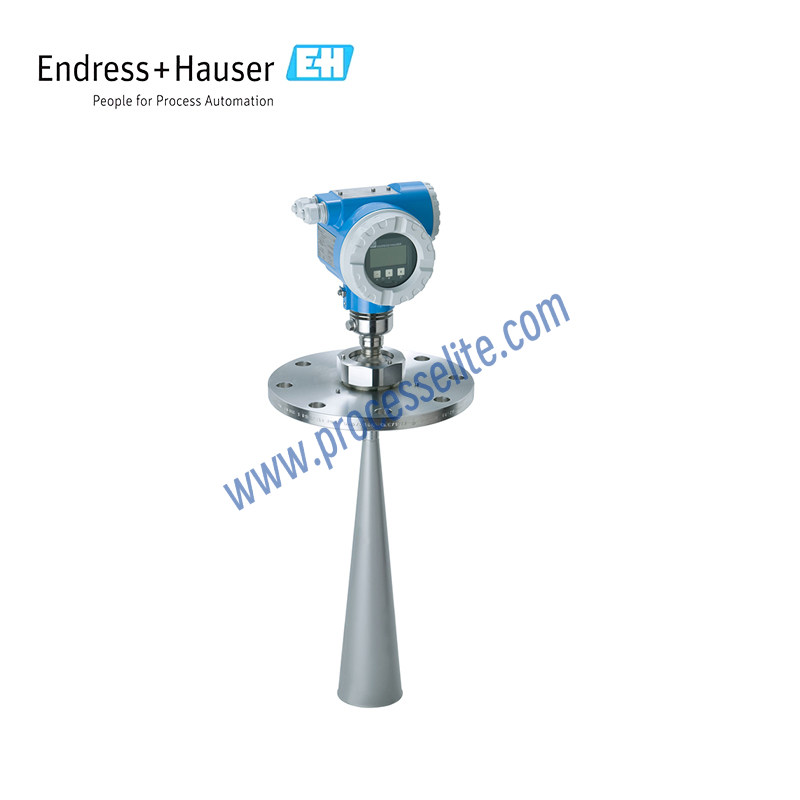

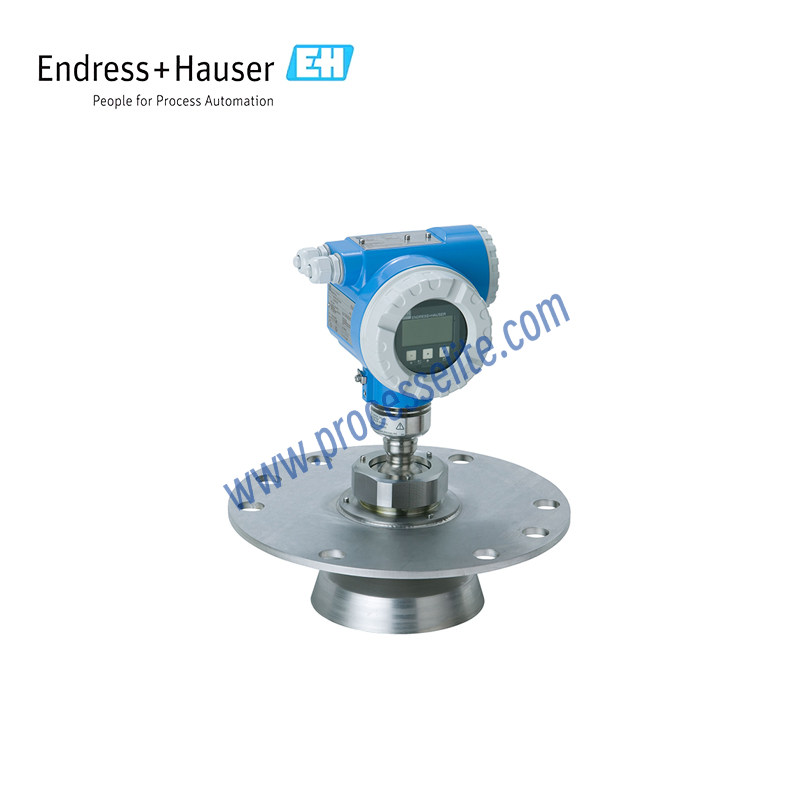

Micropilot FMR540 is certified by NMi and PTB for custody transfer and inventory control applications, meeting the relevant requirements of R85 and API 3.1B. The parabolic antenna version is ideal for measurements up to 40 m in a wide range of installation conditions, while the horn antenna version is suitable for applications where tank or nozzle geometry prevents the use of a parabolic antenna. The FMR540 features four-wire technology, HART communication, and 24 V DC intrinsically safe power supply for cost-effective and easy installation.
