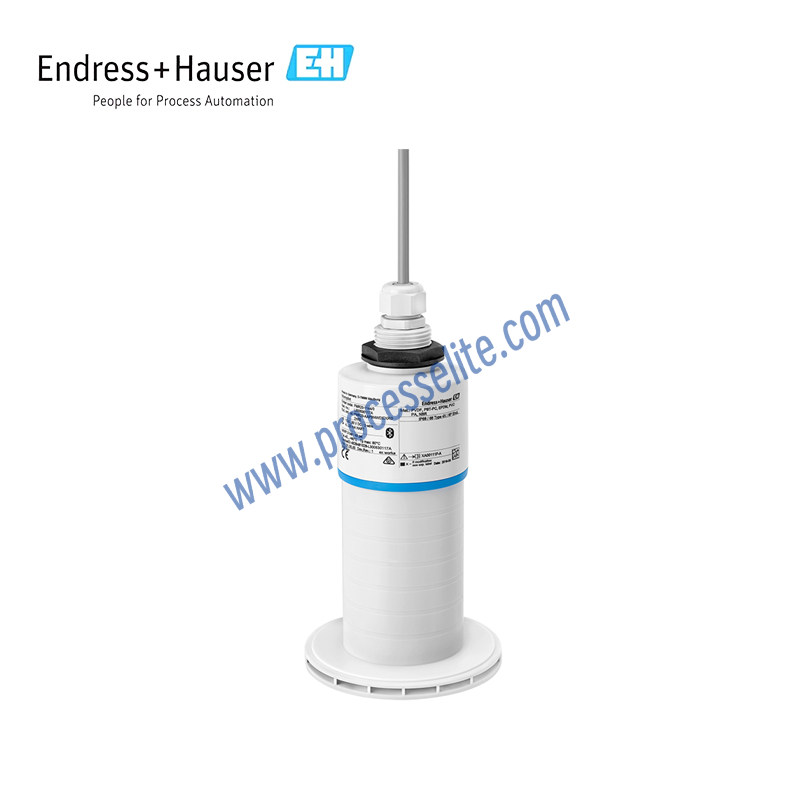

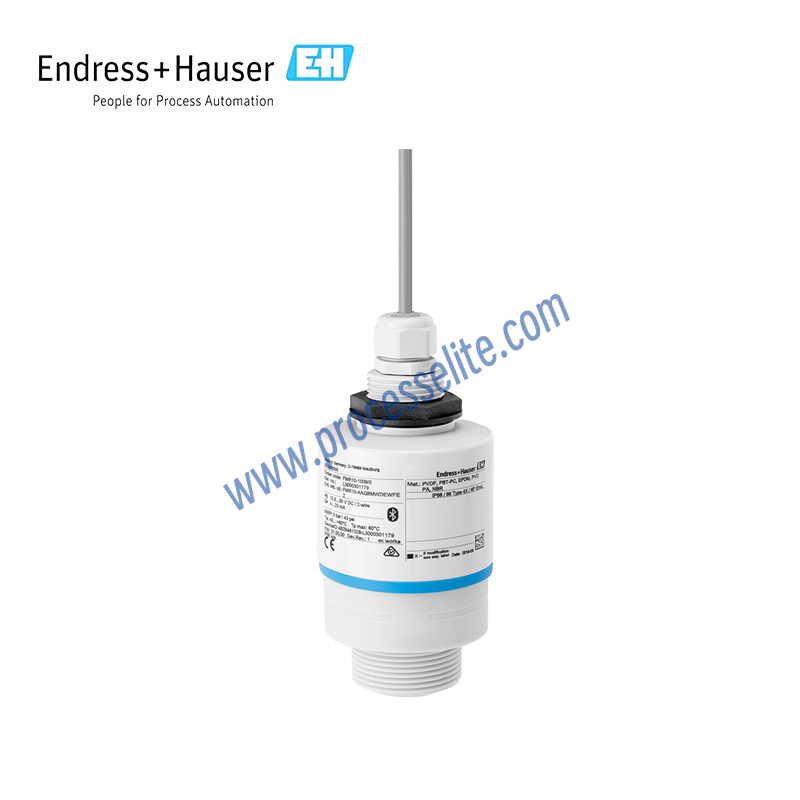

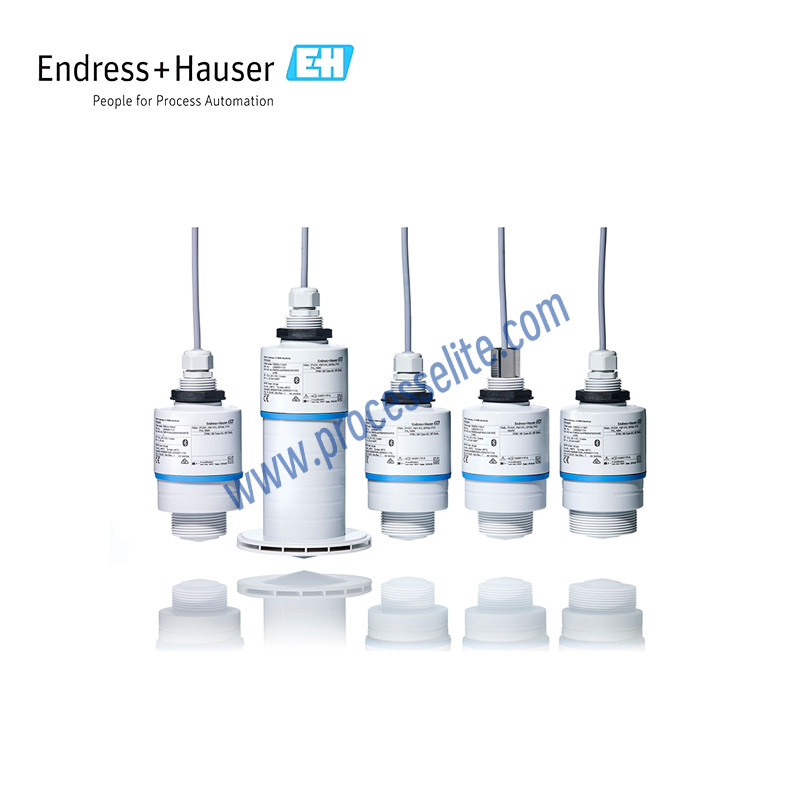

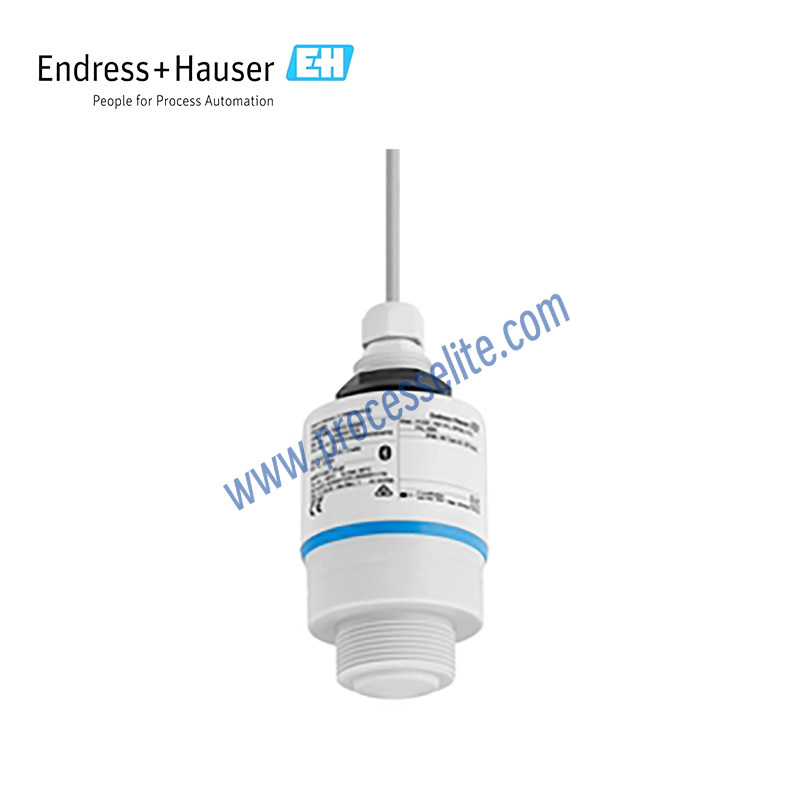

Radar Level Transmitter

E+H/Endress+Hauser

• Radar for continuous level measurement, suitable for storage tanks, open basins, pumping stations, and sewage lift stations • Process connection: Threaded • Process temperature: -40 to +60°C (-40 to +140°F) • Process pressure: -1 to +3 bar (-14.5 to +43 psi) • Measuring range: Up to 12 m (39 ft) with stilling well for overflow protection • Accuracy: ±5 mm (0.2") • Operating frequency: 26 GHz • Non-contact radar with Bluetooth® app for commissioning, operation, and maintenance • Ultra-compact radar with integrated radar chip design, ideal for space-constrained applications • Cost-effective radar solution • Particularly suitable for water and wastewater applications, as well as utility applications across various industries (IP66 / NEMA 4X) • Fully PVDF housing suitable for outdoor installation; sealed cable entries and fully encapsulated electronics provide reliable waterproof protection under harsh operating conditions • Simple setup with three key parameters to meet the requirements of most applications • Simple and secure wireless remote access via Bluetooth®, even in hazardous areas or confined spaces
