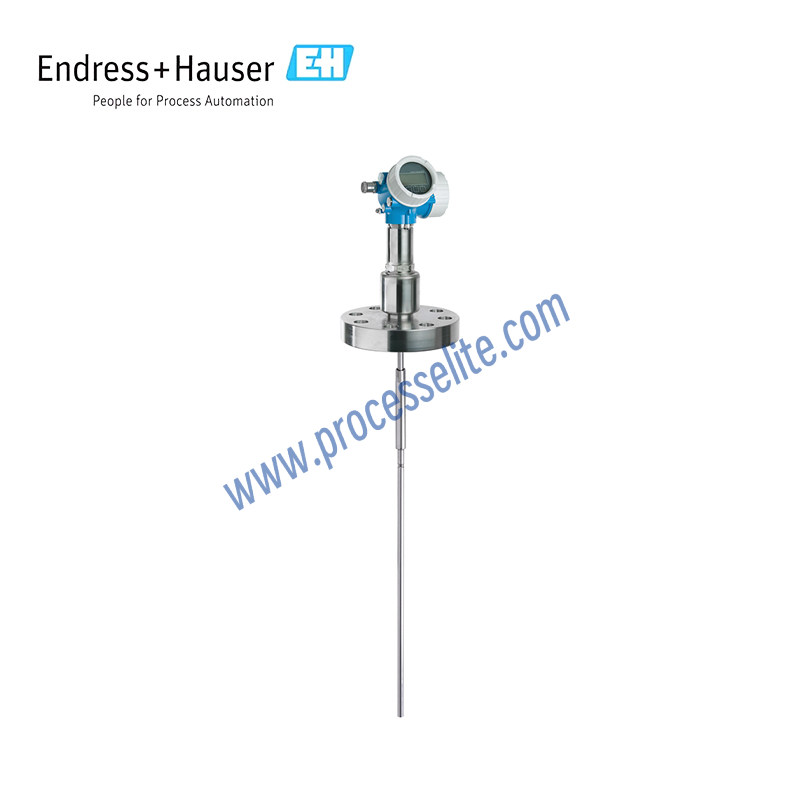

*Picture for reference only !

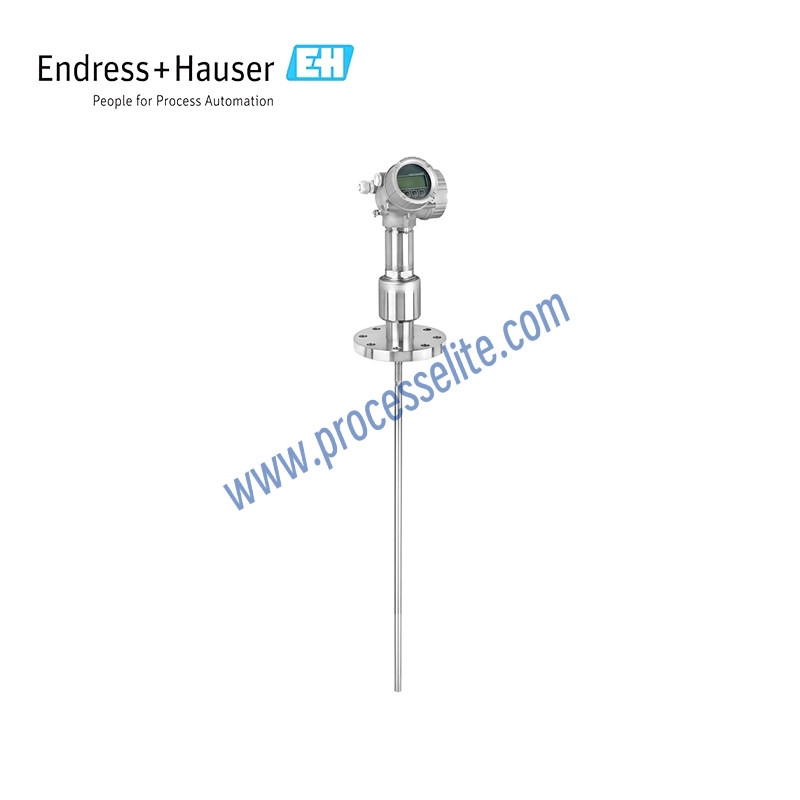

*Picture for reference only !

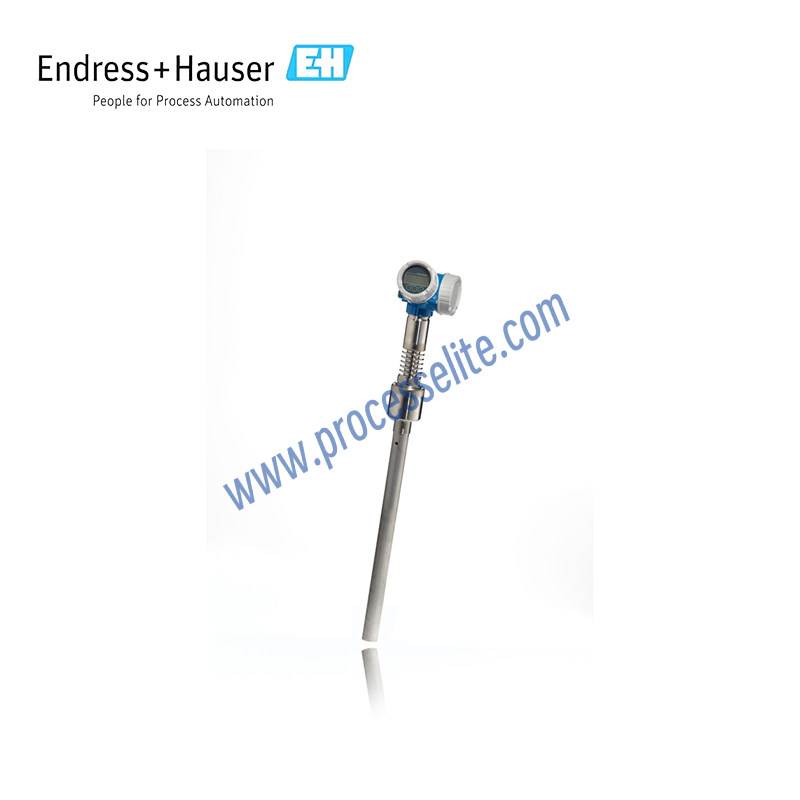

*Picture for reference only !
Product name:
Guided radar measurement Time-of-Flight Levelflex
Product series:

FMP54

Product brand:
E+H/Endress+Hauser
Product feature:
• Reliable measurement even under changing product and process conditions • HistoROM data management for fast and easy commissioning, maintenance, and diagnostics • High measurement reliability with advanced Multi-Echo Tracking technology • Hardware and software developed in accordance with IEC 61508, supporting SIL3 applications • Heartbeat Technology for cost-effective and safe plant operation throughout the entire lifecycle • Seamless integration with control and asset management systems, with intuitive menu-guided operation either on-site or via the control system • Easy proof testing for SIL and WHG applications, saving time and costs
Favorite
Compare
Measuring principle:
Guided wave radar (GWR) uses the time-of-flight (ToF) principle to measure the distance from the reference point to the medium surface. High-frequency pulses travel along a guided wave probe or cable and are reflected at the medium surface due to a change in dielectric constant. The instrument calculates the time difference between the transmitted pulse and echo to determine the level. This measurement method is known as TDR (Time Domain Reflectometry).
Product positioning:
Standard
Using scenario:
The Levelflex FMP54 is designed for continuous level measurement under extreme process conditions. Its ceramic-graphite process seal ensures safe operation in high-temperature and high-pressure applications, such as steam boilers and toxic media like liquid ammonia. The gas-tight feedthrough provides an additional level of safety. For high-pressure level measurement with a gas phase, the FMP54 with gas-phase compensation technology delivers accurate and reliable results. Stable measurement performance is maintained even with level fluctuations, foam, or changing medium properties.
