All >> Level measurement >> Liquiphant FTL41
*Picture for reference only !

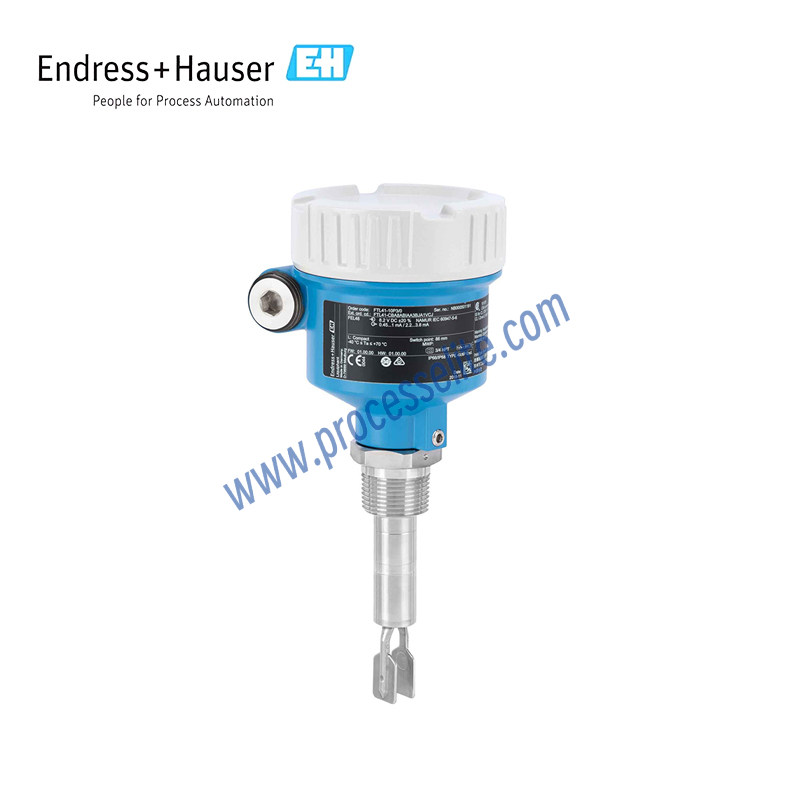

*Picture for reference only !
Product name:
Liquiphant FTL41
Product series:

FTL41

Product brand:
E+H/Endress+Hauser
Product feature:
• Process connections: Threads, flanges, and hygienic process connections (Tri-Clamp) • Temperature: -40 to +150°C (-40 to +302°F) • Pressure: -1 to +40 bar (-14.5 to +580 psi) • Sensor material: 316L • International explosion protection certificates, WHG • One measuring system for all liquids. Simple plug-and-play operation based on active sensor technology • Better long-term stability compared to float switches • Repeatable switching point • Universal application for all pumpable liquids • Maintenance-free operation
Favorite
Compare
Measuring principle:
The ultrasonic measurement principle is based on the time-of-flight (ToF) method, measuring the distance between the reference point and the medium surface. The sensor emits ultrasonic pulse signals toward the material surface. The pulse signals are reflected from the material surface and received by the sensor. The transmitter measures the time difference (t) between signal transmission and reception. Based on the time difference (t) and sound velocity (c), the distance is calculated as D = c × t / 2. Based on the distance (D), the level (L), volume (V), and flow rate (Q) in weirs or open channels can also be calculated.
Product positioning:
Economical
Using scenario:
More than 6 million Liquiphant level switches have been successfully installed and operated reliably worldwide. The design features no mechanically moving parts, effectively eliminating the risk of mechanical failures and ensuring stable operation. In addition, no separate instrument settings are required for different media.
