Product name:

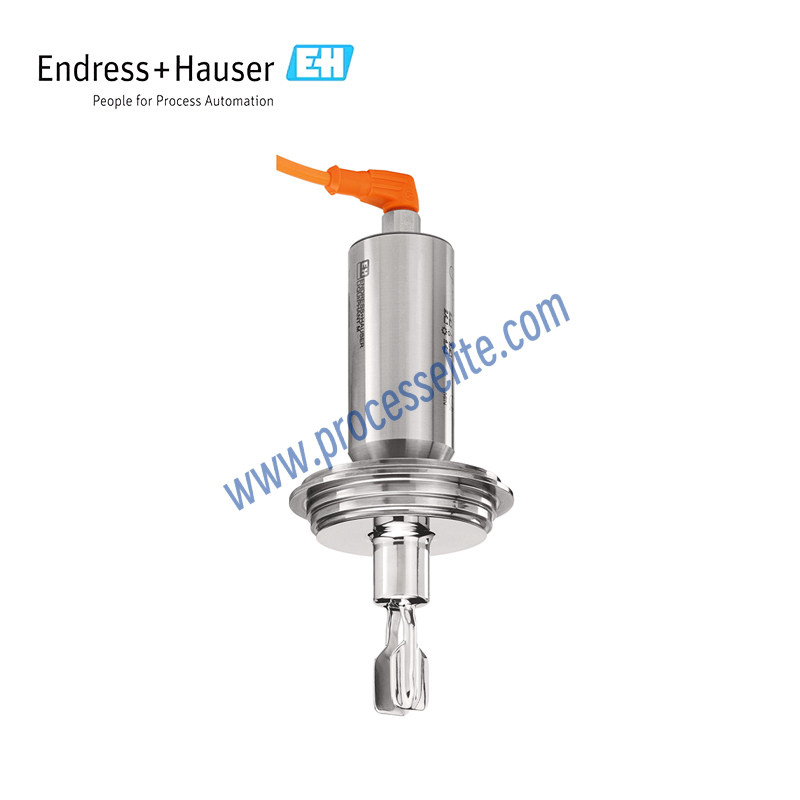

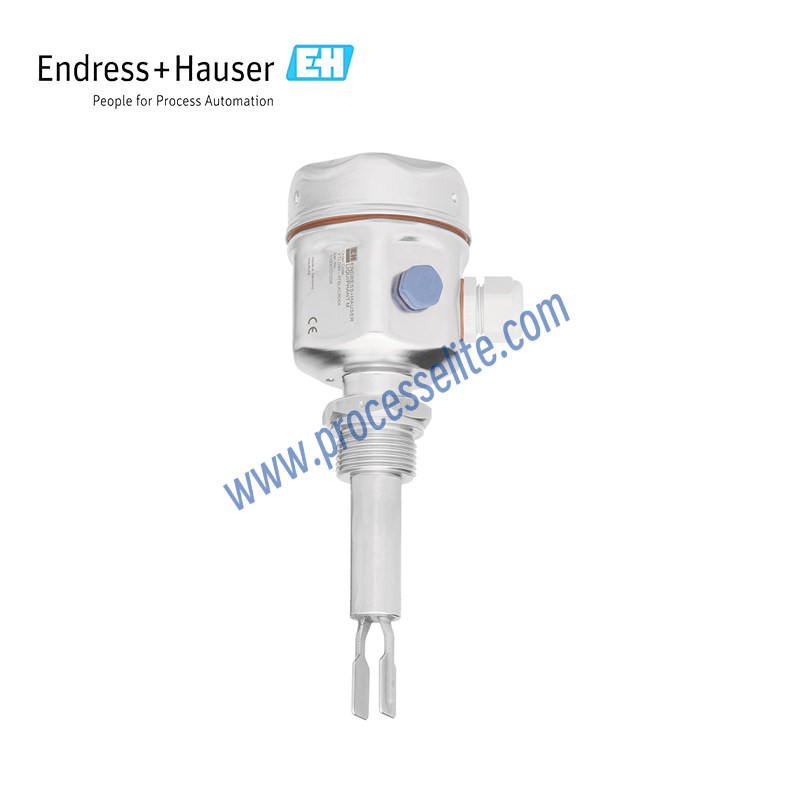

Vibronic Point level detection Liquiphant
Product series:

FTL51H

Product brand:
E+H/Endress+Hauser
Product feature:
• International hygienic certificates (3-A, EHEDG, ASME BPE) and FDA-compliant materials • Electropolished and passivated surface finish for enhanced hygiene and corrosion resistance • International explosion protection certificates and overfill protection certification (WHG) • No mechanically moving parts, ensuring maintenance-free operation, no wear, and long service life • Fork damage monitoring to ensure reliable operation • Suitable for safety systems requiring functional safety up to SIL2/SIL3 according to IEC 61508 / IEC 61511-1 • No calibration required, enabling quick and easy commissioning • Wide range of standardized hygienic process connections for hygiene-critical applications
Favorite
Compare
Measuring principle:
The ultrasonic measurement principle is based on the time-of-flight (ToF) method, measuring the distance between the reference point and the medium surface. The sensor emits ultrasonic pulses toward the material surface. The pulses are reflected at the surface and received by the sensor. The transmitter measures the time difference between pulse transmission and reception. Based on the measured time difference and the sound velocity, the distance is calculated. The measured distance can then be used to determine level, volume, and flow rate in weirs or open channels.
Product positioning:
Standard
Using scenario:
Liquiphant FTL51H tuning fork point level switch with an extension tube is designed for use in hazardous areas and certified according to various international standards. With hygienic certifications including 3-A, EHEDG, and ASME BPE, it is especially suitable for food and life science industries. FTL51H achieves SIL2/SIL3 functional safety and provides the highest level of safety and availability with its second line of defense. The measurement is highly stable and unaffected by flow, turbulence, bubbles, foam, vibration, solids content, or buildup.
