Product name:

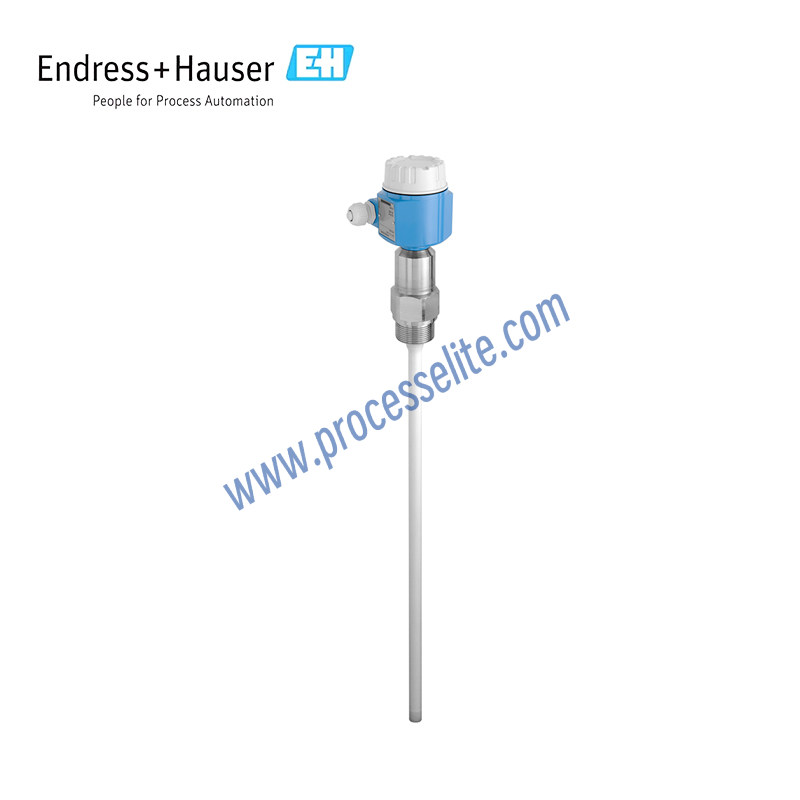

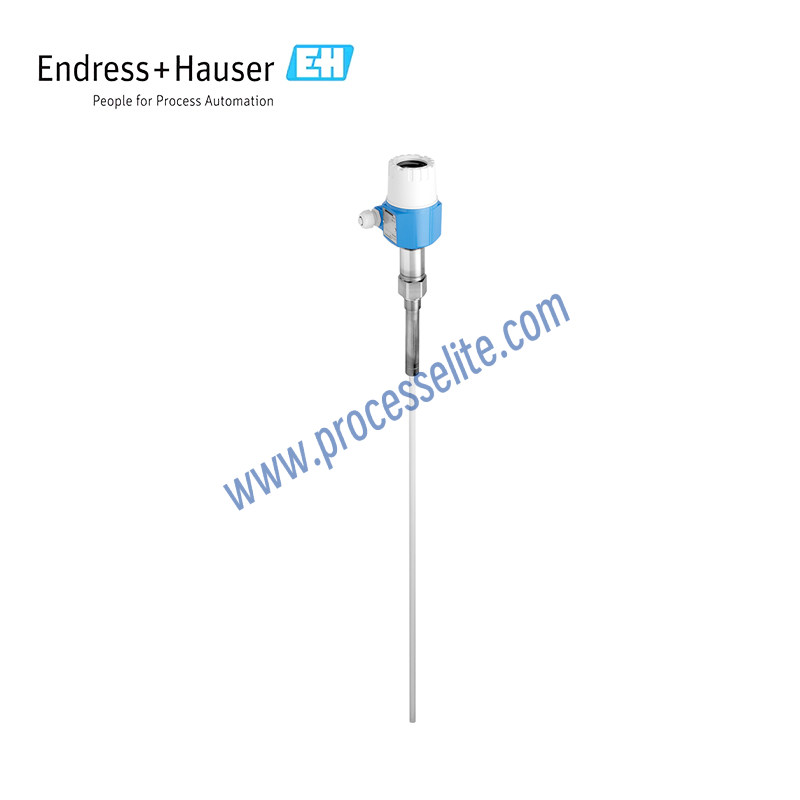

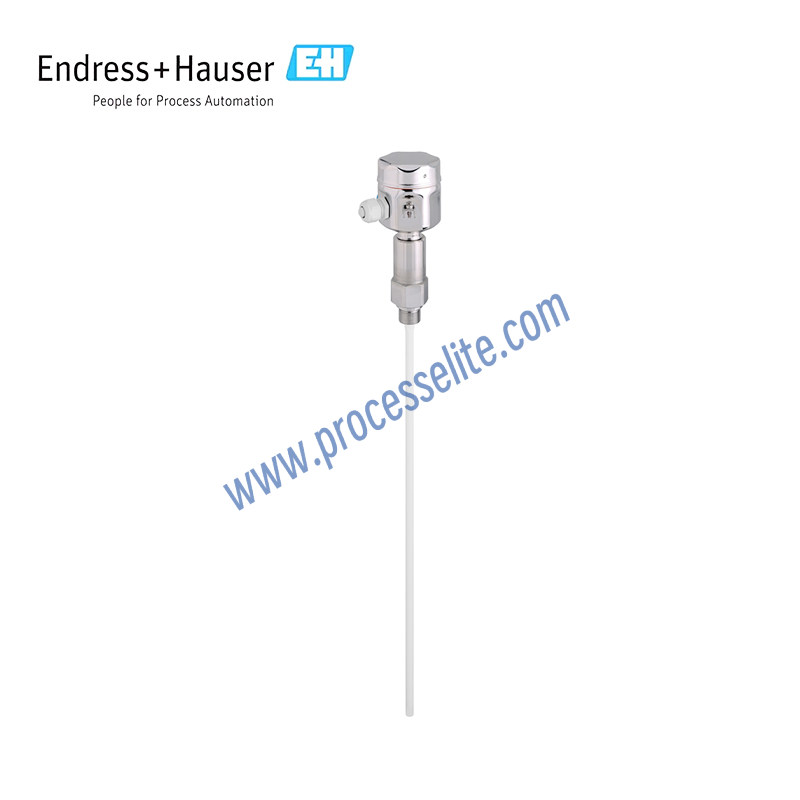

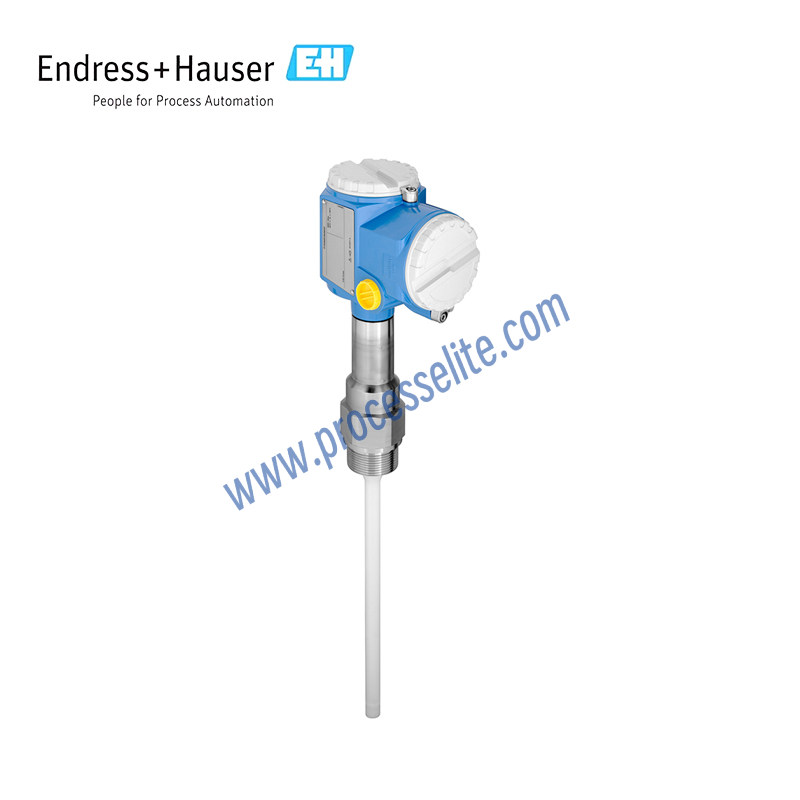

Capacitance Level measurement Liquicap
Product series:

FMI51

Product brand:
E+H/Endress+Hauser
Product feature:
• Suitable for safety systems requiring functional safety up to SIL2 in accordance with IEC 61508 • Reliable and universal application thanks to a wide range of certificates and approvals • No calibration required (factory preconfigured); no calibration required for media with conductivity of 100 μS/cm and higher • Process wetted parts made of corrosion-resistant and FDA-listed materials • Menu-guided local configuration via plain text display (optional) • Two-stage overvoltage protection
Favorite
Compare
Measuring principle:
Capacitive level measurement is based on the principle that changes in material level cause variations in capacitance. The core principle is to determine the material position by detecting the capacitance change between the sensor probe and the measured medium. When the medium approaches the sensor, it changes the distribution of the existing electric field, resulting in a change in capacitance. This change is detected by the electronic circuit and converted into an electrical signal. When the signal reaches the predefined threshold, the instrument triggers a switch output signal.
Product positioning:
Standard
Using scenario:
Liquicap FMI51 is a fully insulated rod probe designed for continuous level measurement in a wide range of liquids. It provides reliable measurement even in media with a tendency for buildup and under extremely high-temperature conditions. The measurement is independent of the dielectric constant (DK value). When combined with Fieldgate FXA320 (remote measured value access via Internet technology), Liquicap offers an ideal solution for inventory management applications.
