Product name:

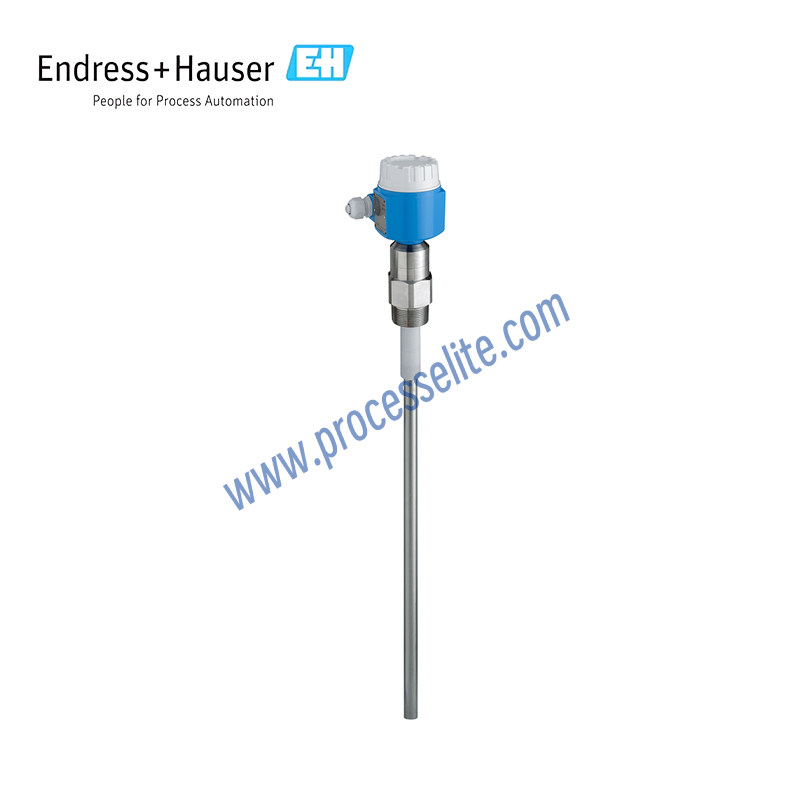

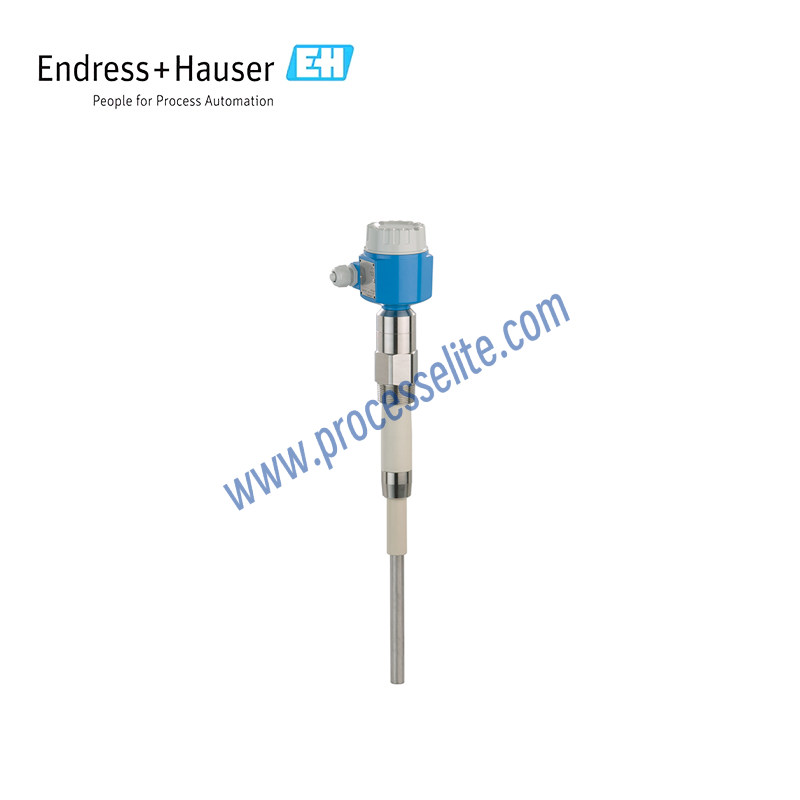

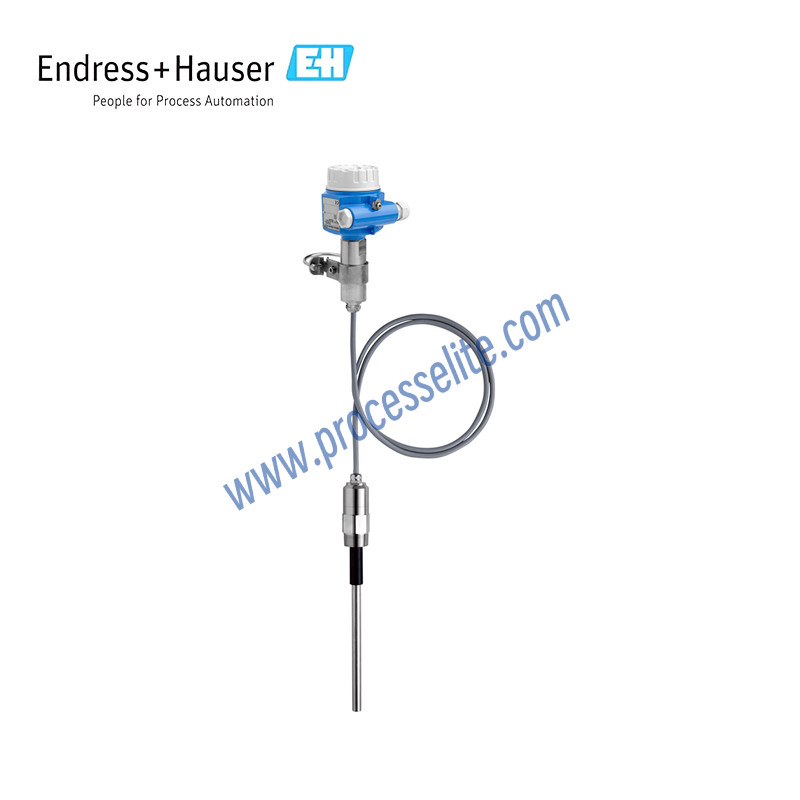

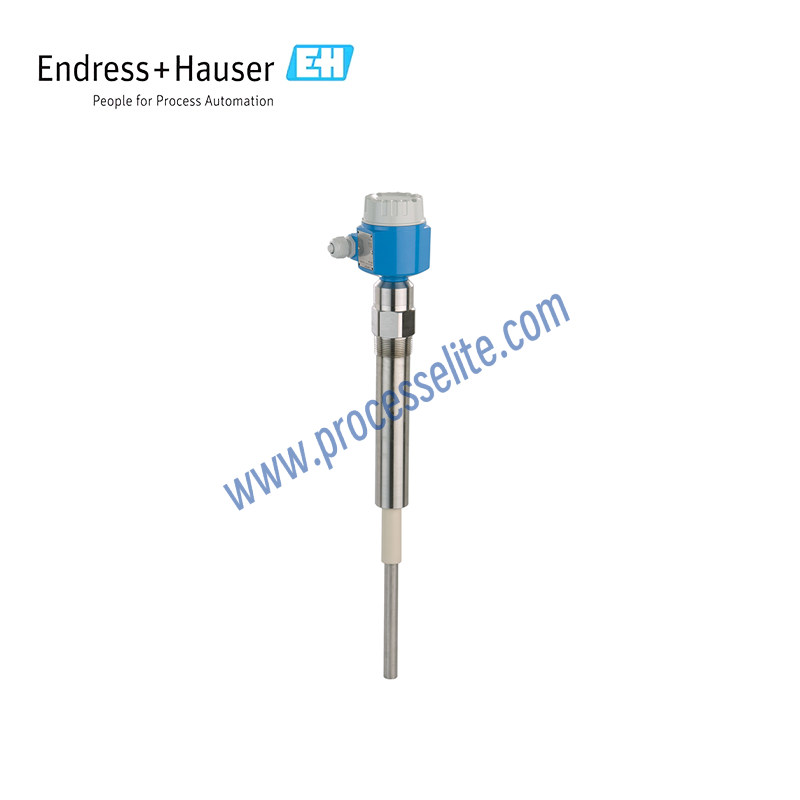

Capacitance Point level detection Solicap
Product series:

FTI55

Product brand:
E+H/Endress+Hauser
Product feature:
• Highest safety and reliability thanks to a robust design for demanding process conditions • Cost savings through easy and fast commissioning with one-button calibration • Universal application thanks to a wide range of certificates and approvals • Two-stage overvoltage protection against static discharges from the silo • Active buildup compensation for bulk solids with a tendency to cake (under development) • Enhanced safety through continuous automatic monitoring of the electronics • Reduced storage costs thanks to easily shortened rod version (partially insulated) and rope version (partially and fully insulated)
Favorite
Compare
Measuring principle:
Capacitive level measurement is based on the principle that changes in material level cause variations in capacitance. The core principle is to determine the material position by detecting the capacitance change between the sensor probe and the measured medium. When the medium approaches the sensor, it changes the distribution of the existing electric field, resulting in a change in capacitance. This change is detected by the electronic circuit and converted into an electrical signal. When the signal reaches the predefined threshold, the instrument triggers a switch output signal.
Product positioning:
Standard
Using scenario:
Solicap FTI55 fully or partially insulated rod probes are designed for point level detection of fine and coarse-grained bulk solids. With automatic buildup compensation, the probe provides maximum measurement reliability and supports a wide range of applications through various certifications and approvals. Thanks to its robust design, the FTI55 delivers highly accurate measurement under high lateral loads of up to 300 Nm.
