Product name:

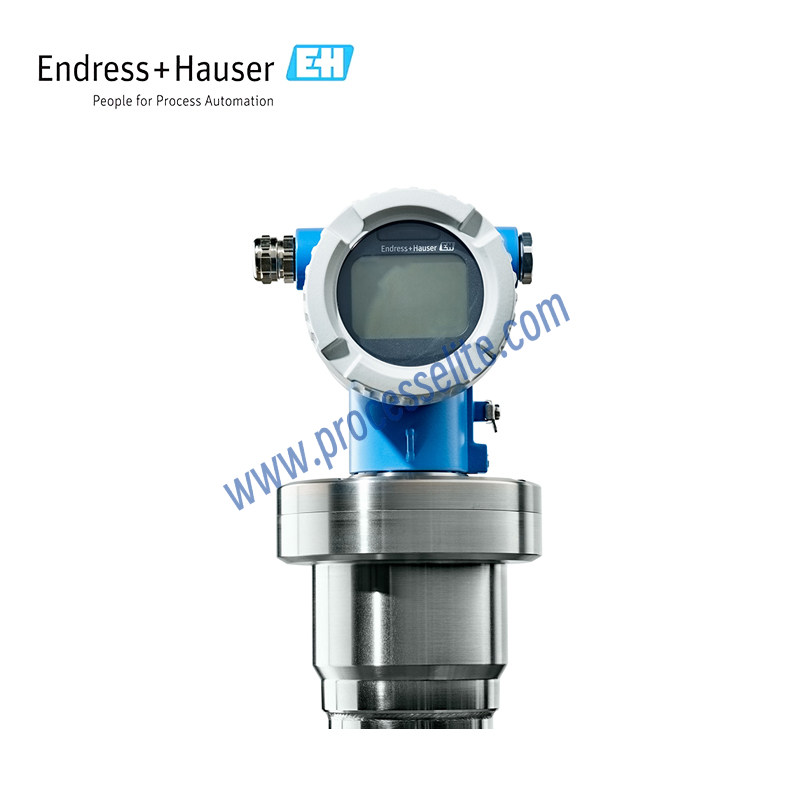

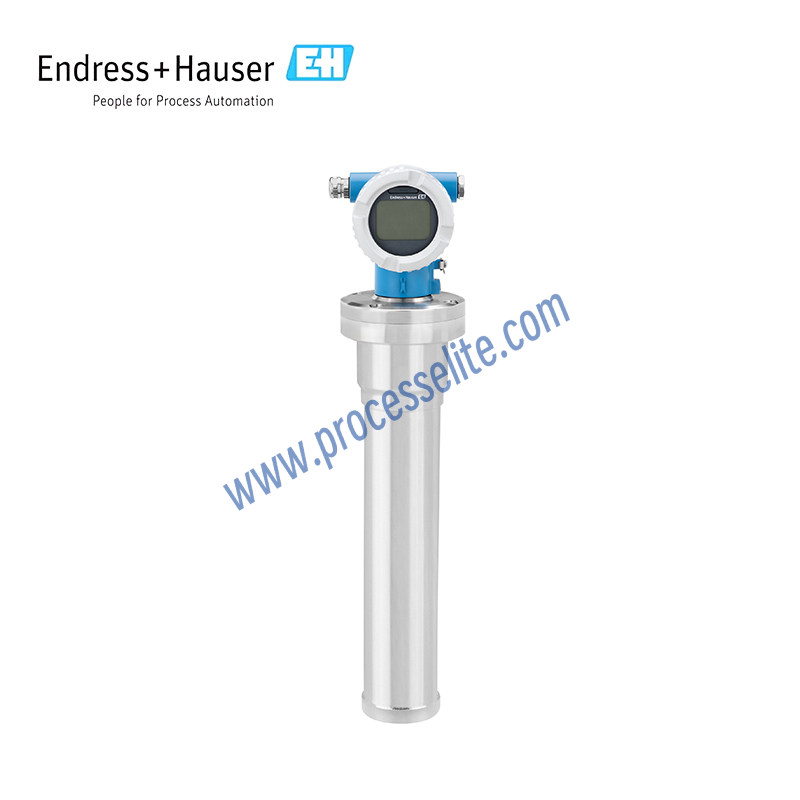

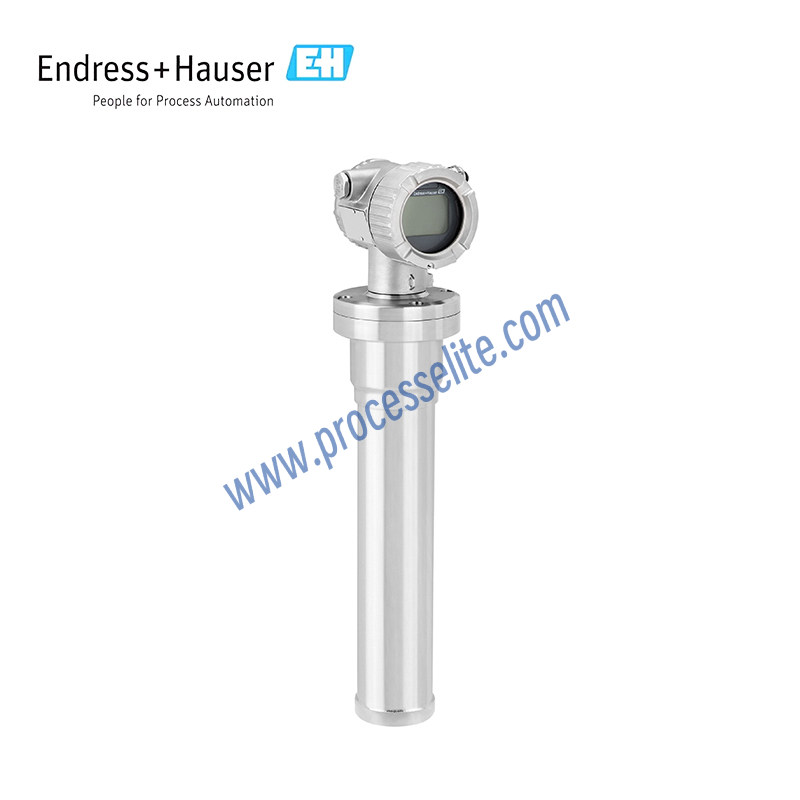

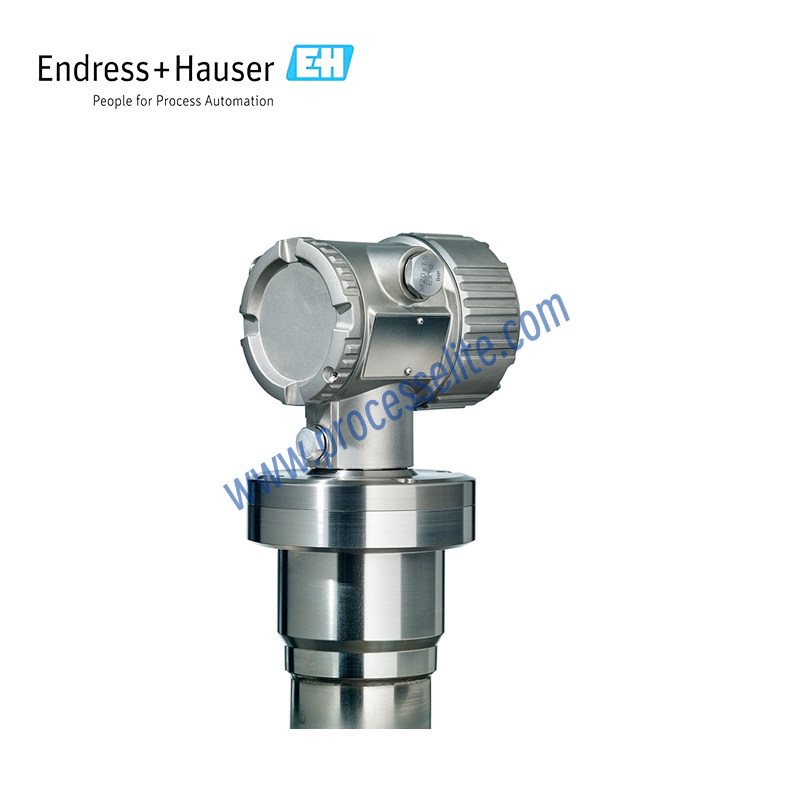

Radiometricy measurement Gammapilot FMG50
Product series:

FMG50

Product brand:
E+H/Endress+Hauser
Product feature:
Compact transmitter advantages • First true 2-wire loop-powered compact transmitter, reducing engineering and installation efforts • Lower installation and engineering costs with 2-wire loop-powered design Safety & reliability • Improved plant safety, efficiency, and availability even under extreme process and ambient conditions • Designed according to IEC 61508 with SIL2/3 approval for various measurement tasks Efficient maintenance • Heartbeat Technology reduces verification efforts and minimizes plant downtime High-temperature capability • Innovative sensor technology enables operation in ambient temperatures up to +80°C (+176°F) without additional cooling Remote operation • Bluetooth® wireless technology enables remote operation outside the radiation beam area
Favorite
Compare
Measuring principle:
Gamma radiation is attenuated when passing through materials. Radiometric level limit detection works based on this principle. The attenuation depends on material density (ρ), thickness (d), and linear attenuation coefficient (µ), which is determined by the radiation source type. Formula: Fs = e^(-µρd) The Gamma source and Gammapilot detector are installed on opposite sides of the vessel at the same height as the detection point. During level limit detection, µ and d remain constant, and radiation intensity varies only with the measured medium. • Radiation path uncovered (no medium) → FTG20 counting rate reaches maximum. • Radiation path covered by medium → Radiation attenuation occurs, FTG20 counting rate reaches minimum.
Product positioning:
Expert
Using scenario:
The Gammapilot FMG50 compact transmitter enables non-contact level limit detection, continuous level measurement, interface measurement, and density measurement for liquids, solids, suspensions, and sludges. As the first 2-wire loop-powered compact transmitter, it significantly reduces engineering and installation efforts.
