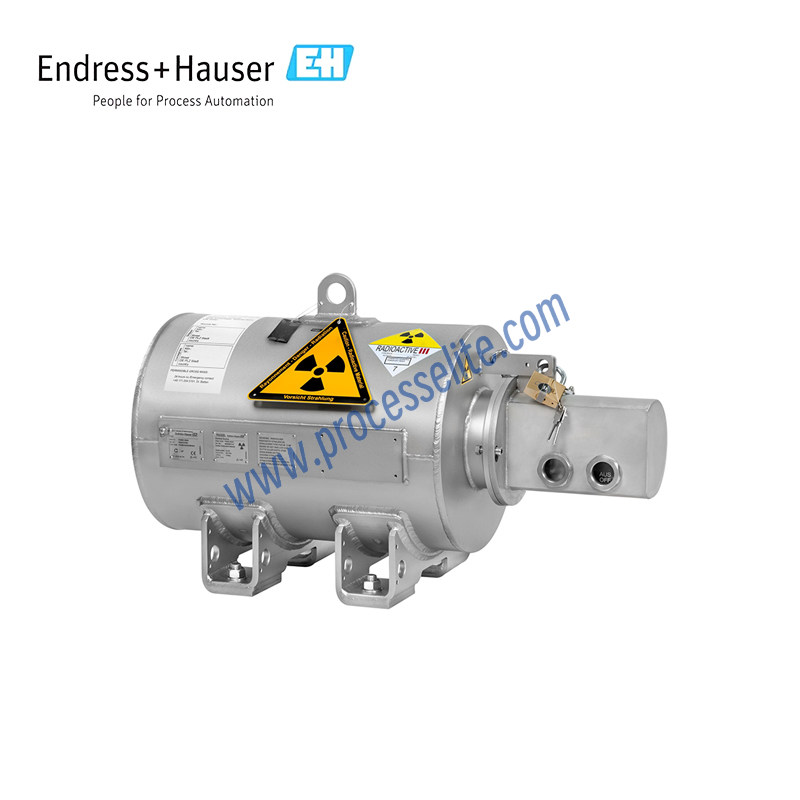

FQG66 Radiometric Level and density Source Container - Processelite
*Picture for reference only !

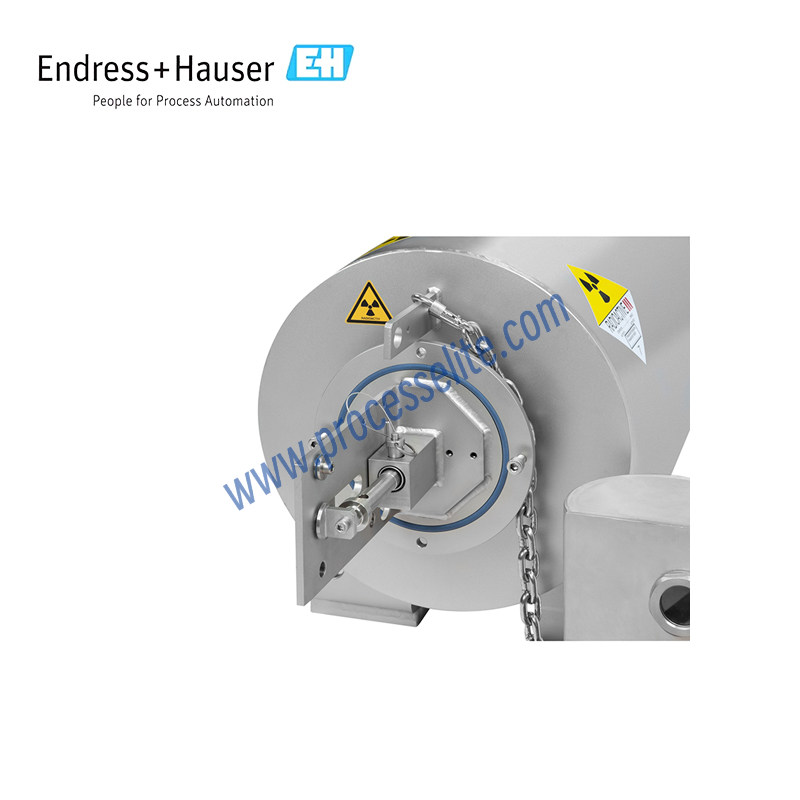

FQG66 Radiometric Level and density Source Container - Processelite
*Picture for reference only !

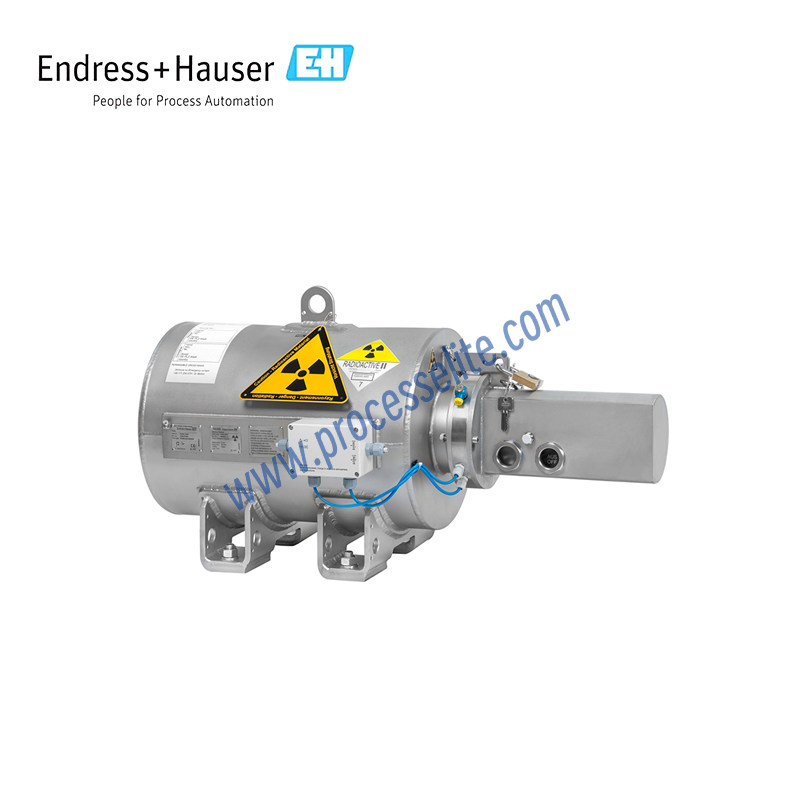

FQG66 Radiometric Level and density Source Container - Processelite
*Picture for reference only !
FQG66 Radiometric Level and density Source Container - Processelite
*Picture for reference only !

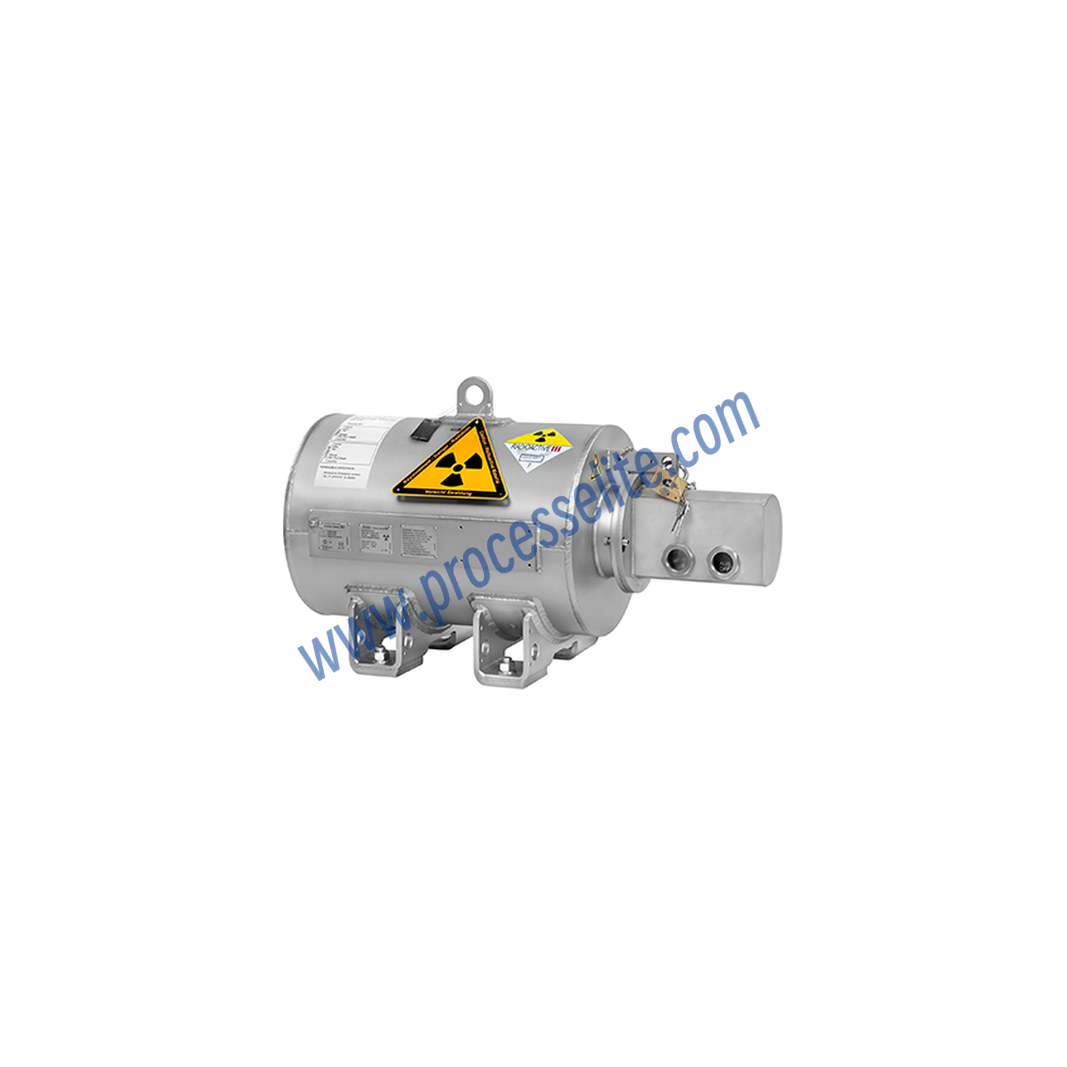

FQG66 Radiometric Level and density Source Container - Processelite

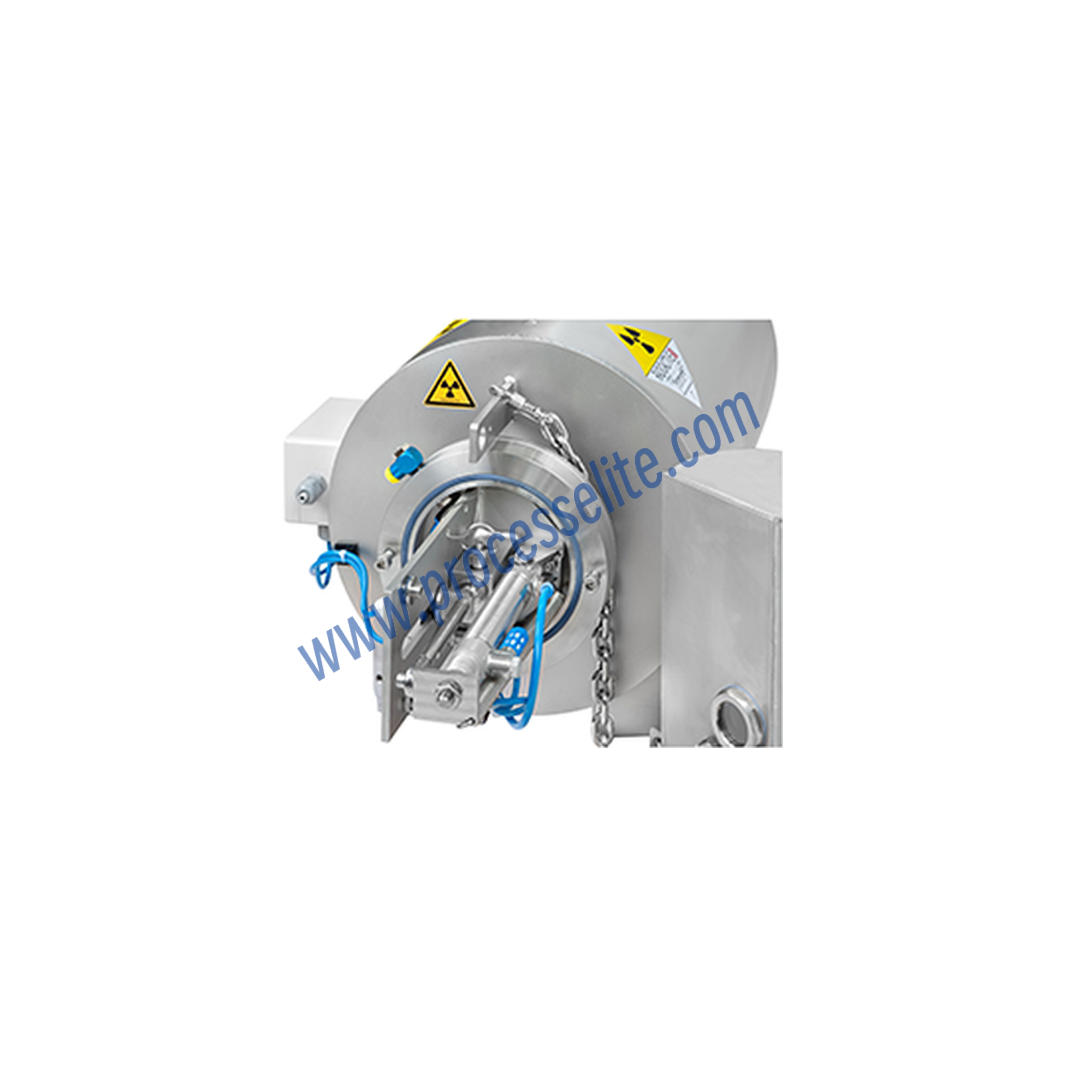

FQG66 Radiometric Level and density Source Container - Processelite

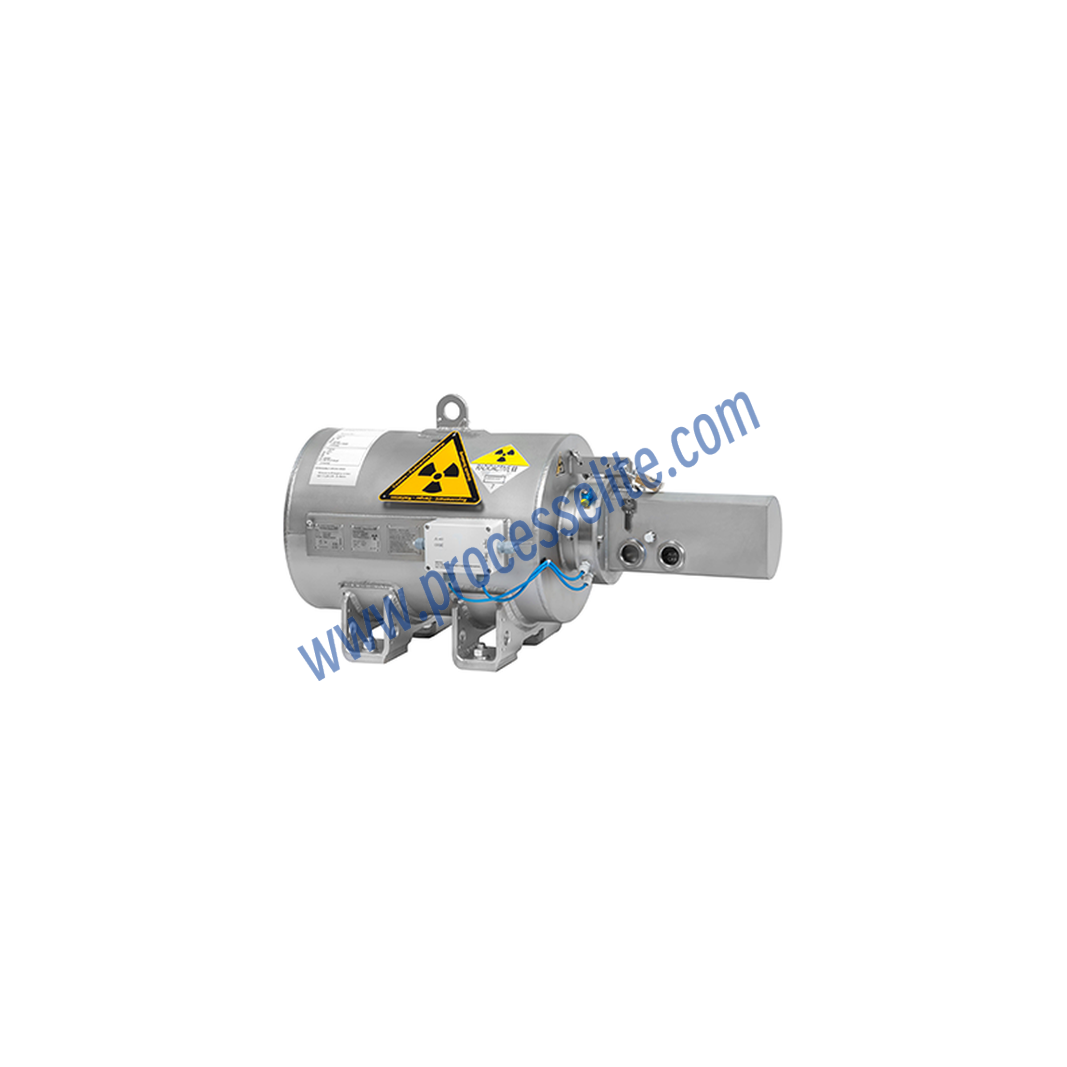

FQG66 Radiometric Level and density Source Container - Processelite

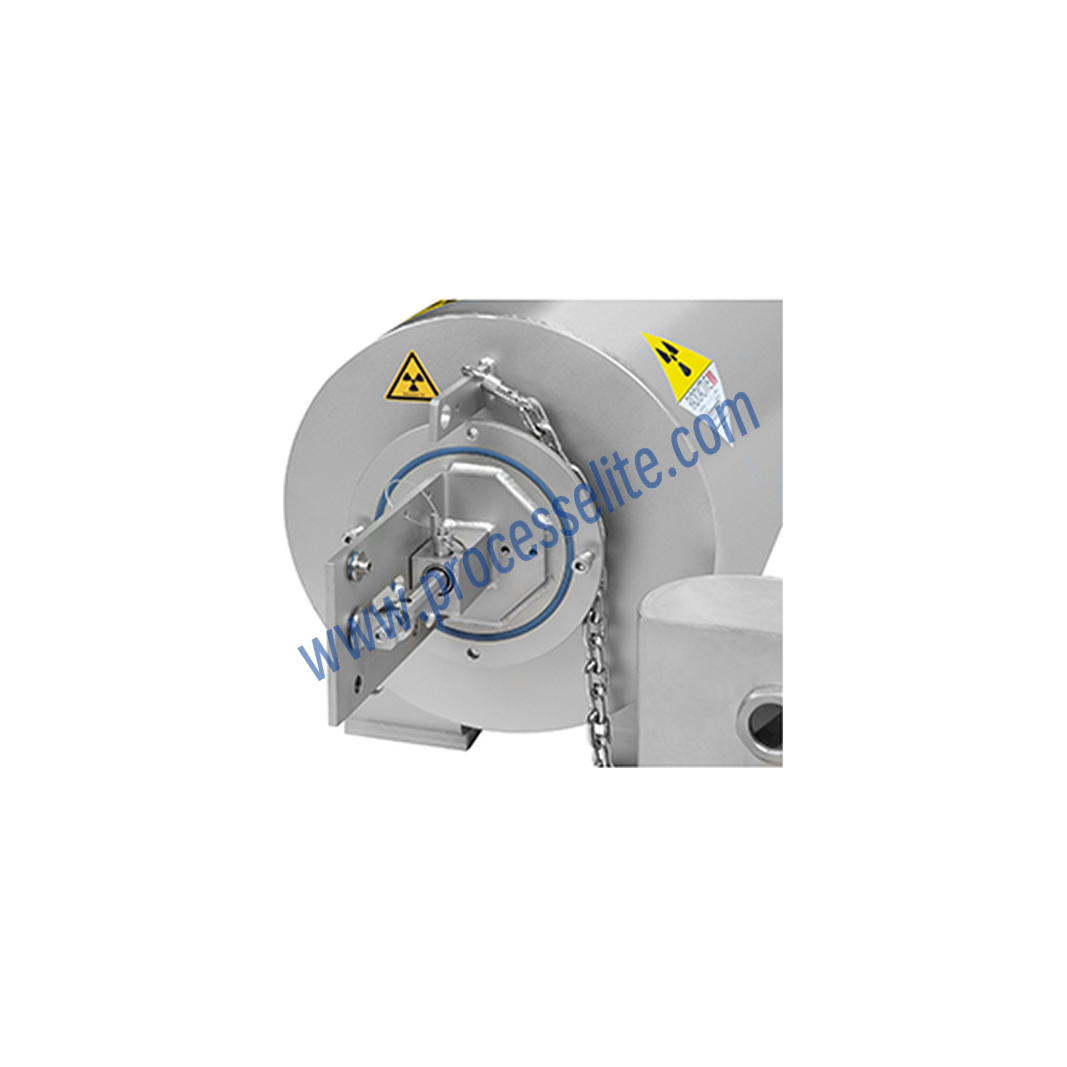

FQG66 Radiometric Level and density Source Container - Processelite
Product name:
Radiometric Level and density Source Container
Product series:

FQG66

Product brand:
E+H/Endress+Hauser
Product feature:
• High safety level with the highest safety classification for the supplied source (DIN 25426/ISO 2919, typically C66646) and simple source replacement • Extremely high shielding performance eliminates the need for controlled areas in most cases and enables installation in accessible areas • Additional metallic protective capsule with O-ring seal protects the source against mechanical and chemical influences • Compact design, easy installation, and various emission angles for optimal adaptation to different applications • Padlock for securing the ON/OFF switch position and preventing unauthorized removal • Easy identification of switch status via sight glass on the cover or remote display with proximity switches
Favorite
Compare
Measuring principle:
Gamma radiation is attenuated when passing through materials. The radiation-based level limit detection principle determines the medium presence by measuring changes in radiation intensity. • The attenuation depends on material density (ρ), thickness (d), and linear attenuation coefficient (µ) • The Gamma source and Gammapilot are installed opposite each other at the required detection point • When the radiation path is clear, FTG20 counting rate reaches the maximum value • When the radiation path is covered by the medium, radiation attenuation increases and FTG20 counting rate decreases • µ and d remain constant during measurement, and radiation intensity changes only with the measured medium level
Product positioning:
Expert
Using scenario:
The FQG66 radiation source container is used to hold radiation sources for radiation-based level limit detection, continuous level measurement, and density measurement. • Radiation is emitted almost without attenuation in one direction, while being shielded in all other directions • Ensures maximum personnel safety and reliable measurement performance • Suitable for demanding industrial applications requiring high safety standards
