Product name:
Ultrasonic measurement Time-of-Flight FMU95
Product series:

FMU95

Product brand:
E+H/Endress+Hauser
Product feature:
• Simple, menu-guided operation with a 6-line plain text display and 15 selectable languages • Envelope curves displayed for quick and easy diagnostics • Easy operation, diagnostics, and measuring point documentation with the supplied "Field Care" operating program • Time-of-Flight correction via integrated or external temperature sensors • Linearization function with up to 32 freely configurable points • System integration via PROFIBUS DP with up to 20 measured values • Automatic detection of FDU9x sensors
Favorite
Compare
Measuring principle:
Ultrasonic measurement is based on the time-of-flight principle, measuring the distance between the reference point and the medium surface. The sensor emits ultrasonic pulse signals toward the material surface. The pulse signals are reflected by the surface of the medium and received by the sensor. The transmitter measures the time difference (t) between signal transmission and reception. Based on the time difference (t) and the sound velocity (c), the distance is calculated as: Distance D = c × t / 2 Based on the measured distance D, the instrument can further calculate the level (L), volume (V), and flow rate (Q) in weirs or open channels.
Product positioning:
Expert
Using scenario:

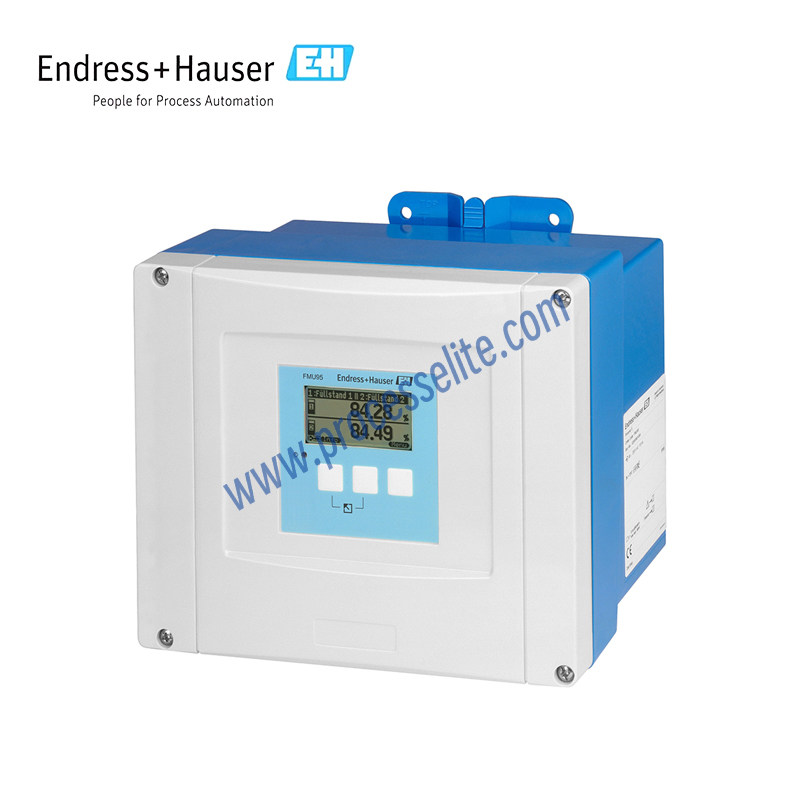

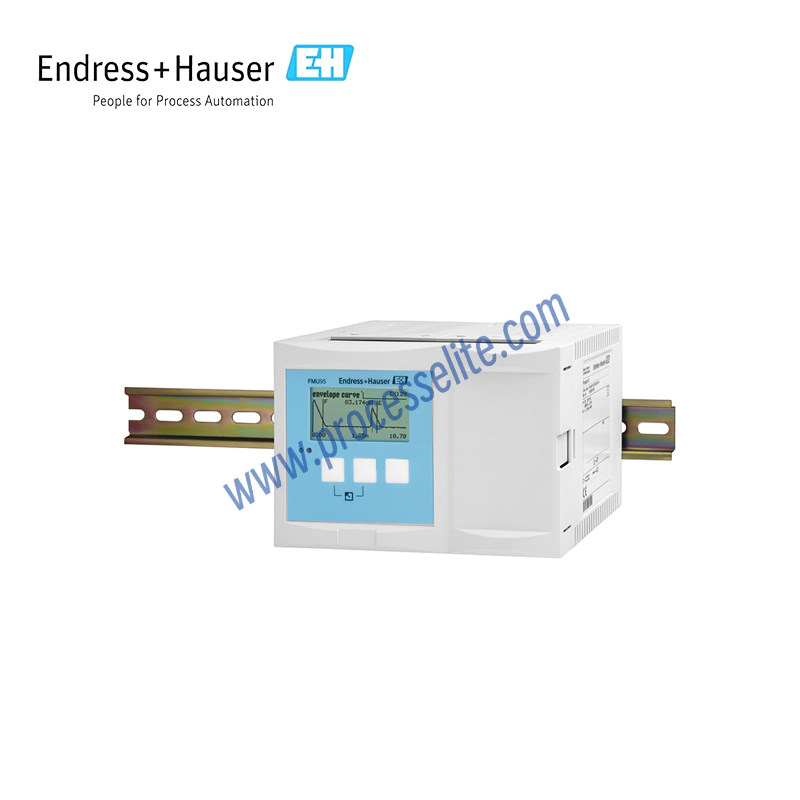

The FMU95 separate transmitter can be installed in the field or mounted on a DIN rail inside an instrument cabinet. It is suitable for continuous, non-contact level measurement of liquids, slurries, sludge, powders, and bulk solids.
