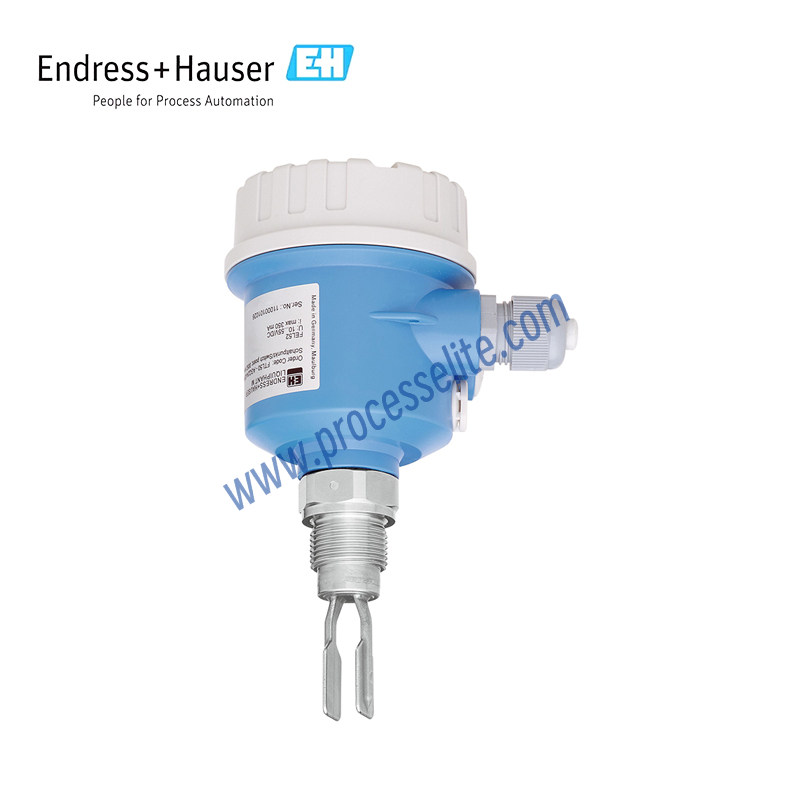

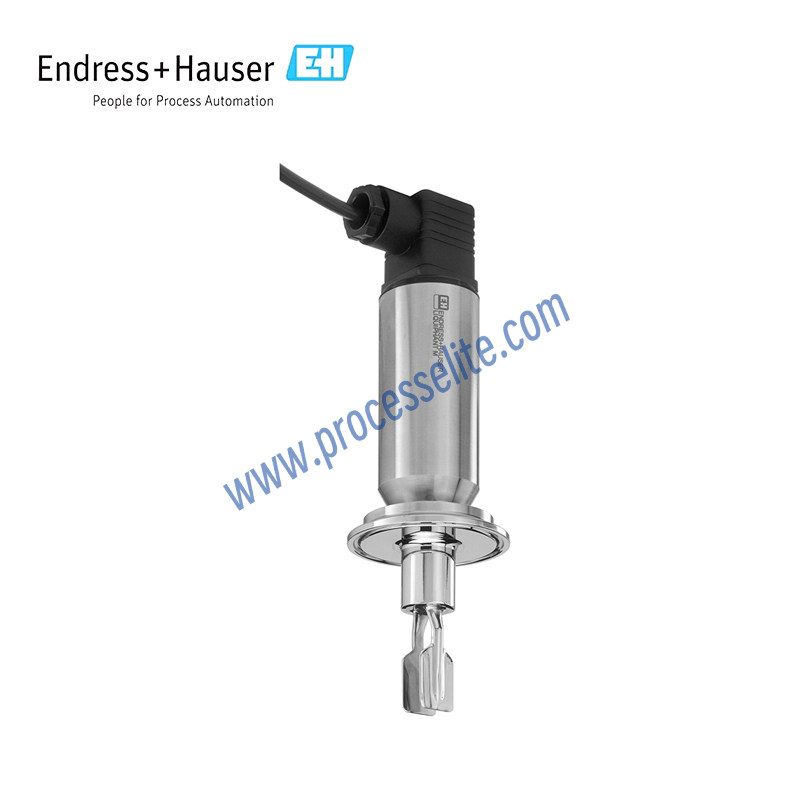

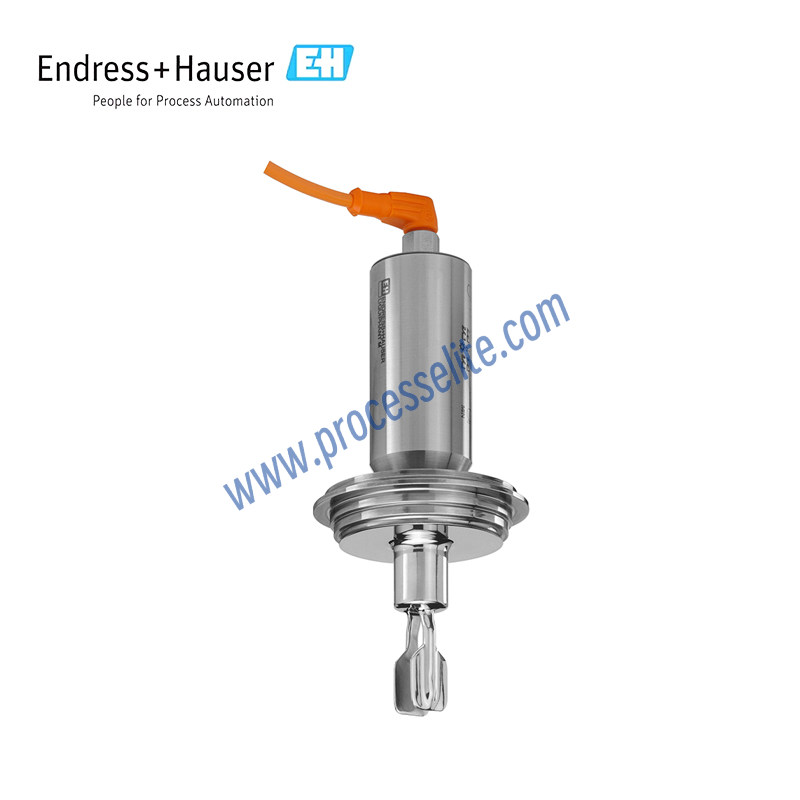

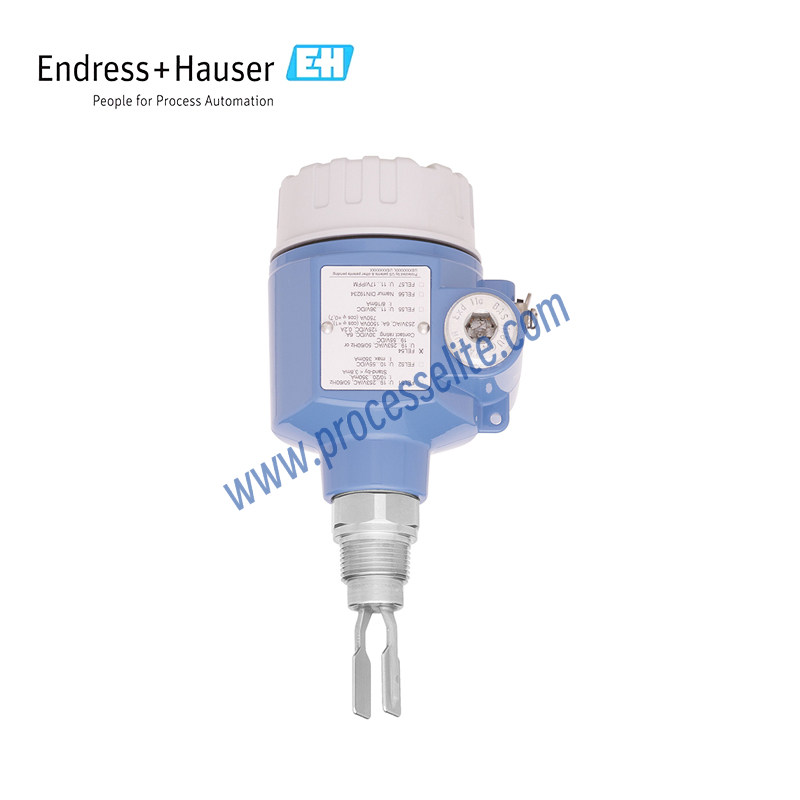

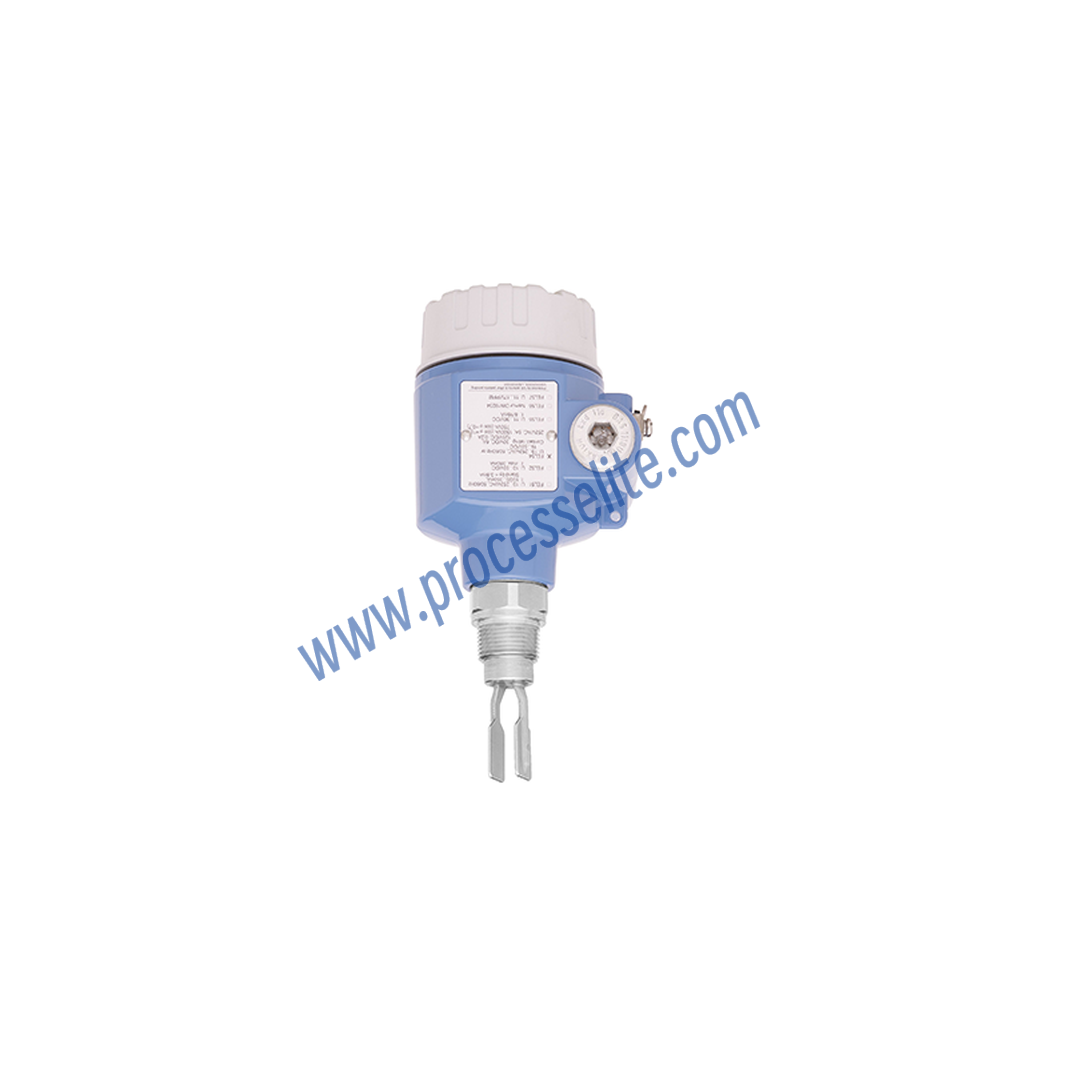

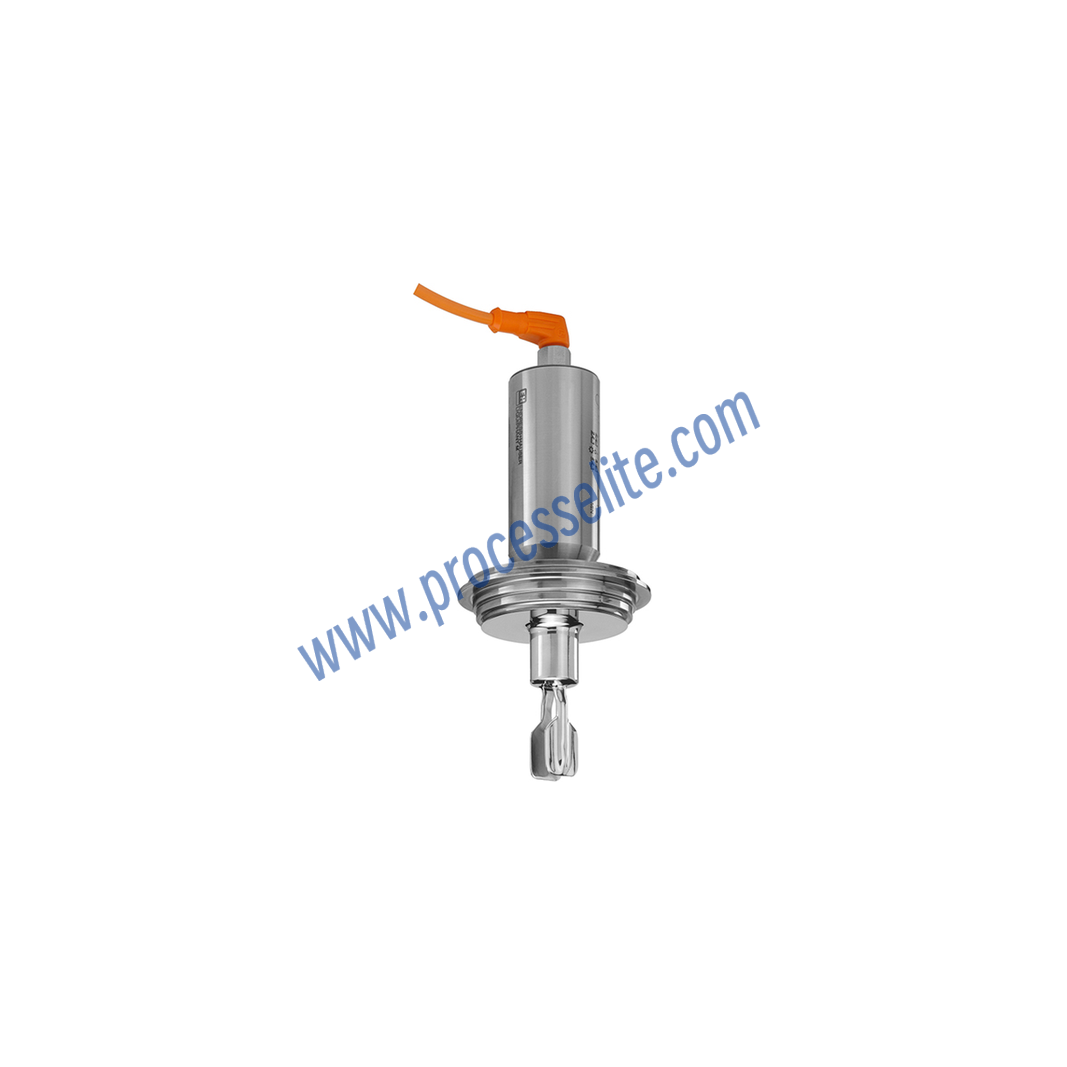

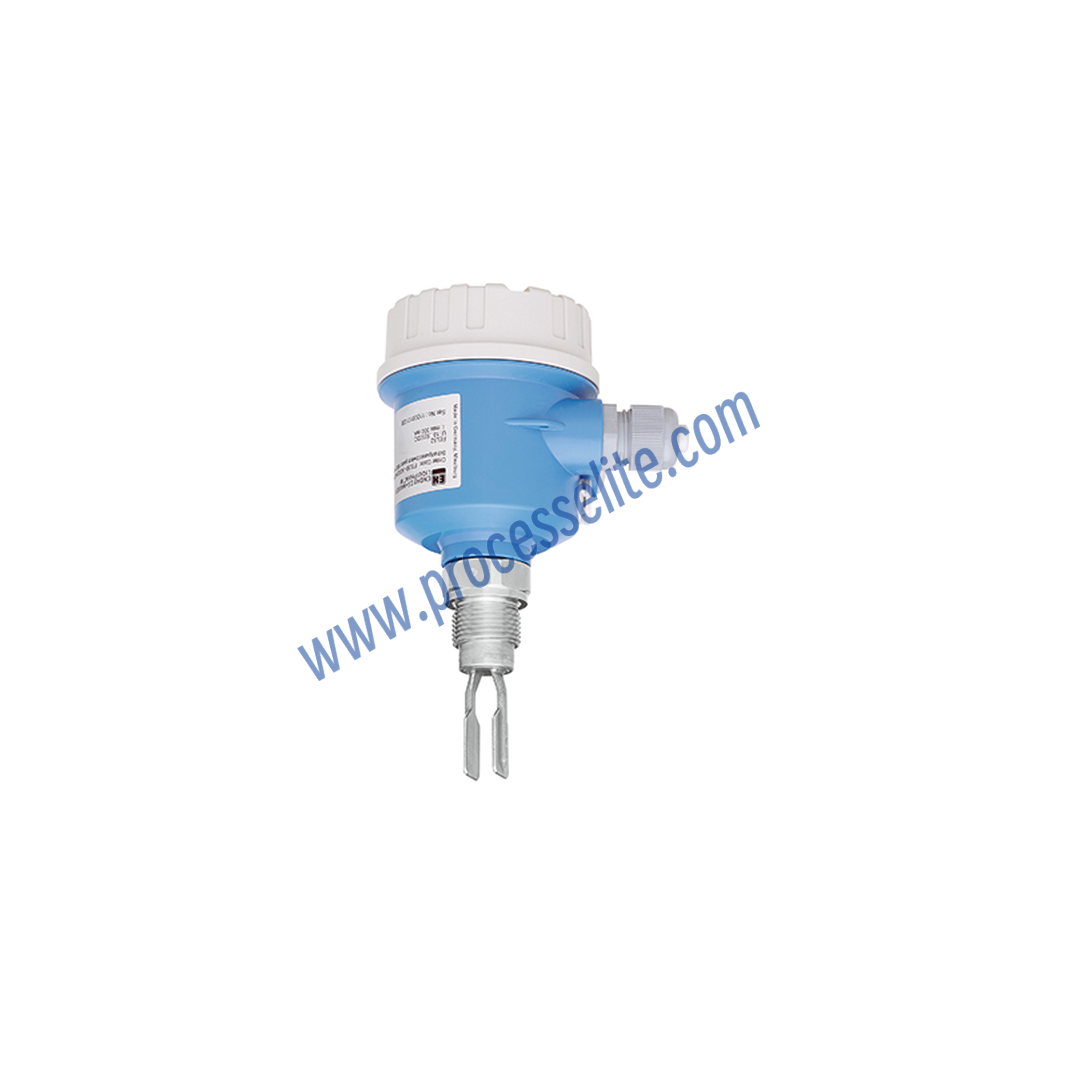

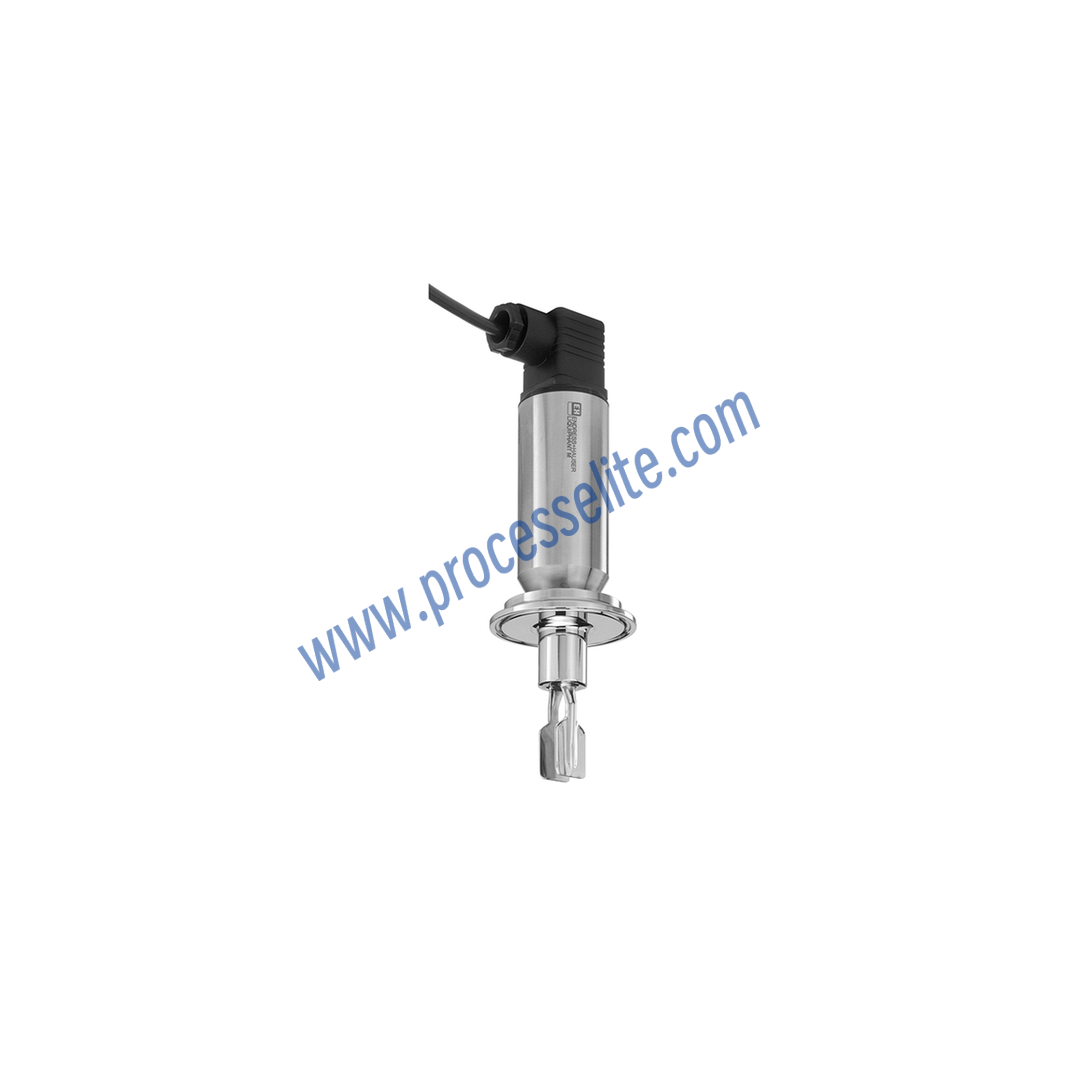

FTL50

The tuning fork measurement principle is based on a vibrating rod driven by a piezoelectric crystal, which oscillates at its resonance frequency. When the tuning fork comes into contact with the liquid, the adhesion force of the medium significantly increases the damping effect, resulting in a decrease in vibration amplitude and a shift in frequency. For solid level detection, the tuning fork requires a special design (such as an extended fork length). When the fork is completely covered by the material, the vibration amplitude drops significantly, triggering a switching signal. The built-in electronic circuit continuously monitors changes in vibration parameters and activates the relay output signal through threshold comparison. Key advantages include non-contact detection (only the fork tip contacts the medium), a fully solid-state wear-free design, and fast response time. It is suitable for level monitoring of liquids and granular solids. Typical applications include level control in chemical storage tanks, wastewater treatment systems, and the food industry.

Standard

Liquiphant FTL50 tuning fork point level switch can be used in hazardous areas and has obtained various international certifications, making it suitable for all industries. • Functional safety up to SIL2/SIL3 ensures enhanced safety and availability, with a second line of protection providing maximum operational reliability • Stable measurement performance, unaffected by flow, turbulence, air bubbles, foam, vibration, solids content, or buildup • Suitable for reliable point level detection in a wide range of liquid applications, including chemical, wastewater, and process industries
