FMR60

Radar measurement is a top-down measuring system based on the Frequency Modulated Continuous Wave (FMCW) principle. It calculates the distance by transmitting a linearly frequency-modulated signal and analyzing the frequency difference between the reflected echo signal and the reference signal. The antenna transmits an FMCW signal, typically in the form of a triangular wave or sawtooth wave, with the frequency changing linearly over a defined range. When the transmitted signal reaches the surface of the medium, it is reflected back and coherently mixed with the reference signal to generate a beat frequency. By measuring the frequency difference of the beat signal, the signal travel time can be determined. The level height is then accurately calculated using the formula: Distance = (Wave velocity × Time difference) / 2 Combined with the predefined empty tank height parameter, the instrument automatically converts the measured distance into the actual level value. The FMCW method provides strong resistance to interference and high measurement accuracy, but it has a relatively higher cost.

Standard

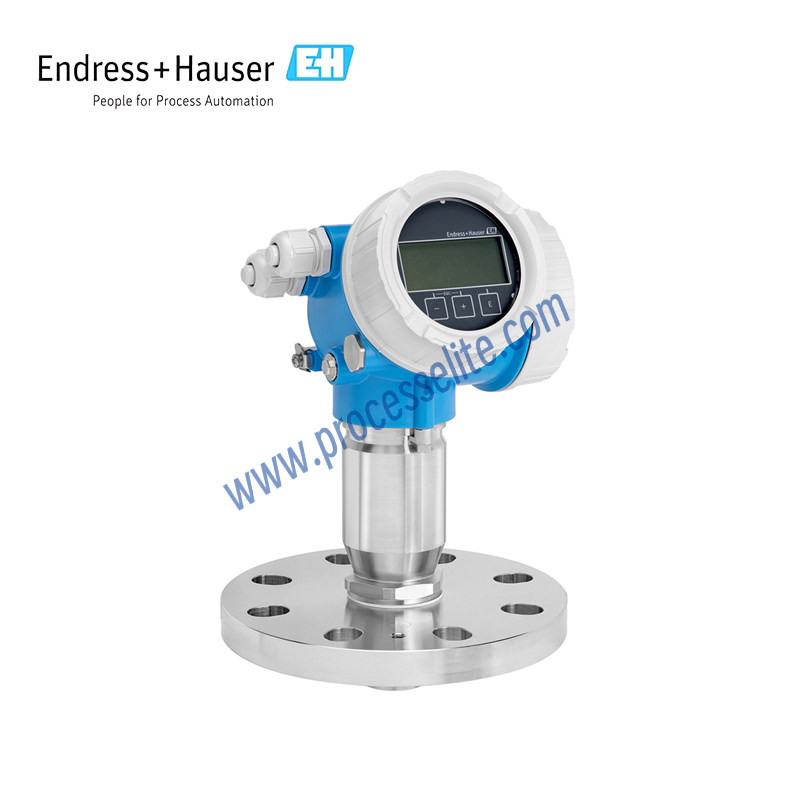

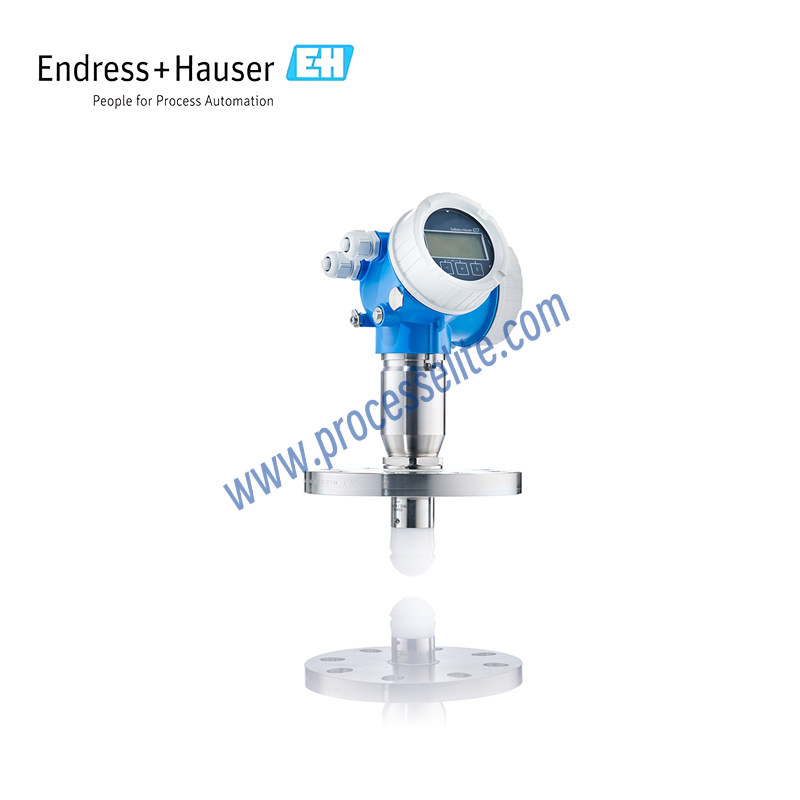

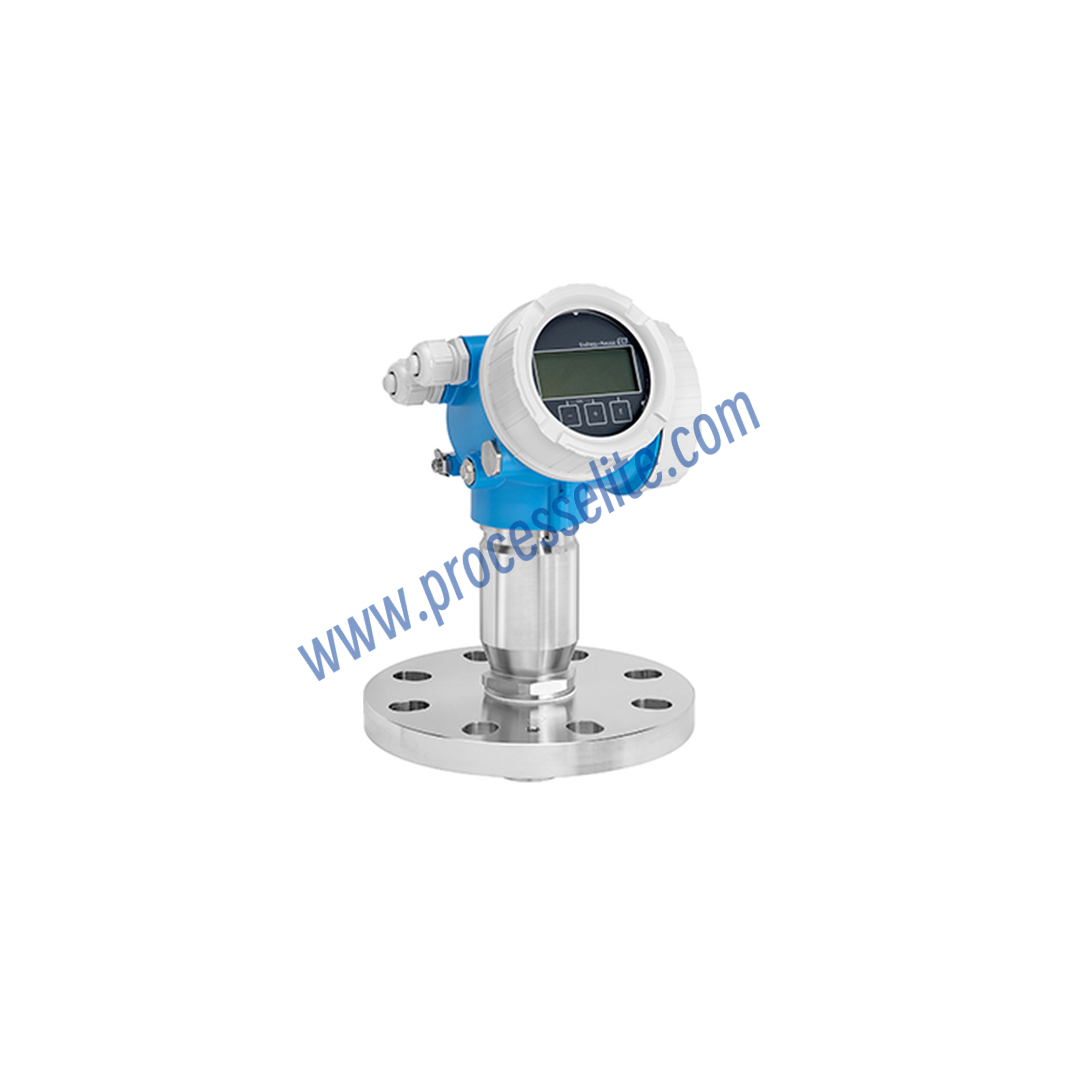

Micropilot FMR60 is the first 80 GHz radar designed by Endress+Hauser in compliance with the IEC 61508 international functional safety standard. The non-contact radar technology features a drip-off antenna, advanced algorithms, and a narrow beam angle, ensuring high measurement reliability. • Enables non-contact continuous level measurement of liquids, slurries, and sludge • Measurement results are unaffected by changes in medium properties, temperature fluctuations, gas layers, or vapor • Equipped with Heartbeat Technology for intelligent sensor monitoring and diagnostics • The 80 GHz drip-off antenna enables free-space measurement with a maximum measuring range of 50 m • The highly focused beam angle makes it suitable for applications with multiple interfering objects inside vessels
