FMR62

Radar measurement is a top-down measuring system based on the Frequency Modulated Continuous Wave (FMCW) principle. It transmits a linearly frequency-modulated signal and calculates the distance by analyzing the frequency difference between the received echo signal and the reference signal. The antenna transmits an FMCW signal, typically in the form of a triangular wave or sawtooth wave, with the frequency changing linearly within a defined range over time. When the transmitted signal reaches the surface of the medium, it is reflected back and mixed coherently with the reference signal to generate a beat frequency. By measuring the frequency difference of the beat signal, the signal travel time can be determined. The distance is then accurately calculated using the formula: Distance = (Wave velocity × Time difference) / 2 The instrument calculates the level height based on the measured distance and automatically converts it into the actual level value by combining it with the predefined empty tank height parameter. The FMCW technology provides strong interference resistance and high measurement accuracy, but with a relatively higher cost.

Standard

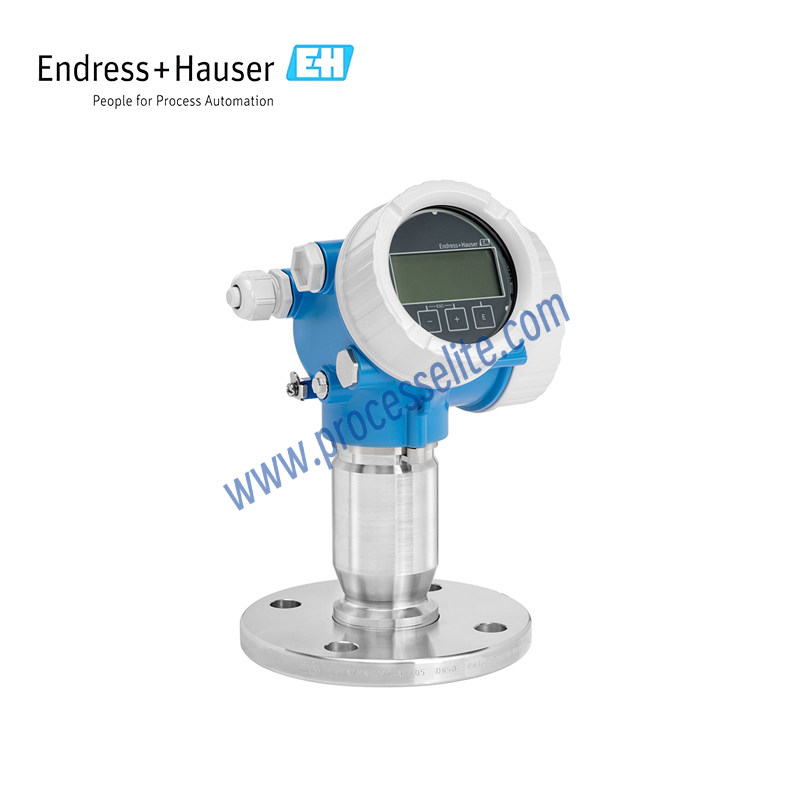

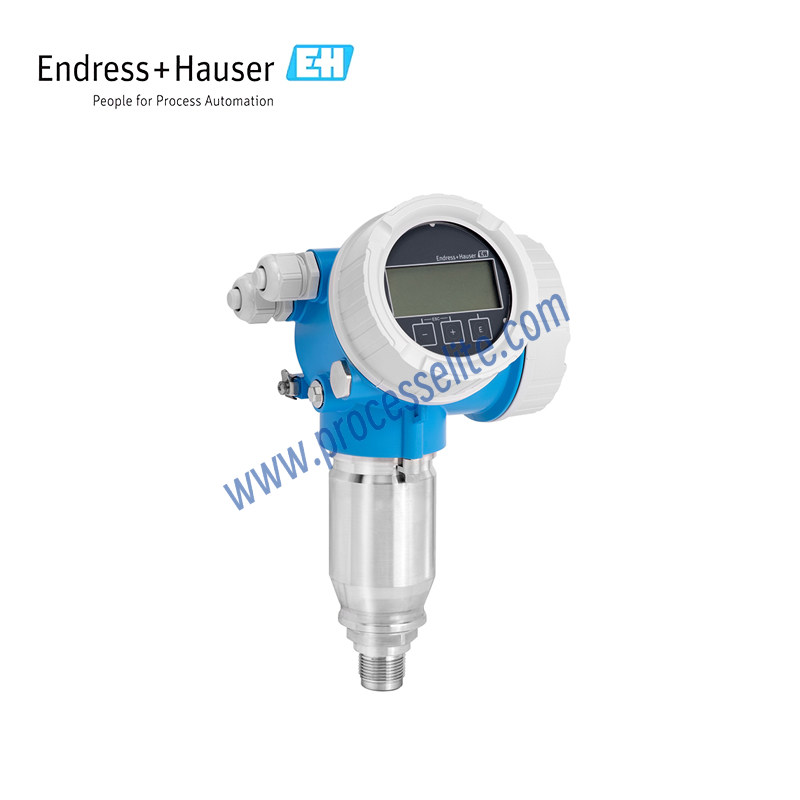

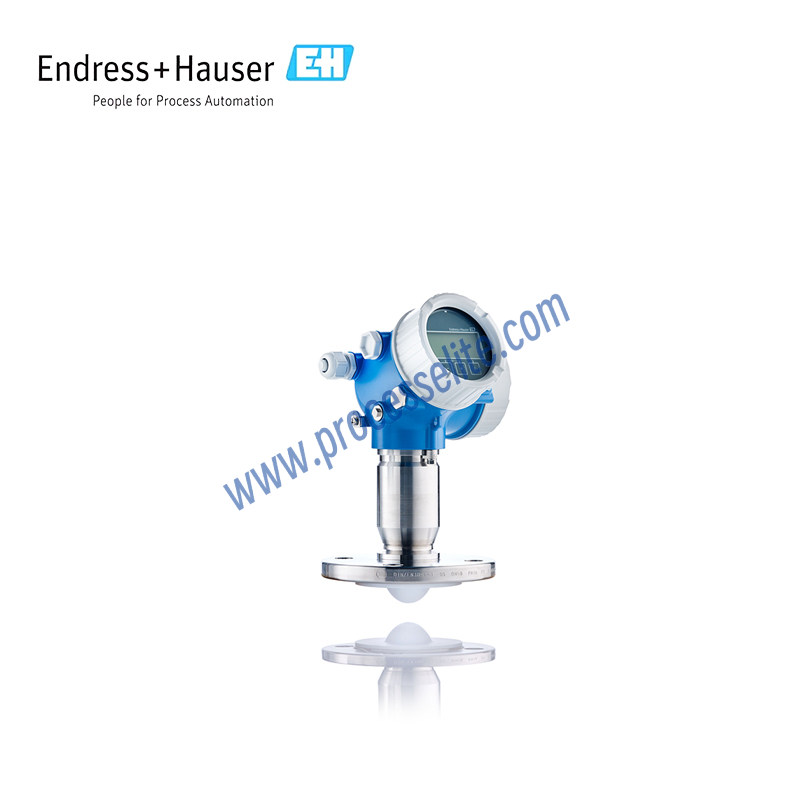

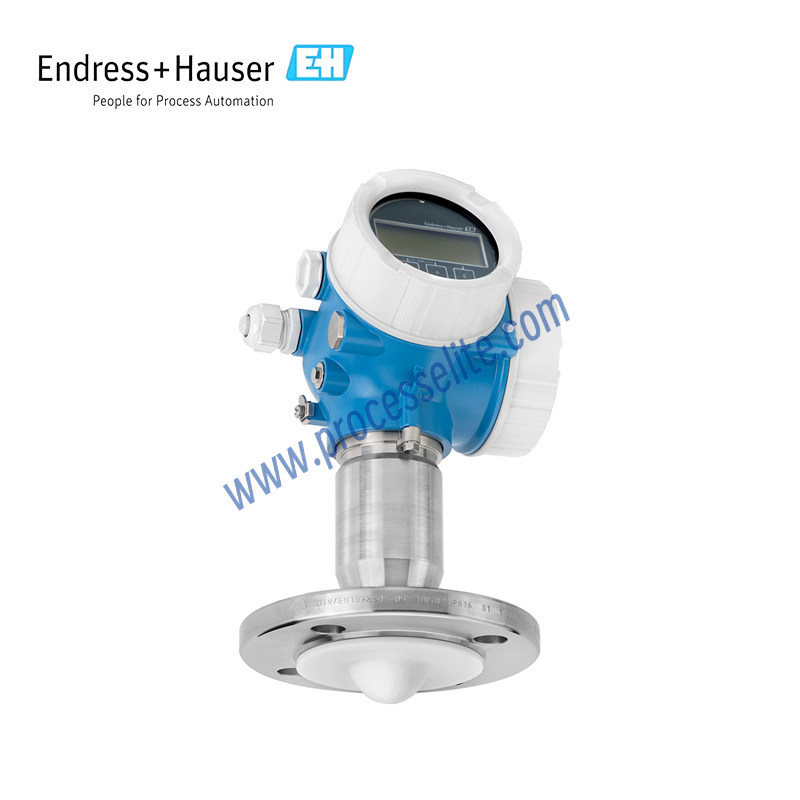

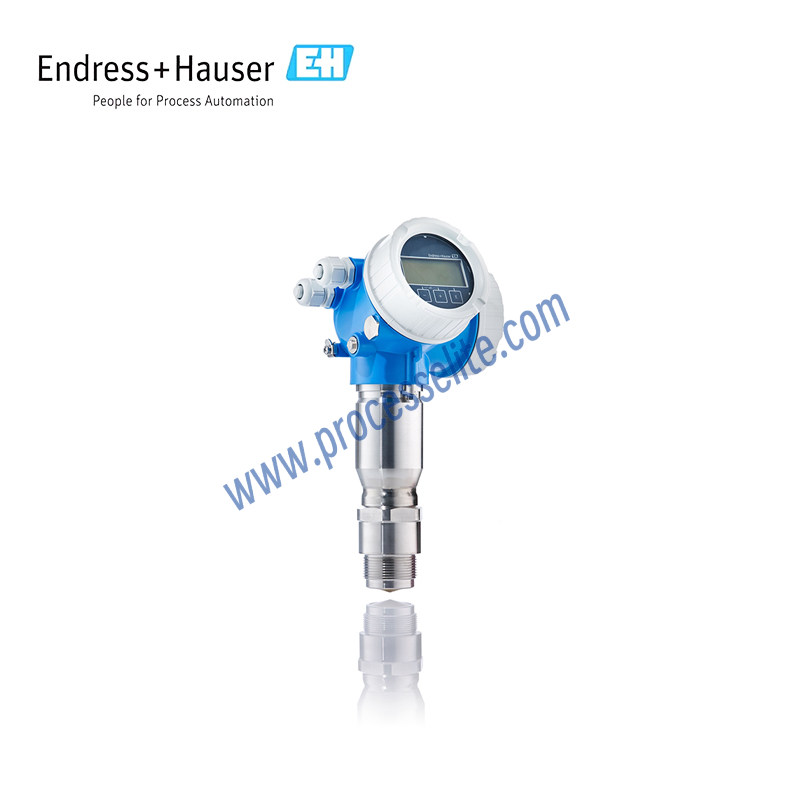

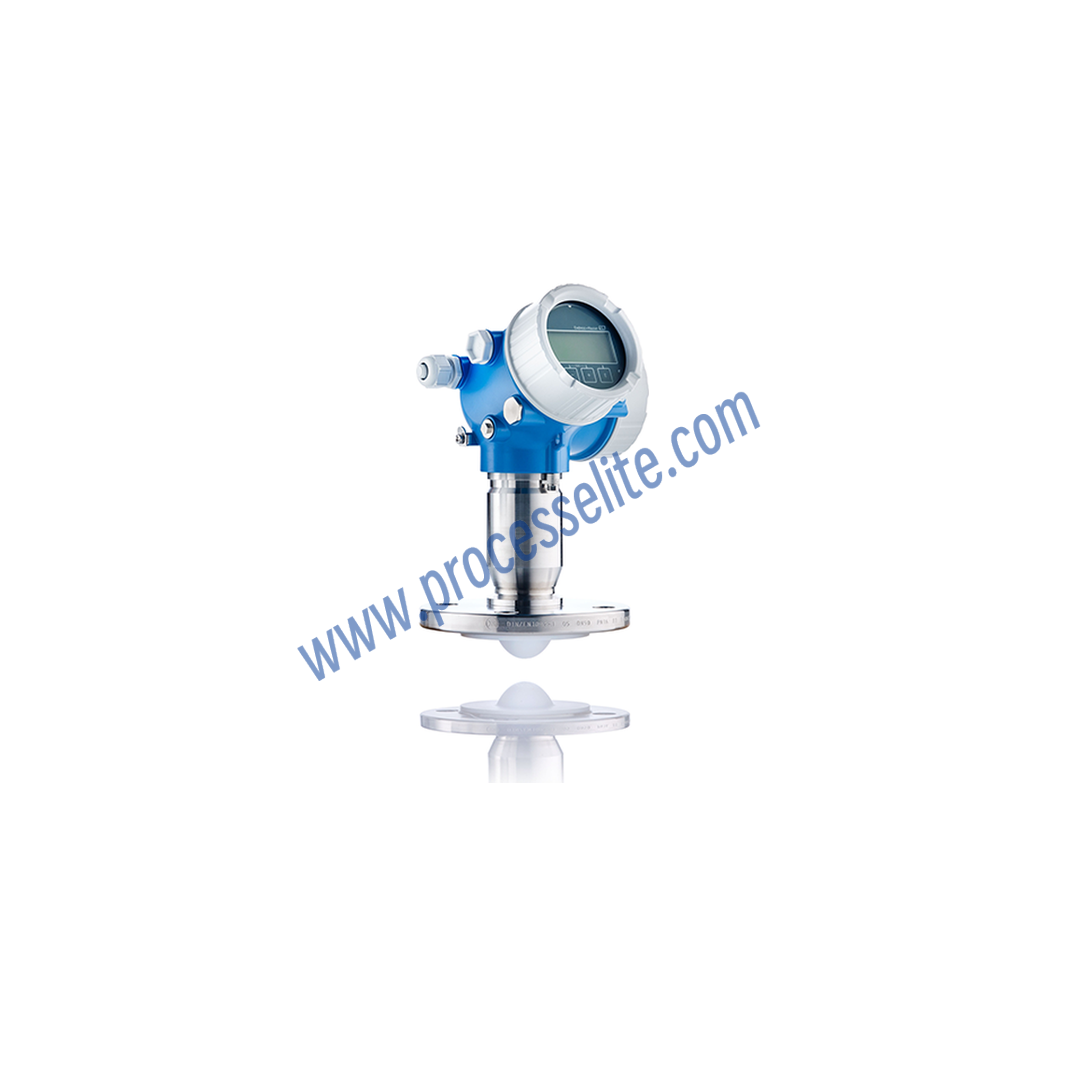

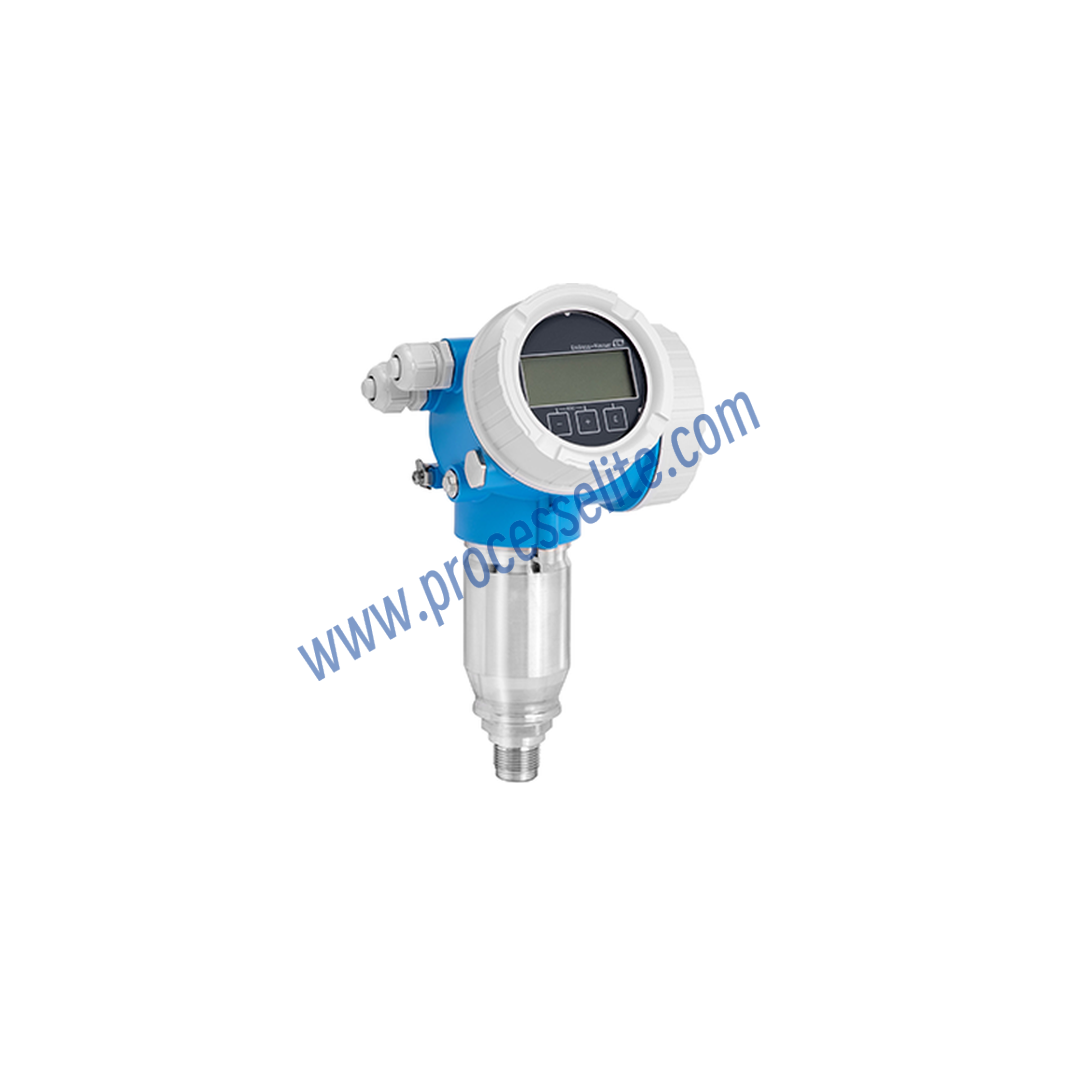

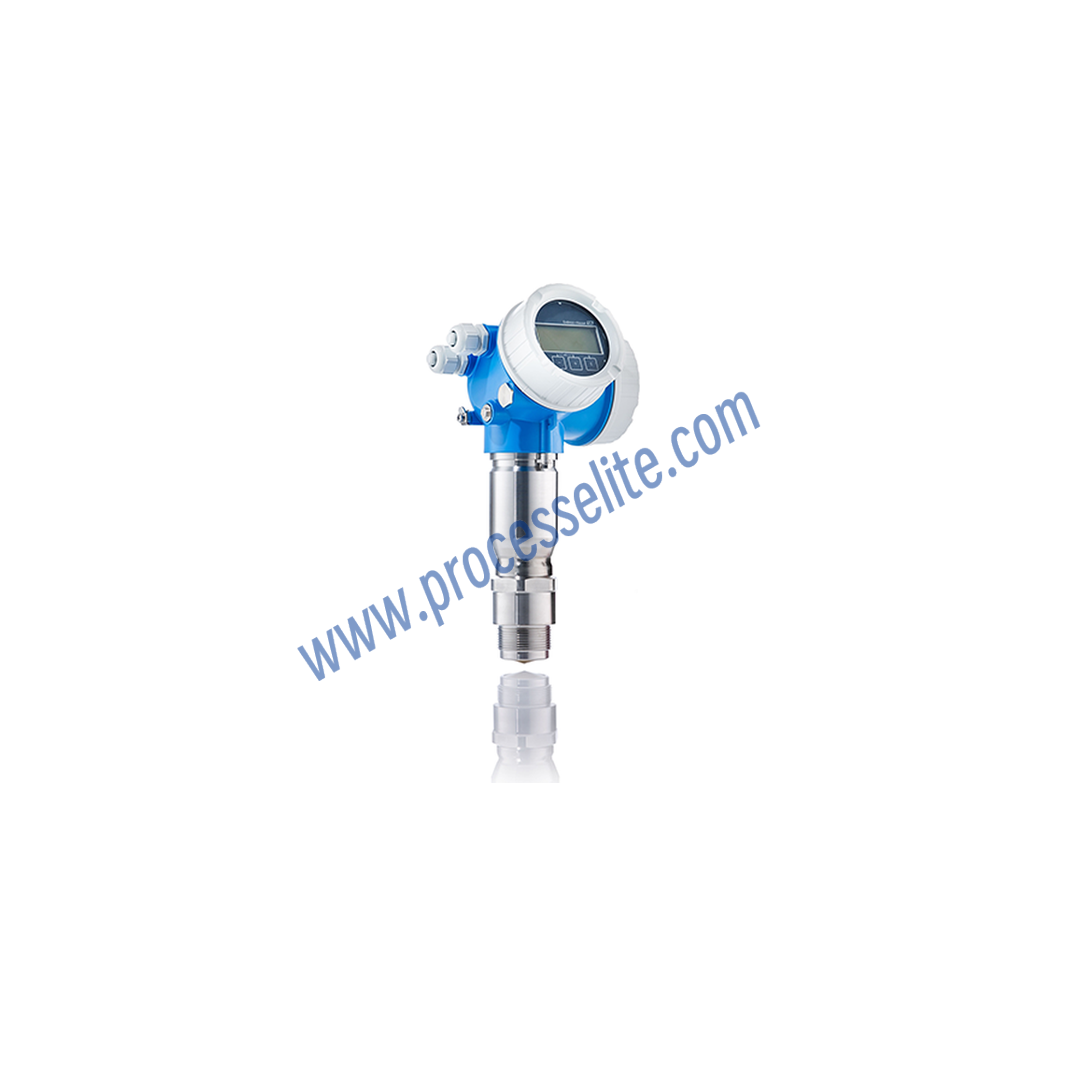

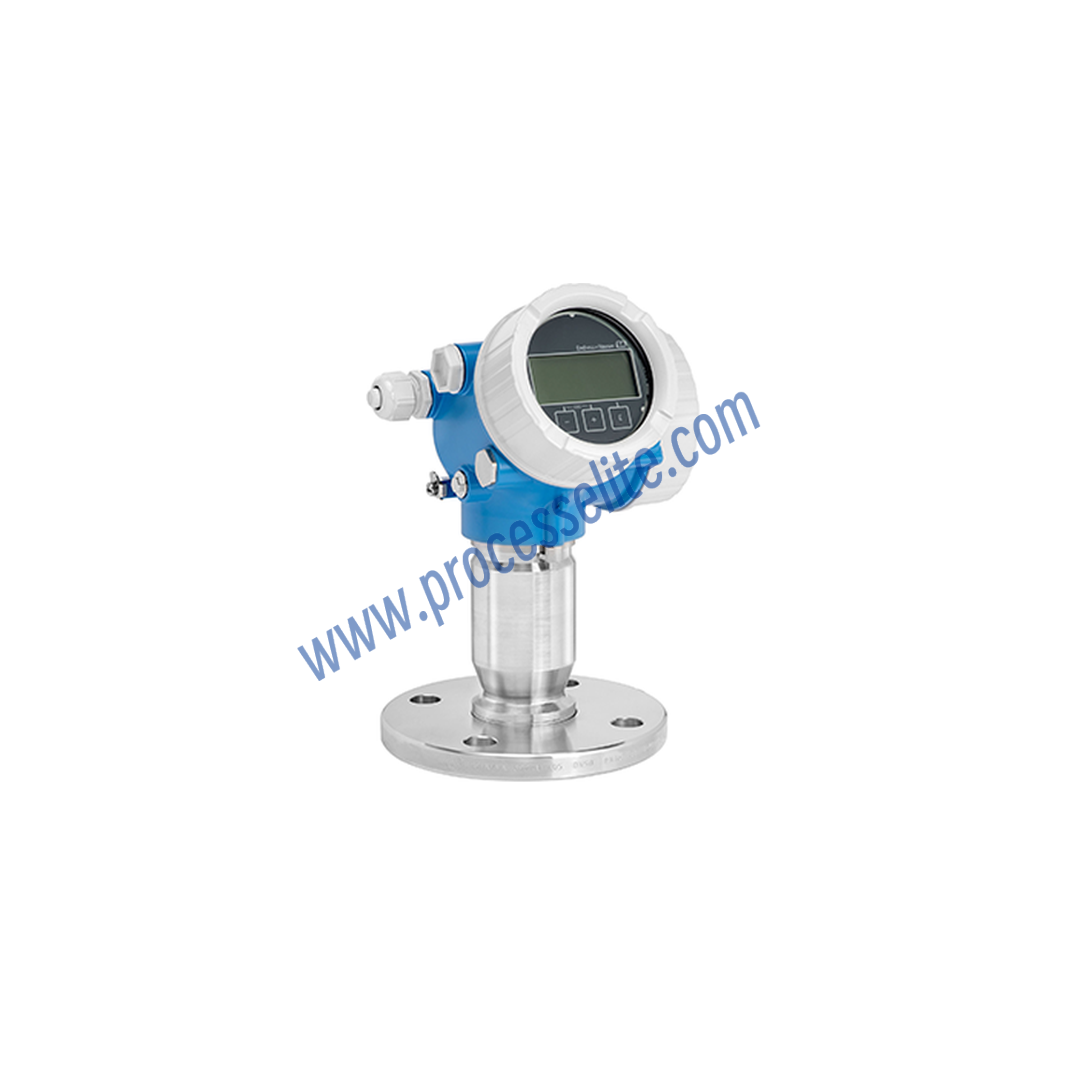

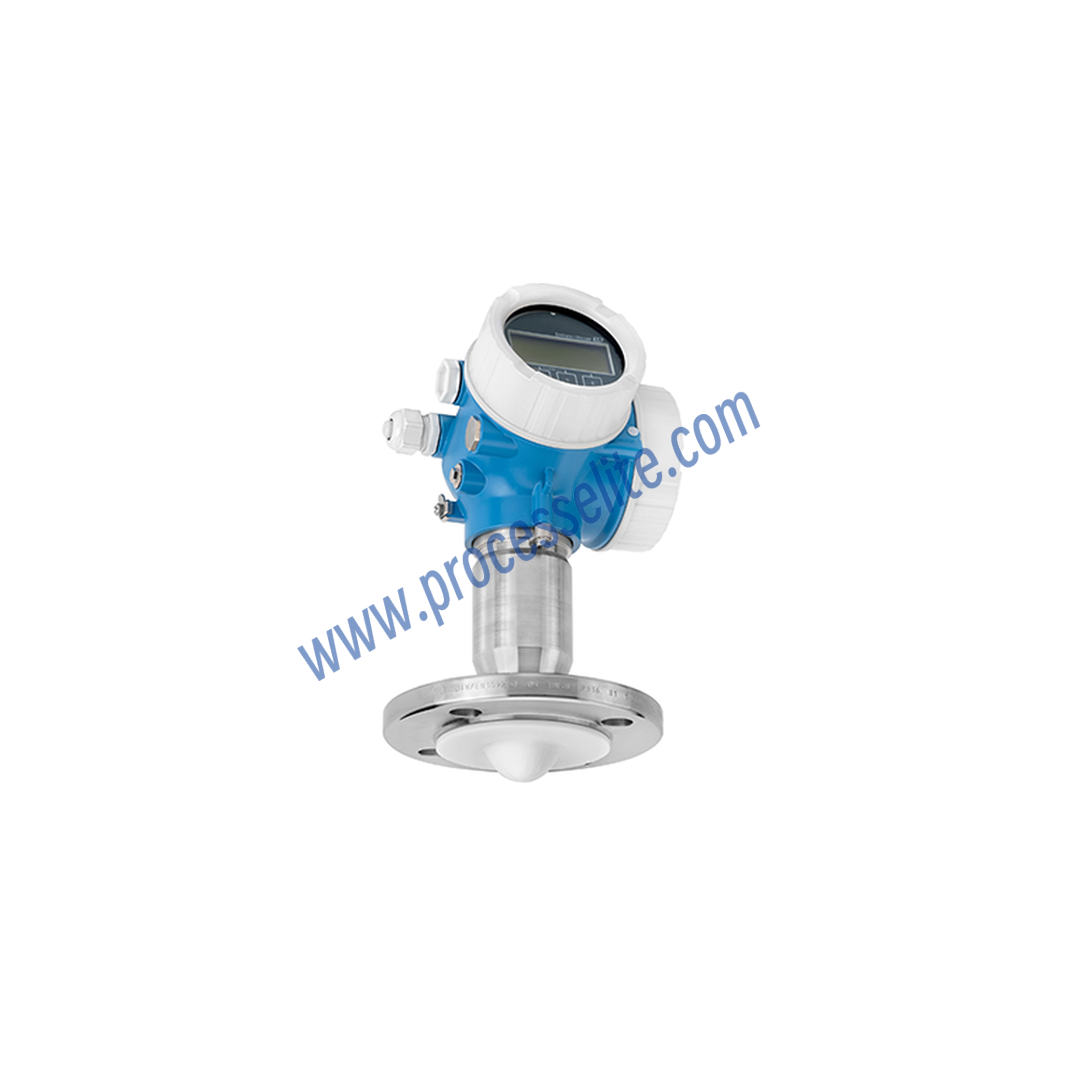

Micropilot FMR62 is the first 80 GHz level radar designed in compliance with the IEC 61508 international functional safety standard. Its fully PTFE-filled, flush-mounted antenna is especially suitable for measuring corrosive liquids. The integrated PEEK antenna can be used with process connections featuring extremely small diameters. The non-contact radar technology of FMR62, combined with advanced algorithms and a narrow beam angle, ensures maximum measurement reliability. In addition, it is equipped with Heartbeat Technology for intelligent sensor monitoring and diagnostics. Micropilot FMR62 enables free-space measurement with a maximum measuring range of 80 m. Thanks to its highly focused beam angle, it is suitable for applications with multiple interfering objects inside vessels.
