Temperature Transmitter

E+H/Endress+Hauser

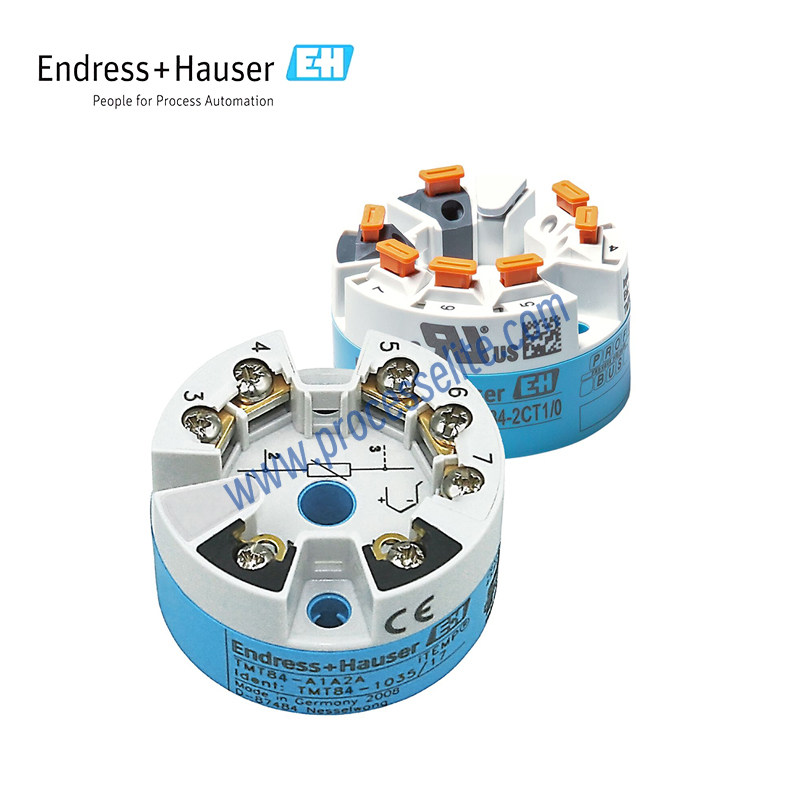

• Temperature transmitter with dual universal input channels, PROFIBUS® PA communication, converts various input signals into digital output signals • iTEMP TMT84 delivers high reliability, excellent long‑term stability and high measurement accuracy, equipped with advanced diagnostic functions, ideally suited for measurement requirements in critical process sections • Maximum safety and reliability with minimum operational risk • Universal input signals supported: Resistance Temperature Detectors (RTD), Thermocouples (TC), resistance (Ω), voltage (mV) • For measurement when installed in Type B (flat) junction boxes complying with DIN EN 50446 • Optional: Installation in field housings for Ex d flameproof applications • PROFIBUS® PA Profile 3.02 protocol enables simple and standardized communication • Meets EMC requirements in accordance with NAMUR NE 21. Digitally processed temperature transmitters also comply with NAMUR recommendation NE 89 • Explosion‑proof design based on FISCO/FNICO compliance requirements to IEC 60079‑27 • International certifications including FM IS, NI, CSA IS, NI and ATEX Ex ia, Ex nA (Ex NL) ensure safe operation in explosive hazardous areas • High‑accuracy measurement based on sensor‑transmitter matching • Sensor monitoring and instrument hardware fault detection ensure reliable operation • Spring‑loaded terminal blocks available for fast wiring without additional tools
