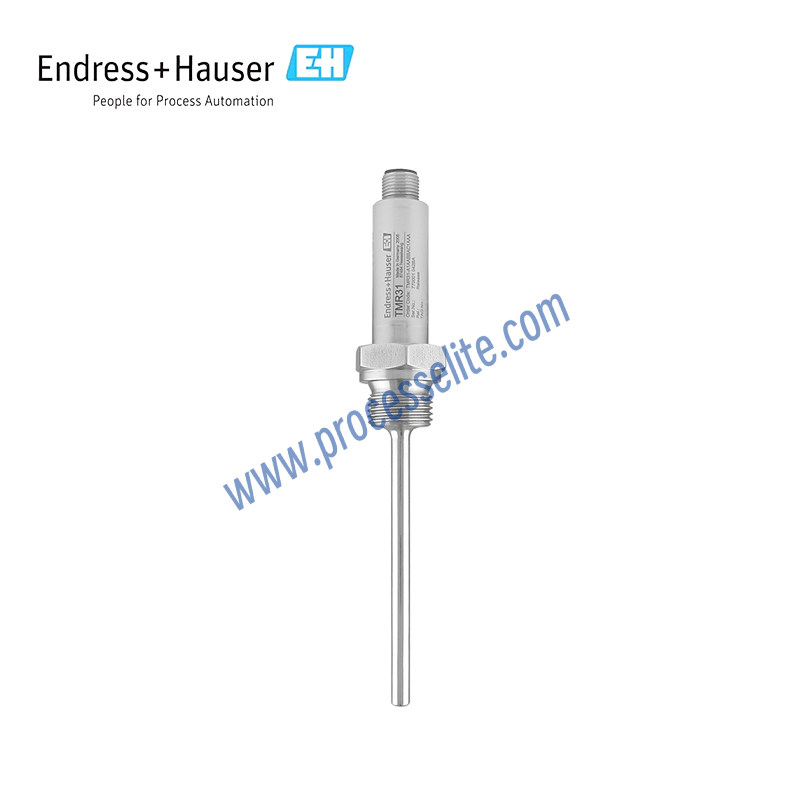

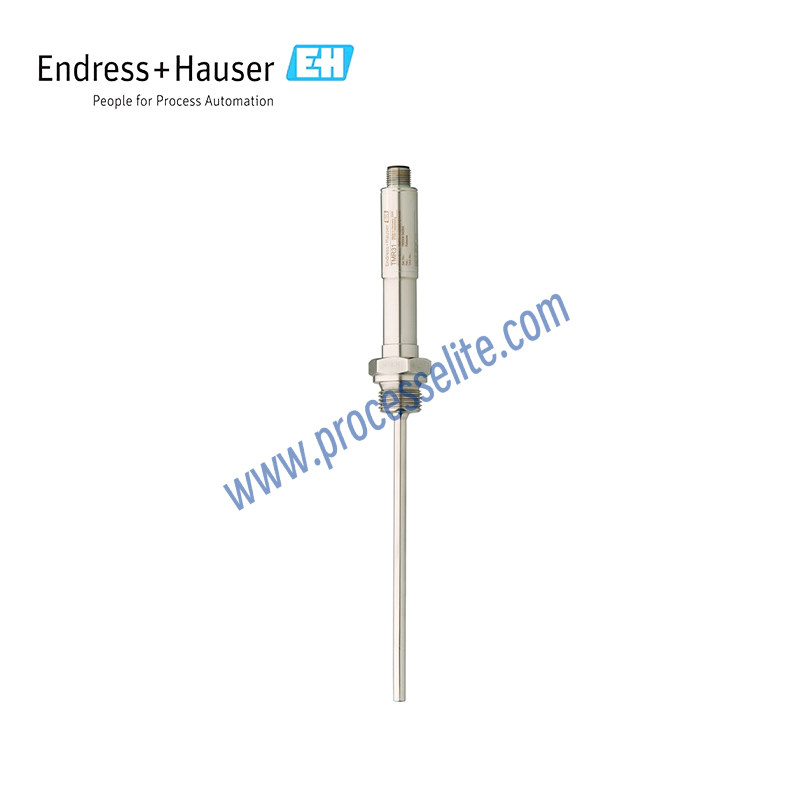

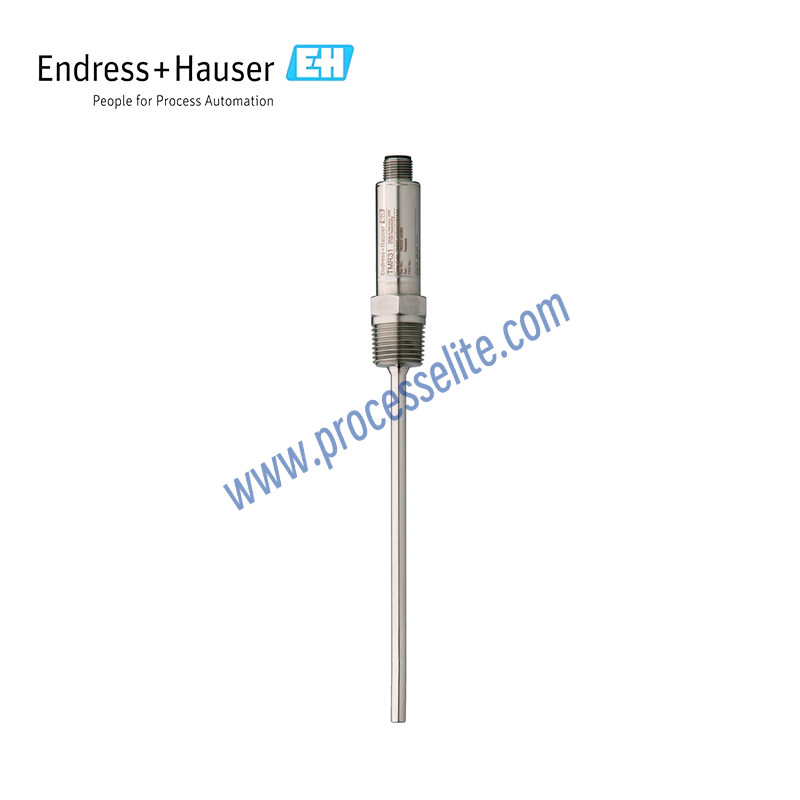

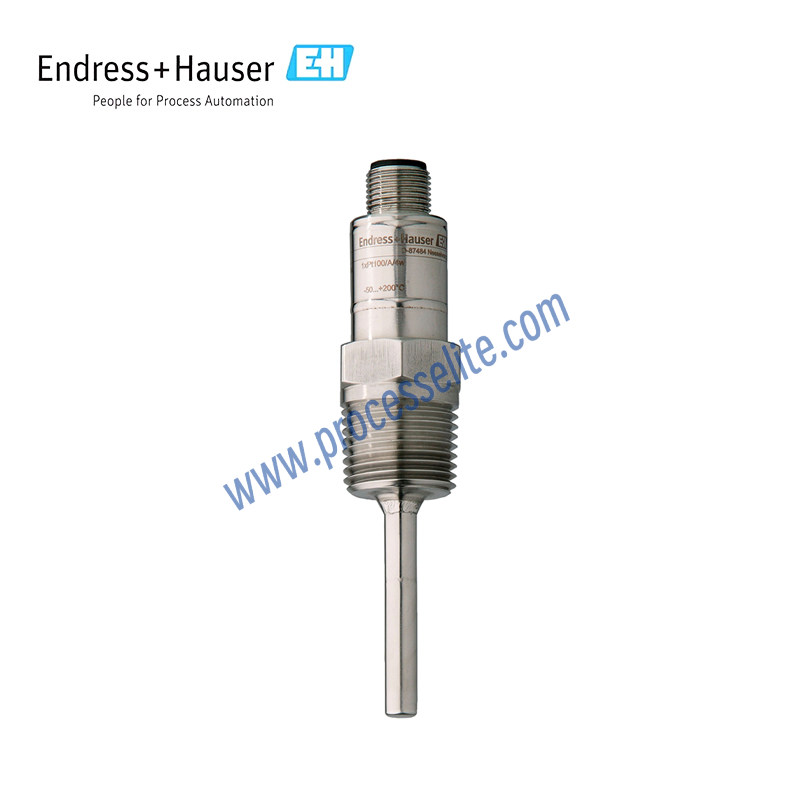

TMR31

The operating principle of Resistance Temperature Detectors (RTDs) is temperature measurement based on the characteristic that the resistance of metallic conductors changes with temperature. Core principle: when temperature varies, the amplitude of lattice vibration in metallic conductors such as platinum and copper changes, causing different degrees of hindrance to electron movement and a corresponding change in resistance value. Taking the Pt100 platinum RTD as an example, its nominal resistance is 100 Ω at 0 °C; resistance increases by approximately 0.385 Ω per 1 °C temperature rise, showing highly‑linear behaviour within a certain temperature range. In practical measurement, a constant‑current source or bridge circuit converts resistance variations into electrical signals. 3‑wire / 4‑wire connection eliminates lead‑wire errors, and resistance values are finally converted into temperature values according to international standard reference tables.

Standard Application

TMR31 delivers cost‑effective performance, space‑saving installation, simple mounting and commissioning, and reliable operation, fulfilling the requirements of modern measurement technology. The integrated vibration‑resistant diaphragm sensor ensures the fastest response time and maximum operational safety.
