All >> Temperature measurement >> Hygienic Compact Thermometer

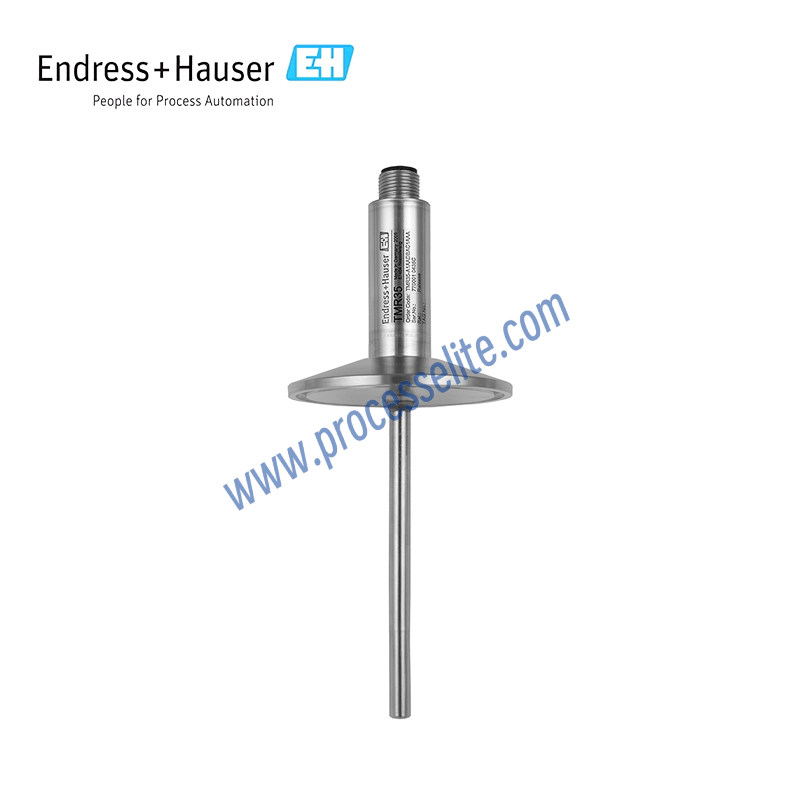

*Picture for reference only !
Product name:
Hygienic Compact Thermometer
Product series:

TMR35

Product brand:
E+H/Endress+Hauser
Product feature:
• Suitable for general and hygienic applications in the food & beverage and life science industries. Recommended for installation in small‑size tanks and pipelines. Featuring short insertion depth, this compact thermometer delivers reliable measuring performance and offers additional advantages for such mounting locations. • Measuring range: –50 … +150 °C (–58 … +302 °F); maximum measuring temperature up to 200 °C (392 °F) with extension neck • Pressure range: up to 100 bar (1450 psi) • Protection rating: IP69K • Outputs • Without electronics: Pt100 (4‑wire connection) • With electronics: 4 … 20 mA • Small compact design, all‑stainless‑steel construction • Extremely fast response time • Low insertion depth with accurate measurement • 4‑wire Pt100 output or PC‑programmable transmitter with 4 … 20 mA output • Device configuration and visualisation via free ReadWin® 2000 PC operating software • Sensor breakage / short‑circuit fault indication, adjustable in accordance with NAMUR NE43 • Hygienic monoblock design, 3‑A marked, EHEDG‑certified, marine‑classification approved
Favorite
Compare
Measuring principle:
The operating principle of Resistance Temperature Detectors (RTDs) is temperature measurement based on the characteristic that the resistance of metallic conductors changes with temperature. Core principle: when temperature varies, the amplitude of lattice vibration in metallic conductors such as platinum and copper changes, causing different degrees of hindrance to electron movement and a corresponding change in resistance value. Taking the Pt100 platinum RTD as an example, its nominal resistance is 100 Ω at 0 °C; resistance increases by approximately 0.385 Ω per 1 °C temperature rise, showing highly‑linear behaviour within a certain temperature range. In practical measurement, a constant‑current source or bridge circuit converts resistance variations into electrical signals. 3‑wire / 4‑wire connection eliminates lead‑wire errors, and resistance values are finally converted into temperature values according to international standard reference tables.
Product positioning:
Standard Application
Using scenario:
TMR35 features cost‑effective performance, space‑saving installation, simple mounting and commissioning, and reliable operation, meeting measurement requirements for the food, beverage and life science industries. A wide range of hygienic process connections offers high flexibility.
