TR65

A Resistance Temperature Detector (RTD) measures temperature based on the principle that the electrical resistance of a metal conductor changes with temperature. The basic principle is that when temperature changes, the lattice vibration of metal conductors such as platinum and copper changes, affecting the movement of electrons and resulting in a variation in electrical resistance. Taking the platinum resistance sensor Pt100 as an example, the standard resistance value is 100 Ω at 0 °C. The resistance increases by approximately 0.385 Ω for every 1 °C increase in temperature, showing a highly linear relationship within a certain temperature range. In practical measurement applications, a constant current source or bridge circuit converts resistance changes into electrical signals. Three-wire or four-wire connection technology is used to eliminate lead resistance errors, and the resistance value is converted into temperature according to internationally standardized resistance-temperature tables.

Standard

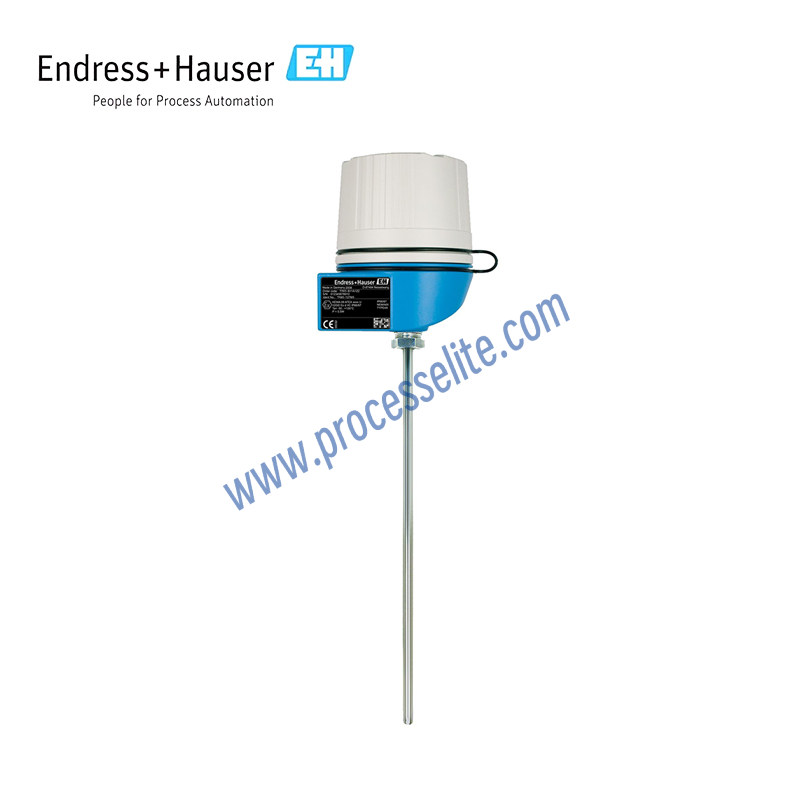

This rugged and durable Pt100 resistance thermometer is designed for harsh operating conditions and safety-critical applications in industries such as chemical processing, oil and gas, and power generation. Optional head-mounted transmitters support various standard communication protocols and provide ready-to-install solutions, improving measurement accuracy and reliability compared with directly wired sensors. The sensor can be installed in direct contact with the process medium or used with a spring-loaded thermowell according to specific measurement requirements, providing flexible installation options for different applications.
