TMT86

The core principle of a temperature transmitter is to convert the non‑electrical quantity (temperature) detected by the temperature sensor into a standard electrical signal. It connects sensors such as thermocouples (TC) or resistance temperature detectors (RTD). For thermocouple signals: cold‑junction compensation is performed (to correct the influence of cold‑end temperature variation), the weak thermoelectric voltage is amplified, and linearization is carried out (since thermoelectric voltage has a non‑linear relationship with temperature). For RTD signals: powered by a constant‑current source in general, the resistance variation is converted into voltage variation, followed by linearization as well (due to non‑linear resistance‑temperature characteristics). The circuit also filters the signal to suppress interference. The conditioned voltage signal is fed into a voltage‑to‑current conversion circuit (V/I converter), which accurately converts it into the industry‑standard 4 to 20 mA DC current signal (or other standard signals). The magnitude of this current signal corresponds linearly to the measured temperature range. Featuring strong anti‑interference performance, it is suitable for long‑distance transmission to control systems.

High‑end Applications

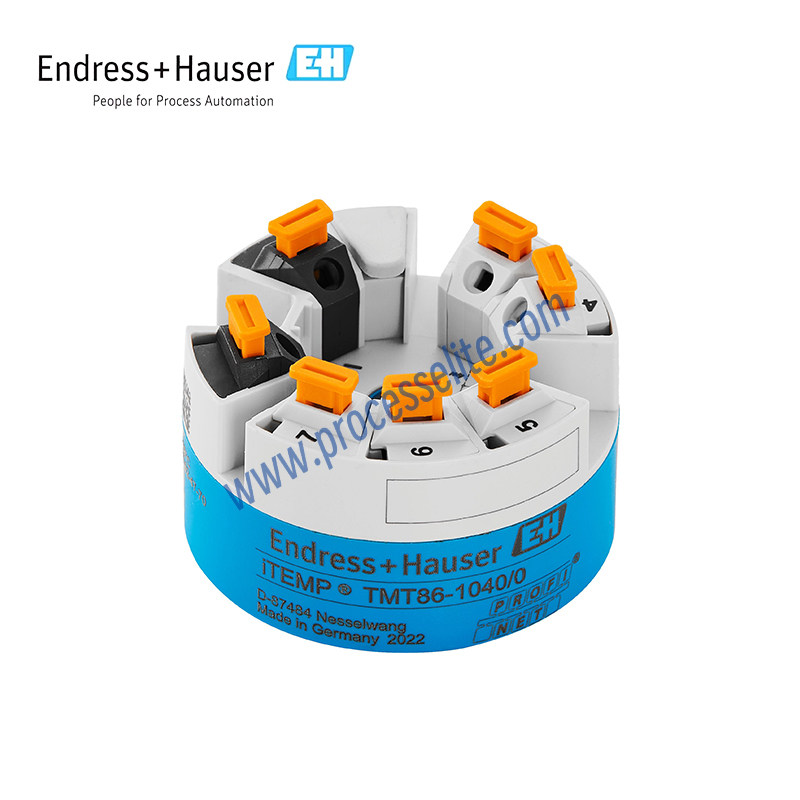

The iTEMP TMT86 dual‑channel modular temperature transmitter delivers reliable measurement with intelligent, future‑oriented technology. It supports Ethernet‑APL PROFINET communication and is intended for installation in Class B transmitter heads, and can be deployed for measurement in hazardous areas. Equipped with diagnostic functions such as sensor wire core corrosion monitoring, the instrument helps extend plant uptime. A built‑in web server and integrated advanced FDI software package simplify instrument configuration and system integration.
