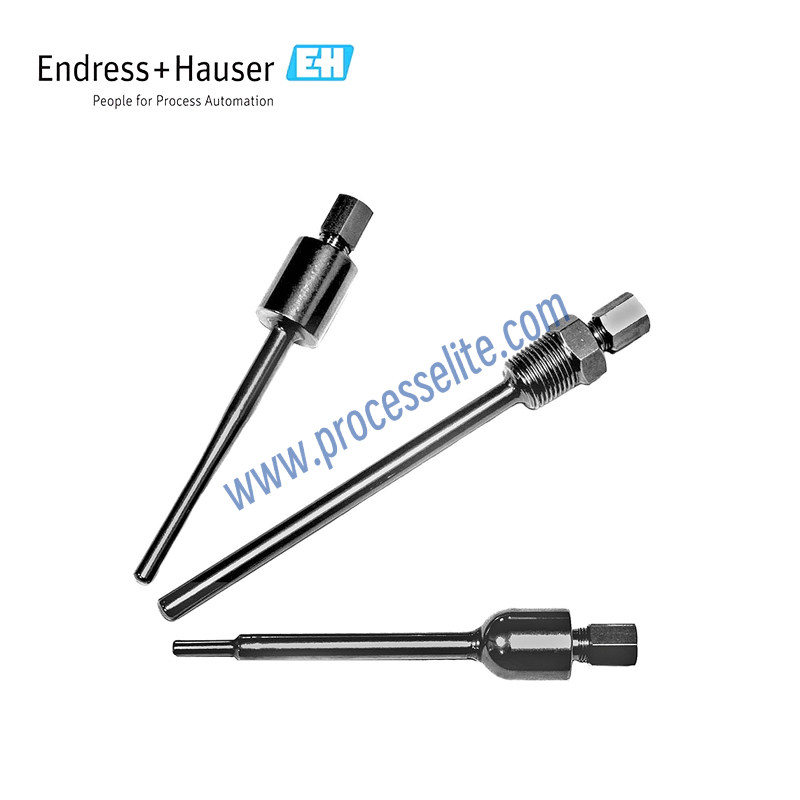

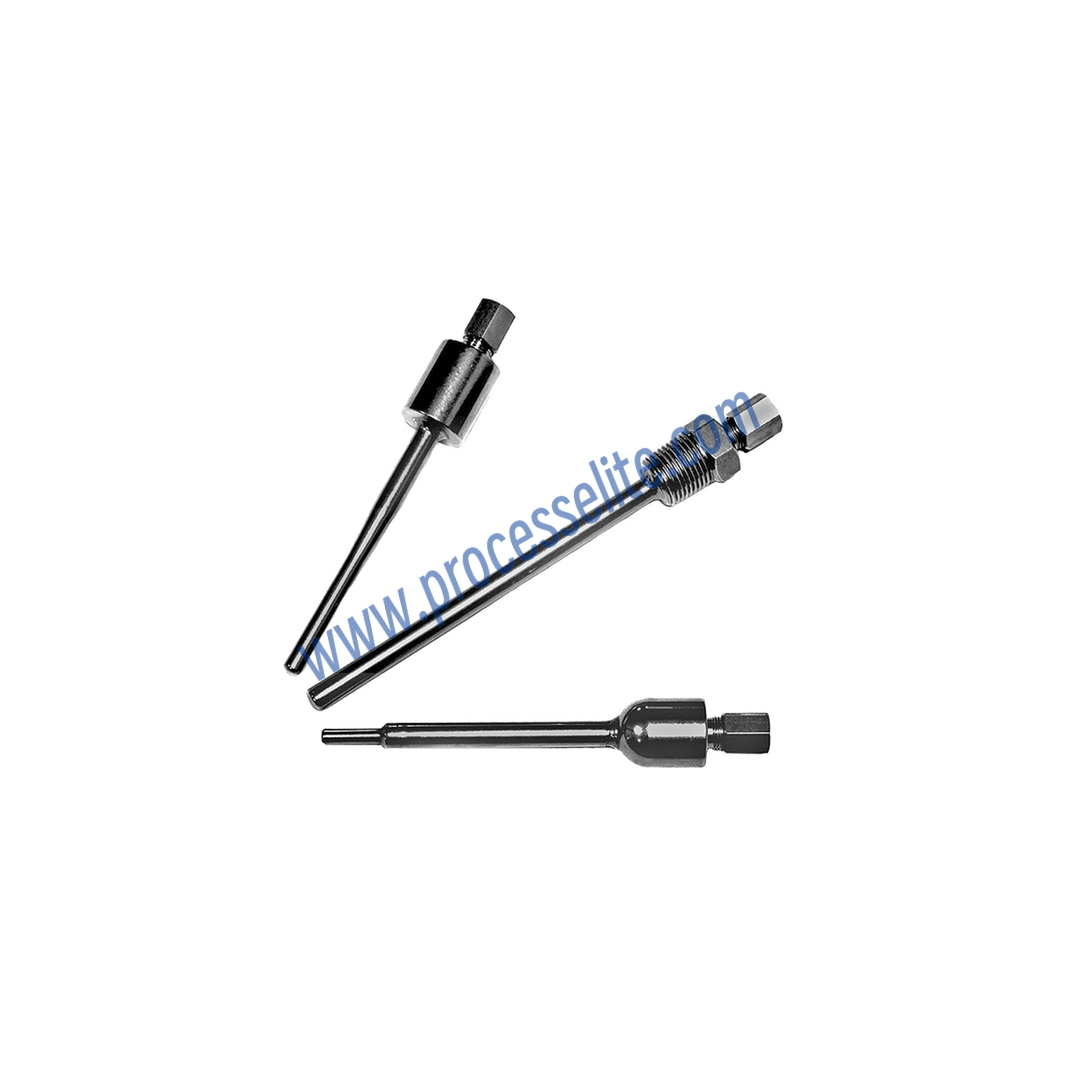

Welded Thermowell

E+H/Endress+Hauser

• Maximum process pressure (static pressure): 50 bar (725 psi) • Maximum standard insertion length: 4000 mm (157.48") • Maximum required insertion length: 10000 mm (393.7") • Compression fittings allow replacement of faulty probes without process shutdown • Depending on the sales scope, various process connections are available as standard: threaded (G ½", G ¼", NPT ½", …); welded (cylindrical, spherical) • Sleeves made of PTFE or SS316 are available for compression fittings • 3.1.B material certificate (to EN 10204) can be selected directly for product delivery
