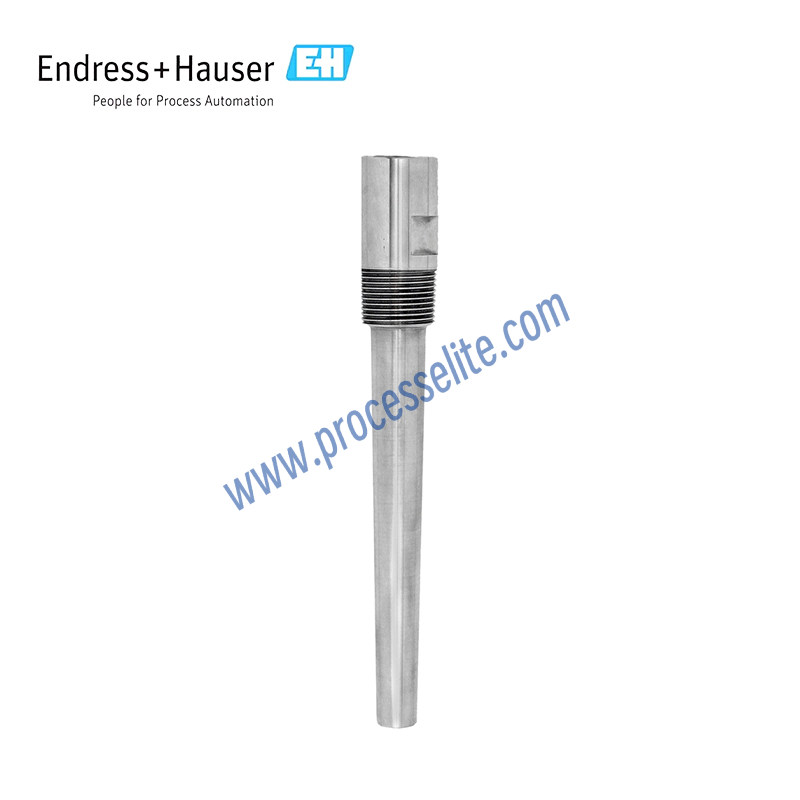

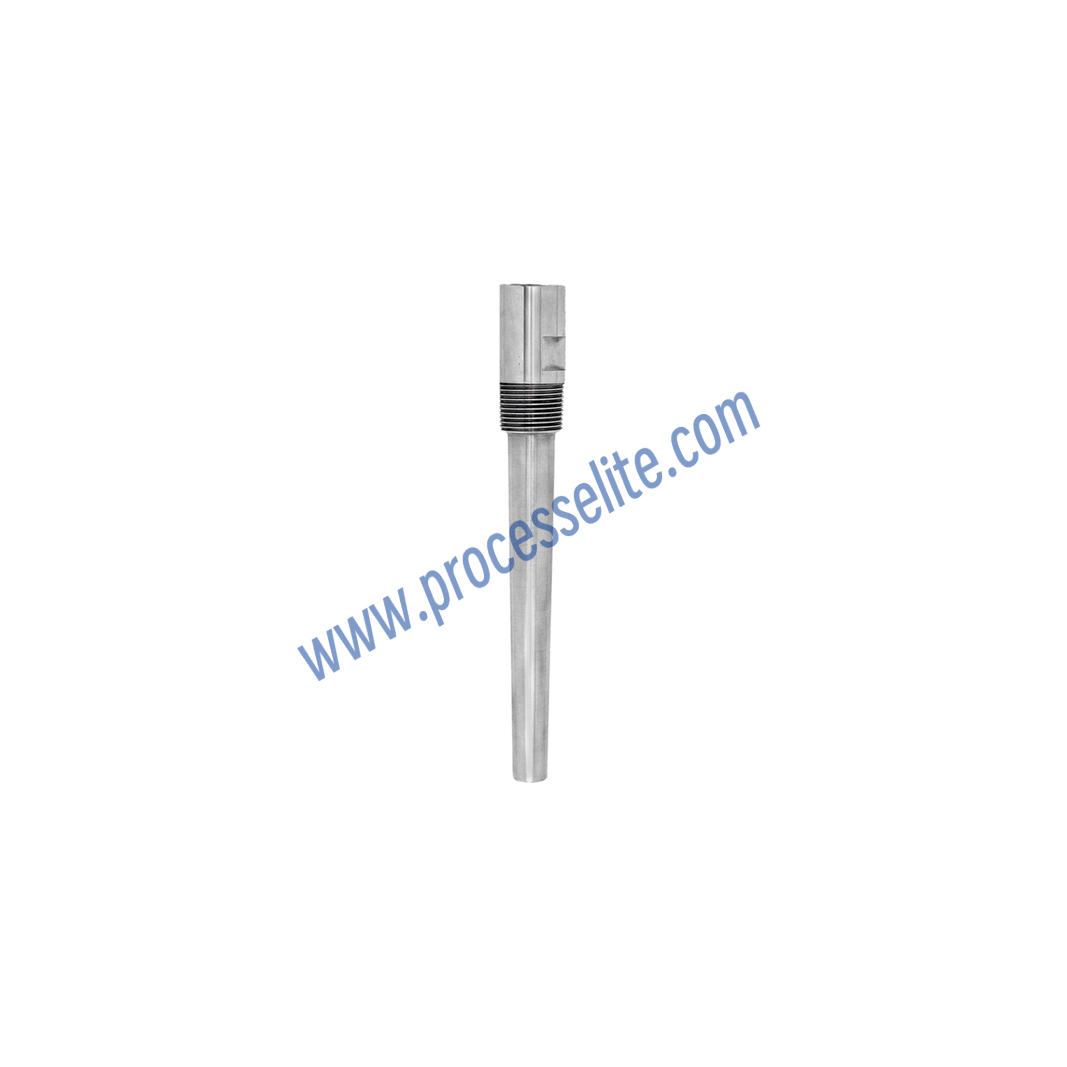

Barstock Thermowell

E+H/Endress+Hauser

• Maximum process pressure (static pressure): 500 bar (7252 psi) • Maximum standard insertion length: 900 mm (35.43") • Maximum required insertion length: 5000 mm (196.85") • Thermowell extension diameter, insertion depth and thermowell dimensions are selectable according to process requirements • Broad range of standard materials and process connections available; custom specifications supported • Multiple grades of surface treatment optional • Thermowell style: straight or tapered • Process connection: threaded or fixed flange
