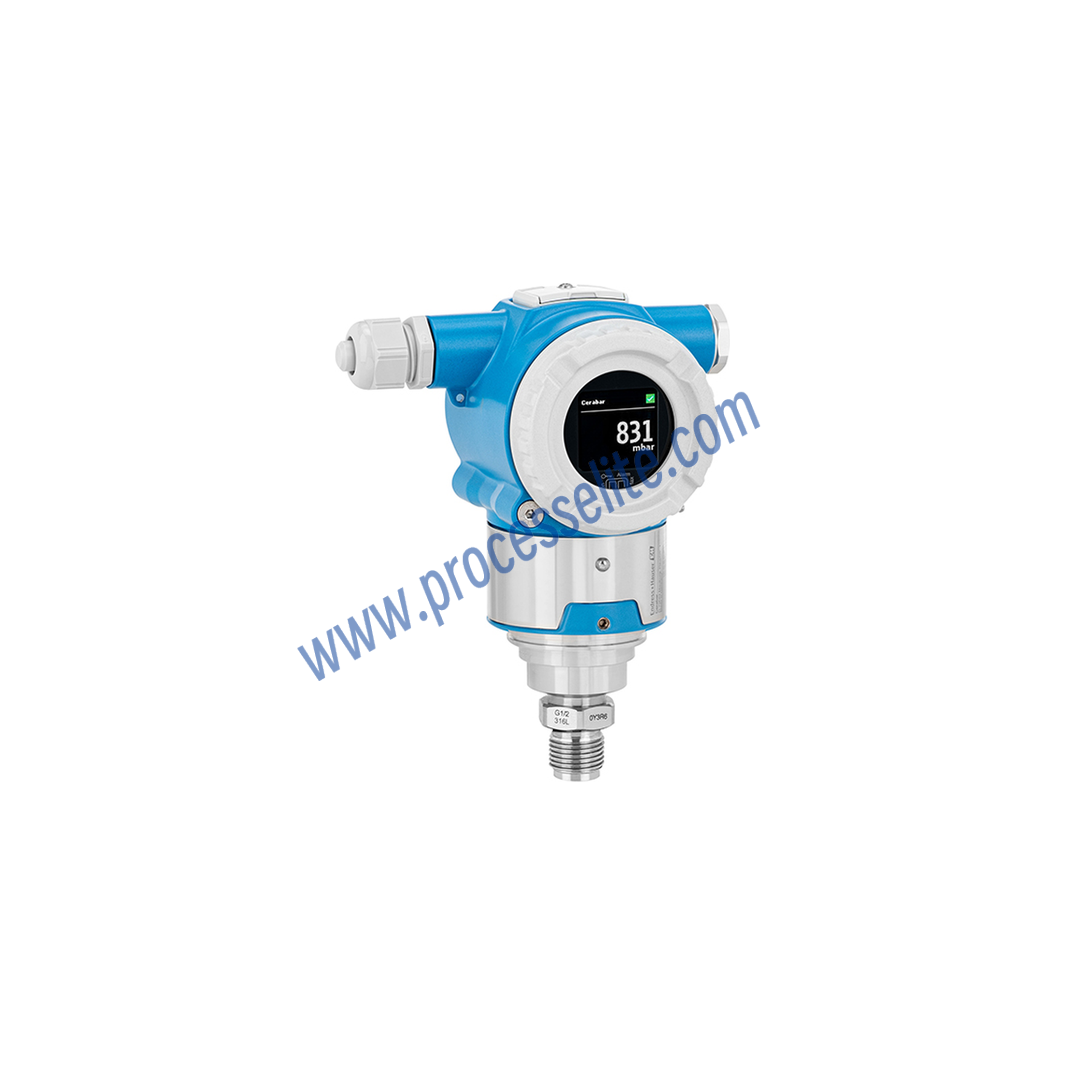

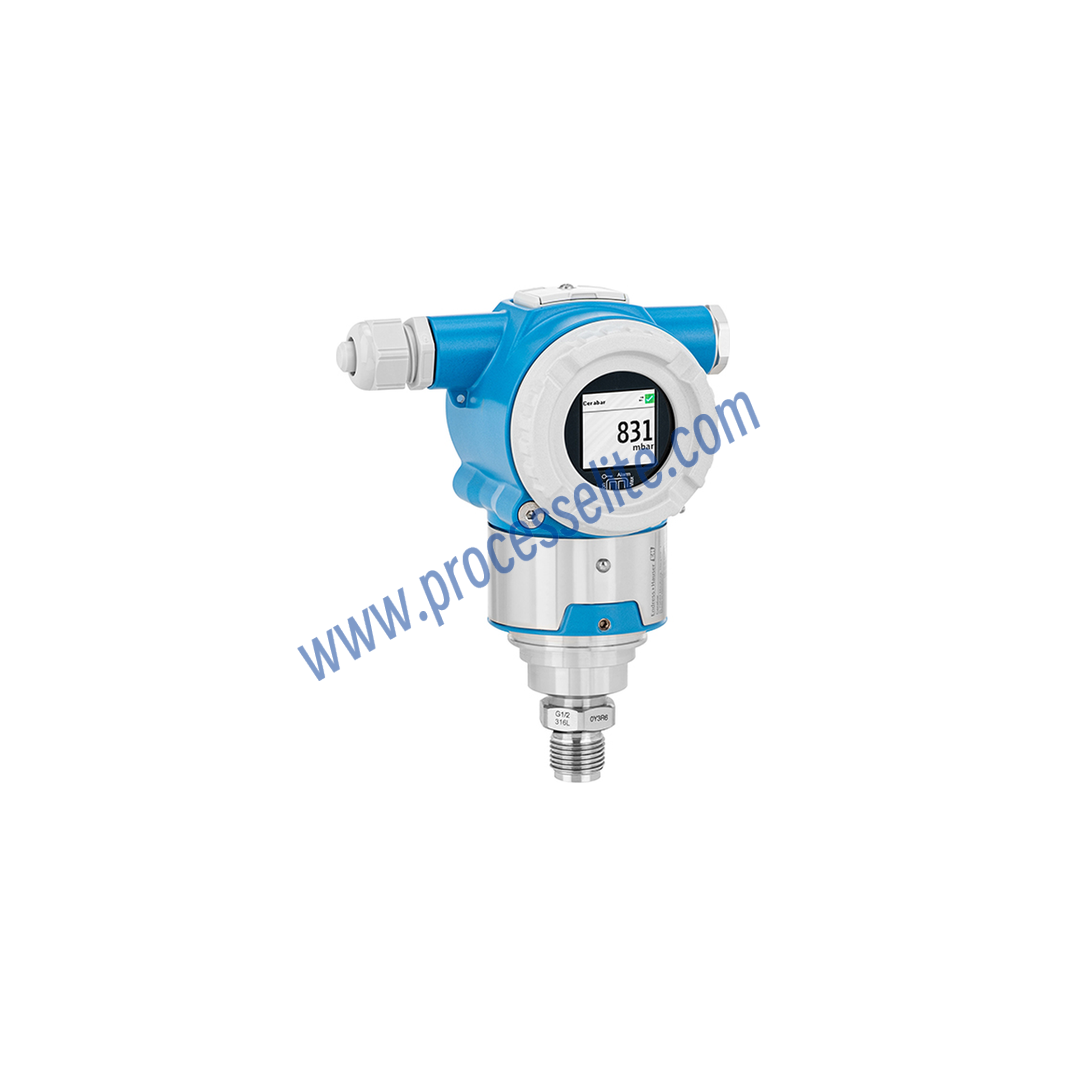

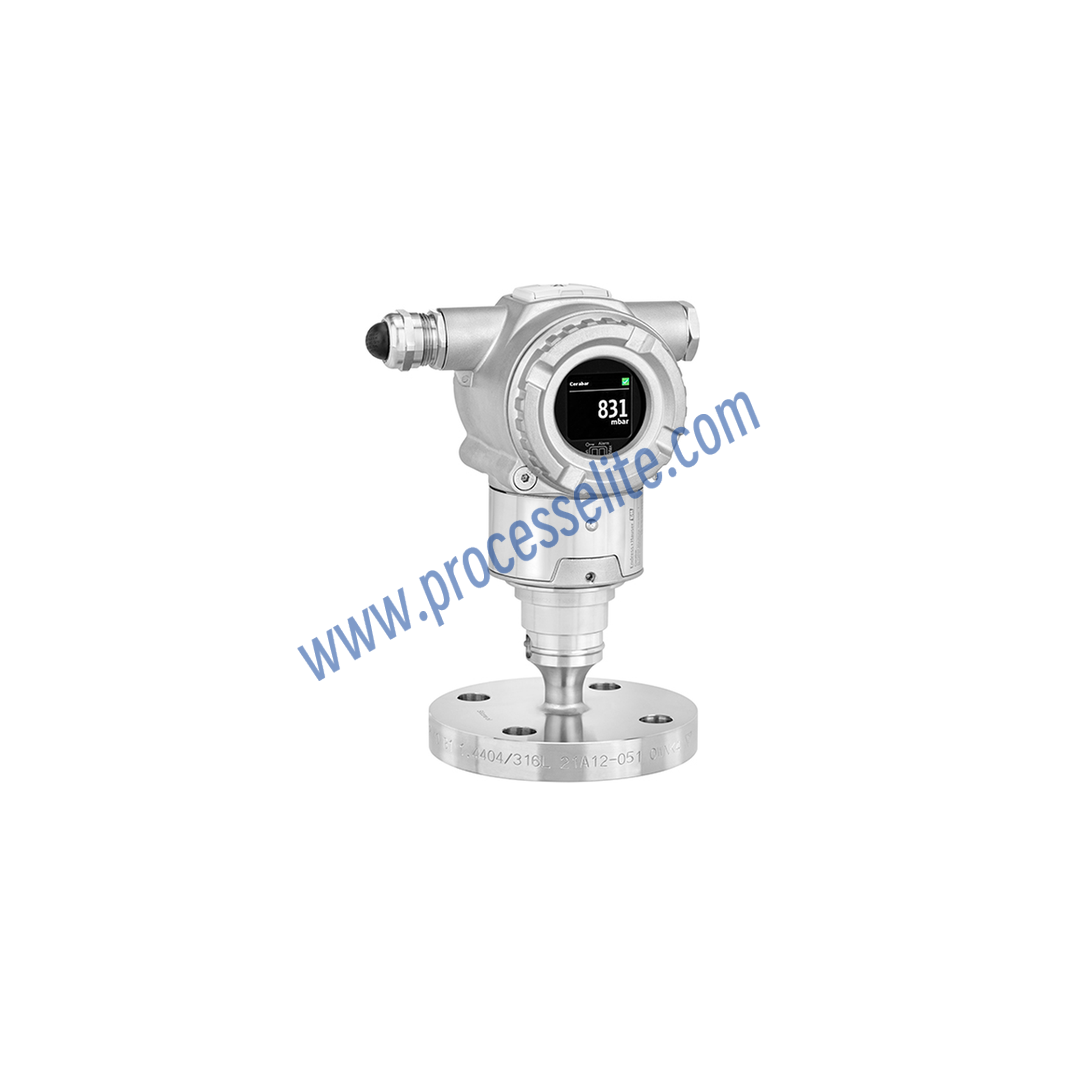

PMP50 Pressure transmitter - Processelite

*Picture for reference only !

Product name:

Pressure transmitter

Product series:

PMP50

Product brand:

E+H/Endress+Hauser

Product feature:

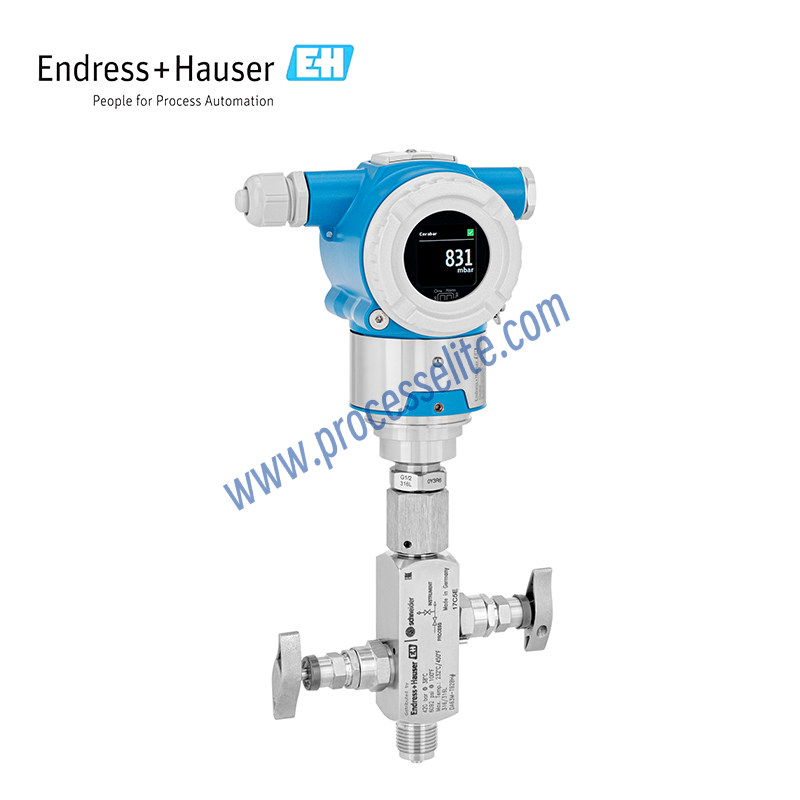

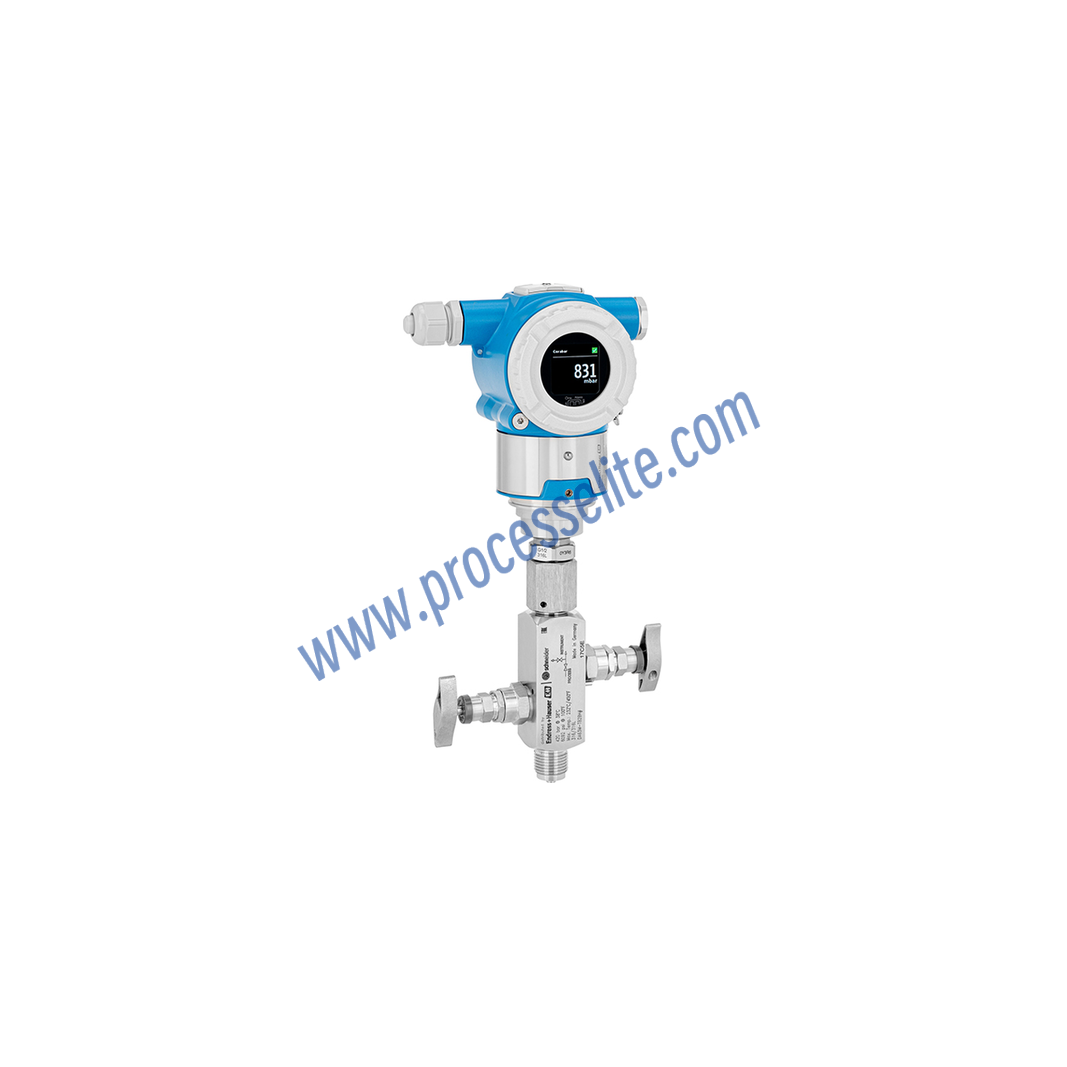

* Software wizard enables fast and easy commissioning * Devices developed in accordance with IEC 61508 * Flexible write protection via hardware and/or software wizard * Pre-assembled manifolds (pressure and leakage-tested) for faster installation

Favorite

Compare

Configure

Measuring principle:

Pressure transmitter measurement principle: A pressure transmitter mainly works based on the deformation characteristics of a diaphragm. When the pressure changes, the filling fluid transfers the pressure to the Wheatstone resistance bridge, converting the deformation of the sensing element into an electrical signal. The electrical signal is transmitted through wires to the amplifier for amplification and then converted into a standard output signal (typically 4–20 mA) for communication with the control system.

Product positioning:

Economical

Using scenario:

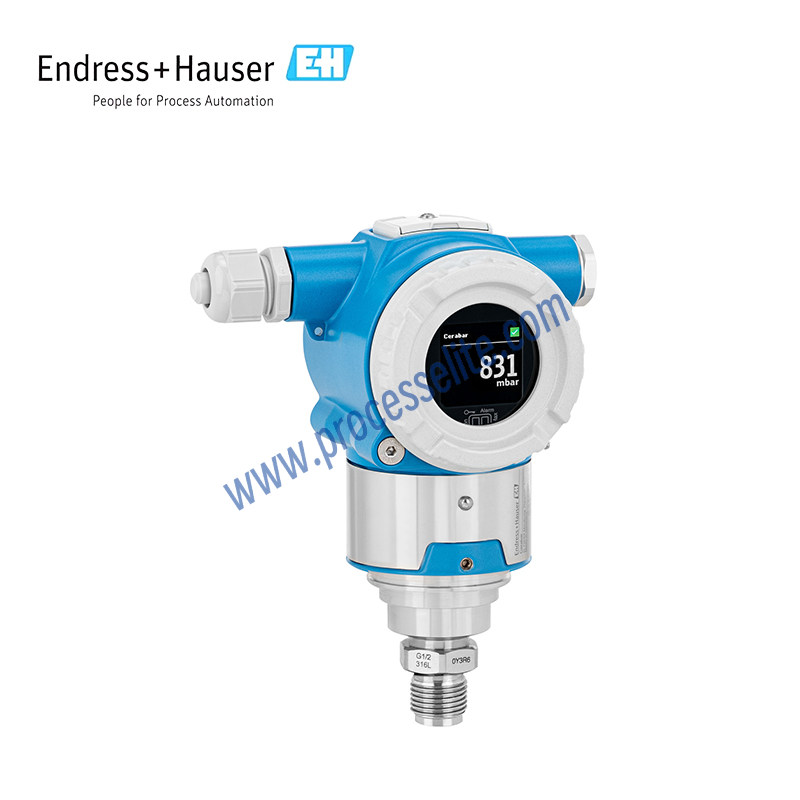

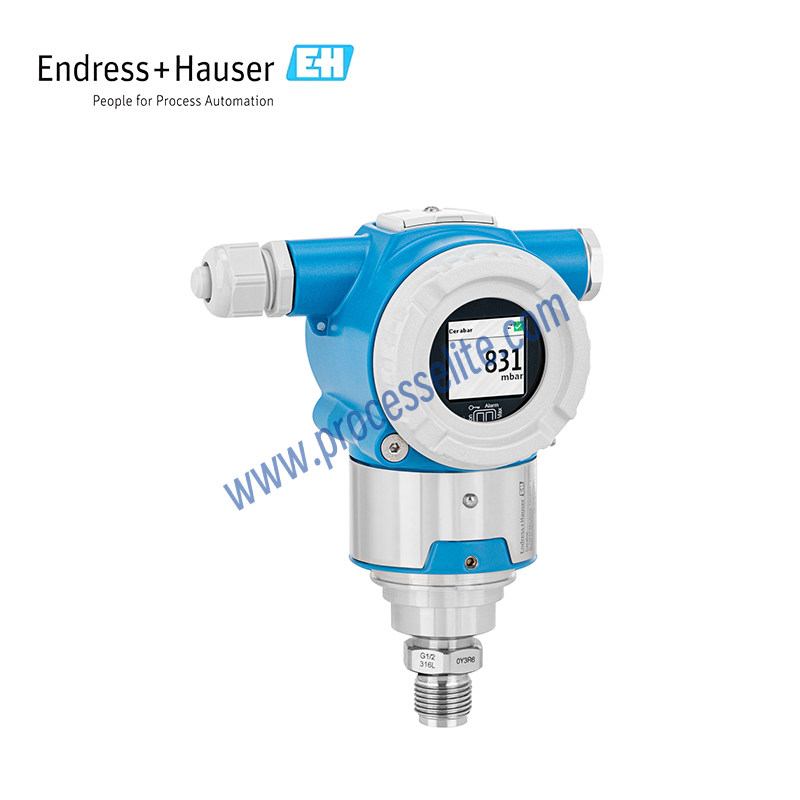

Cerabar PMP50 Pressure Transmitter with Metal Diaphragm Sensor, designed for liquid and gas measurement. Optimized for standard applications with intuitive and safe operation.

Measuring method:

Gauge pressure

Absolute pressure

Explosion-proof type:

Non-explosion-proof

Ex i

Ex d

Accuracy:

±0.055% o.f.s.

±0.065% o.f.s.

Maximum range:

≤40MPa

minimum range:

≥100kPa

Communication:

4-20mA HART

Process temperature:

-40~125°C

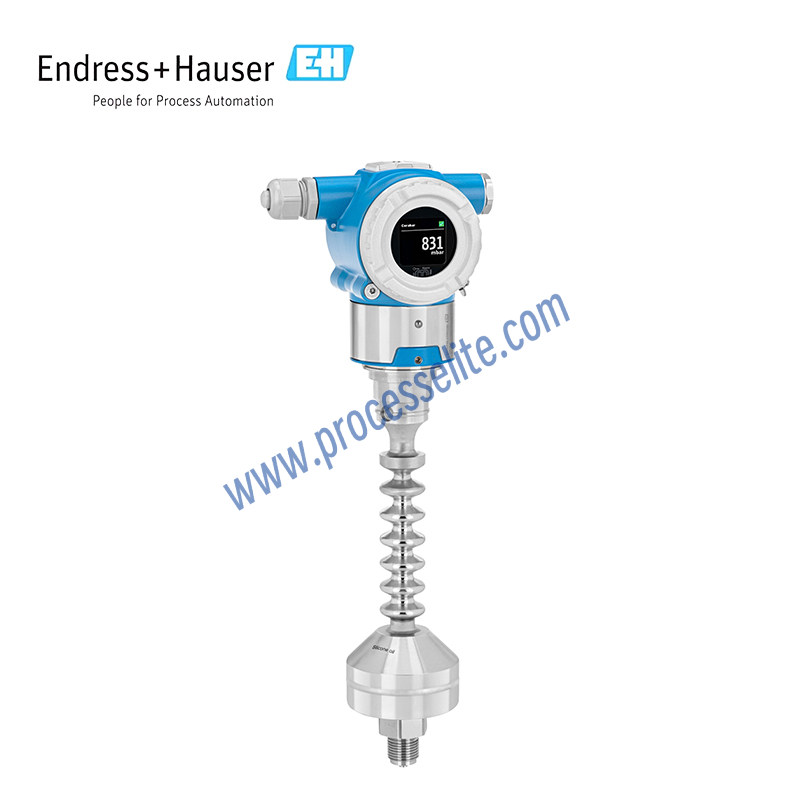

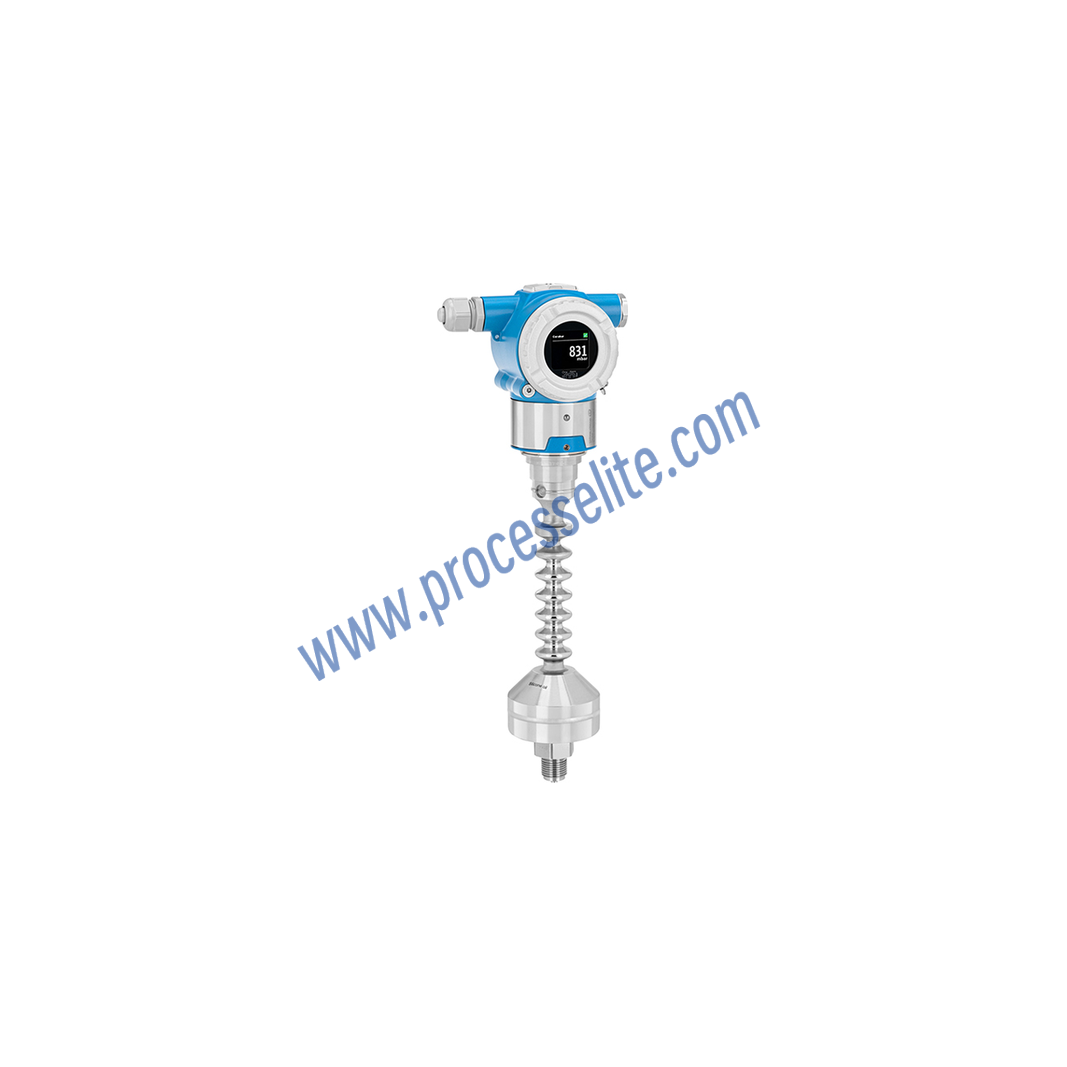

-70 to 400 °C (diaphragm seal)

one-year stability:

0.1% URL/year

five-year stability:

0.2% URL/5 years

ten-year stability:

0.25% URL/10 years

Housing material:

Aluminium / cast aluminium

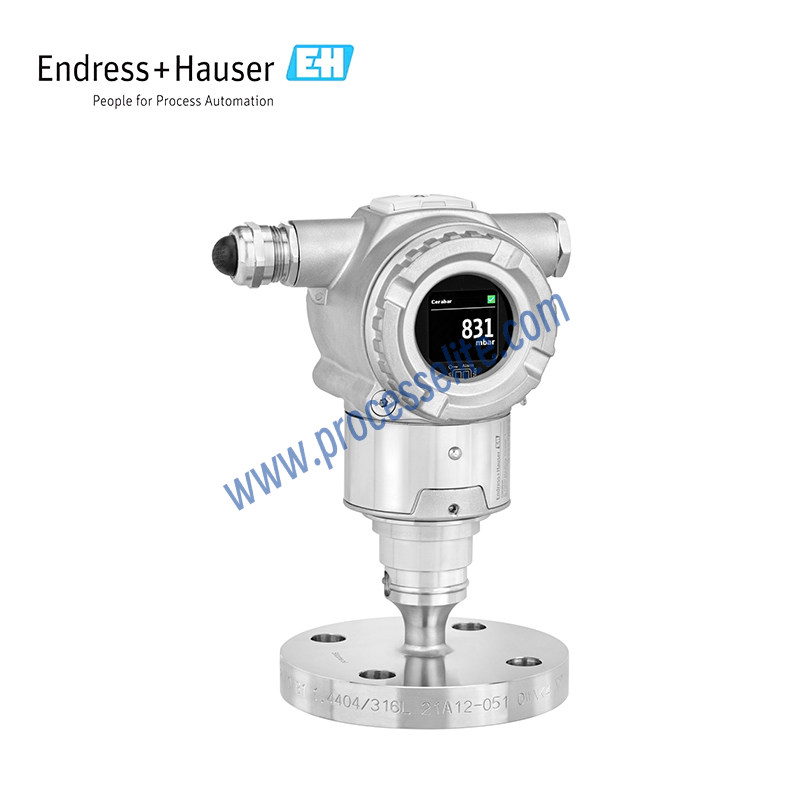

316(L) cast / sanitary type

Protection class:

IP66

IP67

IP68

HMI:

No display & non-operable

With display & operable

SIL Certification:

SIL2 (single instrument)

SIL3 (dual transmitter)
