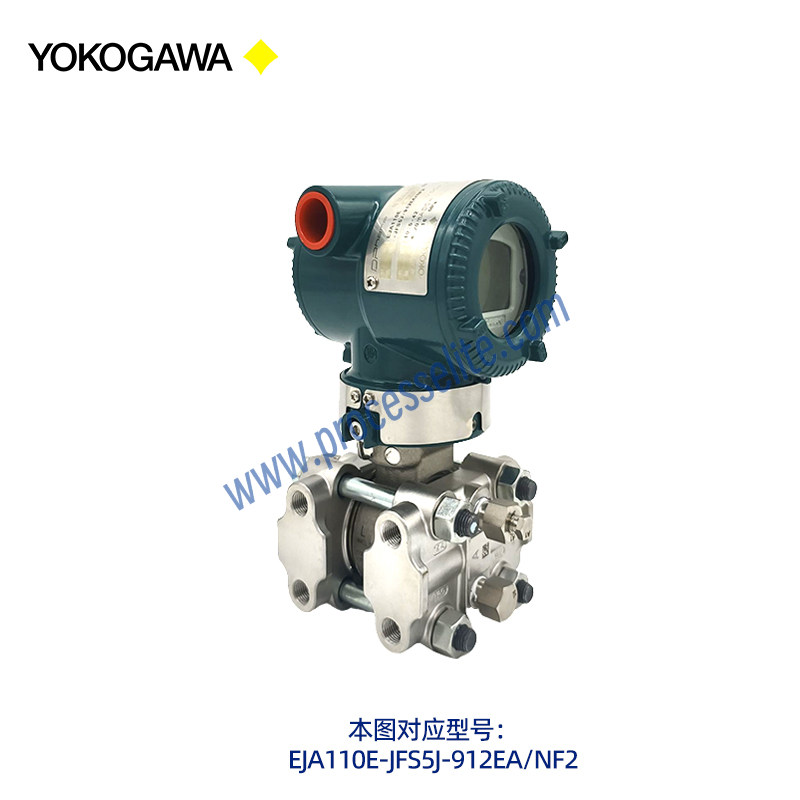

EJA110E Differential Pressure Transmitter - Processelite
*Picture for reference only !

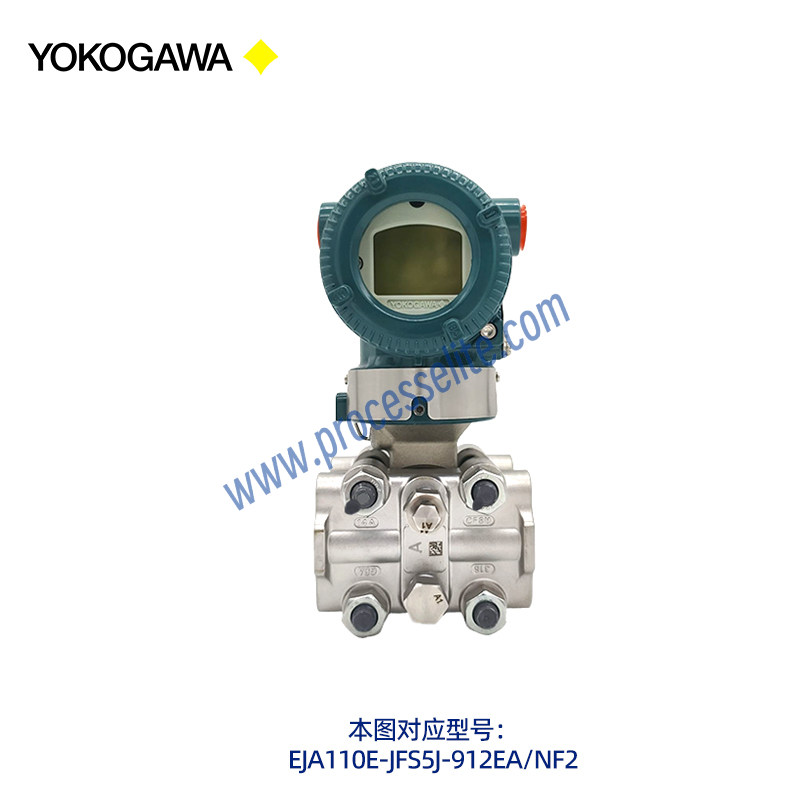

EJA110E Differential Pressure Transmitter - Processelite
*Picture for reference only !

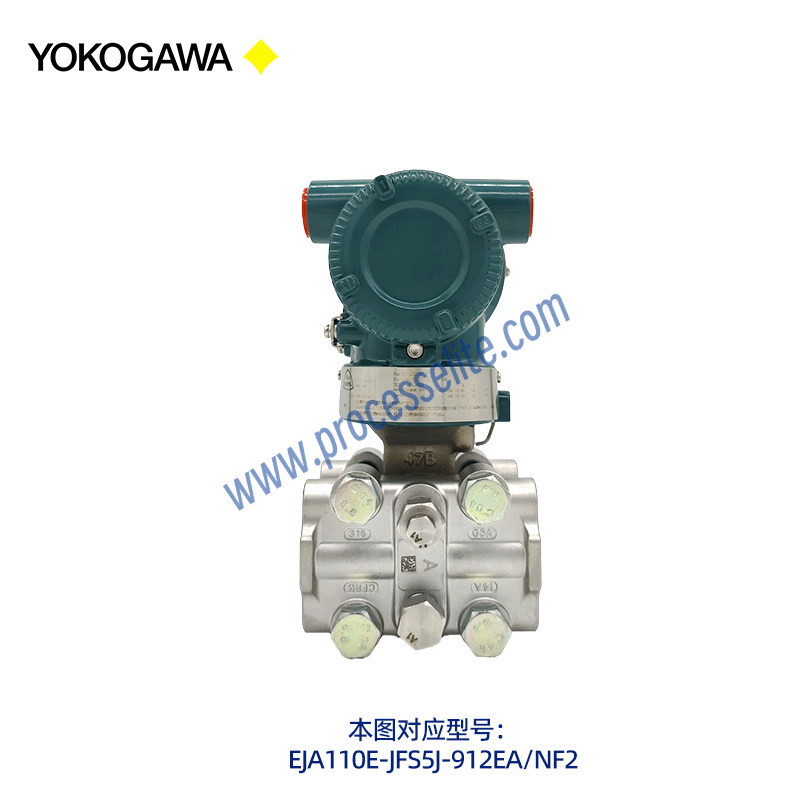

EJA110E Differential Pressure Transmitter - Processelite
*Picture for reference only !

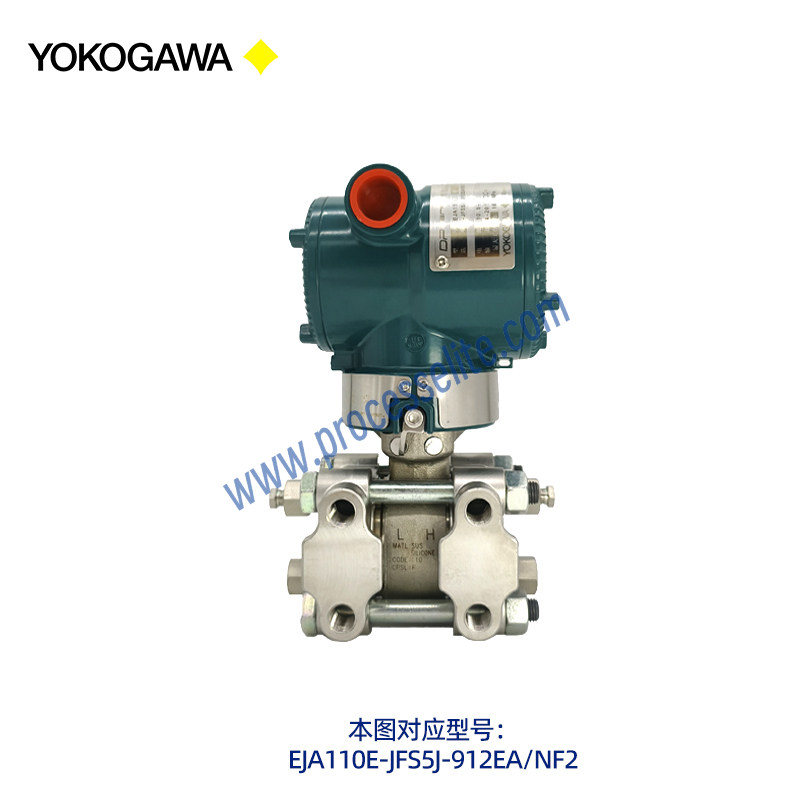

EJA110E Differential Pressure Transmitter - Processelite
*Picture for reference only !

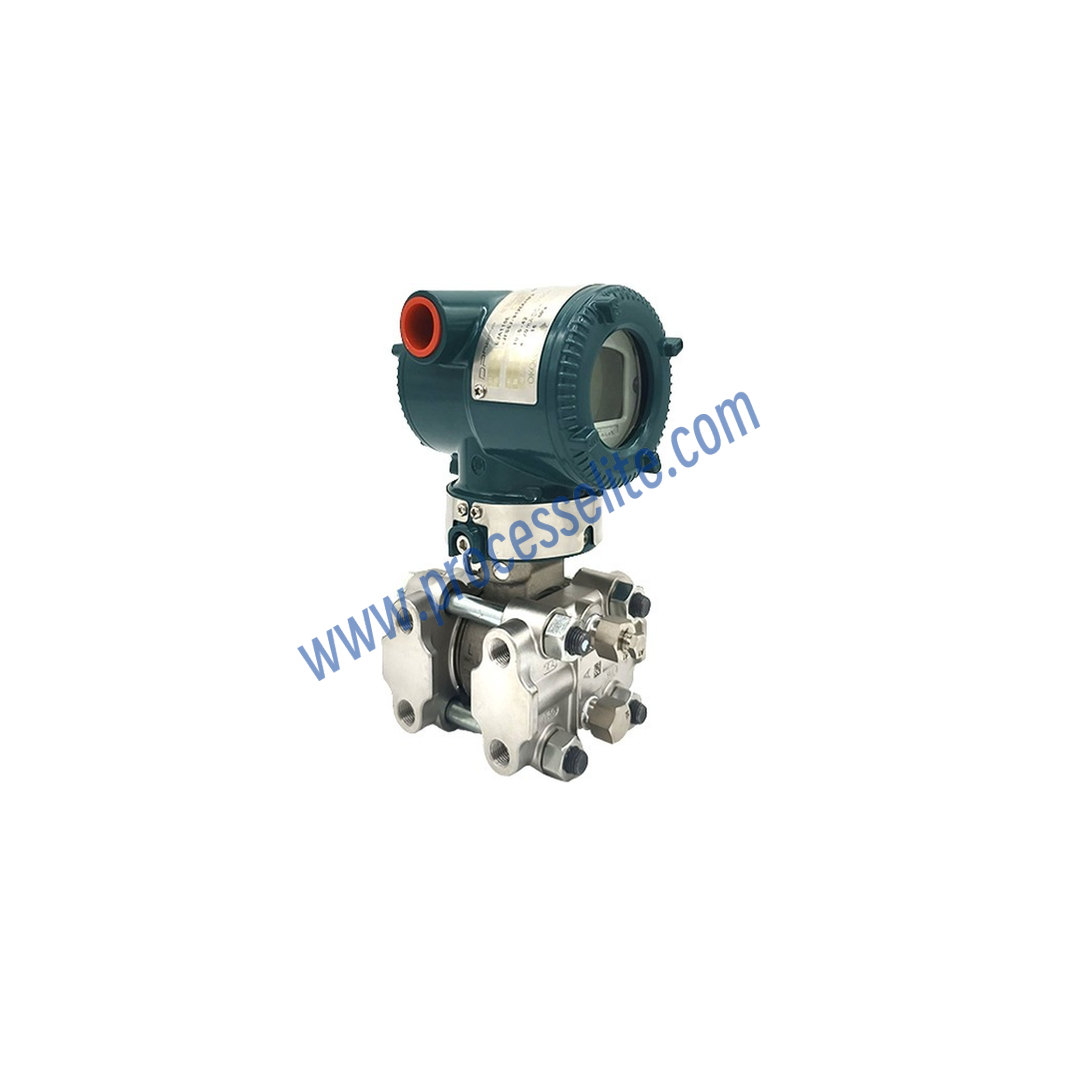

EJA110E Differential Pressure Transmitter - Processelite

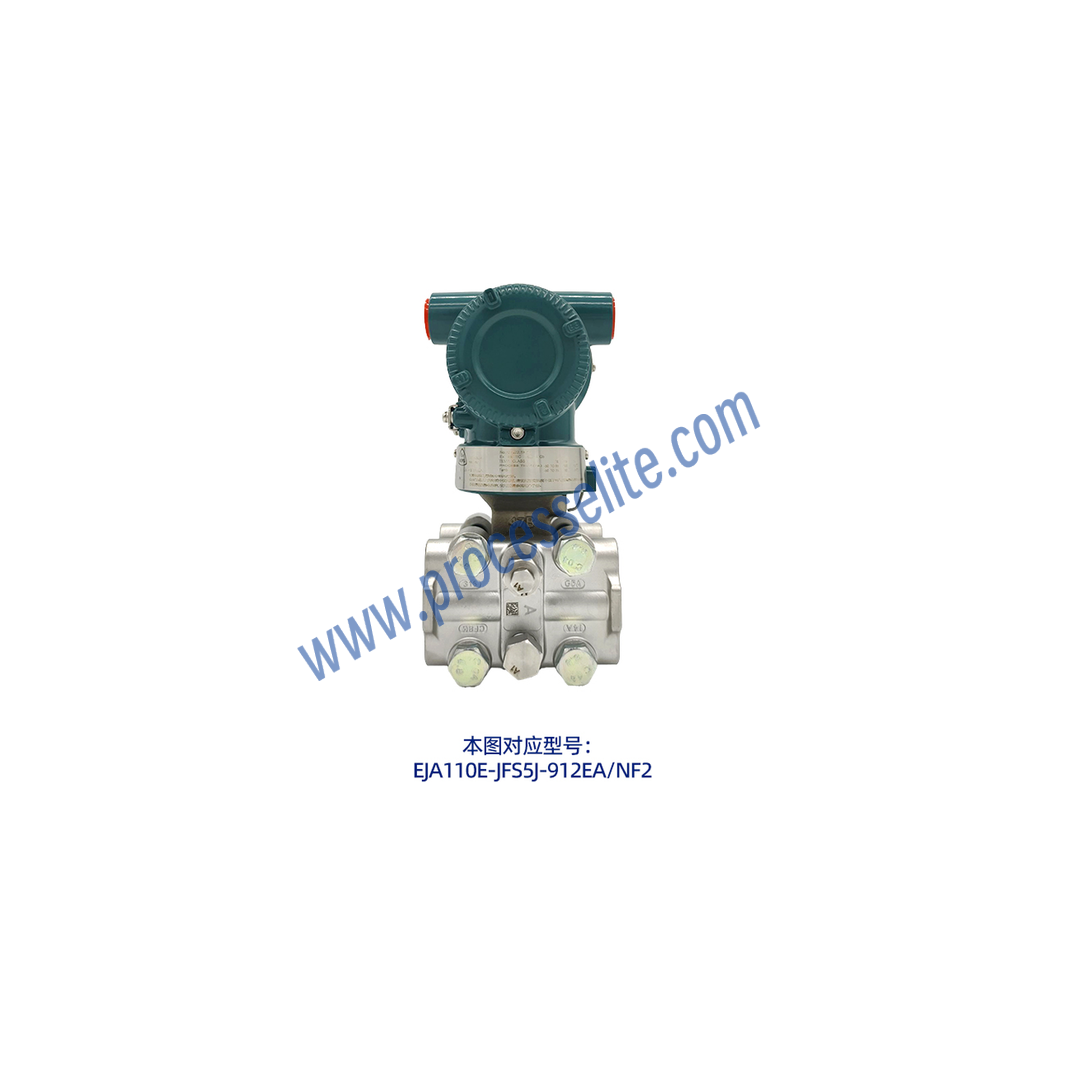

EJA110E Differential Pressure Transmitter - Processelite

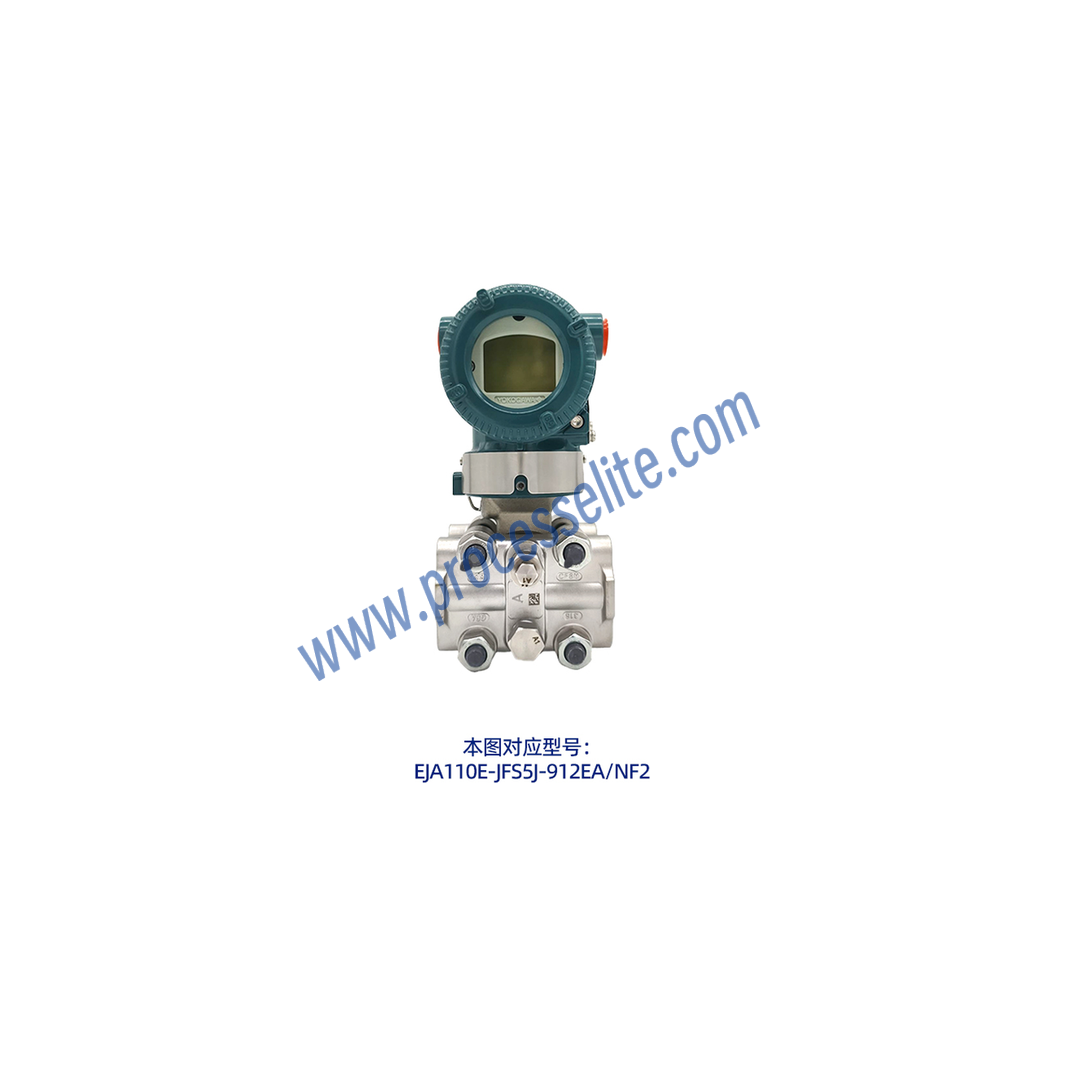

EJA110E Differential Pressure Transmitter - Processelite

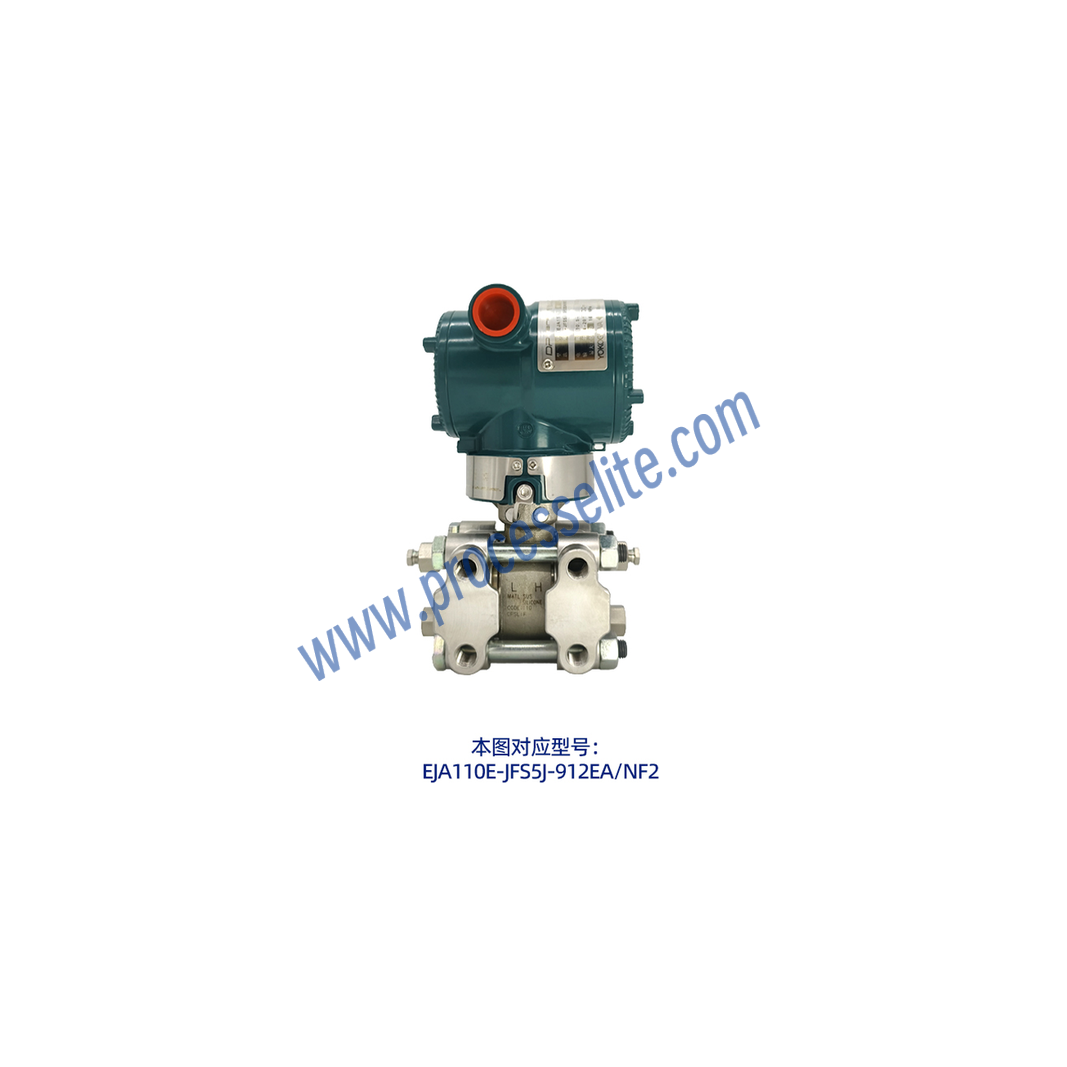

EJA110E Differential Pressure Transmitter - Processelite
Product name:
Differential Pressure Transmitter
Product series:

EJA110E

Product brand:
YOKOGAWA/YOKOGAWA
Product feature:
• Accuracy ±0.055% (optional accuracy ±0.04%) • Stability ±0.1% URL/10 years • Response time 90 ms • TUV and Exida SIL 2 / SIL 3 certified • Maximum operating pressure 2,300 psi (optional 3,600 psi) • Local parameter setting (LPS) • Available communication protocols include HART 5/7, HART (1~5V DC) low power version, FF Fieldbus, PROFIBUS PA, and BRAIN.
Favorite
Compare
Measuring principle:
Monocrystalline silicon resonant sensors perceive measured parameters through changes in the vibration frequency of the resonant beam. When external pressure or density varies, the frequency of the H-shaped resonant beam on the monocrystalline silicon chip changes accordingly, which is then converted to a standard electrical signal output via a microprocessor. This technology employs a dual Wheatstone bridge design combined with an integrated circuit, effectively reducing hysteresis and minimizing the effects of temperature and static pressure. The sensor features fast response, self-diagnosis capability, and high stability.
Product positioning:
Standard Differential Pressure
Using scenario:
The EJA110E high-performance differential pressure transmitter utilizes monocrystalline silicon resonant sensor technology and is suitable for measuring the flow, level, density, and pressure of liquids, gases, or steam. The EJA110E converts the measured differential pressure into a 4–20 mA DC current signal output, allowing for measurement, display, or remote monitoring of static pressure. It features rapid response, remote configuration, and self-diagnosis functions.
