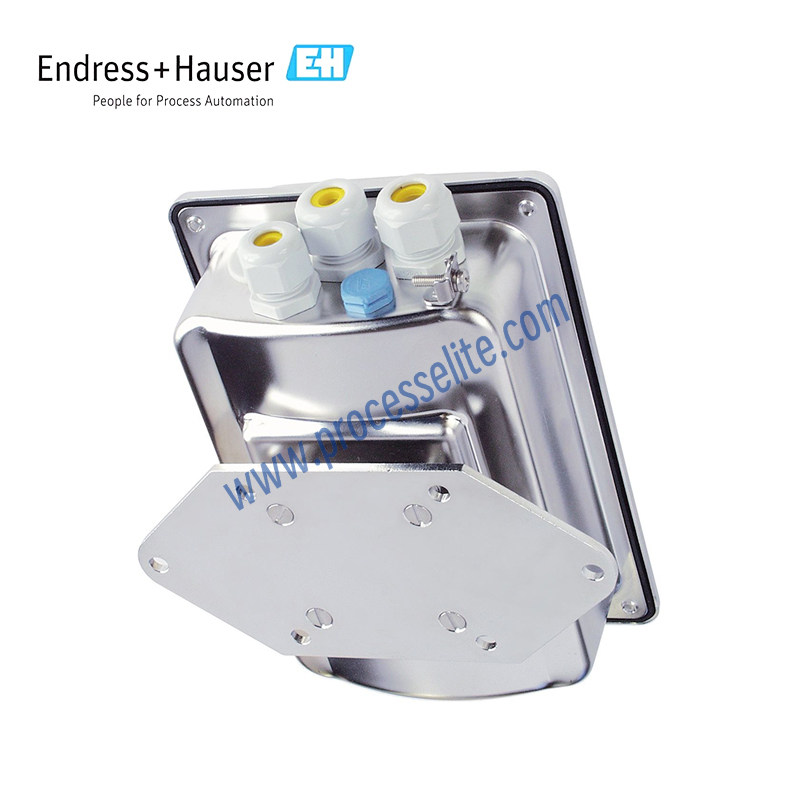

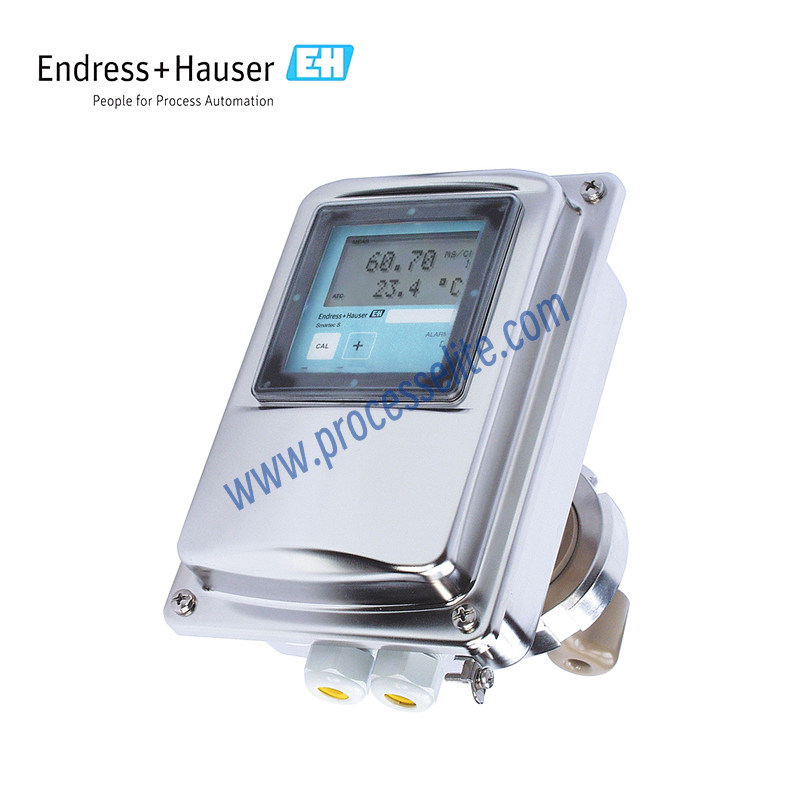

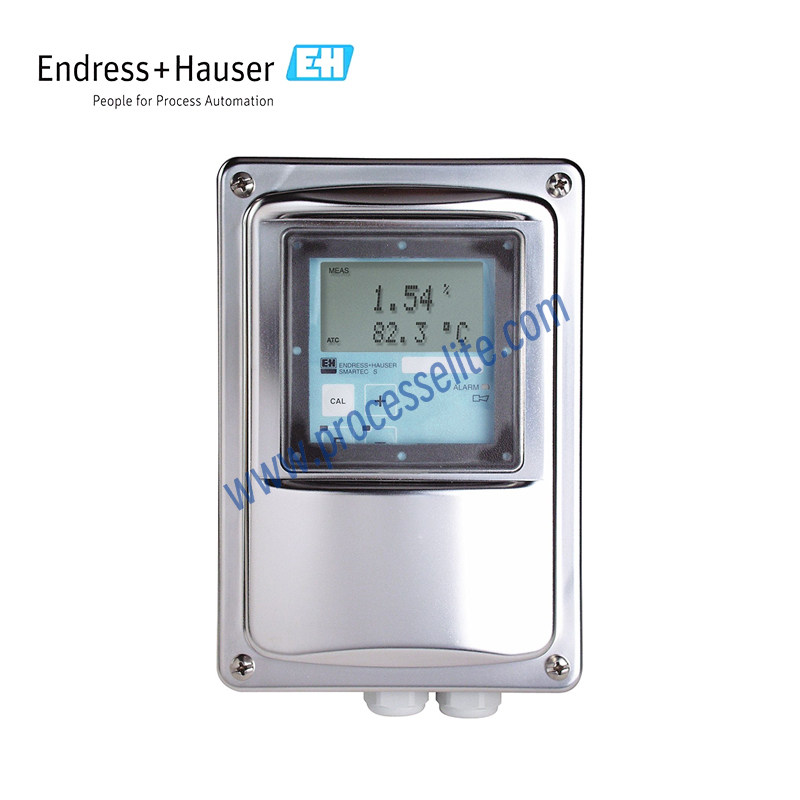

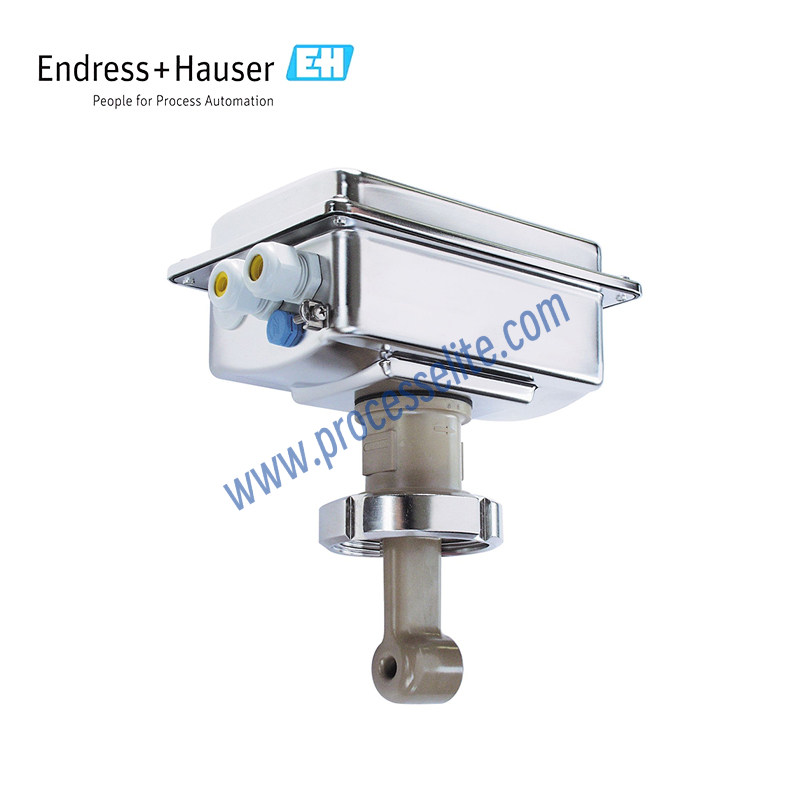

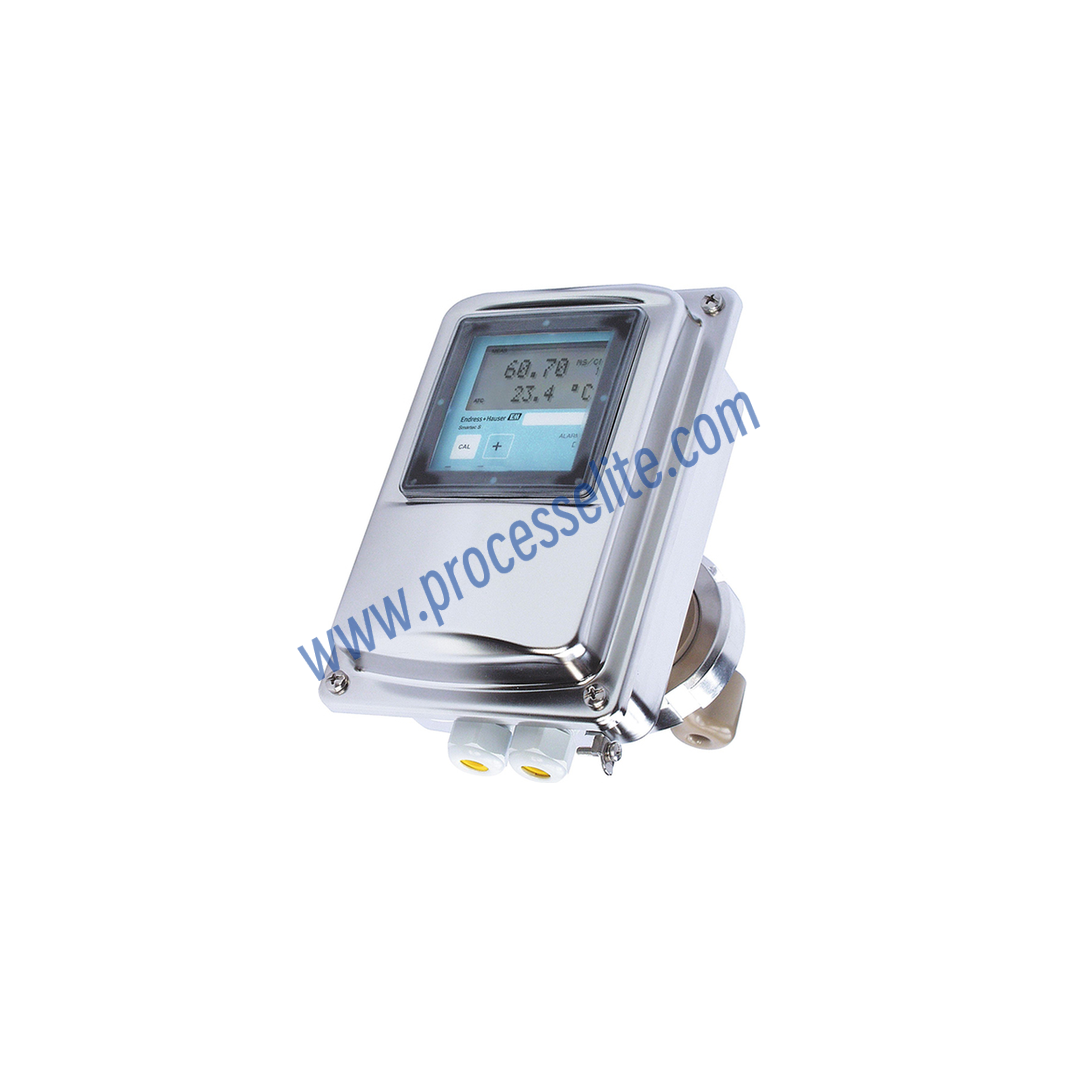

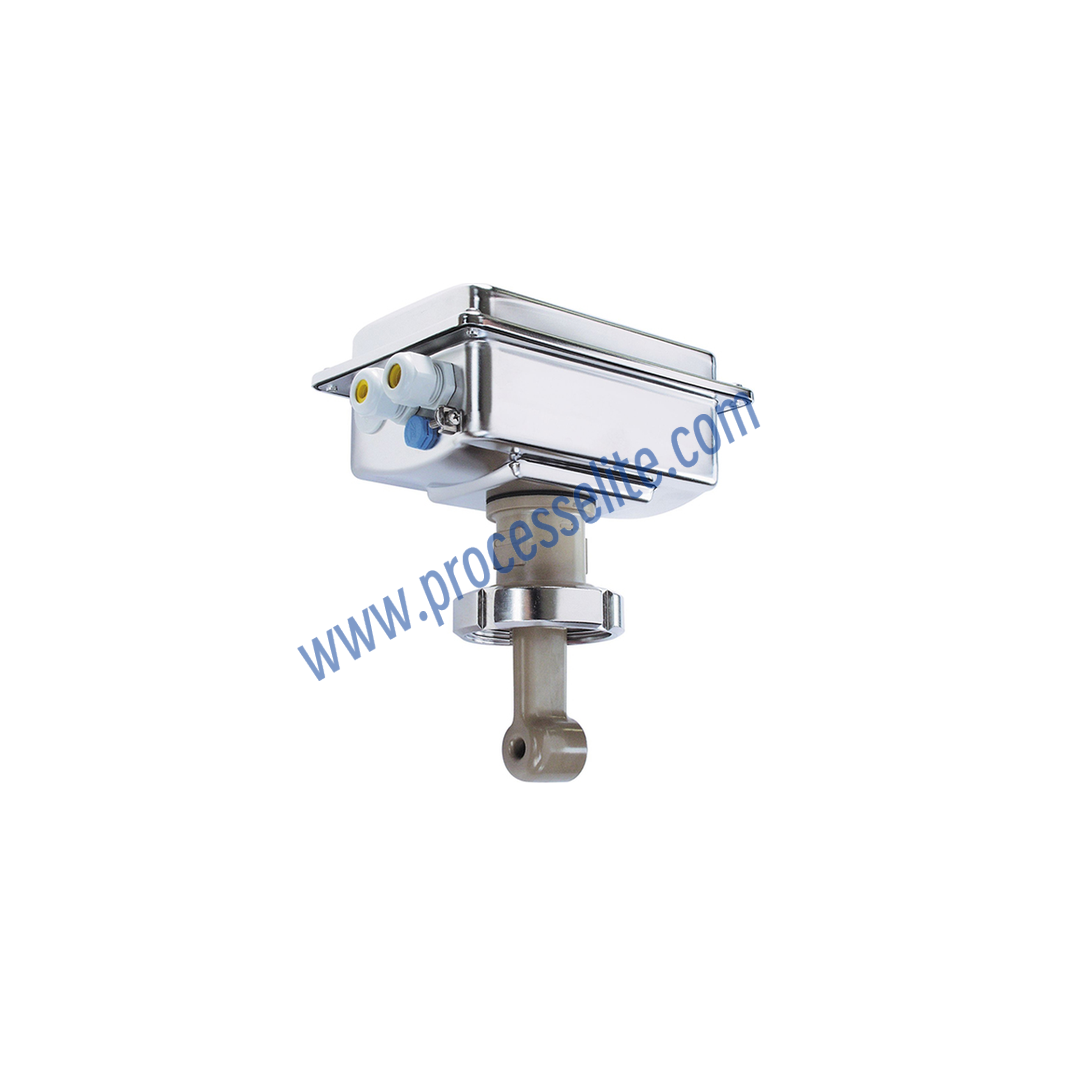

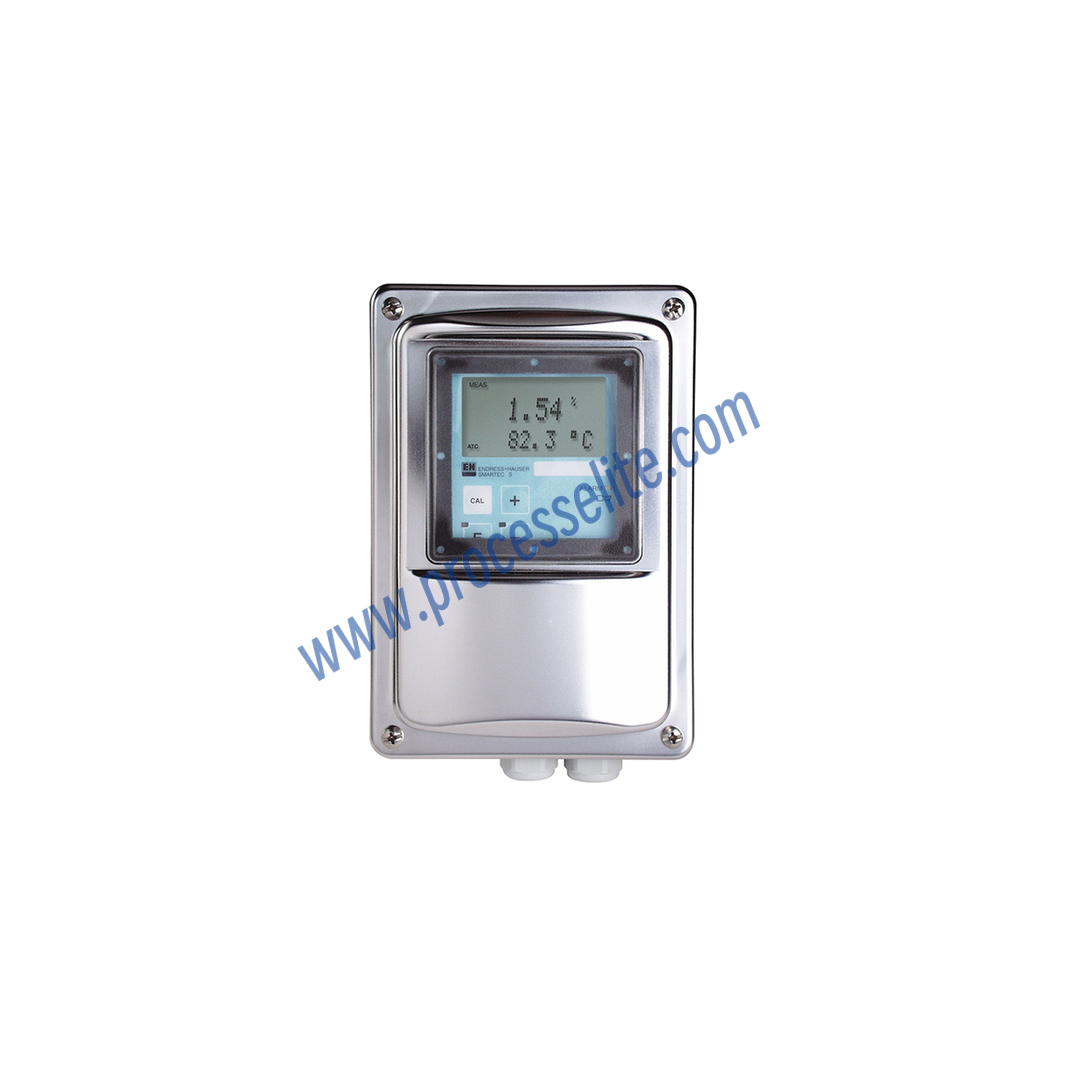

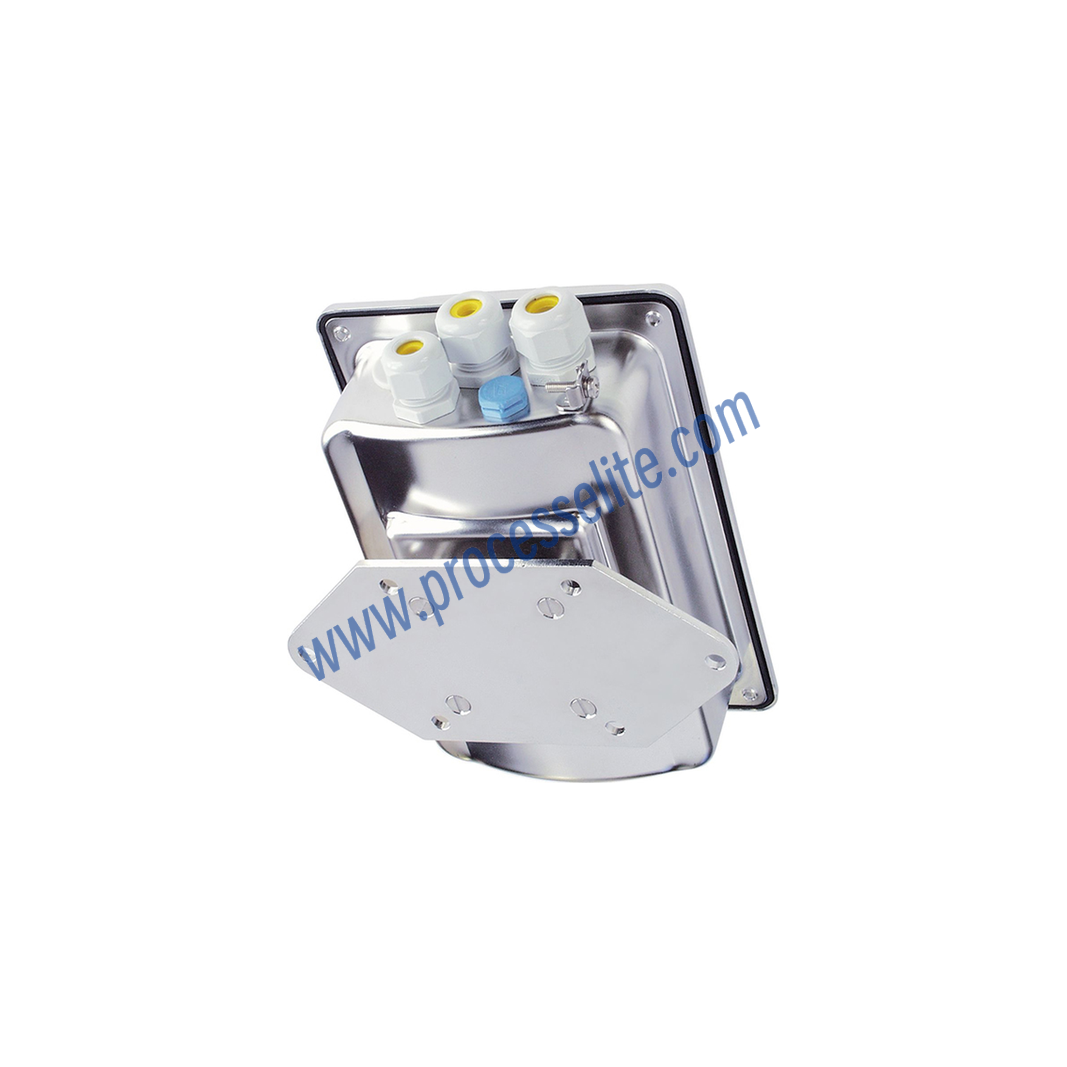

CLD132 Conductivity compact device Smartec - Processelite

*Picture for reference only !

Product name:

Conductivity compact device Smartec

Product series:

CLD132

Product brand:

E+H/Endress+Hauser

Product feature:

• Communication interfaces: 0/4–20 mA, HART, PROFIBUS • Fast temperature response • Encapsulated sensor design reduces the risk of contamination • Insensitive to polarization effects

Favorite

Compare

Configure

Measuring principle:

Inductive conductivity measurement uses an AC electromagnetic field generated by the primary coil to induce a current in the medium. The current strength depends on the medium's conductivity and ion concentration. The induced current generates a secondary electromagnetic field, which is detected by the secondary coil. The receiver measures the induced current and determines the conductivity of the medium.

Product positioning:

Standard

Using scenario:

Smartec CLD132 is an inductive conductivity measuring system with a stainless steel temperature sensor, providing reliable measurement with an ultra-fast temperature response in remote installation applications. Suitable for: • Acid/alkali concentration control in reprocessing processes • Phase separation between product/water and product/product mixtures in piping systems • Process media monitoring

测量参数：

电导率

传感器材质：

PEEK

316(L)

量程：

100µS/cm~2000mS/cm

精度：

±0.5% o.r.

最高过程温度：

125°C

最大过程压力：

8bar

12bar

温度传感器：

Pt100

CIP/SIP：

有

防爆型式：

非防爆

防护等级：

IP67
