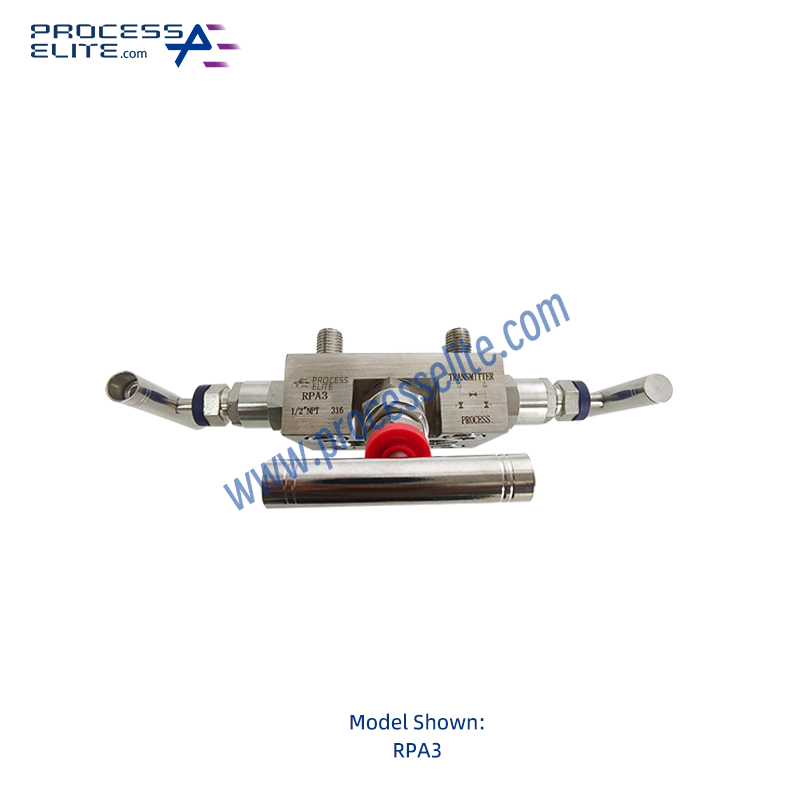

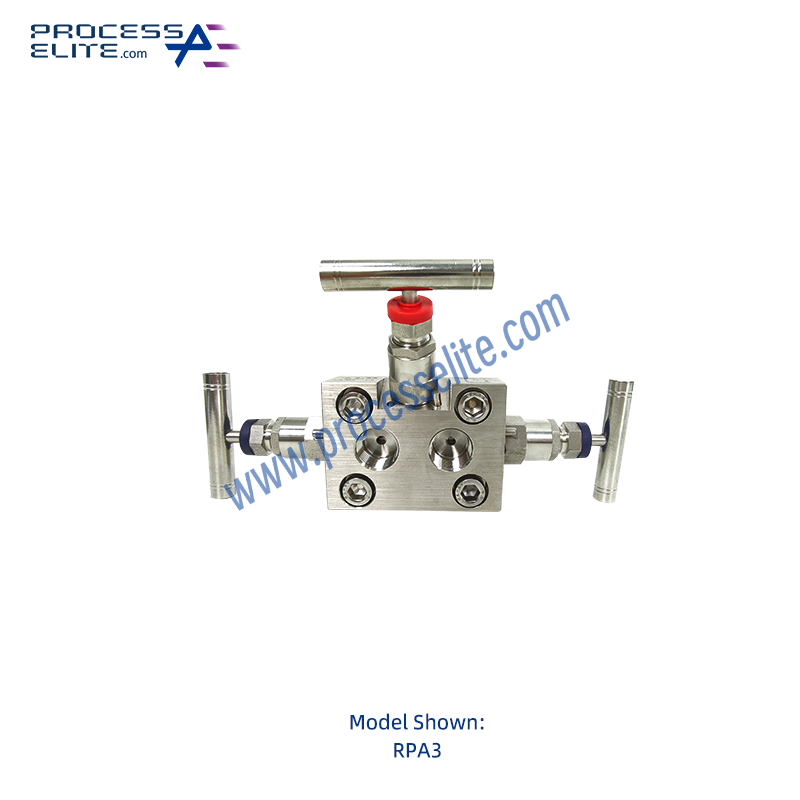

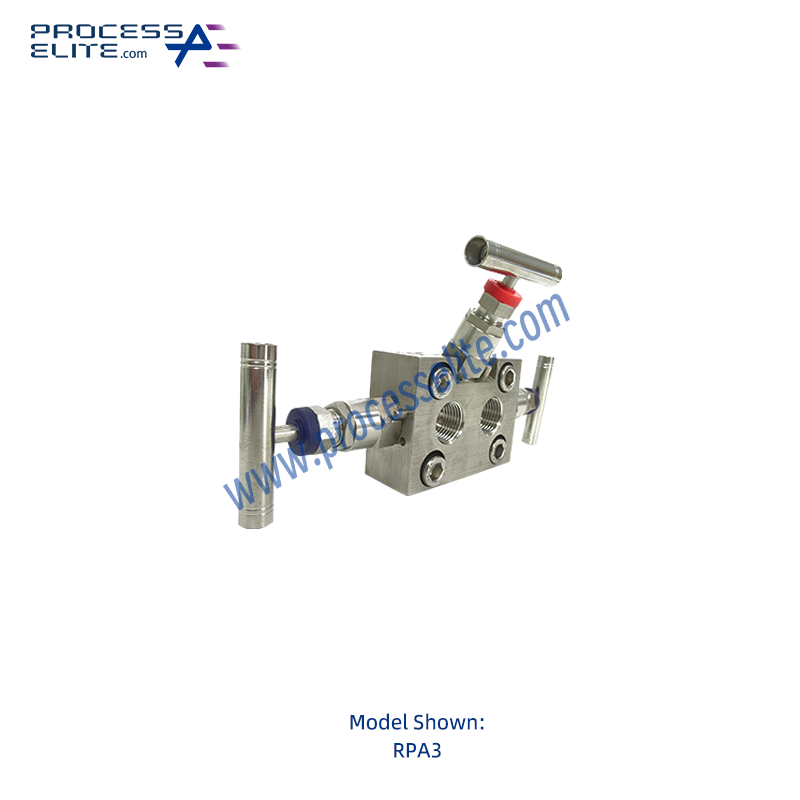

RPA3

A three-valve manifold consists of one high-pressure valve, one low-pressure valve and one equalizing valve. It is used to switch the connection status between the positive/negative pressure measuring chambers of differential pressure transmitters and pressure tapping points. Its working principles are specified below: - Measuring Mode: Open the high-pressure and low-pressure valves while closing the equalizing valve. The positive and negative pressure chambers connect to corresponding high and low pressure tapping points to enable normal differential pressure measurement by the transmitter. - Equalizing Mode: Shut off the high and low pressure valves and open the equalizing valve to interconnect the two measuring chambers for pressure balance, protecting the transmitter diaphragm capsule from unidirectional pressure load. - Calibration Mode: Close the high-pressure and low-pressure valves and open the equalizing valve to equalize pressure inside both chambers, allowing zero-point calibration of the transmitter.

- Petrochemical Industry: Monitors and regulates pressure and differential pressure of diverse fluids during petrochemical production to maintain safe and stable operation. - Pharmaceutical Industry: Enables precise regulation of medicinal liquids to avert cross-contamination in production workflows. - Food & Beverage Industry: Controls pipeline flow and pressure so as to stabilize product quality. - Energy Sector: Manages the flow and pressure of steam, water and other media in thermal power plants and other energy facilities. - Water & Wastewater Treatment: Regulates water flow, pressure and water quality to guarantee safe and hygienic water conditions. - Refrigeration & HVAC Systems: Adjusts the flow, pressure and temperature of refrigerants for stable system operation.
