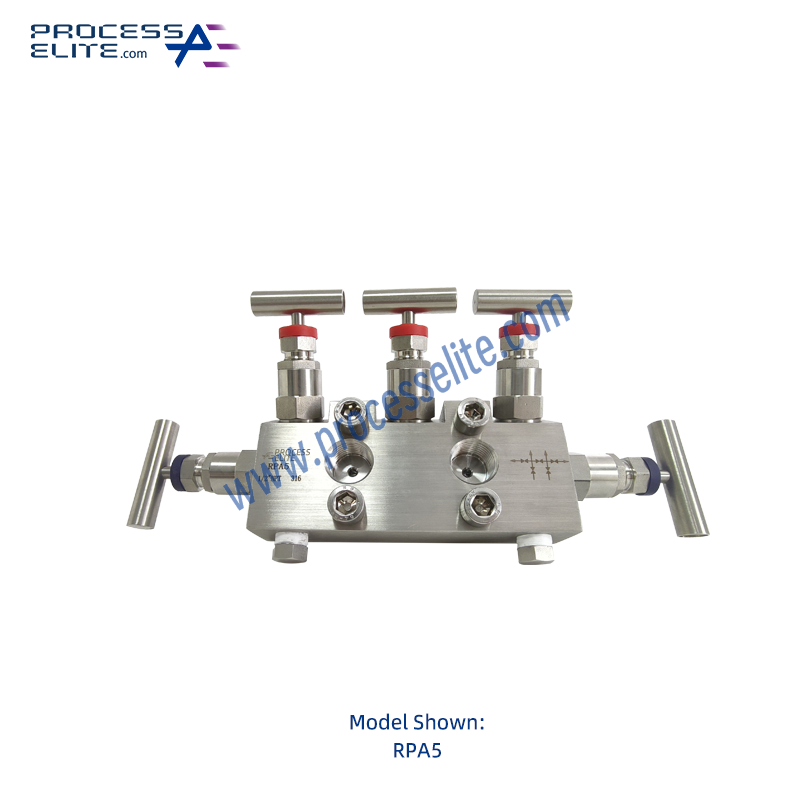

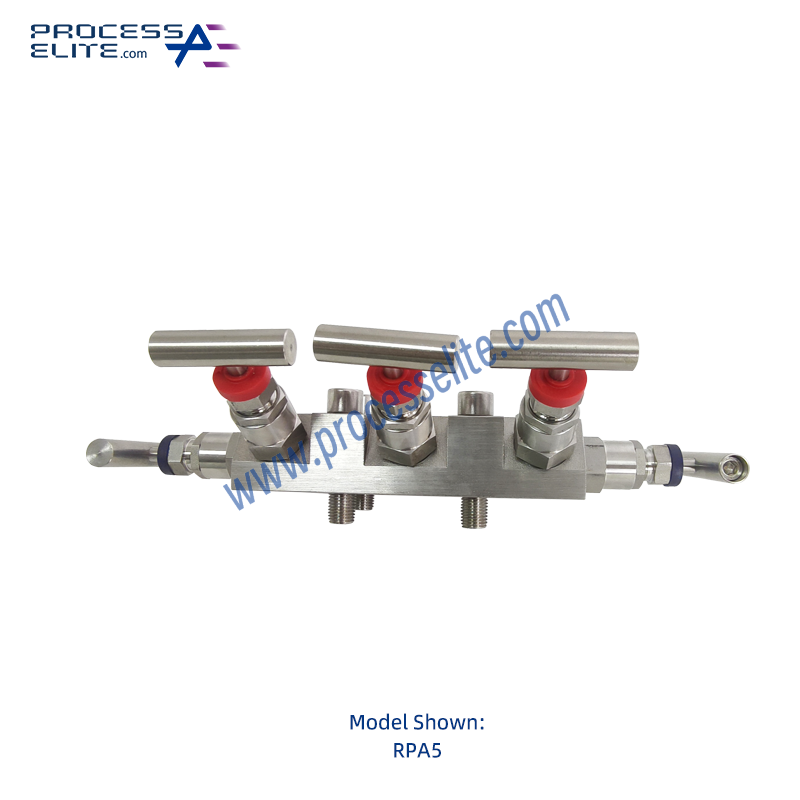

RPA5

A five-valve manifold consists of a high-pressure valve, a low-pressure valve, an equalizing valve and two calibrating (vent/drain) valves. Its working principles are described as follows: - Measuring Condition: Open the high-side and low-side shut-off valves, and close the equalizing valve as well as two calibrating valves. The positive and negative pressure measuring chambers of the differential pressure transmitter are connected to the high-pressure and low-pressure tapping points respectively to realize normal differential pressure measurement. - Equalizing Condition: Close the high-side and low-side shut-off valves and open the equalizing valve to communicate the two measuring chambers for pressure equalization, which protects the transmitter diaphragm capsule from unidirectional pressure damage. - Calibration Condition: Shut down the high and low pressure shut-off valves, and open the equalizing valve and two calibrating valves to calibrate and balance the transmitter. - Draining Condition: Open the calibrating (drain) valves to discharge dirt and redundant media and keep the pipeline system clean.

- Petrochemical Industry: Measures and controls pressure and differential pressure of various fluids in petrochemical processes to secure stable and safe production. - Pharmaceutical Industry: Realizes precise regulation of medicinal solutions to avoid cross-contamination during production. - Food & Beverage Industry: Manages pipeline flow and pressure to guarantee product quality. - Energy Industry: Regulates the flow and pressure of steam, water and other media in thermal power stations and other energy installations. - Water & Wastewater Treatment: Controls water flow, water quality and pressure to maintain safe and hygienic water supply. - Refrigeration and HVAC Systems: Regulates refrigerant flow, pressure and temperature to sustain normal system operation.
