CLS16B

Product brand:

E+H/Endress+Hauser

Product feature:

• Ideal for life sciences and food & beverage applications, compliant with EHEDG, ASME, FDA, and USP Class VI • Hygienic design, autoclavable, sterilizable, and suitable for CIP and SIP • High accuracy with individually measured sensor cell constant • Robust electropolished stainless steel body for corrosion resistance and easy cleaning • Long service life with replaceable hygienic EPDM/PEEK seals

Favorite

Compare

Configure

Measuring principle:

Conductivity is measured using two electrodes immersed in the medium. An AC voltage generates current through the liquid. The conductivity is calculated from the measured resistance or conductance (G), with the sensor cell constant used to determine the actual conductivity.

Product positioning:

Standard

Using scenario:

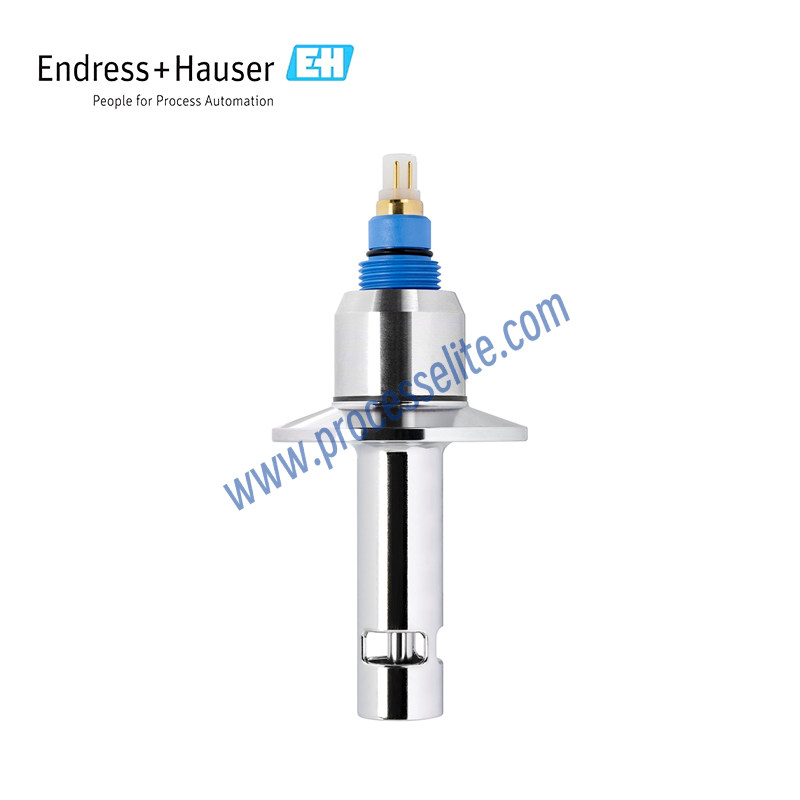

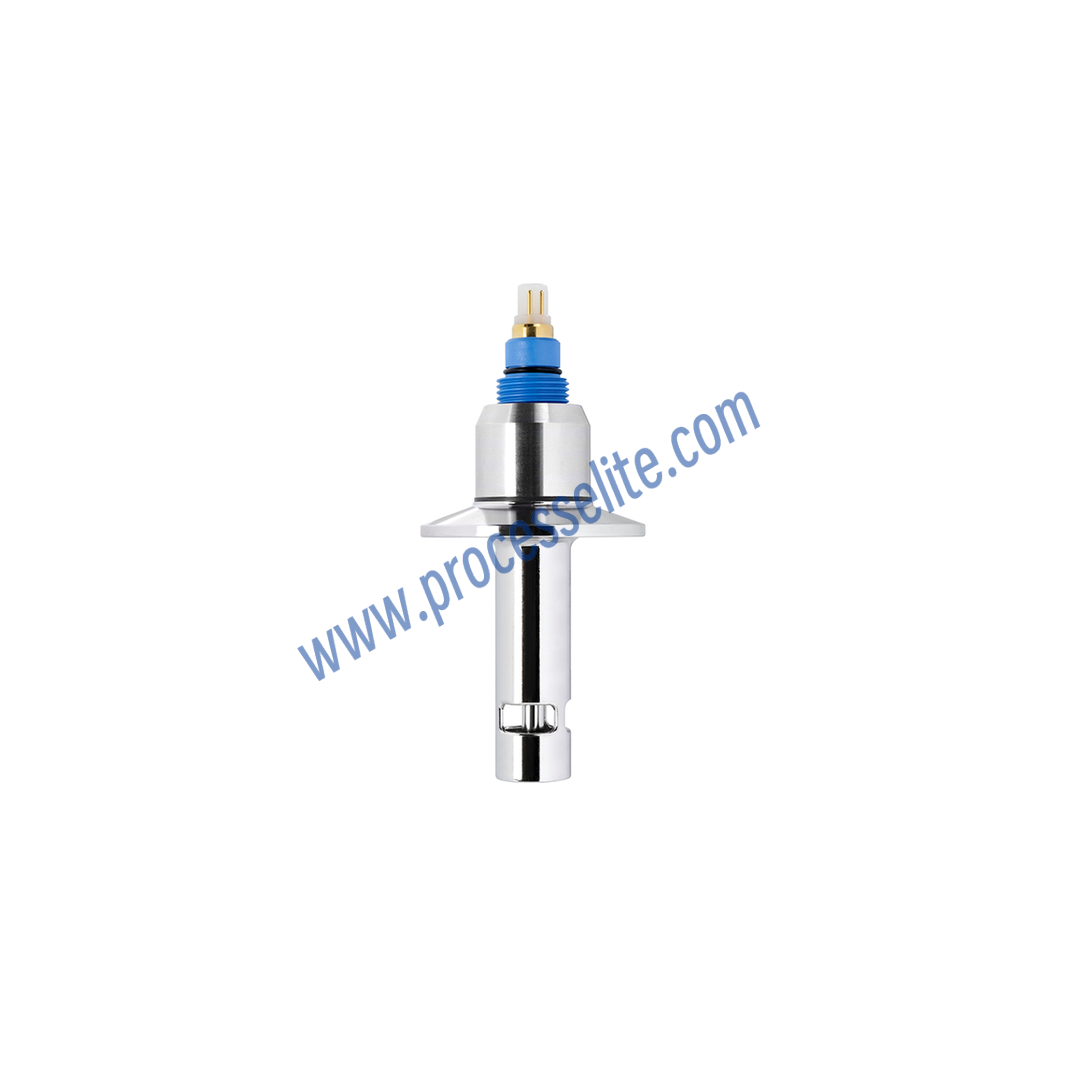

Condumax CLS16B is an analog conductivity sensor designed for high-accuracy measurement of pure and ultrapure water at low conductivity levels. It meets hygienic requirements according to EHEDG, USP Class VI, and ASME-BPE and offers a variety of hygienic process connections for different applications. Suitable for conductivity monitoring of: • Ion exchange systems • Reverse osmosis systems • Distillation systems • Water for Injection (WFI)

Explosion-proof type:

Non-explosion-proof

Ex i
