CFS51

Product brand:

E+H/Endress+Hauser

Product feature:

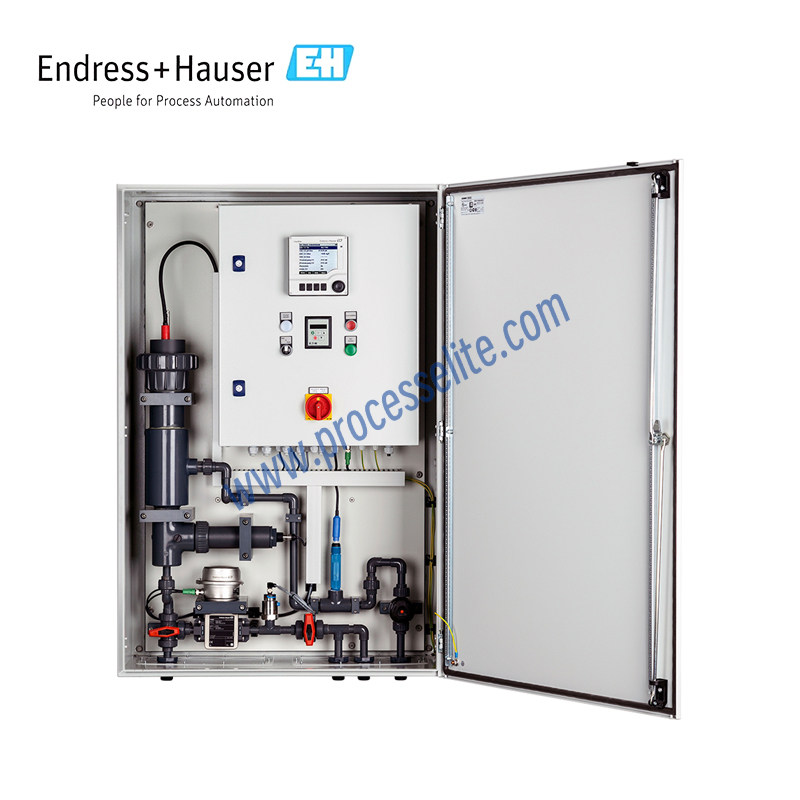

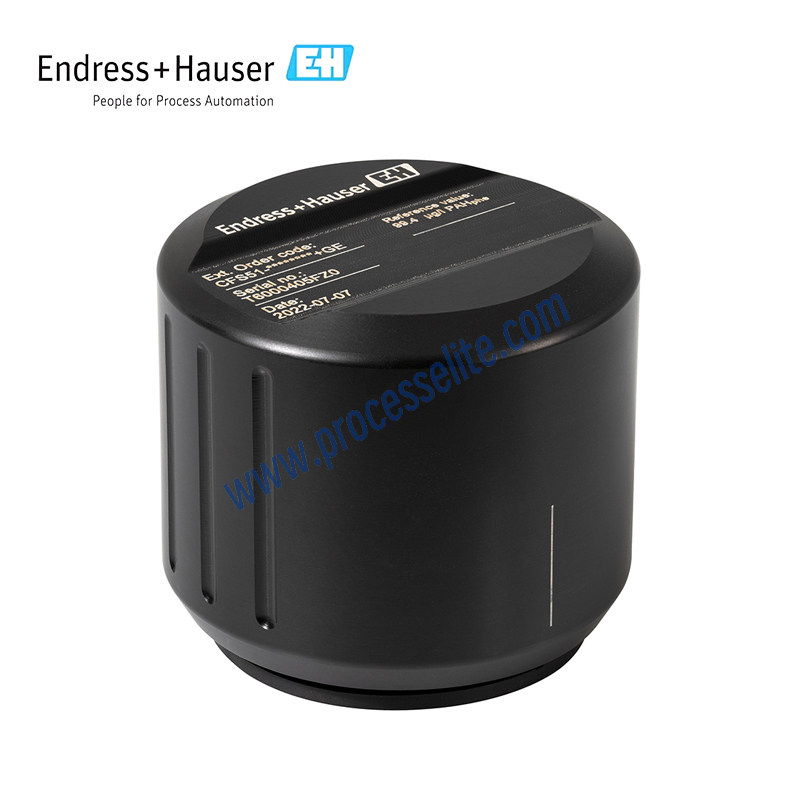

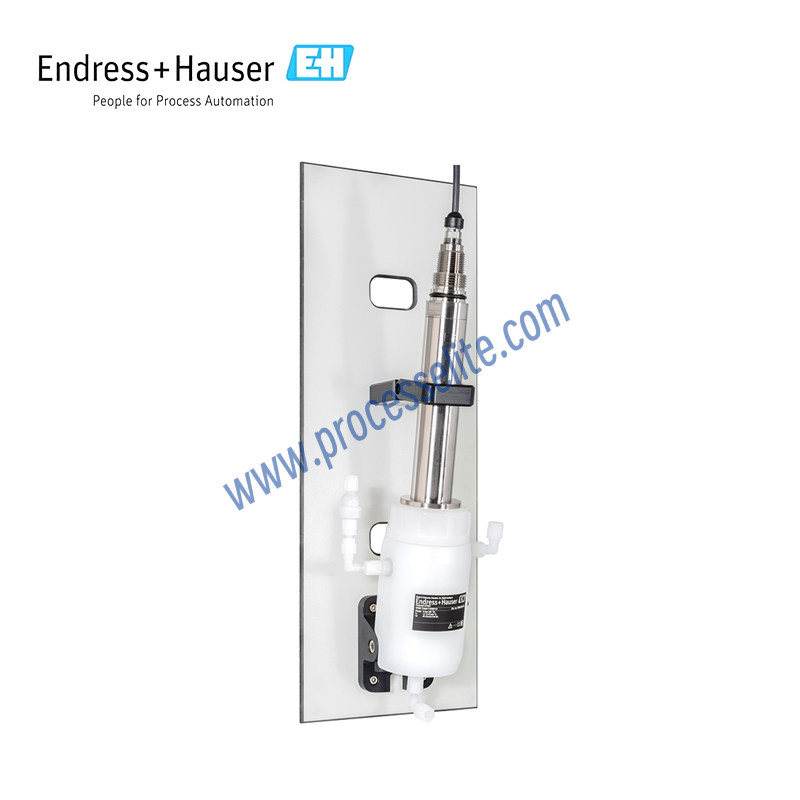

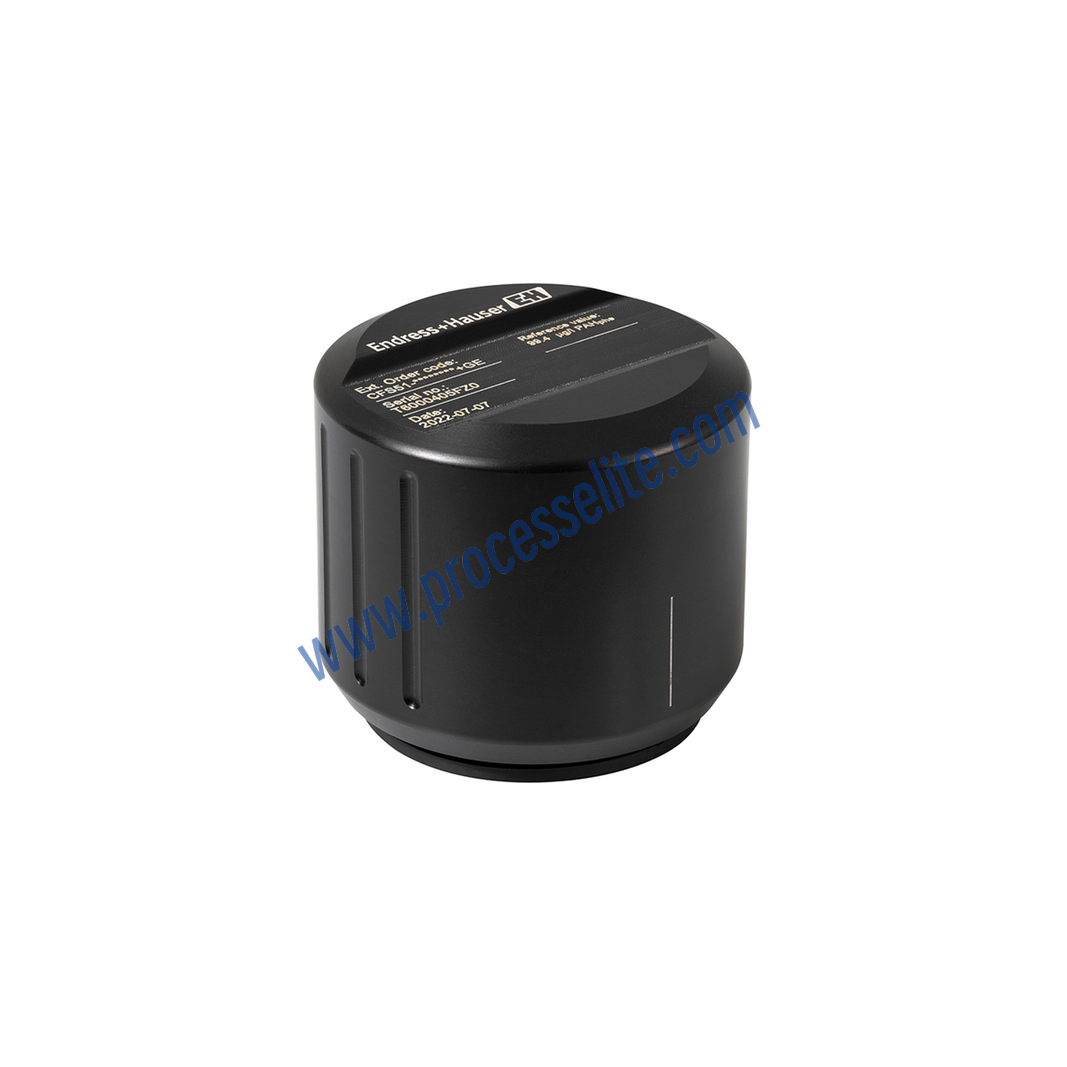

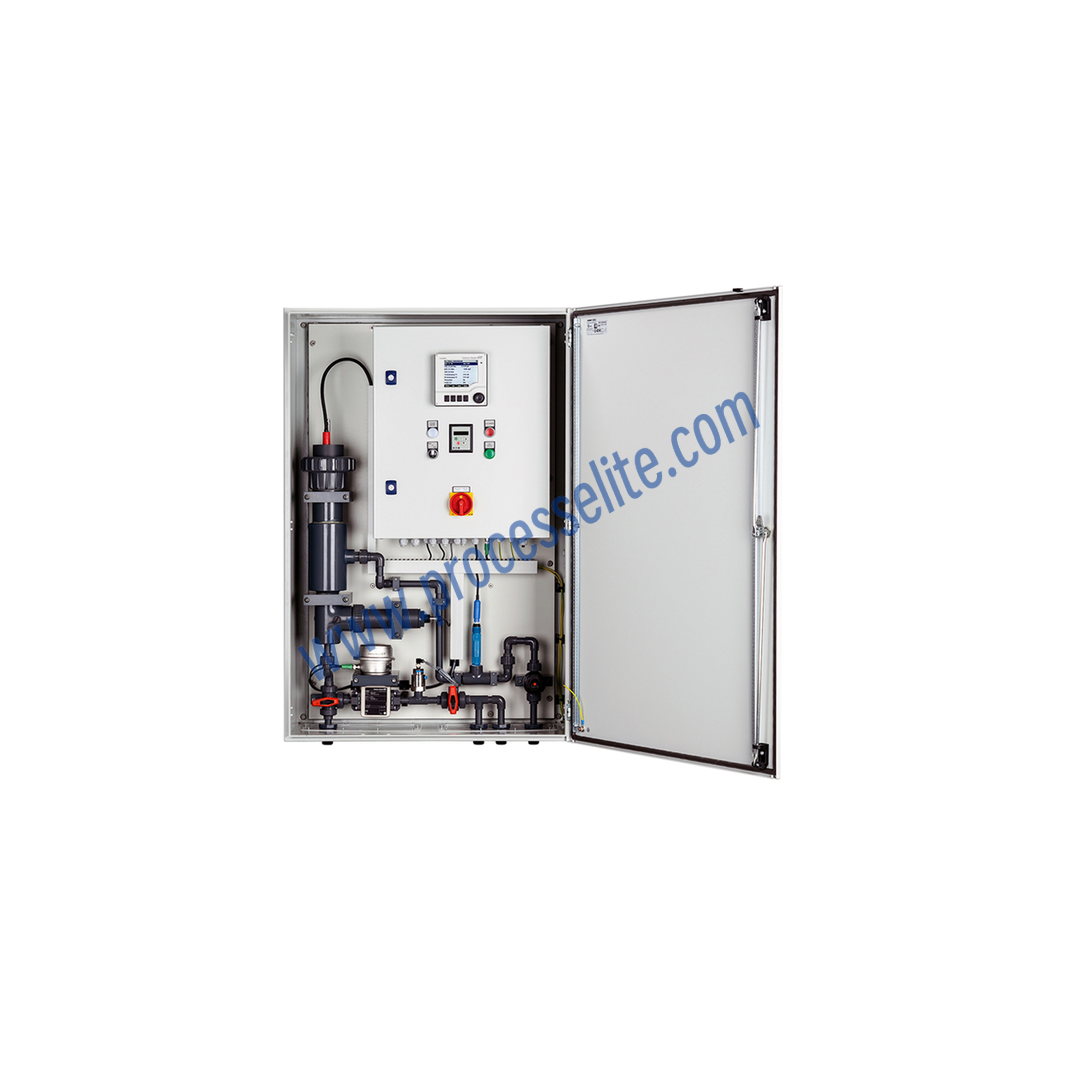

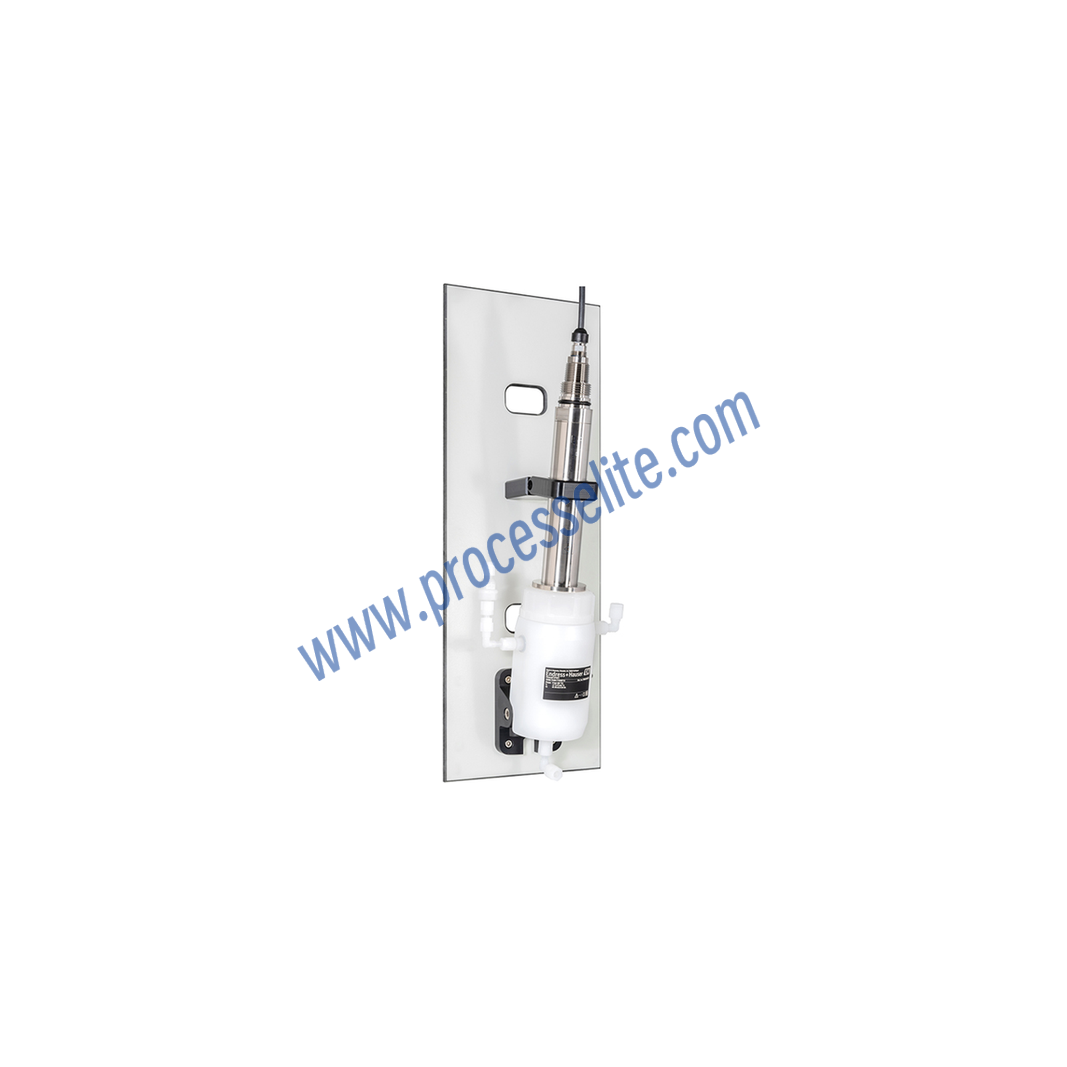

• Long factory maintenance intervals reduce maintenance costs and organizational effort • Optional flow assembly maintains the ideal sensor angle to minimize air bubble interference and allows quick sensor installation and removal • DNV-approved integrated turbidity correction from 0 to 50 FNU • Sensor and flow assembly comply with IACS E10 flame-retardancy requirements • Solid-state reference enables easy calibration without toxic phenanthrene, improving safety for personnel and the environment • DNV-approved solid-state reference for onboard PAH sensor calibration and readjustment • Early warning of contamination for timely corrective action, with real-time monitoring for reliable documentation and regulatory compliance

Favorite

Compare

Configure

Measuring principle:

Fluorescence measurement is used to detect the presence of polycyclic aromatic hydrocarbons (PAHs) in water. The instrument excites PAHs with ultraviolet light and detects the resulting fluorescence. In accordance with MEPC.259(68) and MEPC.340(77), PAH concentration is measured in phenanthrene equivalents (PAHphe). The excitation wavelength is 254 nm, with a detection wavelength of up to 360 nm.

Product positioning:

Standard

Using scenario:

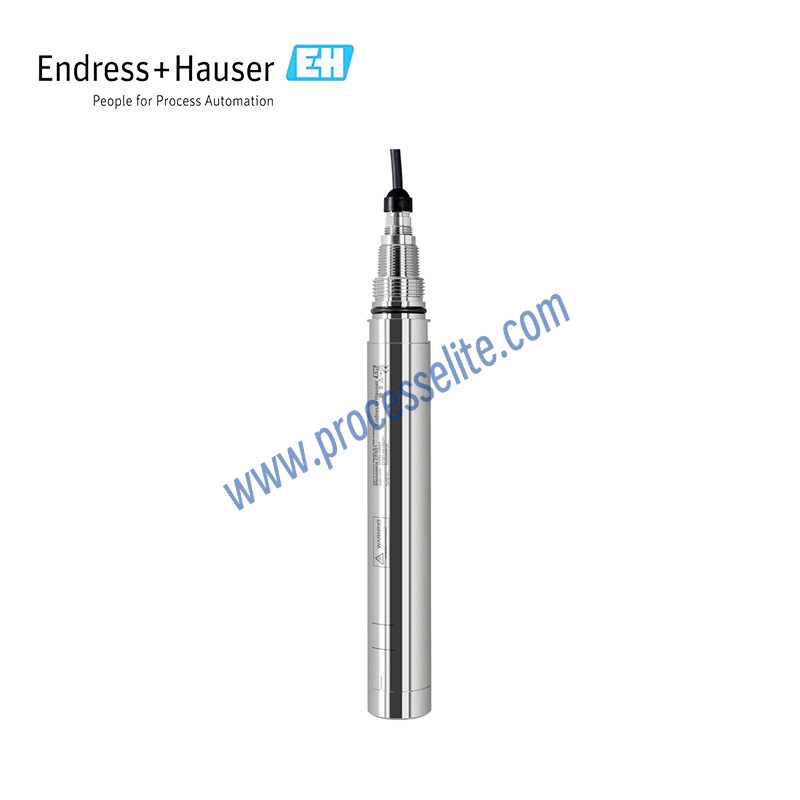

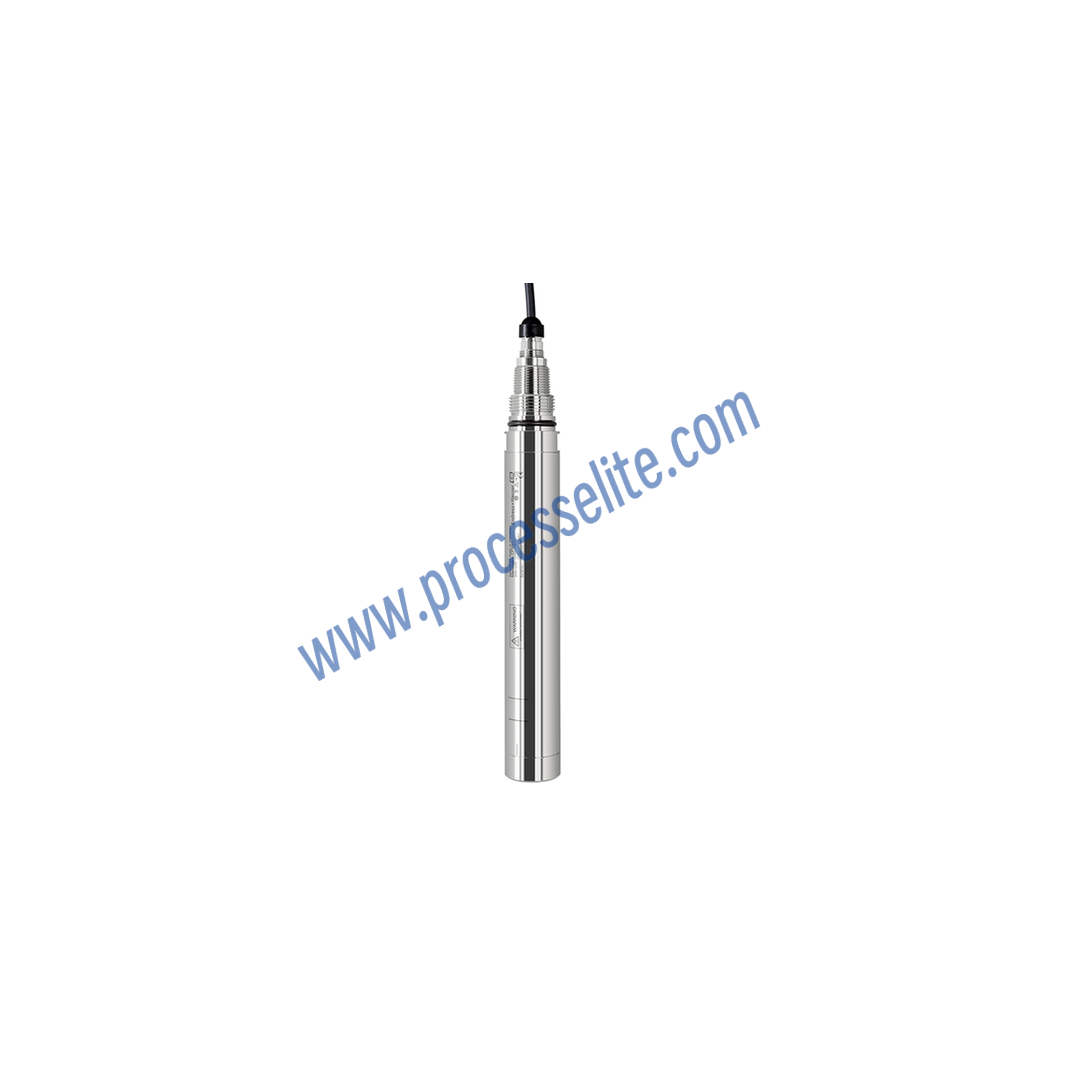

Memosens CFS51 is a robust, low-maintenance digital sensor for measuring polycyclic aromatic hydrocarbon (PAH) concentrations using UV fluorescence technology. It complies with MEPC.259(68) and MEPC.340(77) requirements. An integrated solid-state calibration reference enables direct sensor calibration and adjustment onboard, while guided menus on the transmitter simplify operation. Easy calibration and a factory maintenance interval of up to 4 years provide reliable, long-term operation.

测量参数：

多环芳烃

最大量程：

5 mg/l

150 mg/l

过程温度：

-5~55℃

最大过载压力：

9bar

传感器材质：

Ti(钛)

防护等级：

IP68
