All >> Flow measurement >> Inline Ultrasonic Flowmeter

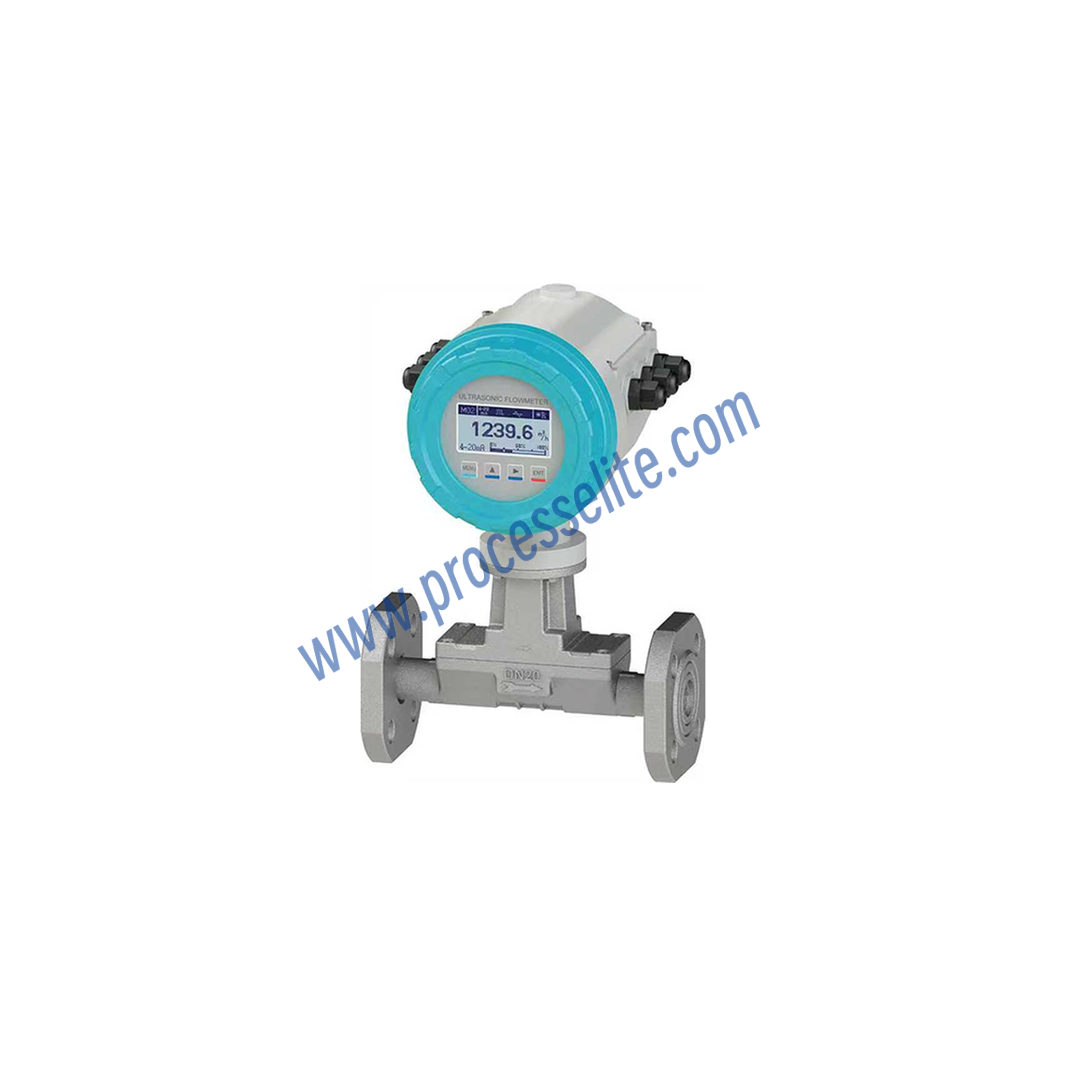

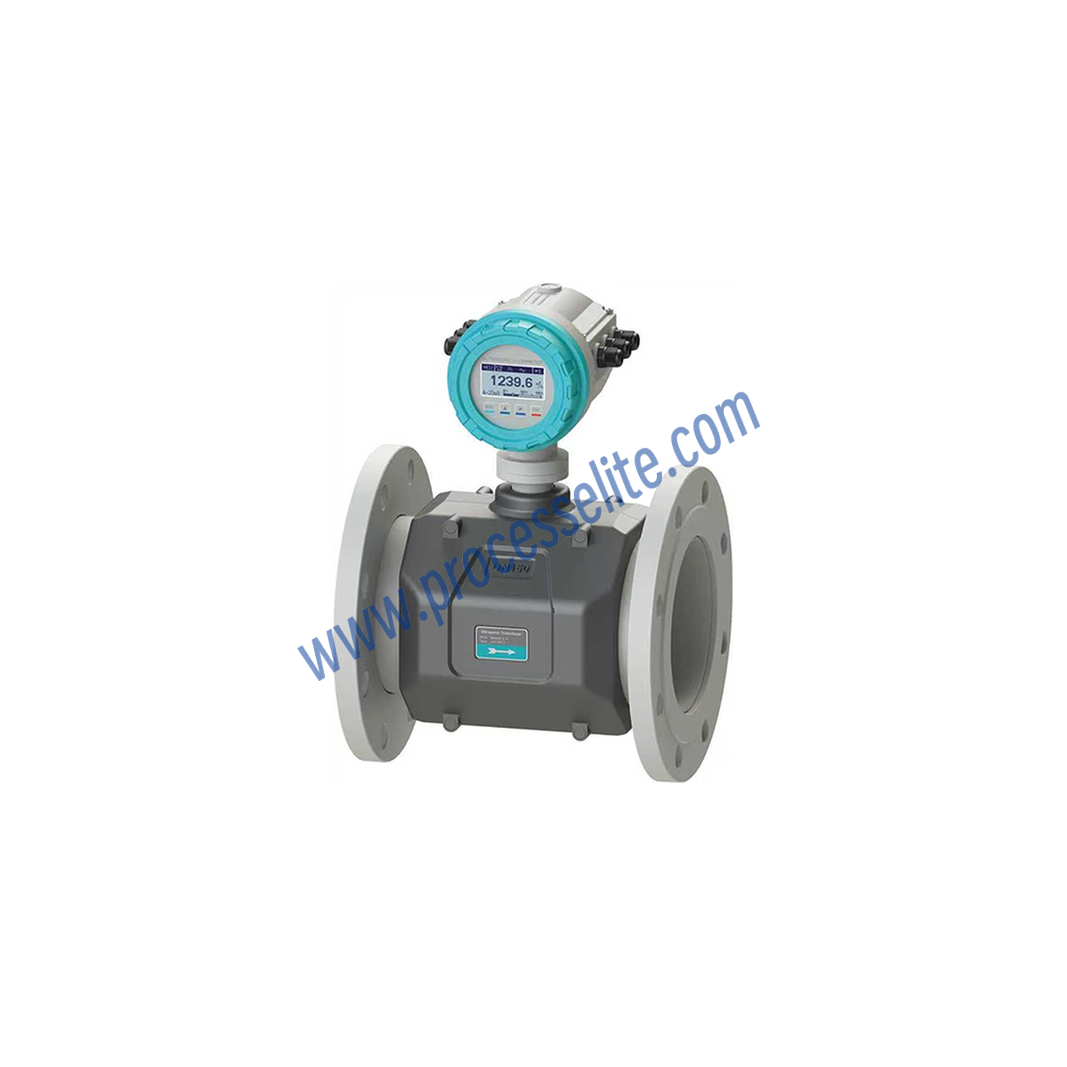

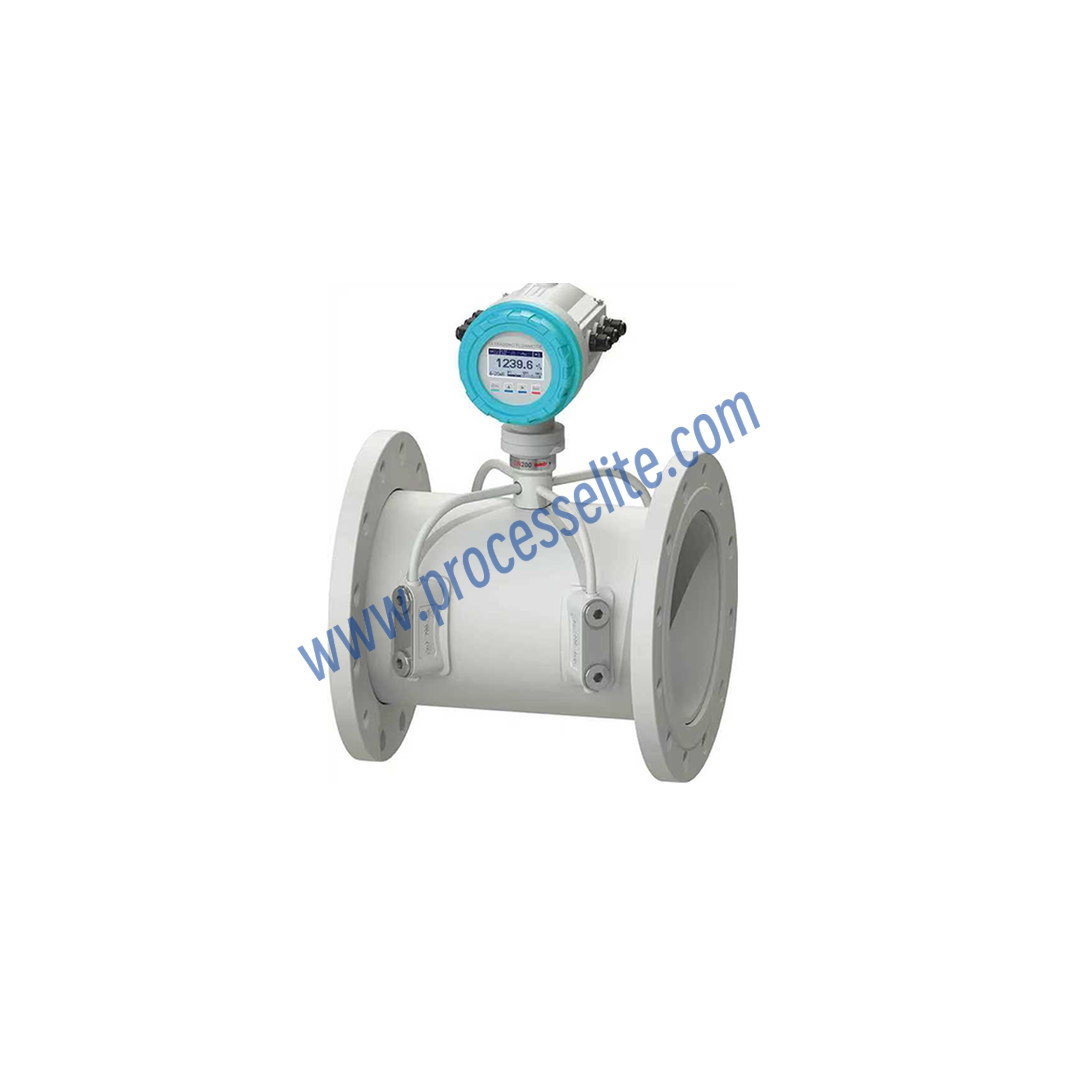

RFUT Inline Ultrasonic Flowmeter - Processelite

*Picture for reference only !

Product name:

Inline Ultrasonic Flowmeter

Product series:

RFUT

Product brand:

PE/PE

Product feature:

Ultrasonic flowmeters adopt the time-difference measurement principle with three installation forms: in-line, insertion and clamp-on types. Similar to electromagnetic flowmeters, in-line ultrasonic flowmeters adopt full-bore design with no flow constriction. Besides, they are applicable for pure water and other low-conductivity fluids, serving as an ideal complement to electromagnetic flowmeters.

Favorite

Compare

Configure

Measuring principle:

Ultrasonic flowmeters calculate fluid velocity based on the vector sum of sonic velocity in static fluid and the average flow velocity of the medium. The mainstream measuring principle is the time-difference method, which computes flow rate via the time gap of ultrasonic signals propagating downstream and upstream. Common types include in-line, clamp-on and insertion styles.

Product positioning:

Standard

Using scenario:

Mounting type:

In-line (pipe) type

Clamp-on type

Number of chords:

Single-path

Dual-path

Four-path

Accuracy (Standard conditions ):

±0.5% o.r.

±1% o.r.

Process connection:

Carbon steel flange

Threaded

Max. process pressure:

≤40bar

Max. process temperature:

≤160℃

Communication:

Power supply:

24VDC

220VAC

Explosion-proof type:

Non-explosion-proof

Protection class:

IP68

Wetted material:

Carbon steel

304(L)

316(L)

All

Instruction

Operation

2D/3D

Certificate

Summary

Ultrasonic Flowmeter (Pipe Section Type) RFUT
