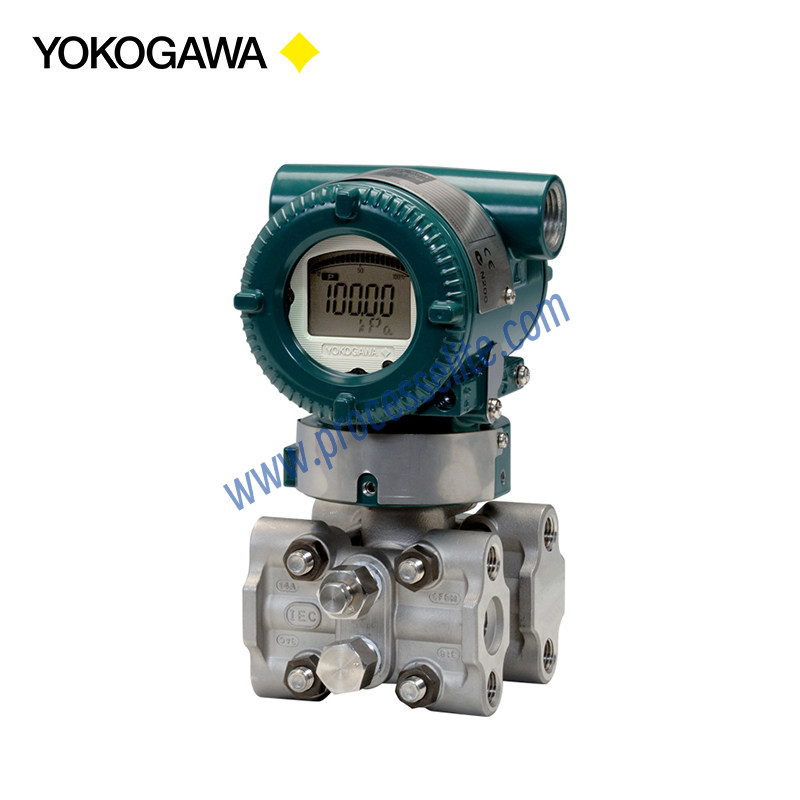

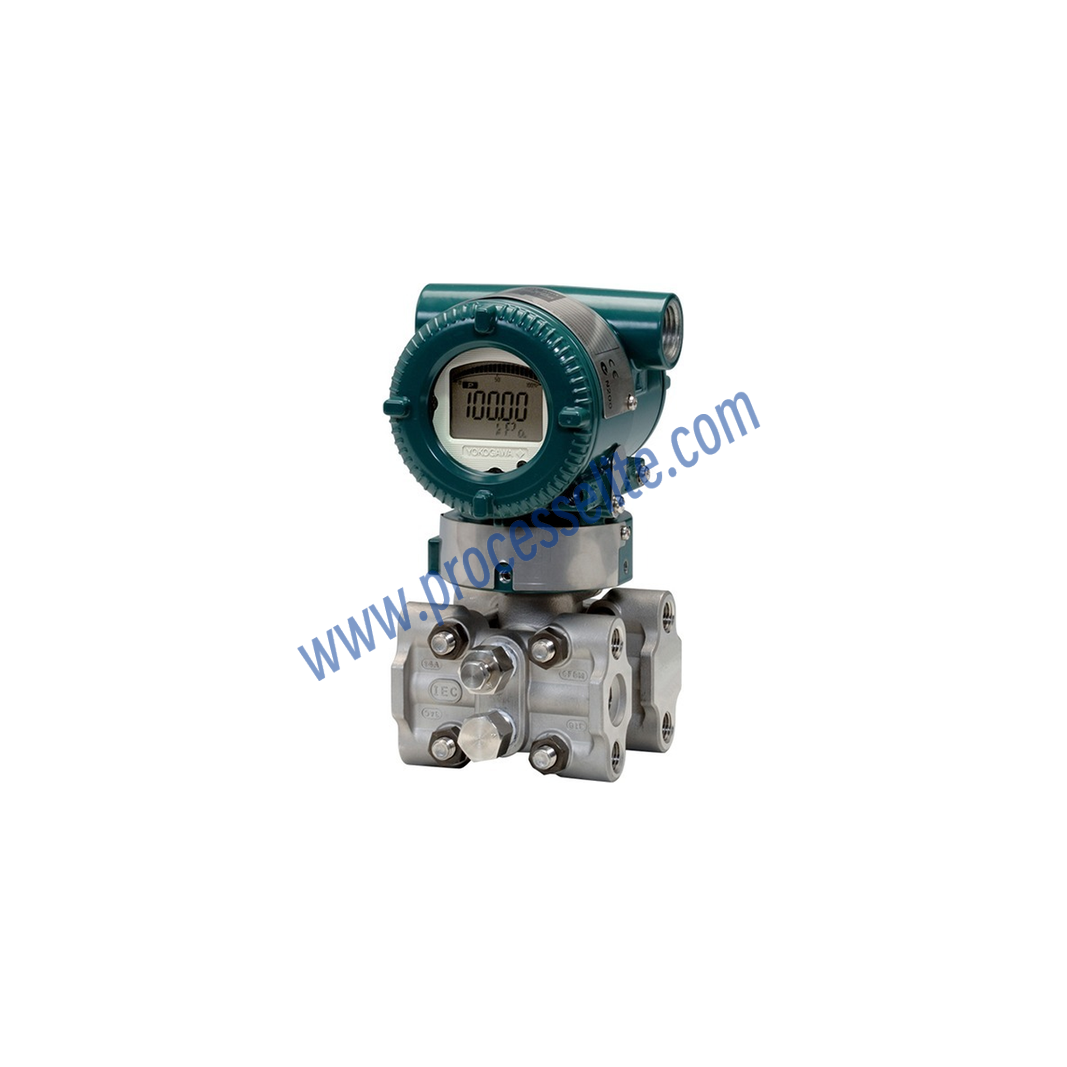

EJA430E Traditional-mount Gauge Pressure Transmitter - Processelite
*Picture for reference only !
EJA430E Traditional-mount Gauge Pressure Transmitter - Processelite
Product name:
Traditional-mount Gauge Pressure Transmitter
Product series:

EJA430E

Product brand:
YOKOGAWA/YOKOGAWA
Product feature:
• Accuracy ±0.055% (optional accuracy ±0.04%) • Stability ±0.1% URL/10 years • Response time 90 milliseconds • TUV and Exida SIL2 / SIL3 certified • Local parameter setting (LPS) • Supports HART 5/7, HART (1~5V DC) low-power version, FF fieldbus, PROFIBUS PA, and BRAIN communication protocols.
Favorite
Compare
Measuring principle:
Monocrystalline silicon resonant sensors perceive measured parameters through changes in the vibration frequency of the resonant beam. When external pressure or density varies, the frequency of the H-shaped resonant beam on the monocrystalline silicon chip changes accordingly, which is then converted to a standard electrical signal output via a microprocessor. This technology employs a dual Wheatstone bridge design combined with an integrated circuit, effectively reducing hysteresis and minimizing the effects of temperature and static pressure. The sensor features fast response, self-diagnosis capability, and high stability.
Product positioning:
Differential Pressure Structure Measuring Gauge Pressure
Using scenario:
The EJA430E/high-performance pressure transmitter utilizes single-crystal silicon resonant sensor technology and is suitable for measuring the pressure of liquids, gases, or steam. The EJA430E converts the measured pressure into a 4–20 mA DC current signal output and features fast response, remote setting monitoring, and self-diagnosis functions.
