Process Indicator

E+H/Endress+Hauser

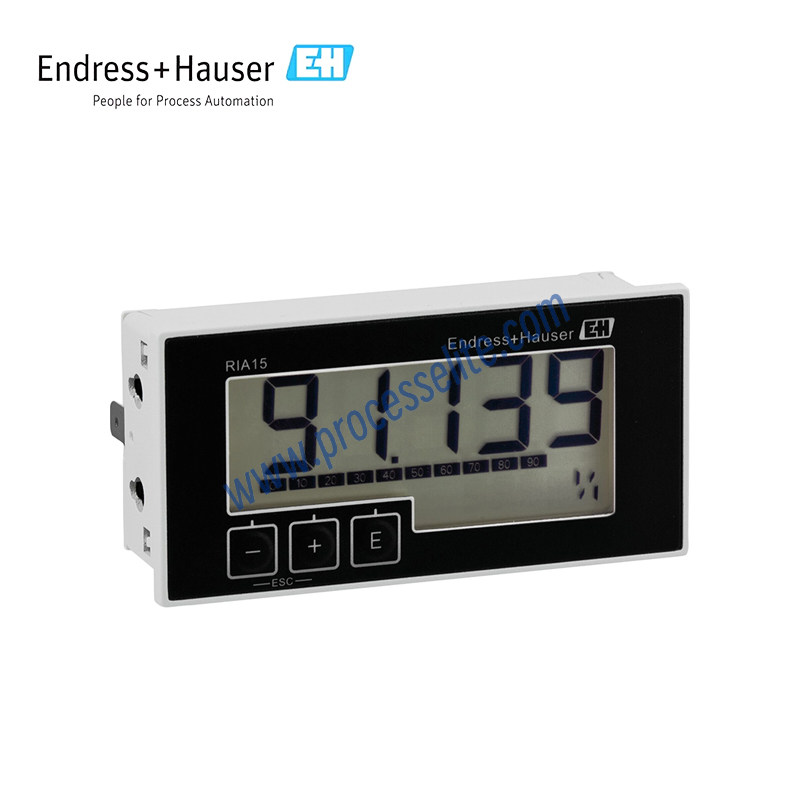

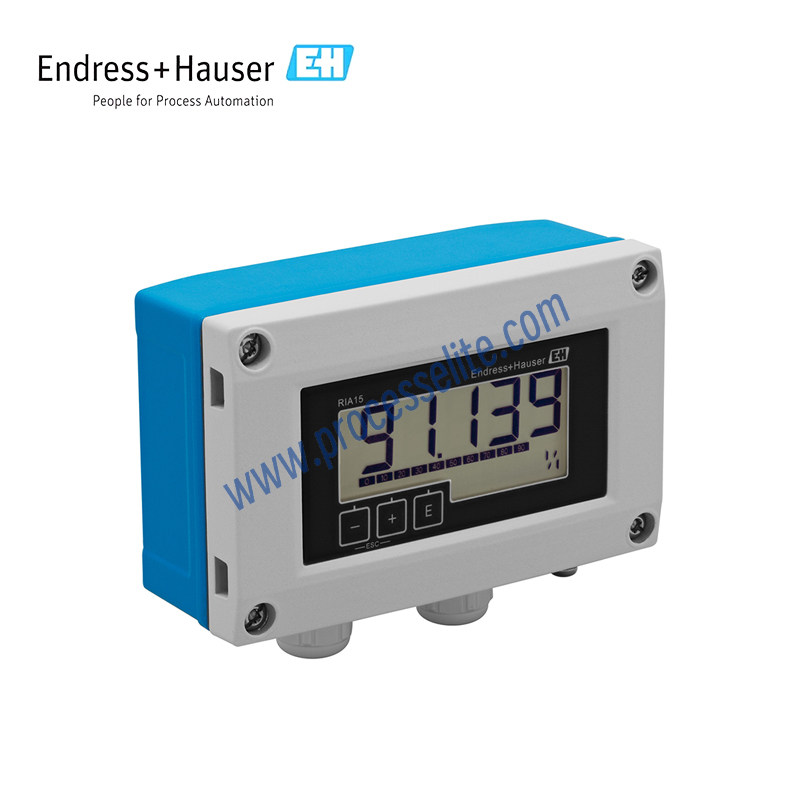

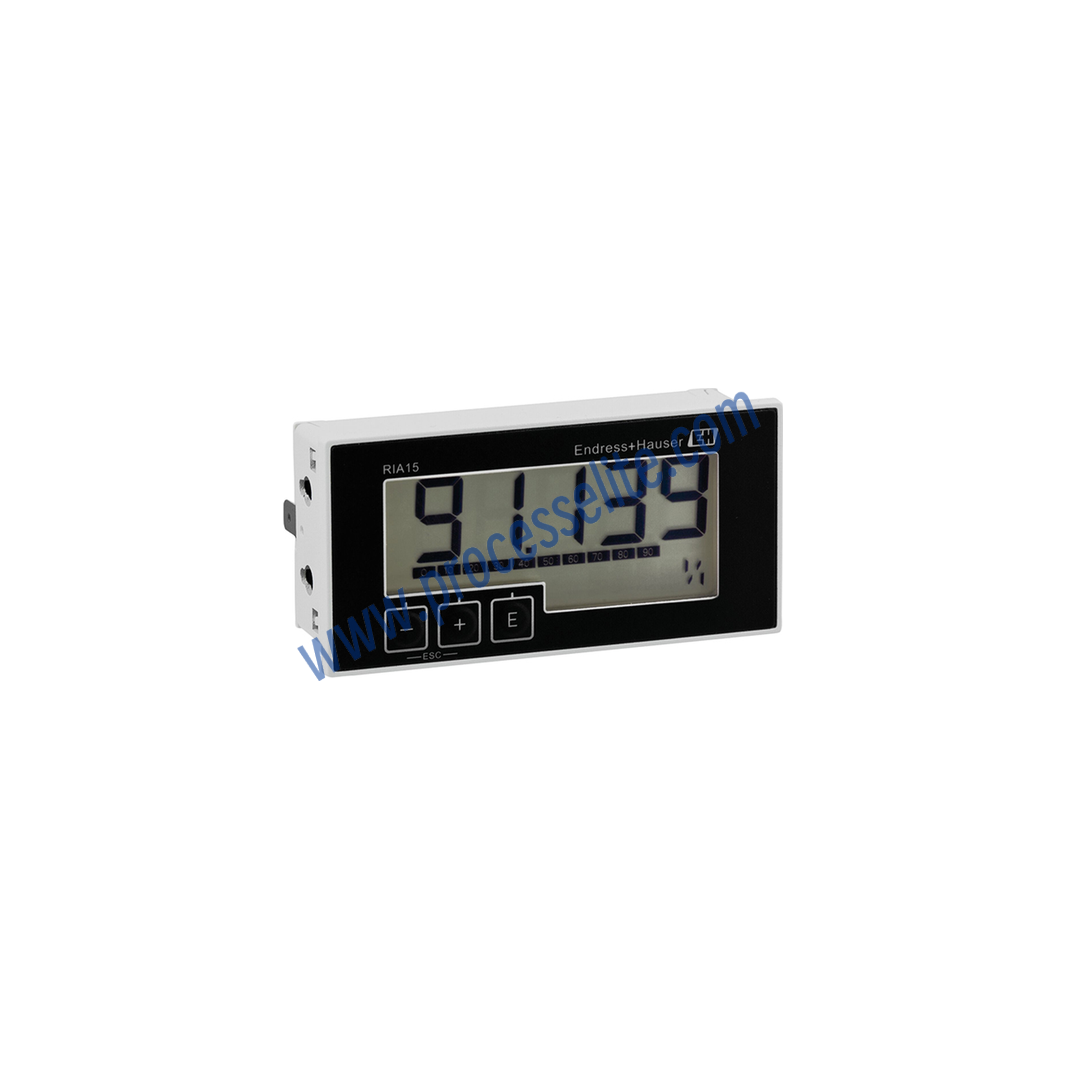

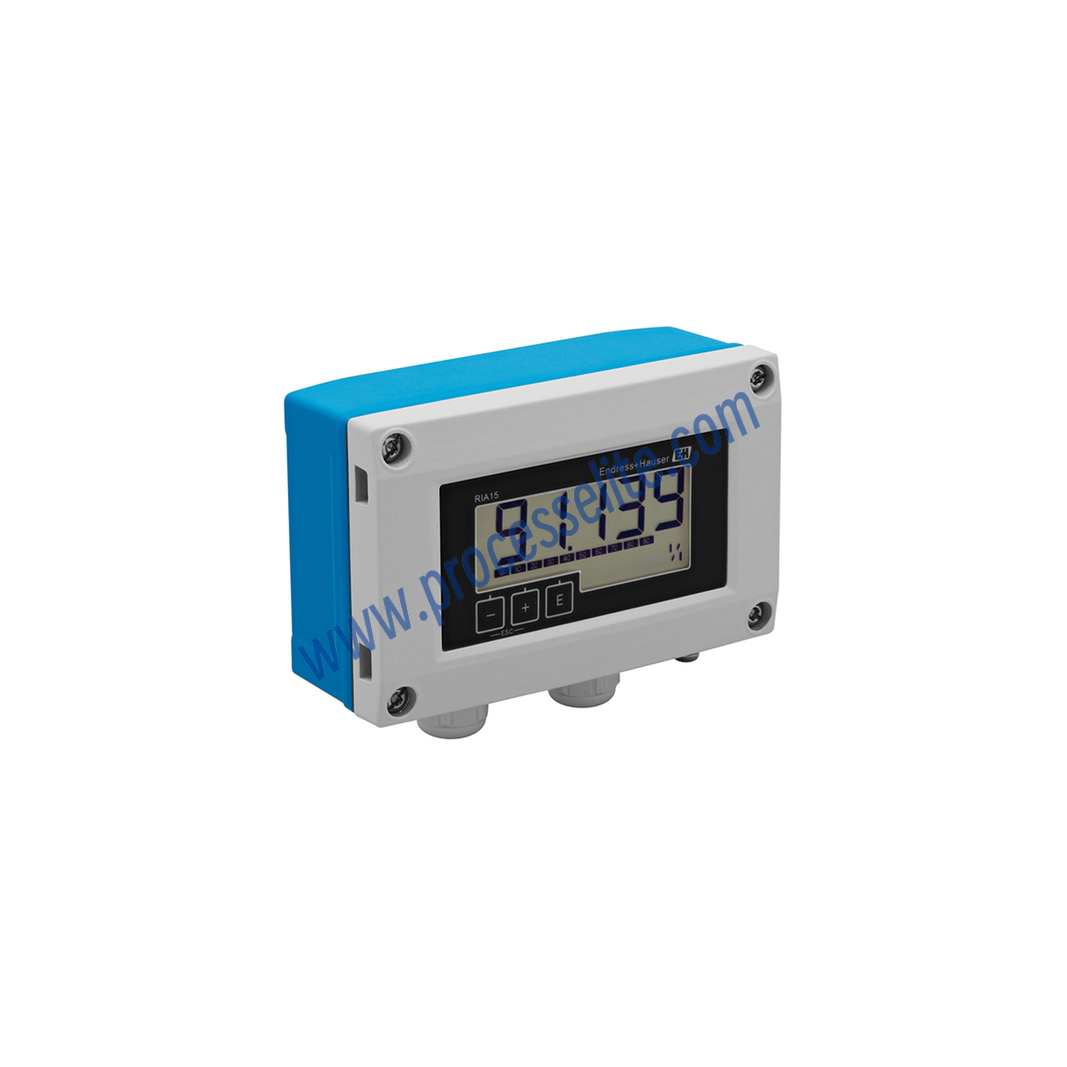

• Suitable for any industrial application to display 4‑20 mA measured values or HART® process variables • Panel‑mount or field‑mount housing with on‑site display • Scalable display values • Via "Level" or "Analysis" options, basic configuration for selected sensors is available; accessible measured values and units can be set quickly and easily. • 4…20 mA measured‑value display or selection of 4 HART® process variables from one sensor for all industries; can operate as HART® primary or secondary master • 5‑digit measured‑value display, character height: 17 mm (0.67"), including dimensions and bar graph, backlight activatable • Local display available with panel‑mount housing (IP65) or field‑mount housing (IP66; Ex‑approved); minimum installation depth • No external power supply required; voltage drop ≤ 1 V (HART® ≤ 1.9 V) • 3‑key operation for simple device configuration • International approvals; ship‑type approval • SIL immunity certification according to EN 60508
