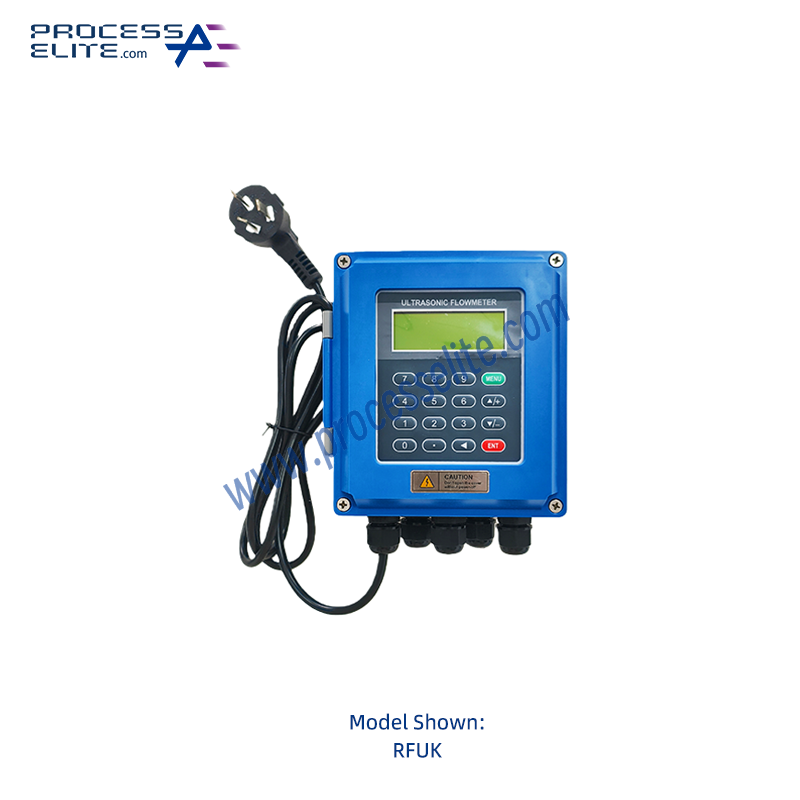

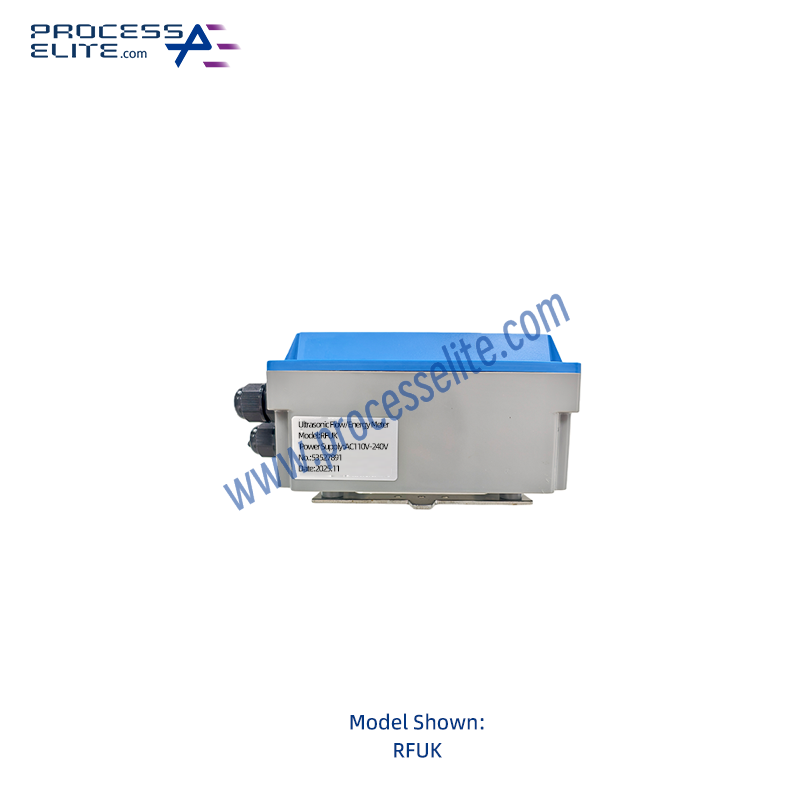

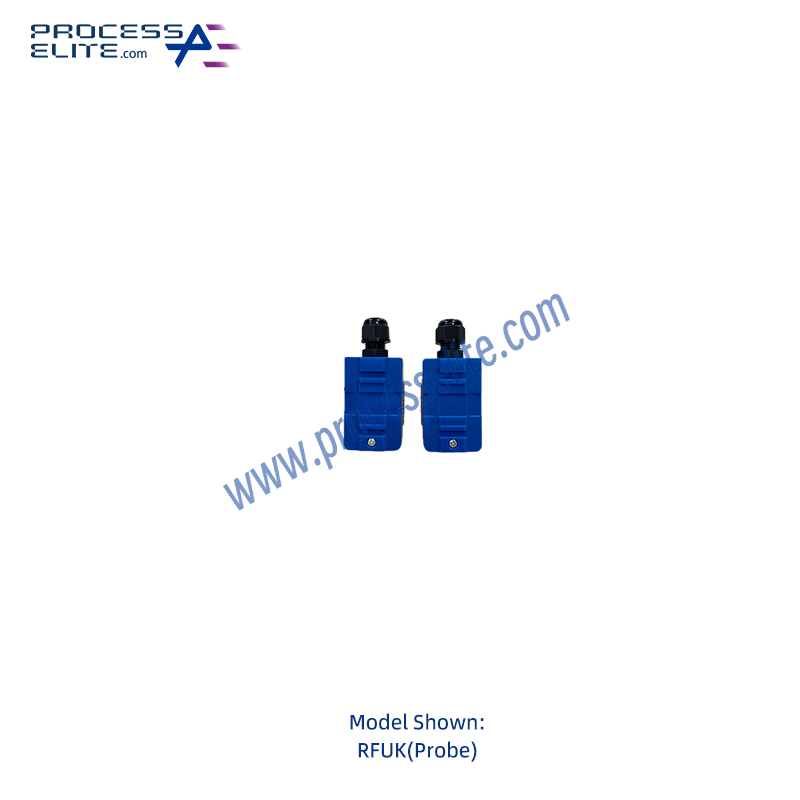

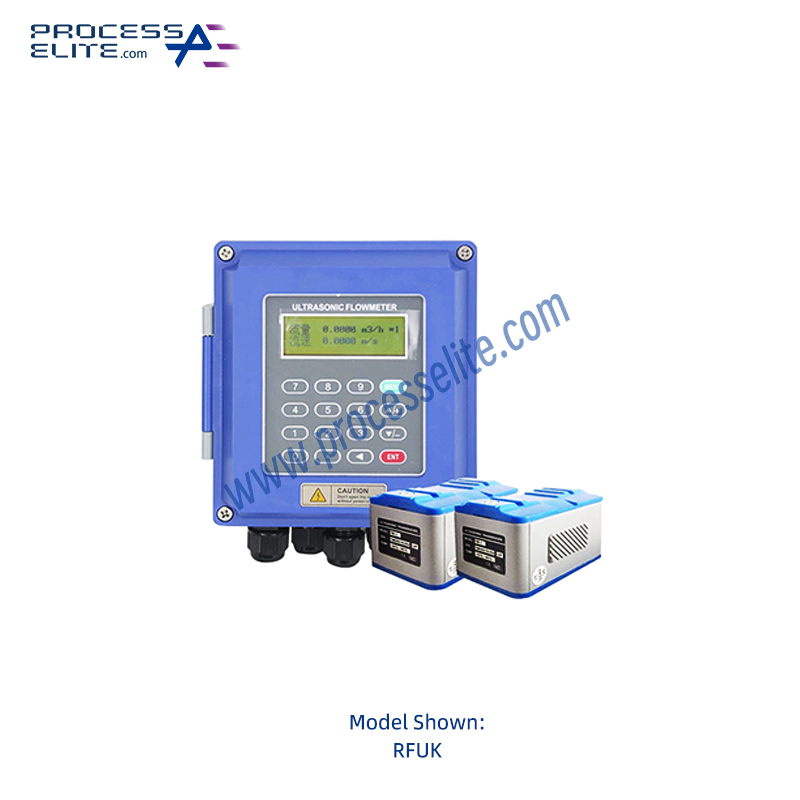

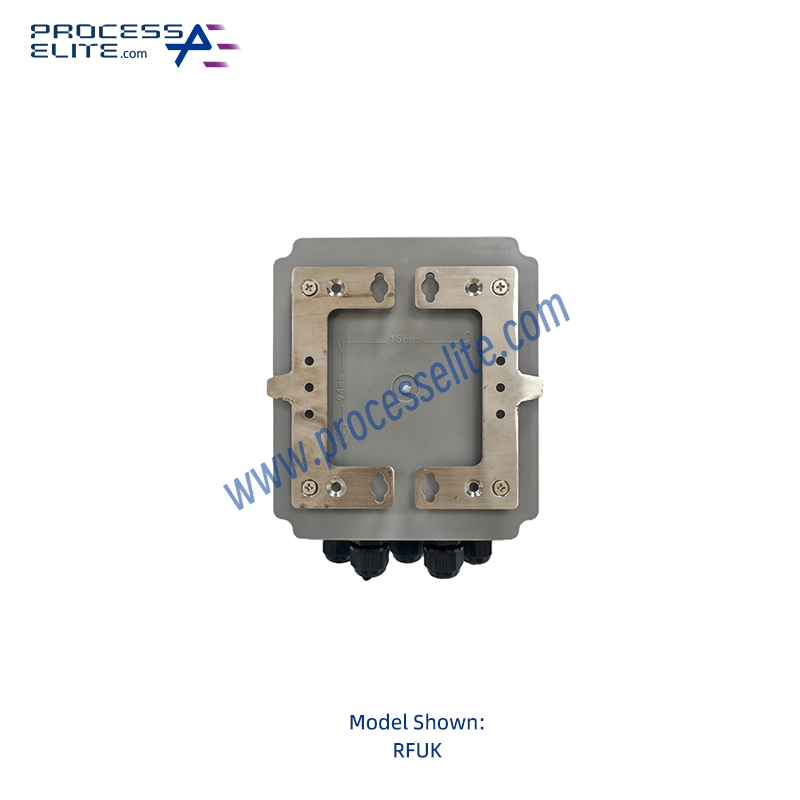

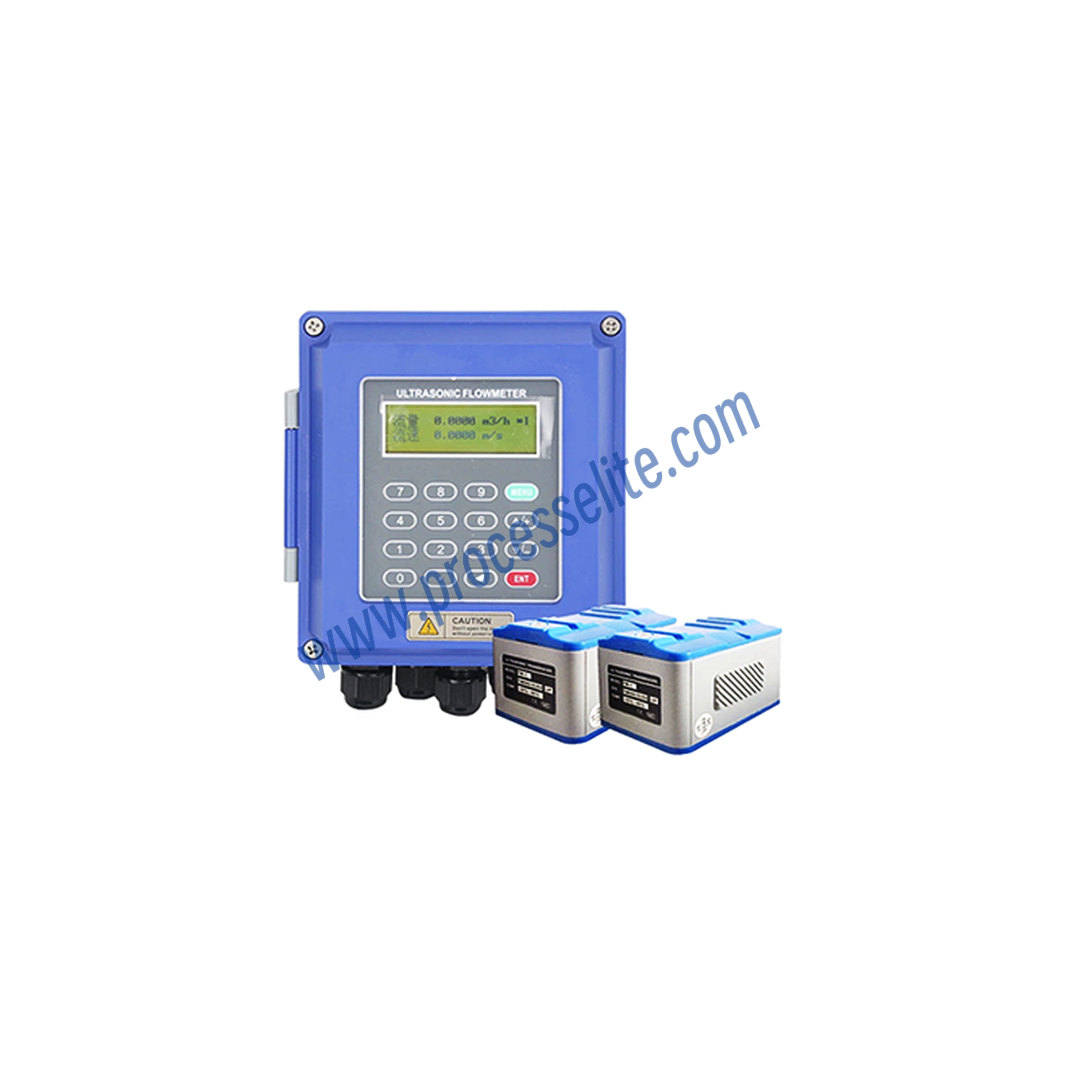

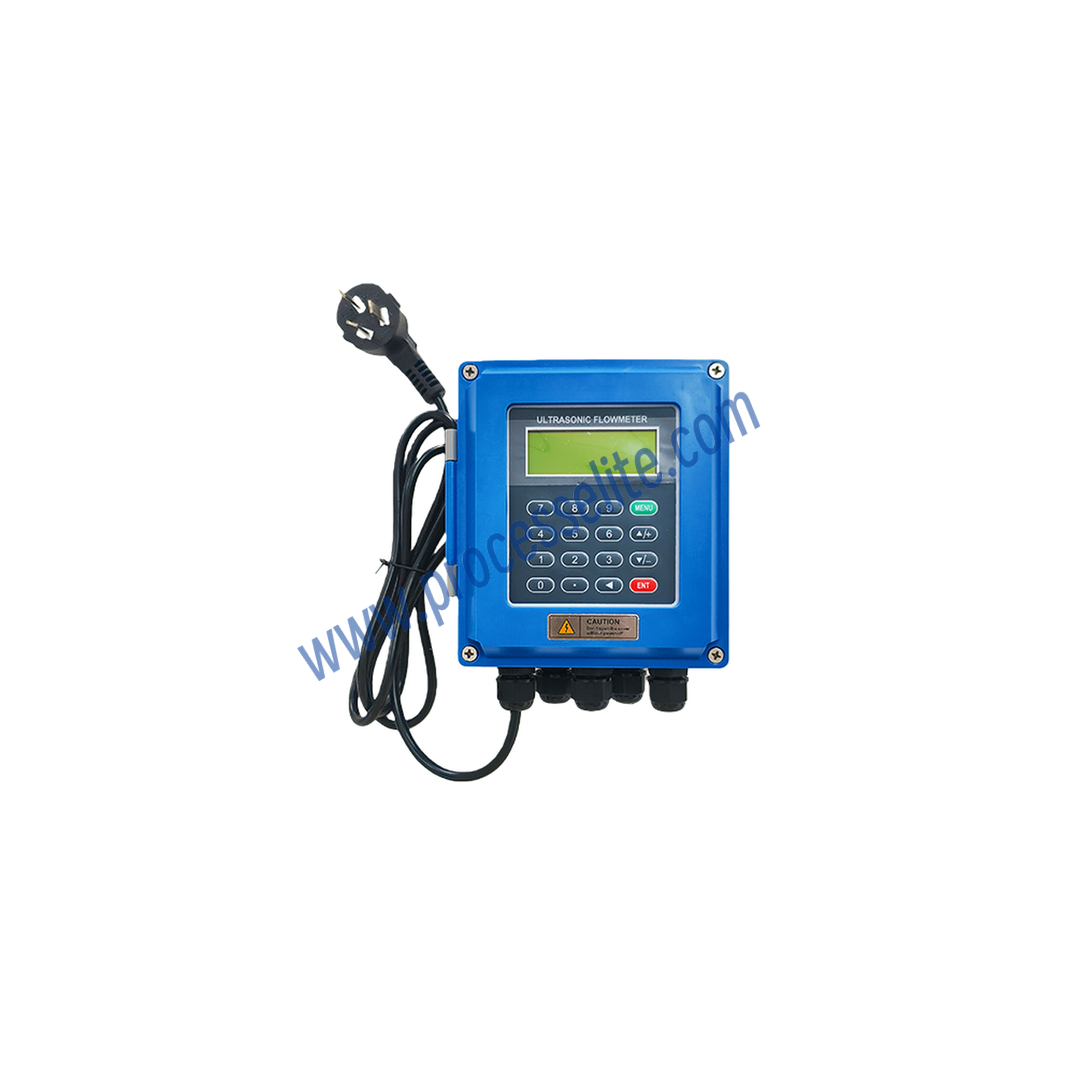

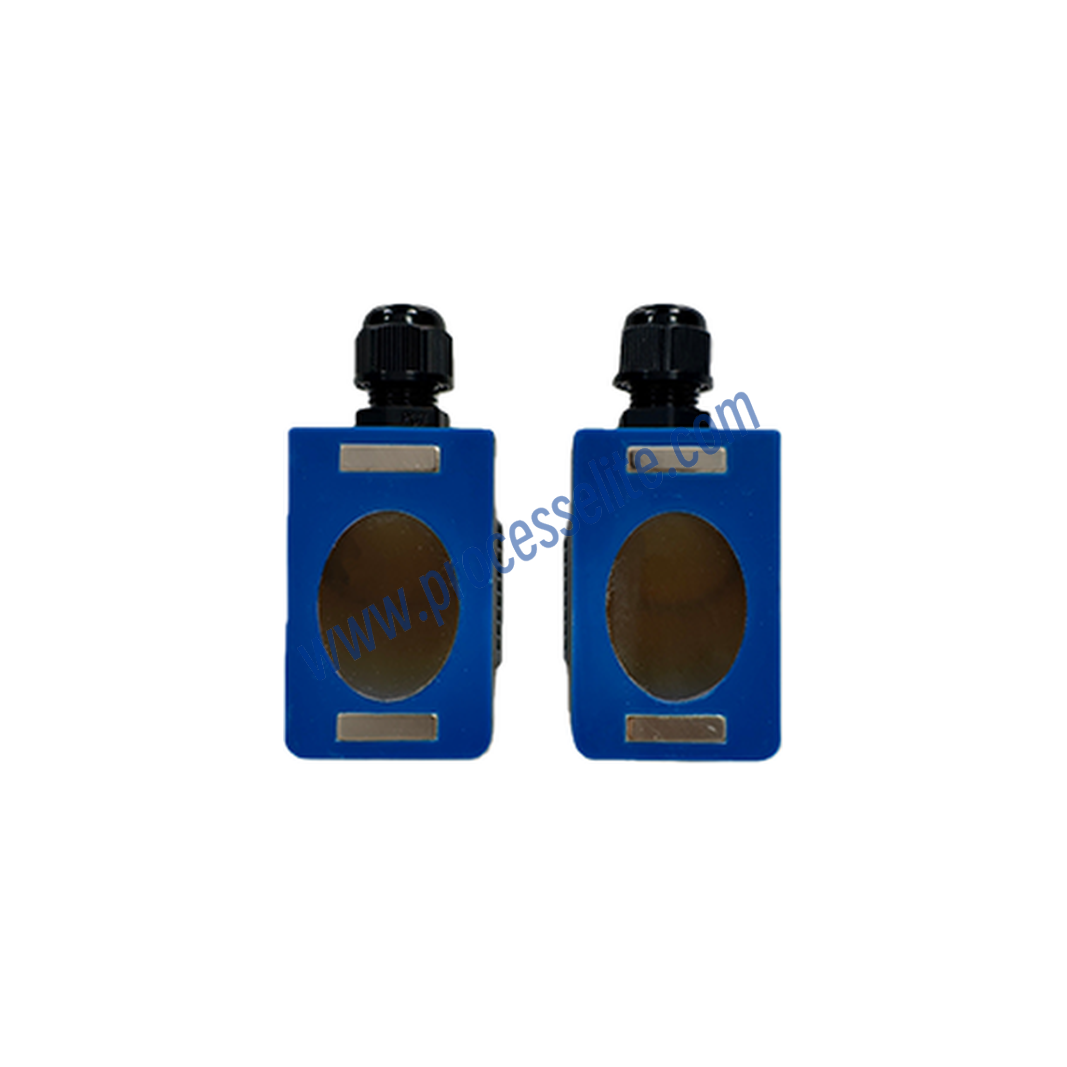

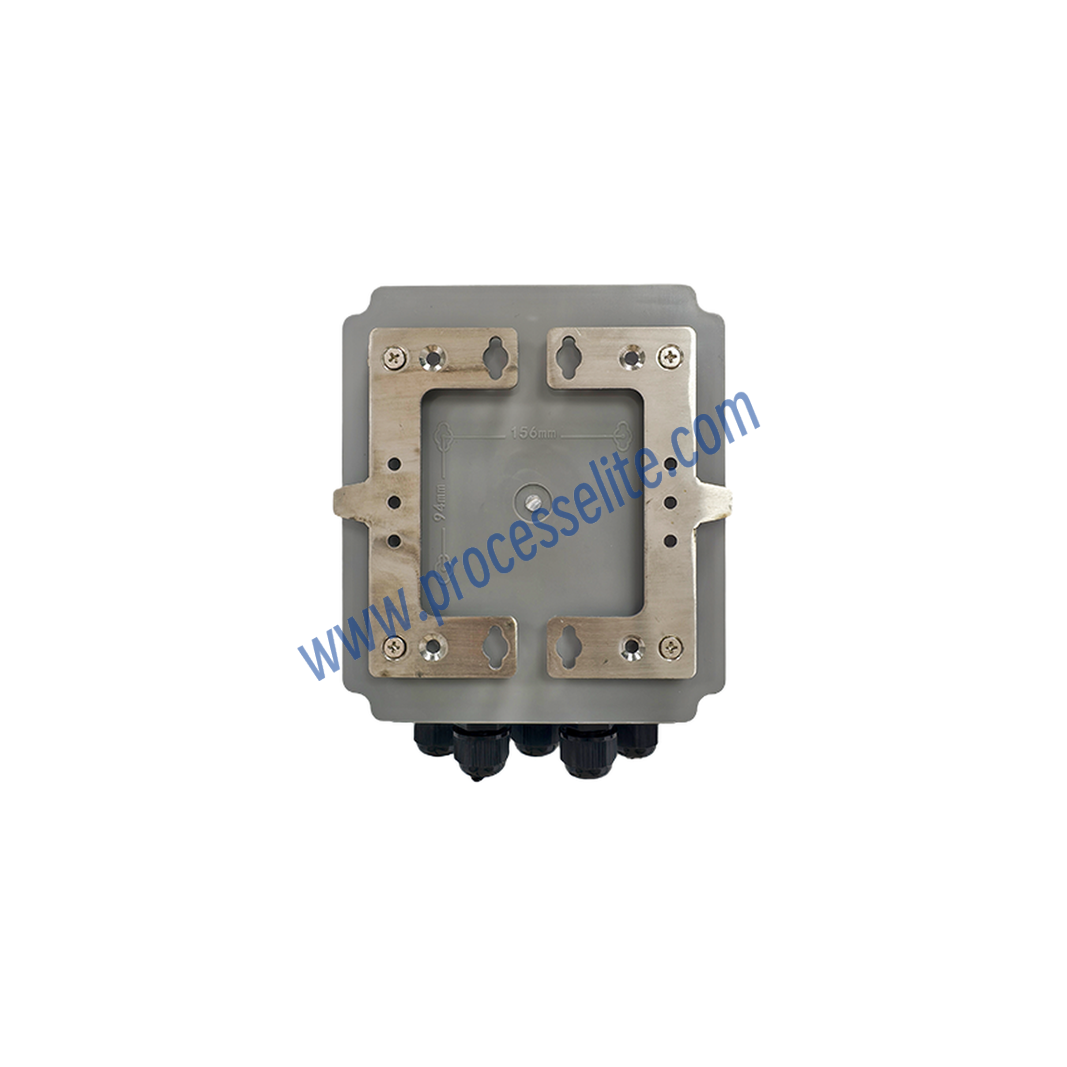

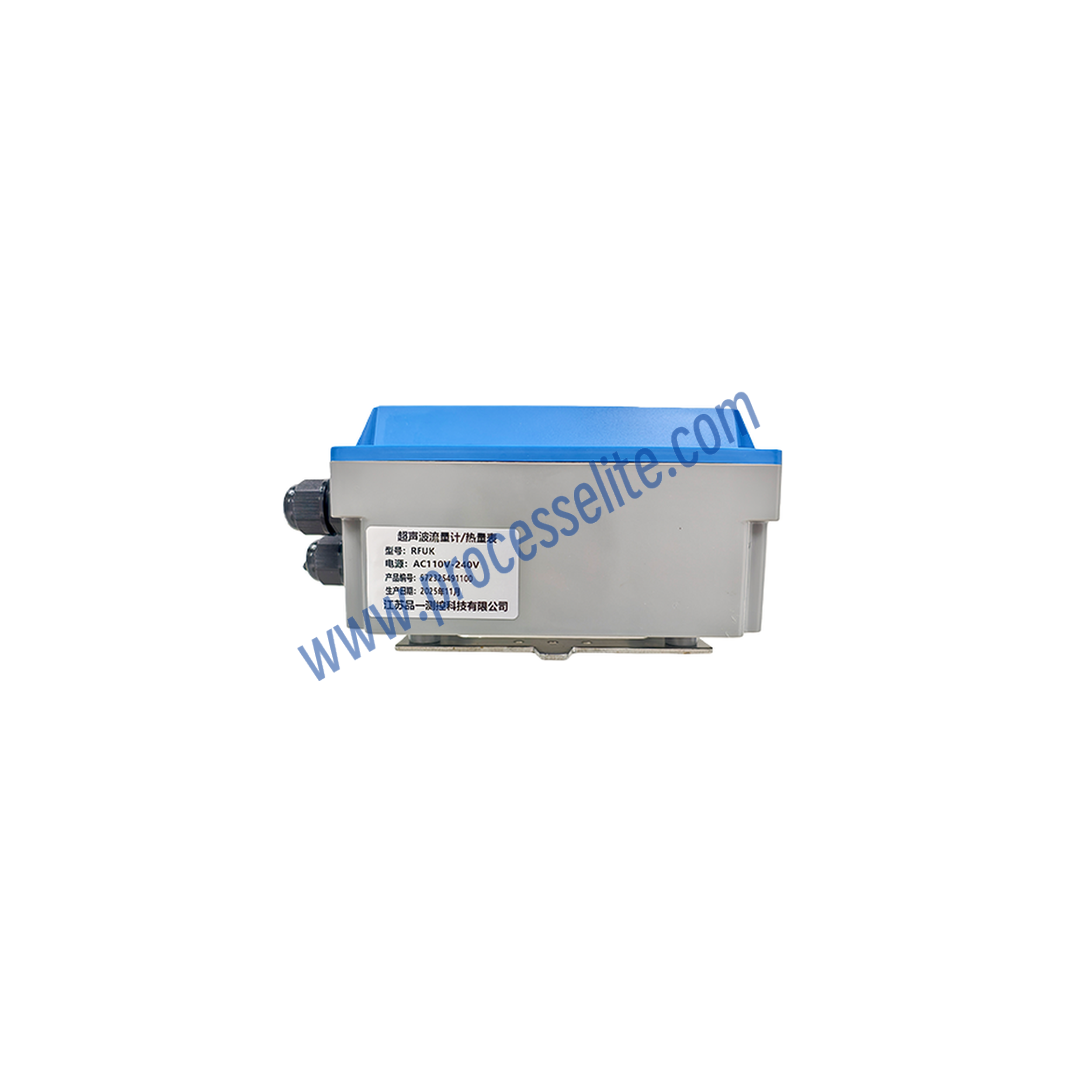

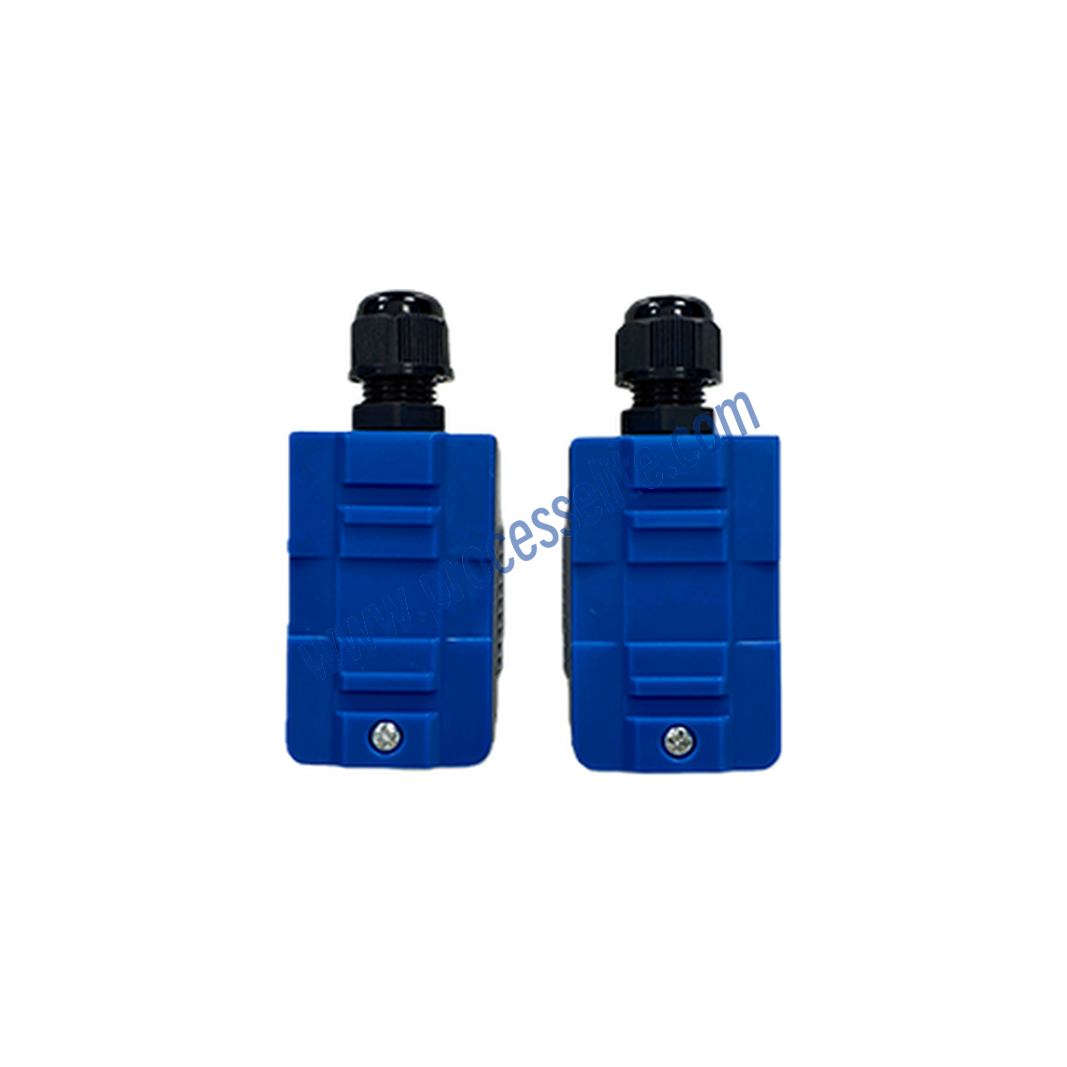

RFUK Clamp-on Ultrasonic Flowmeter - Processelite

*Picture for reference only !

Product name:

Clamp-on Ultrasonic Flowmeter

Product series:

RFUK

Product brand:

PE/PE

Product feature:

Ultrasonic flowmeters apply the time-difference principle with three mounting configurations: in-line, insertion and clamp-on. Clamp-on ultrasonic flowmeters are engineered for water and wastewater measurement. Its non-contact structure eliminates interferences from working conditions such as pressure, density, temperature and viscosity. It is ideal for large pipelines, difficult installation sites and portable applications.

Favorite

Compare

Configure

Measuring principle:

Ultrasonic flowmeters calculate fluid velocity based on the vector sum of sonic velocity in static fluid and the average flow velocity of the medium. The mainstream measuring principle is the time-difference method, which computes flow rate via the time gap of ultrasonic signals propagating downstream and upstream. Common types include in-line, clamp-on and insertion styles.

Product positioning:

Standard

Using scenario:

Mounting type:

Clamp-on type

Number of chords:

Single-path

Dual-path

Four-path

Accuracy (Standard conditions ):

±1.5% o.r.

±3% o.r.

Process connection:

Strap

Max. process temperature:

≤160℃

Communication:

Power supply:

24VDC

220VAC

Explosion-proof type:

Non-explosion-proof

Protection class:

All

Instruction

Operation

2D/3D

Certificate

Summary

Ultrasonic Flowmeter (Clamp‑On Type) RFUK
