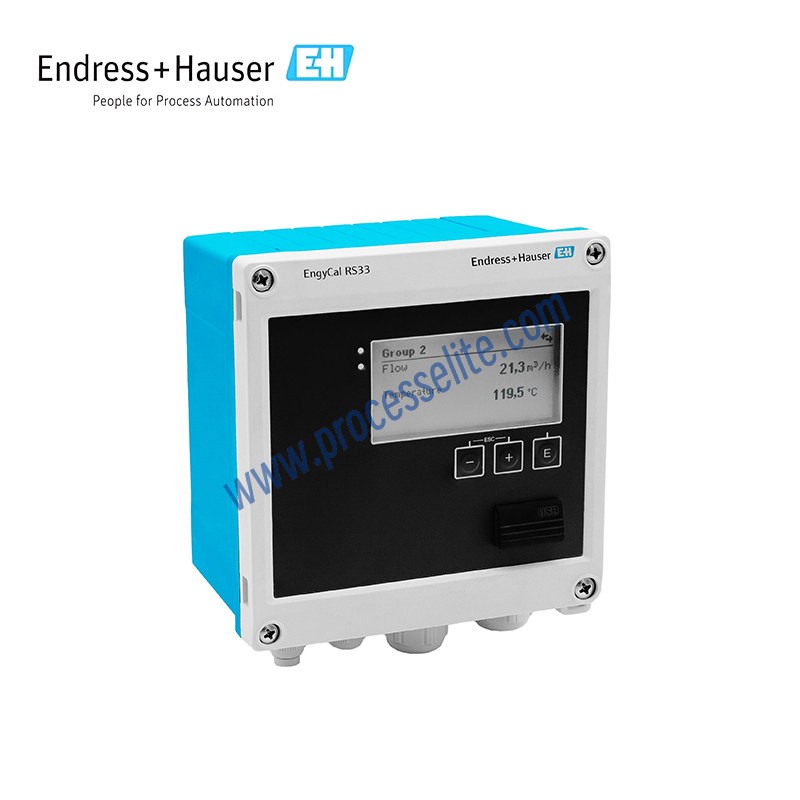

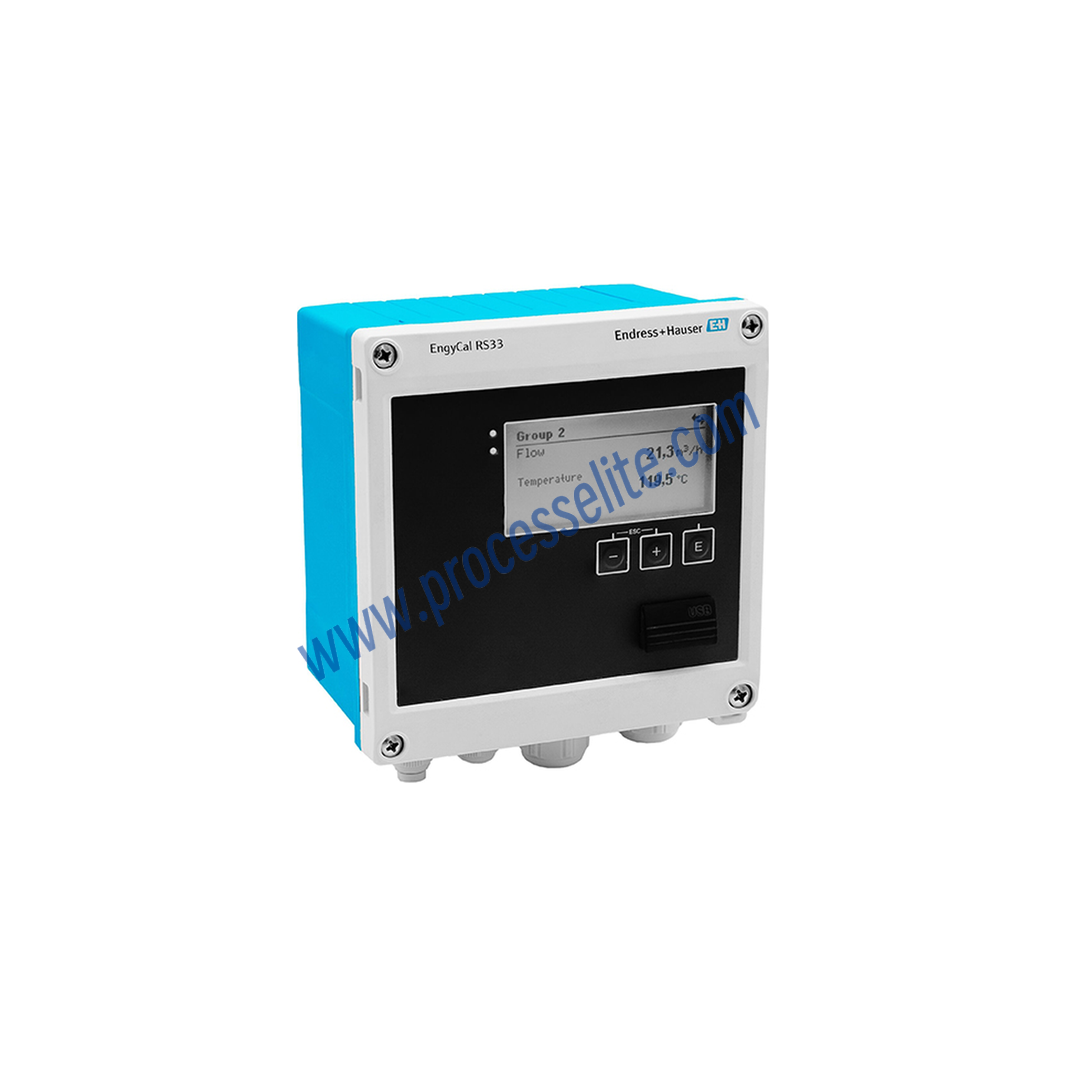

RS33 Steam Calculator - Processelite
*Picture for reference only !
RS33 Steam Calculator - Processelite
Product name:
Steam Calculator
Product series:

RS33

Product brand:
E+H/Endress+Hauser
Product feature:
• Records steam mass and energy flow for saturated and superheated steam (steam heat, steam differential heat). • Compensation for differential‑pressure flow measurement • Calculations based on international steam tables • Electronic matching between temperature sensors (sensor‑transmitter matching) and computing unit ensures high‑precision temperature measurement • Detailed data logging for current values and counters, error messages, inhibit conditions and changes to operating parameters • Standard mode compatible with all common volumetric flow transmitters and temperature sensors for connection and service • Remote value reading via Ethernet and fieldbus • Loss calculator ensures information transparency in the event of faults and alarms
Favorite
Compare
Measuring principle:
The Engy Cal RS33 steam calculator performs mass flow and energy metering for saturated or superheated steam within the system. Calculations are based on measured process variables such as volumetric flow, temperature and/or pressure. Different heat metering methods are selectable depending on the installation position of the measuring device. It supports both standard heat calculation and steam heat differential measurement. For steam heat differential measurement, special attention shall be paid to the installation position of the measuring equipment.
Product positioning:
Using scenario:
The Engy Cal RS33 steam calculator is used to record steam mass and energy flow for saturated and superheated steam. Calculations are performed based on measured process variables such as volumetric flow, temperature and pressure. The Engy Cal RS33 calculates steam mass and energy flow in accordance with the IAPWS IF97 standard. Steam density and enthalpy are computed from input variables including pressure and temperature. Main applications: food, chemical, pharmaceutical, power plants, building systems and plant engineering.
