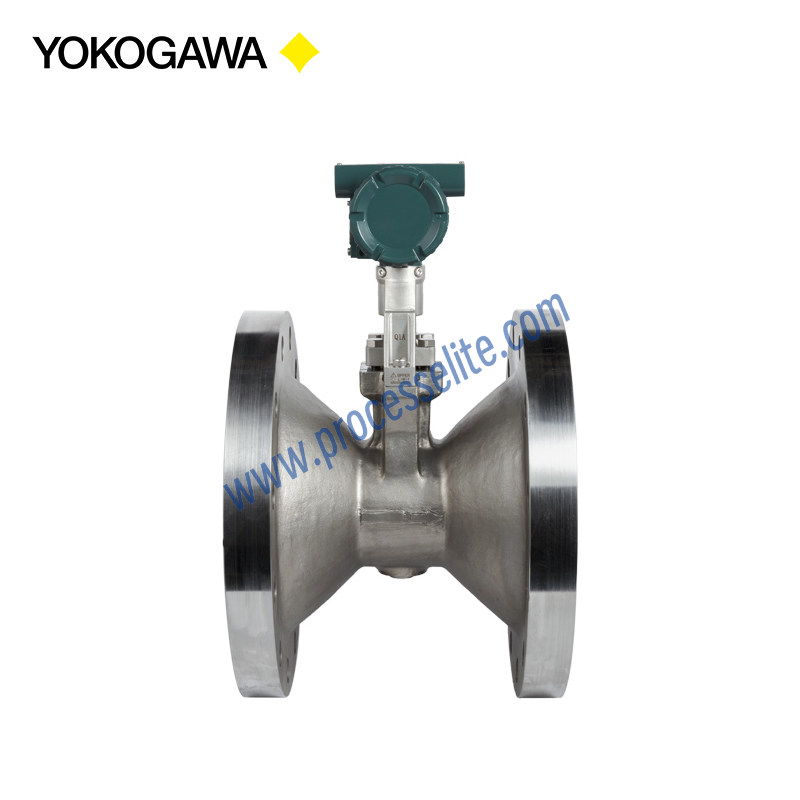

VY Vortex Flowmeter - Processelite
*Picture for reference only !

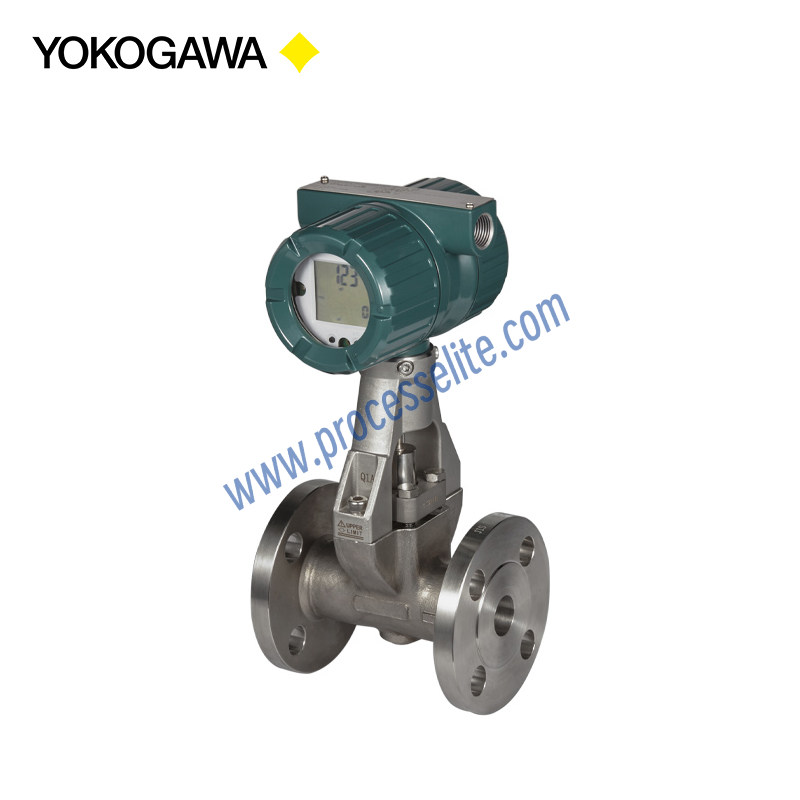

VY Vortex Flowmeter - Processelite
*Picture for reference only !

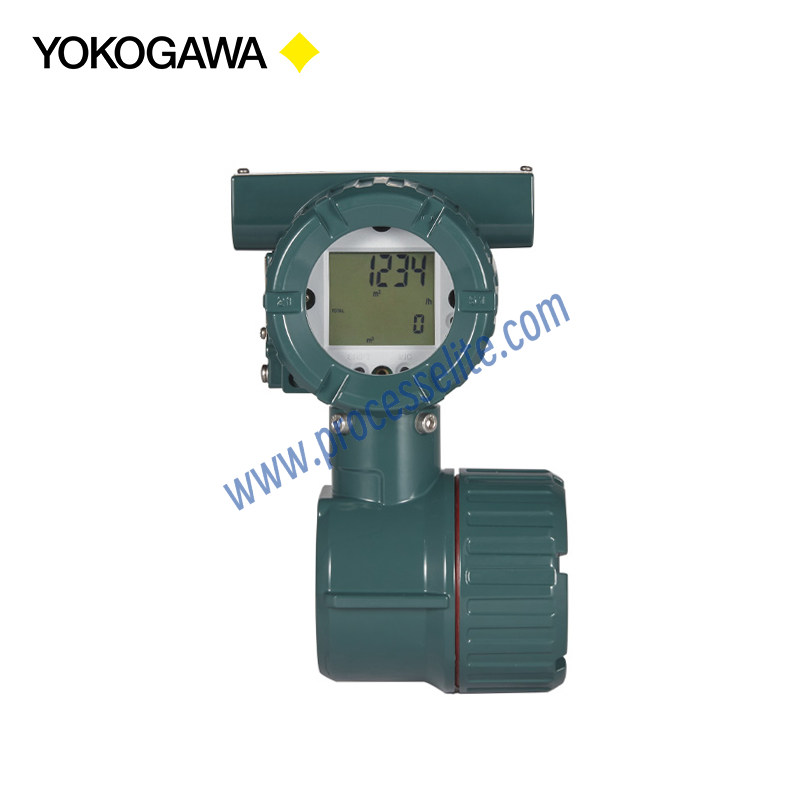

VY Vortex Flowmeter - Processelite
*Picture for reference only !

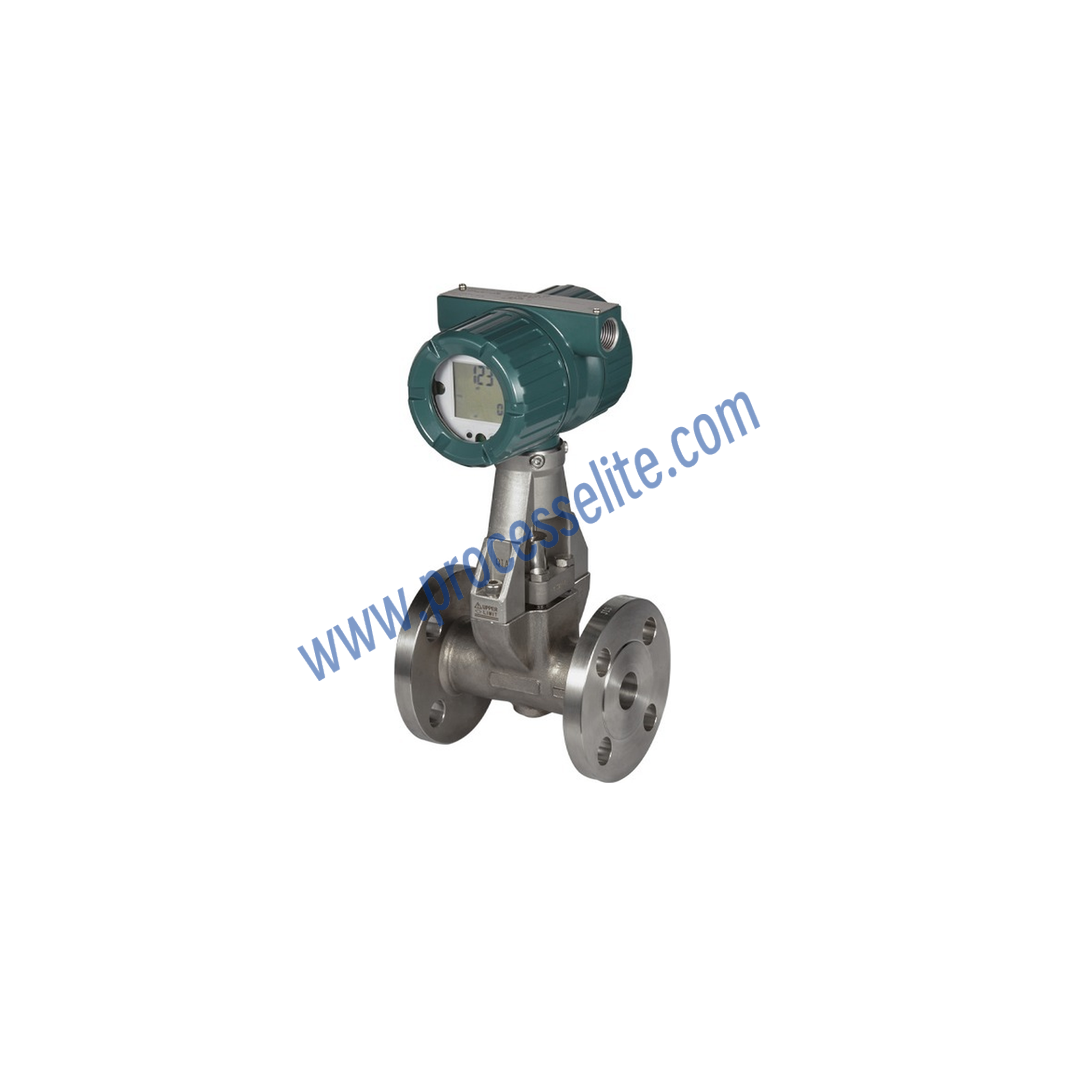

VY Vortex Flowmeter - Processelite

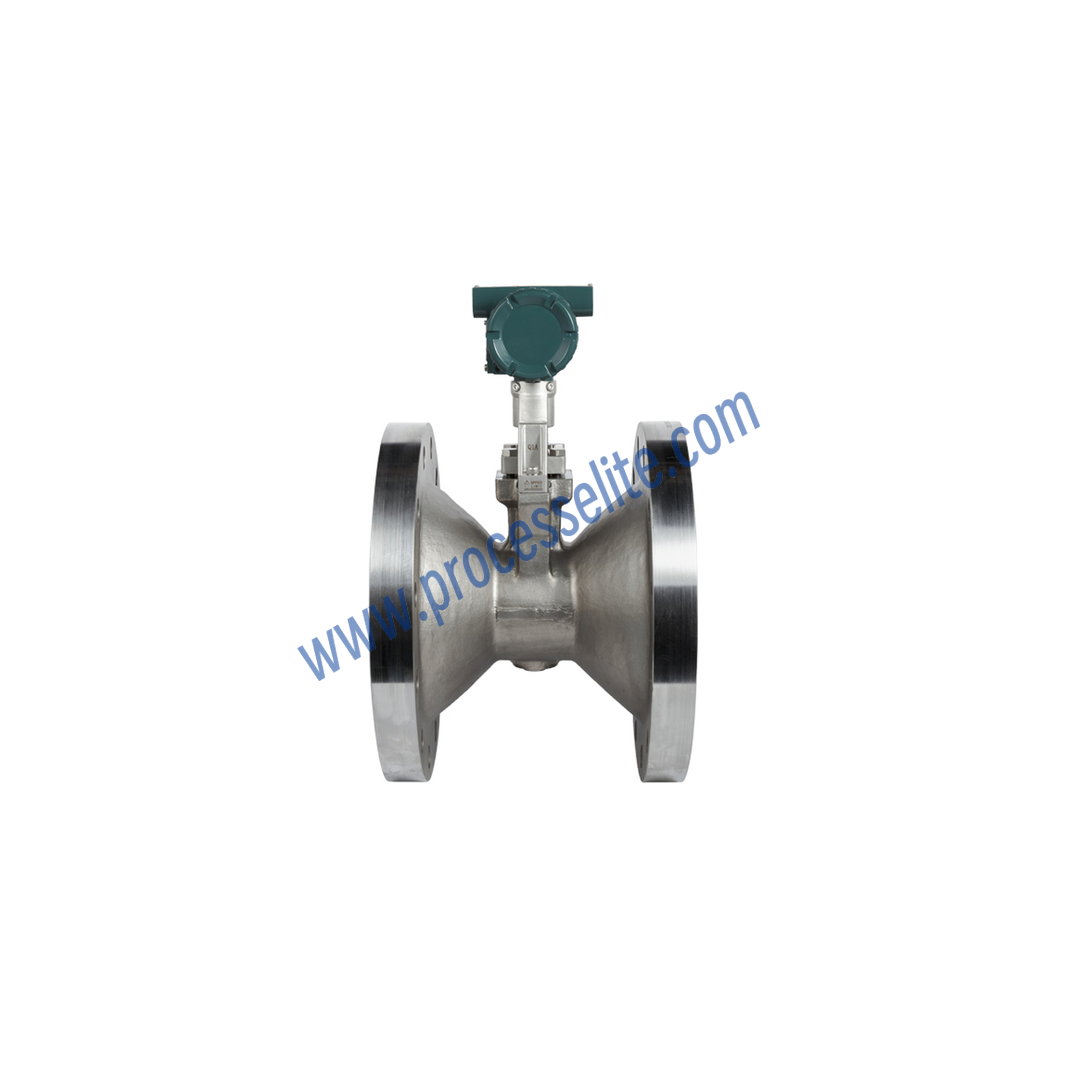

VY Vortex Flowmeter - Processelite

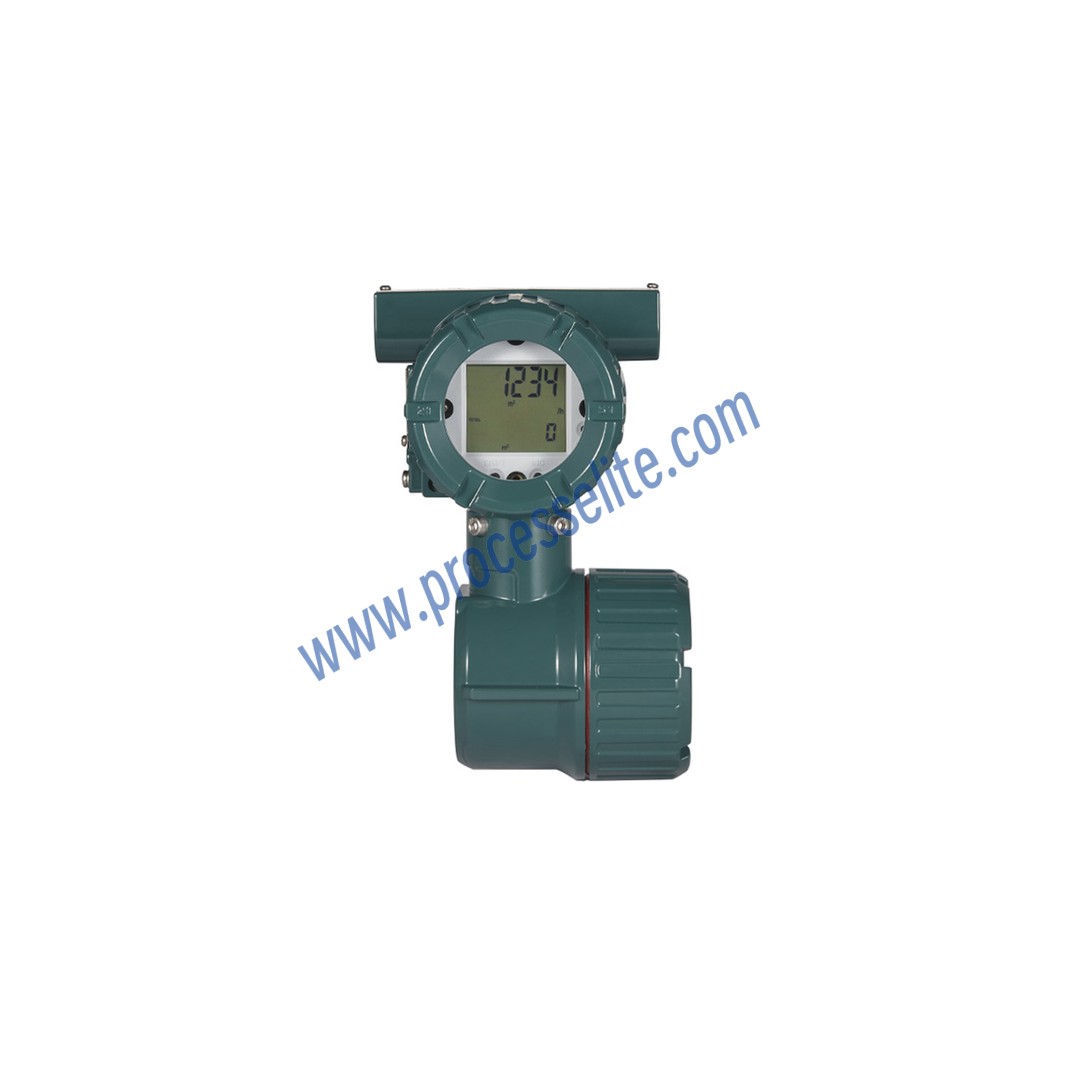

VY Vortex Flowmeter - Processelite
Product name:
Vortex Flowmeter
Product series:

VY

Product brand:
YOKOGAWA/YOKOGAWA
Product feature:
• Continuing the YEWFLO product line and expanding it with more specifications. • Dual-sensor (welded) universal standardization. • Additional standards, such as SIL 2, NAMUR, etc. • Fluid temperature range from -196 to 450°C (including integrated flow meters). • Flange rated pressure up to ASME Class 1500. • Additional sizes with built-in temperature sensors. • Additional process connections. • Supports communication protocols such as HART, FOUNDATION Fieldbus, and Modbus.
Favorite
Compare
Measuring principle:
The vortex flowmeter operates based on the principle of the Kármán vortex street. When fluid flows past a bluff body (such as a triangular prism) inside a pipe, vortices are alternately formed on both downstream sides, creating a regular vortex street. The vortex frequency (f) is proportional to the flow velocity (v), with the relationship expressed as f = St·v/d (where St is the Strouhal number and d is the width of the bluff body). Sensors (such as piezoelectric elements) detect the vortex frequency and convert it into an electrical signal, and the flow rate Q is calculated through the instrument coefficient K (determined via calibration) as Q = f/K. This type of flowmeter is suitable for gases, steam, and liquids.
Product positioning:
New model
Using scenario:
Yokogawa Electric's VY series vortex flowmeters are developed using two key technologies: digital technology and the unique structure inherited from the YEWFLO series. Status information is recorded in the instrument, making it easier to determine when maintenance is required. Maintenance activities, such as flowmeter cleaning or component replacement, are performed based on the condition of the instrument, and these features contribute to more efficient and planned plant operations.
