All >> Pressure measurement >> Vibration-resistant General Pressure Gauge

YTN Vibration-resistant General Pressure Gauge - Processelite

*Picture for reference only !

Product name:

Vibration-resistant General Pressure Gauge

Product series:

YTN

Product brand:

PE/PE

Product feature:

1. Cost-effective 2. Wide measuring range and extensive application coverage 3. Simple installation and easy reading

Favorite

Compare

Configure

Measuring principle:

The measuring principle of vibration-resistant general pressure gauges is based on the deformation of elastic elements for pressure detection. Specifically, elastic elements deform under applied pressure. This deformation is amplified via mechanical transmission assemblies (including connecting links and gauge movements) and transmitted to the indicating unit, where the pointer displays the measured pressure value on the dial. The measuring assembly comprises a process connection fitting, a Bourdon spring and a transmission mechanism. The case is filled with damping liquid (glycerin or silicone oil as typical options) to counteract ambient operational vibration and mitigate fluctuations induced by media pressure pulsation.

Product positioning:

Cu+CS

Using scenario:

Vibration-resistant general pressure gauges are applicable for pressure measurement of non-explosive, non-crystallizing, non-solidifying media including liquids, vapors and gases that cause no corrosion to copper alloys and tin solders. They are widely deployed in industrial process control, mechanical equipment condition monitoring and other application fields, covering industries such as petroleum, chemical, metallurgy, power, food, pharmaceutical, environmental protection, machinery, fire protection and HVAC.

表盘直径：

40mm

50mm

60mm

100mm

150mm

200mm

250mm

耐振形式：

充油

安装方式：

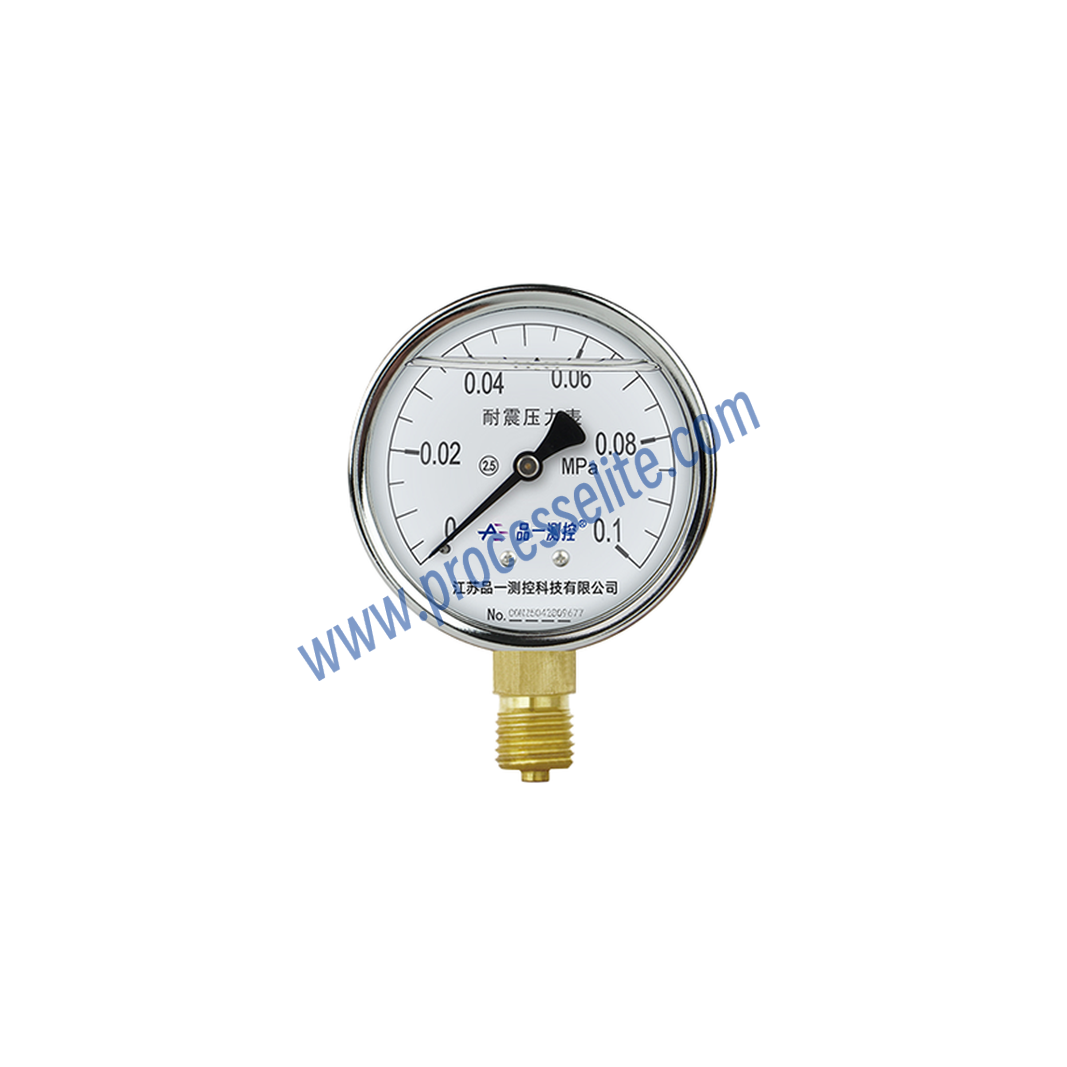

径向

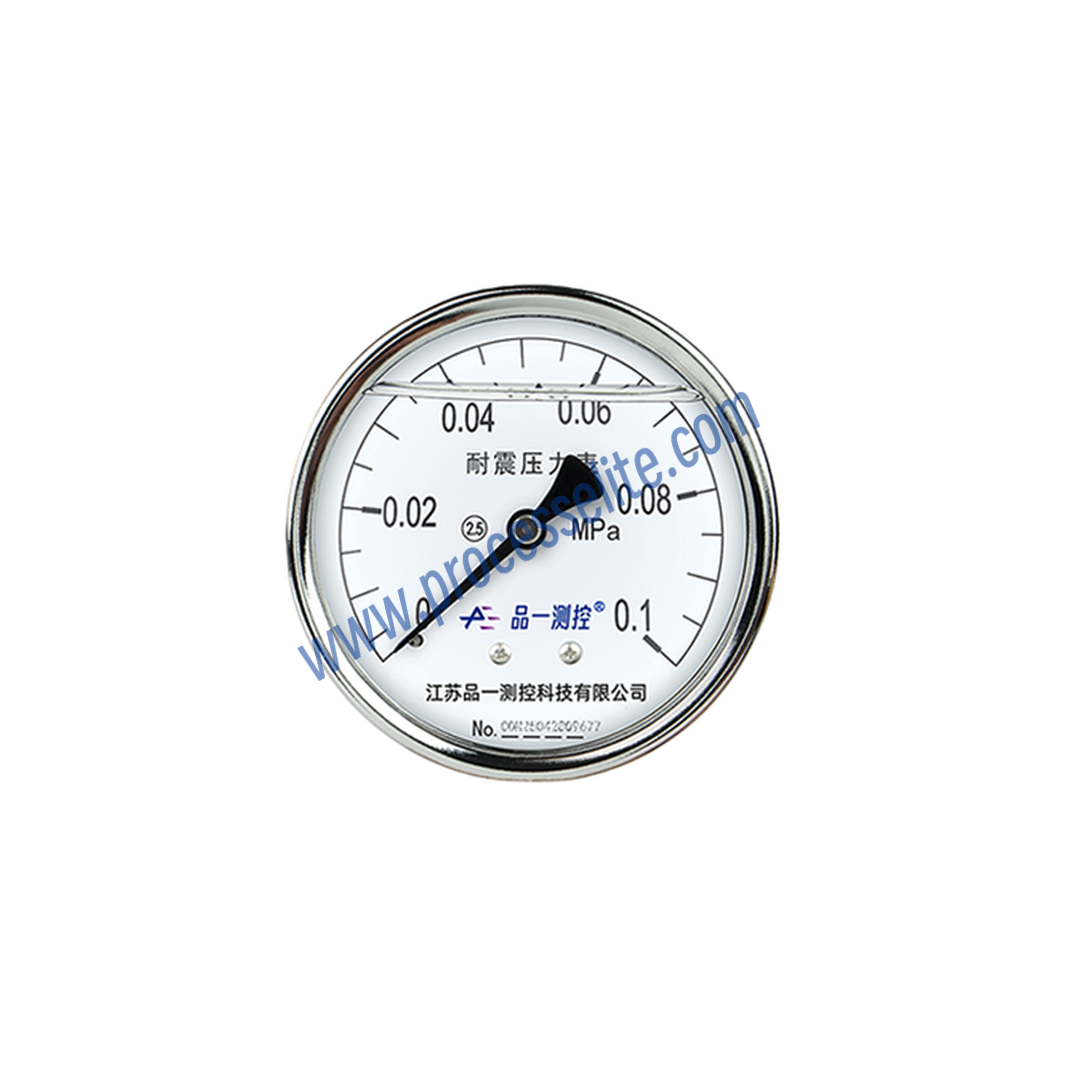

轴向

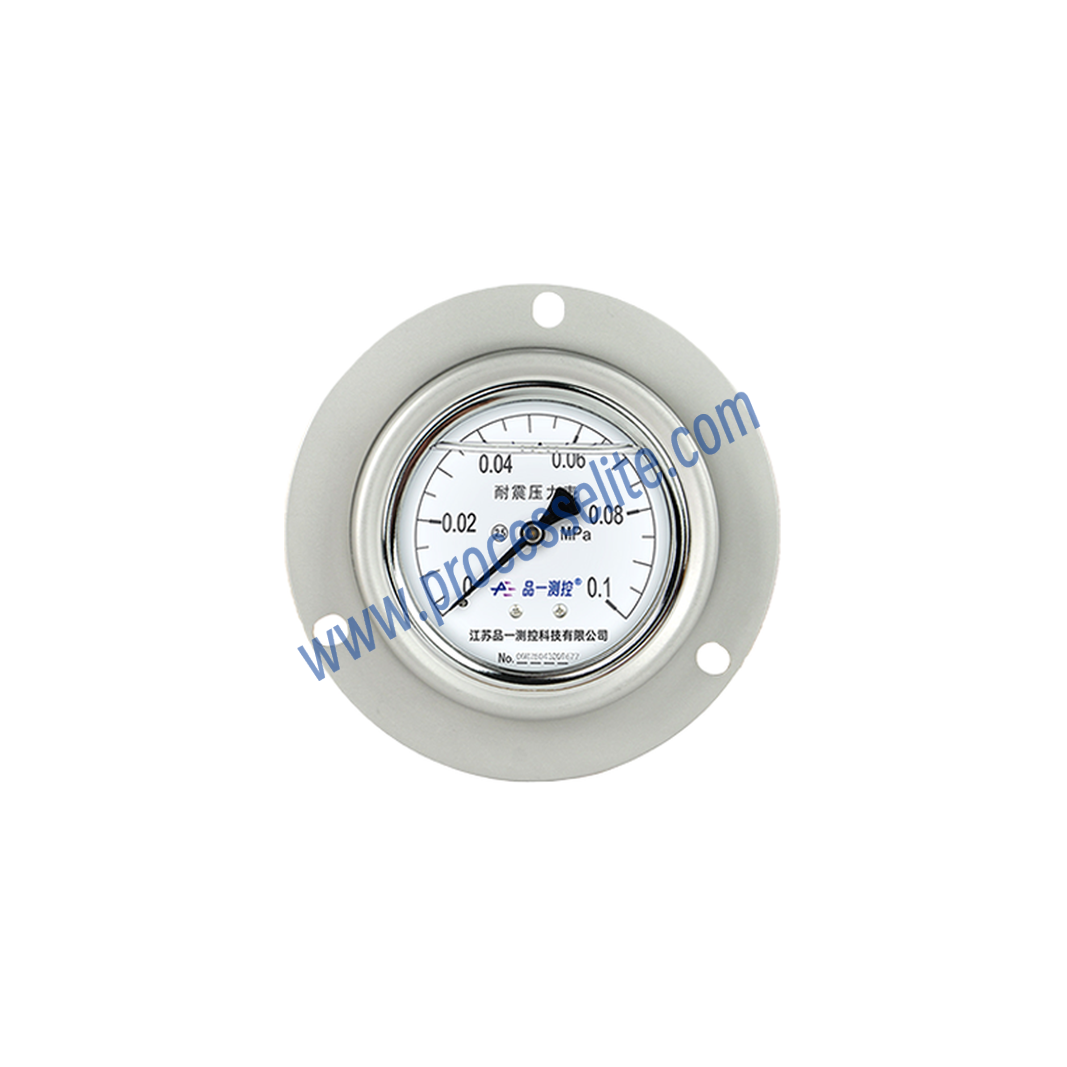

轴向带边

精度：

±1.6% o.f.s.

±2.5% o.f.s.

测量范围：

正压: 0~0.1Mpa

正压: 0~0.16Mpa

正压: 0~0.25Mpa

正压: 0~0.4Mpa

正压: 0~0.6Mpa

正压: 0~1Mpa

正压: 0~1.6Mpa

正压: 0~2.5Mpa

正压: 0~4Mpa

正压: 0~6Mpa

正压: 0~10Mpa

正压: 0~16Mpa

正压: 0~25Mpa

正压: 0~40Mpa

正压: 0~60Mpa

负压: -0.1~0Mpa

正负压: -0.1~0.06Mpa

正负压: -0.1~0.15Mpa

正负压: -0.1~0.3Mpa

正负压: -0.1~0.5Mpa

正负压: -0.1~0.9Mpa

正负压: -0.1~1.5Mpa

正负压: -0.1~2.4Mpa

过程连接：

螺纹

接液材质：

铜合金

外壳材质：

碳钢

防爆型式：

非防爆

防护等级：

IP54

All

Instruction

Operation

2D/3D

Certificate

Summary

YTN-Series-General-Pressure-Gauge-Manual

General-Purpose Pressure Gauge Series Y(TN)
