All >> Pressure measurement >> Shockproof Stainless Steel Pressure Gauge

*Picture for reference only !

Product name:

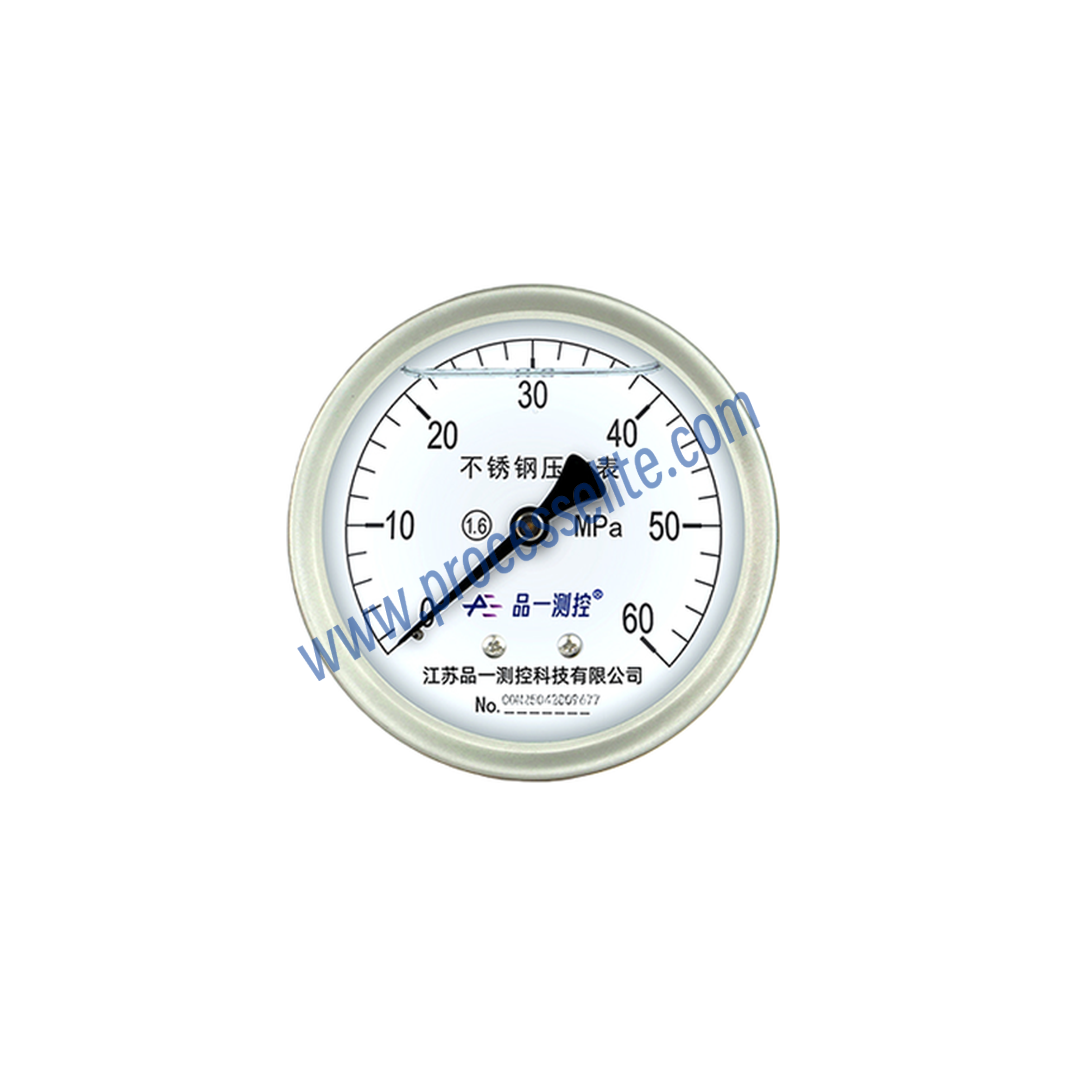

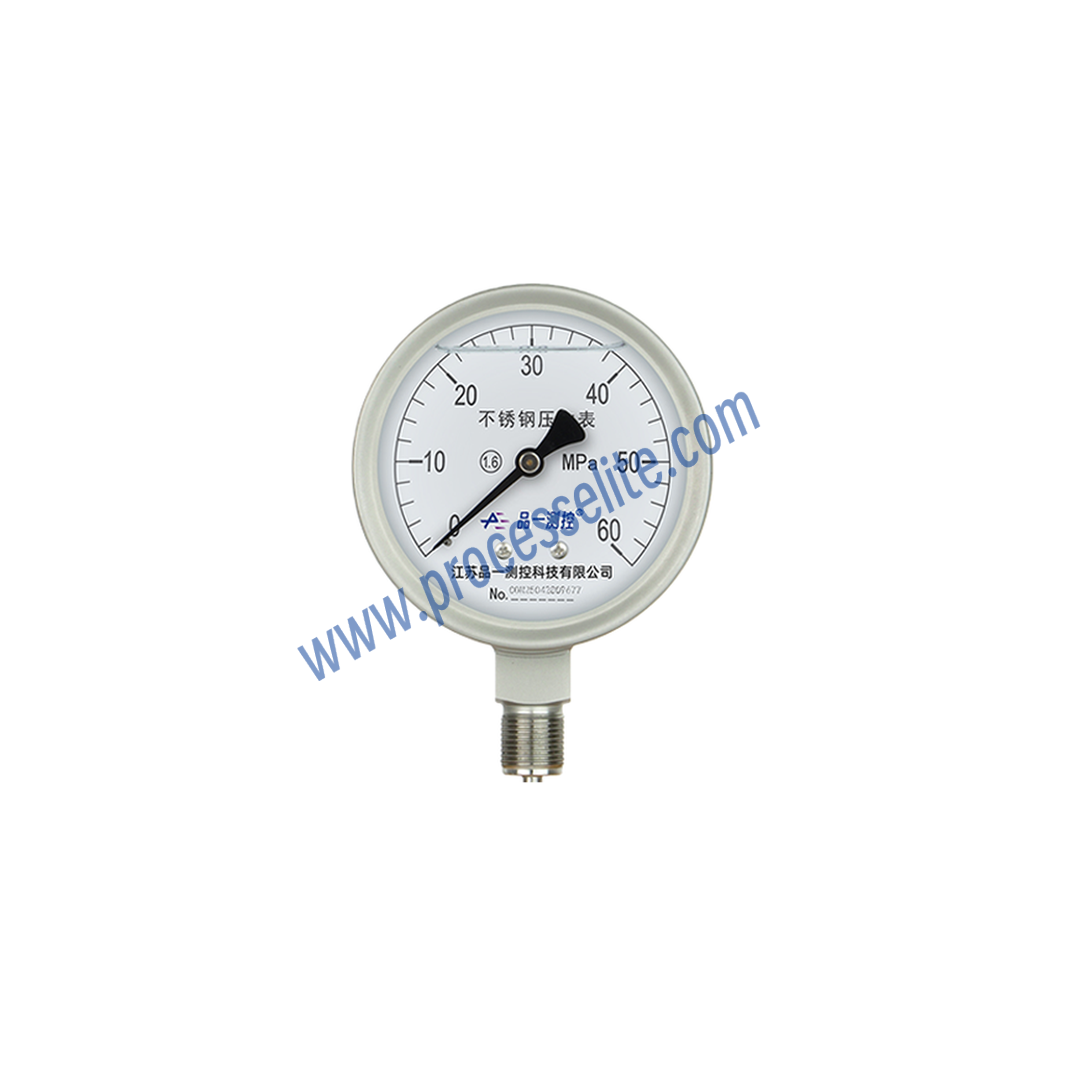

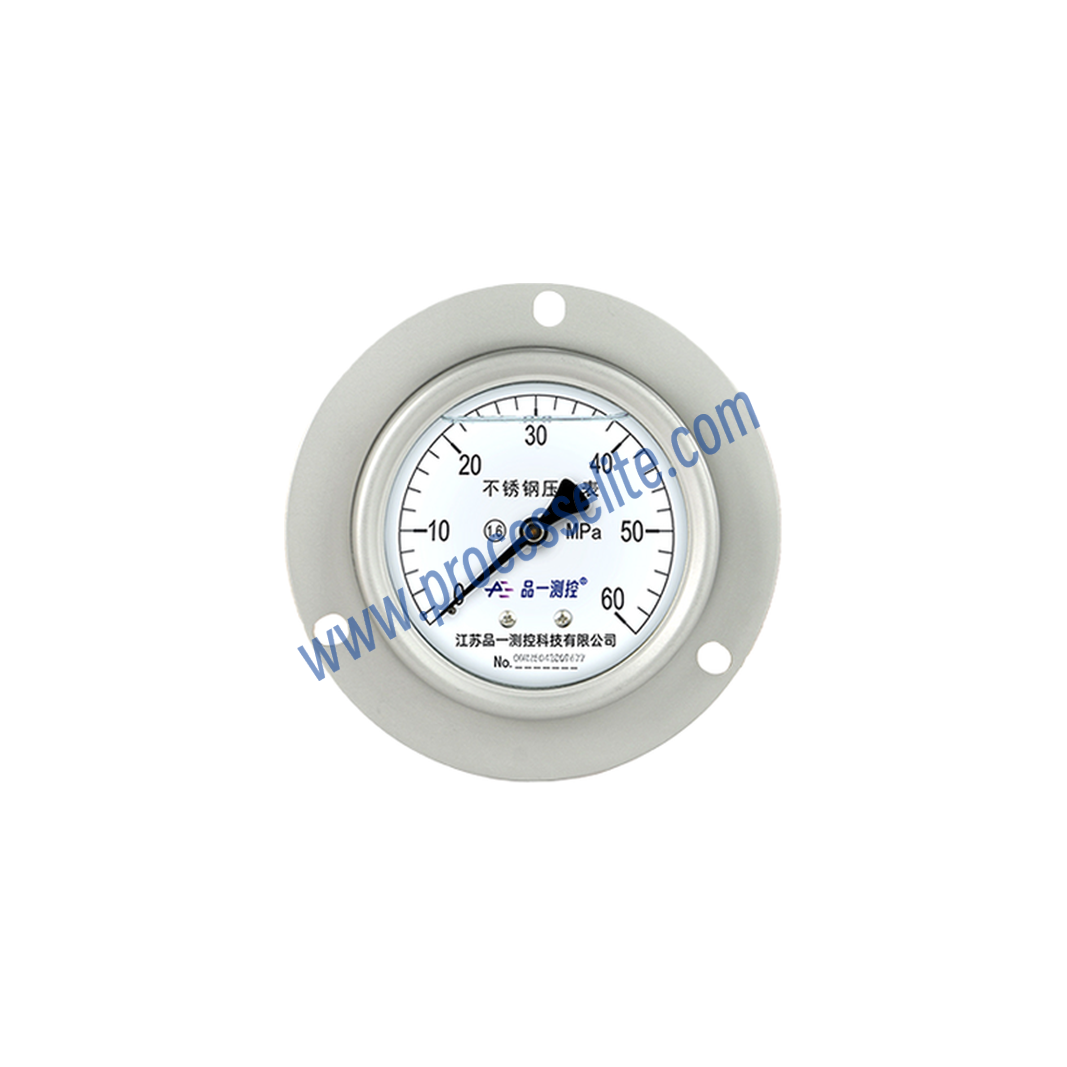

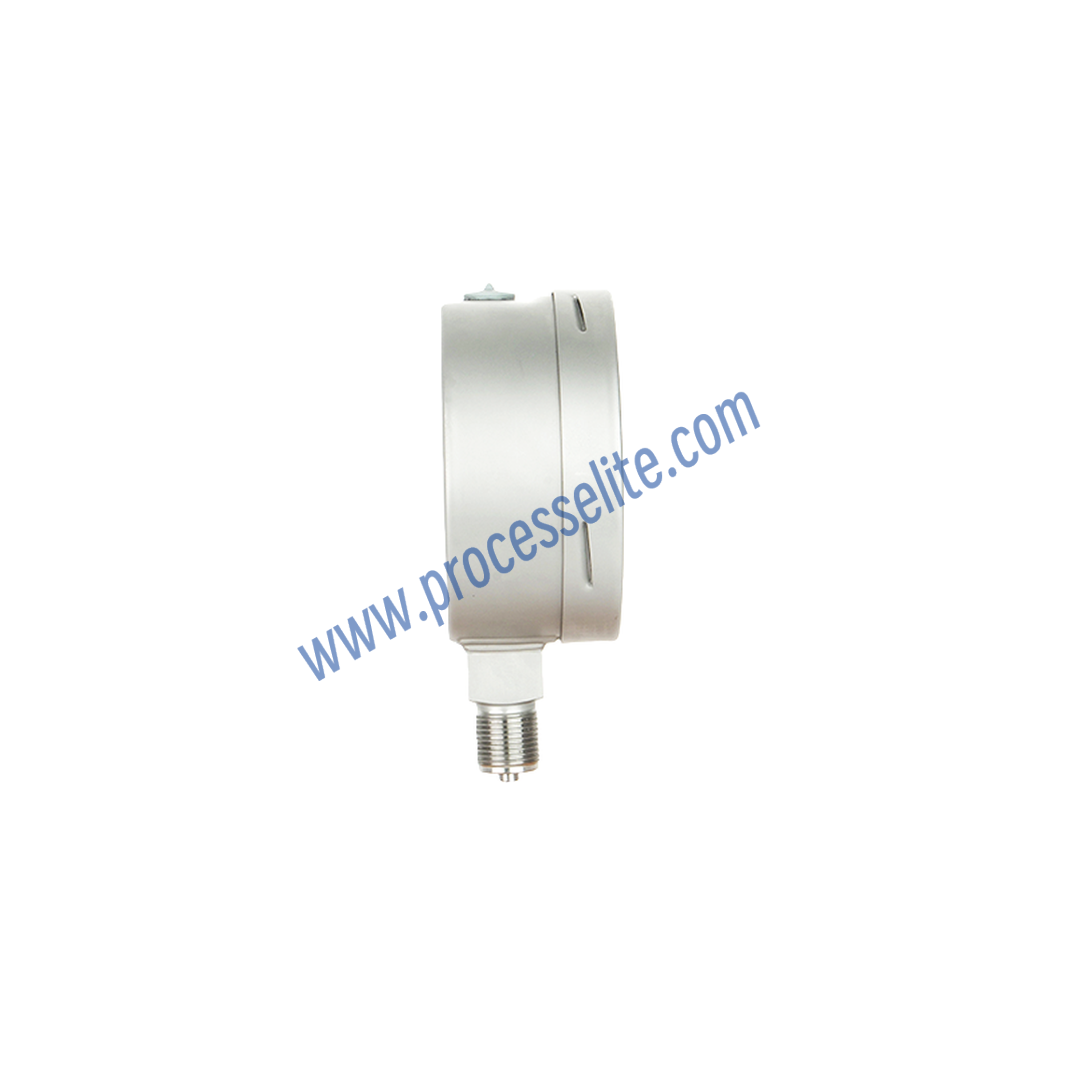

Shockproof Stainless Steel Pressure Gauge

Product series:

YTN-BF

Product brand:

PE/PE

Product feature:

- Good corrosion & heat resistance - High strength, anti-vibration - High precision & sensitivity - Broad application scope - Easy to install and maintain

Favorite

Compare

Configure

Measuring principle:

The measuring principle of vibration-resistant stainless steel pressure gauges is based on the elastic deformation of the built-in stainless steel sensing element under pressure. The deformation is transferred to the pointer via the conversion mechanism inside the gauge movement, rotating the pointer to indicate the pressure value of the measured medium on the dial. Specifically, the measured medium enters the sensing element through the process connection and generates displacement at the element’s tip. This displacement is amplified by connecting links and a gear transmission mechanism, which drives the pointer to show the corresponding pressure reading on the dial. The gauge consists of a pressure guiding system (process connection, Bourdon tube, flow restrictor screw, etc.), a gear transmission mechanism, an indicating assembly (pointer and dial), and an outer housing (case, bezel, gauge glass, etc.). The housing is filled with damping liquid (glycerin or silicone oil) to resist operational vibration and suppress pulsation of medium pressure.

Product positioning:

304

Using scenario:

Stainless steel vibration-resistant pressure gauges can accurately measure the pressure of diverse fluid media across industrial fields including petroleum, chemical, power, metallurgy, marine, food and pharmaceutical sectors, delivering critical data support for production process control and real-time monitoring.

表盘直径：

40mm

50mm

60mm

100mm

150mm

200mm

250mm

耐振形式：

充油

安装方式：

径向

轴向

轴向带边

精度：

±1.6% o.f.s.

±2.5% o.f.s.

测量范围：

正压: 0~0.1Mpa

正压: 0~0.16Mpa

正压: 0~0.25Mpa

正压: 0~0.4Mpa

正压: 0~0.6Mpa

正压: 0~1Mpa

正压: 0~1.6Mpa

正压: 0~2.5Mpa

正压: 0~4Mpa

正压: 0~6Mpa

正压: 0~10Mpa

正压: 0~16Mpa

正压: 0~25Mpa

正压: 0~40Mpa

正压: 0~60Mpa

负压: -0.1~0Mpa

正负压: -0.1~0.06Mpa

正负压: -0.1~0.15Mpa

正负压: -0.1~0.3Mpa

正负压: -0.1~0.5Mpa

正负压: -0.1~0.9Mpa

正负压: -0.1~1.5Mpa

正负压: -0.1~2.4Mpa

过程连接：

螺纹

接液材质：

304

膜片316(L)

外壳材质：

304(L)

防爆型式：

非防爆

防护等级：

IP66

All

Instruction

Operation

2D/3D

Certificate

Summary

Stainless Steel Pressure Gauge Series Y(TN)-BF
