All >> Pressure measurement >> Remote Transmission Pressure Gauge

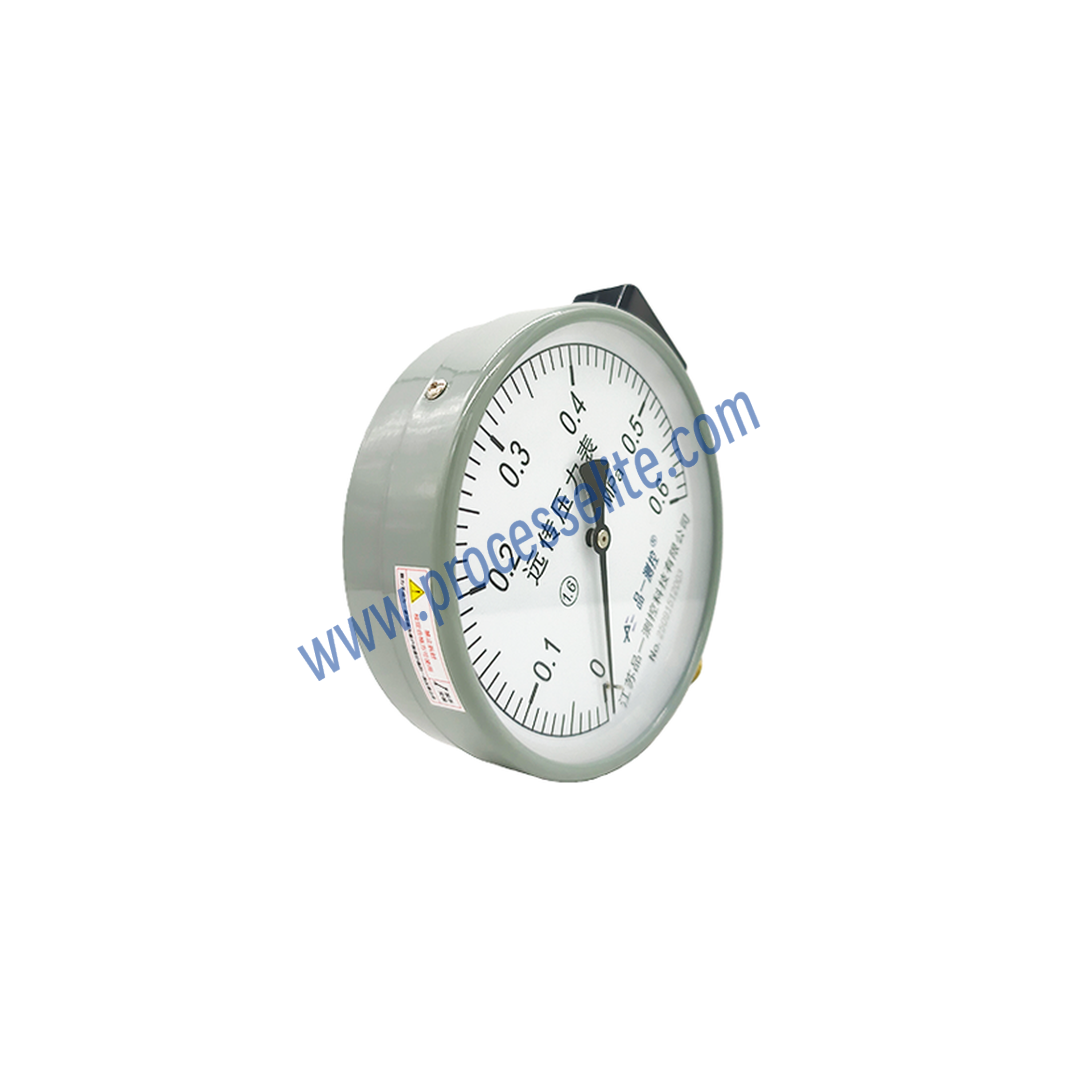

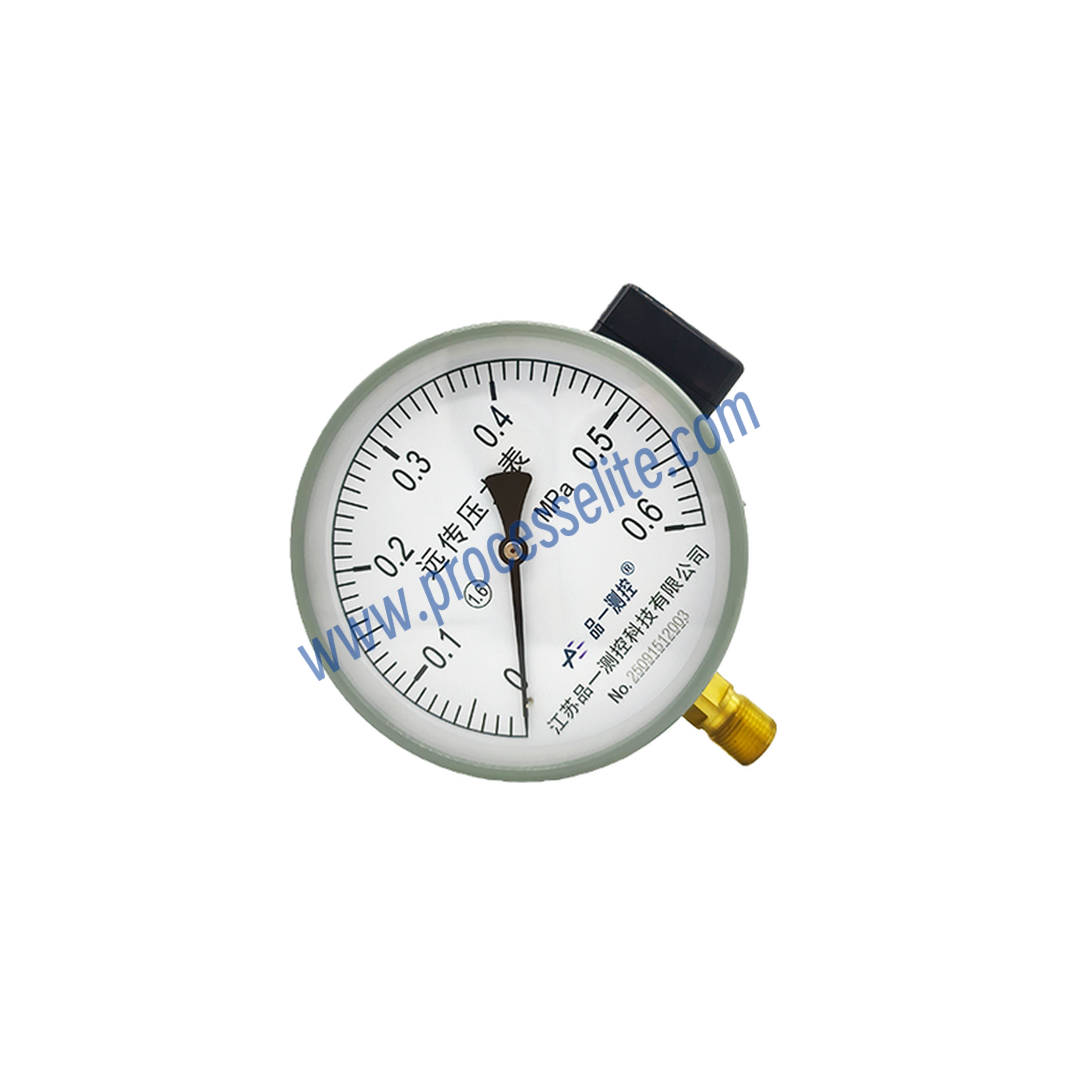

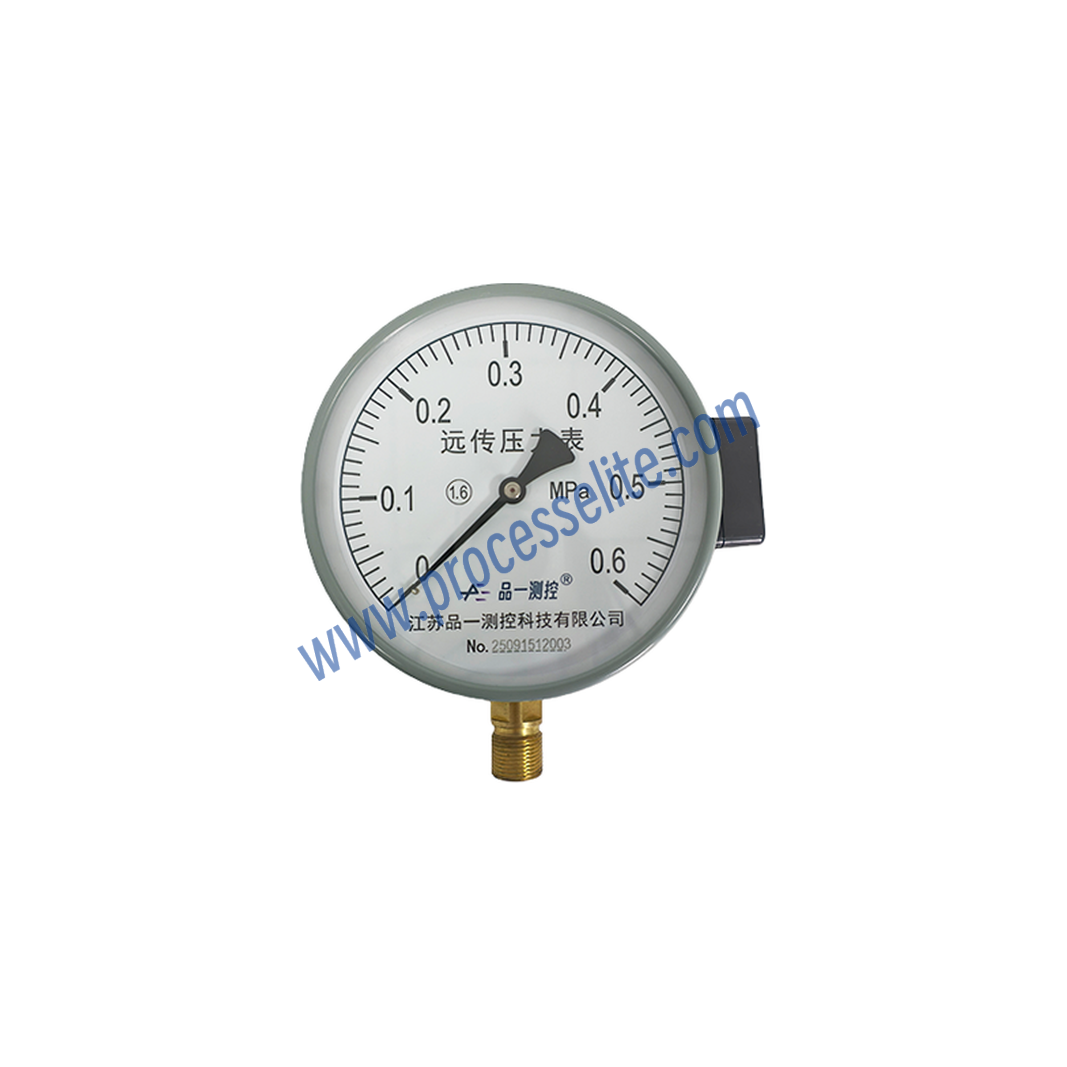

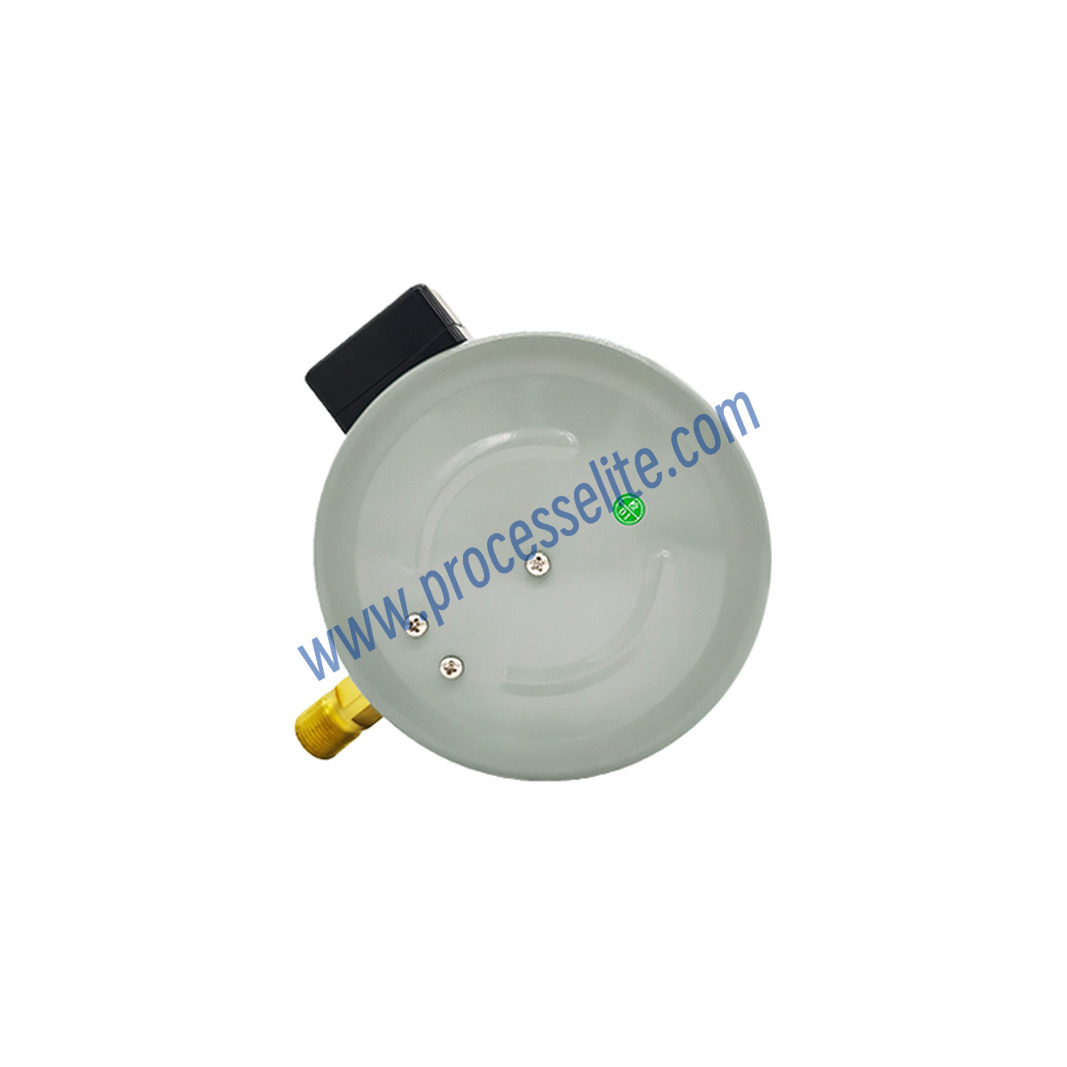

YTZ Remote Transmission Pressure Gauge - Processelite

*Picture for reference only !

Product name:

Remote Transmission Pressure Gauge

Product series:

YTZ

Product brand:

PE/PE

Product feature:

Remote transmission capability Convenient for inspection & maintenance

Favorite

Compare

Configure

Measuring principle:

A remote-transmitting pressure gauge is an instrument that converts the measured value into an electrical signal via an internal sliding resistance transmitter, and transmits the signal to a secondary instrument located far from the measuring point, so as to realize centralized detection and remote control. The built-in sliding resistance transmitter transmits the measured value in the form of an electrical signal to the secondary instrument away from the measuring point for centralized detection and remote control. In addition, this gauge can provide local pressure indication simultaneously, facilitating on-site process inspection.

Product positioning:

Standard

Using scenario:

Remote-transmitting pressure gauges are suitable for measuring the pressure of liquid, steam, gas and other media that are non-corrosive to copper and copper alloys. ‌1. Industrial Automation: In industrial automation systems, resistance remote-transmitting pressure gauges are adopted to monitor and control the pressure of various fluid media to ensure stable system operation. ‌2. Process Control: In industries such as chemical, petroleum and pharmaceutical sectors, resistance remote-transmitting pressure gauges are applied for process control, ensuring that pressure parameters during production are maintained within safe limits.

表盘直径：

150mm

耐振形式：

充油

安装方式：

径向

精度：

±1.6% o.f.s.

测量范围：

正压: 0~0.1Mpa

正压: 0~0.16Mpa

正压: 0~0.25Mpa

正压: 0~0.4Mpa

正压: 0~0.6Mpa

正压: 0~1Mpa

正压: 0~1.6Mpa

正压: 0~2.5Mpa

正压: 0~4Mpa

正压: 0~6Mpa

正压: 0~10Mpa

正压: 0~16Mpa

正压: 0~25Mpa

正压: 0~40Mpa

正压: 0~60Mpa

负压: -0.1~0Mpa

正负压: -0.1~0.06Mpa

正负压: -0.1~0.15Mpa

正负压: -0.1~0.3Mpa

正负压: -0.1~0.5Mpa

正负压: -0.1~0.9Mpa

正负压: -0.1~1.5Mpa

正负压: -0.1~2.4Mpa

过程连接：

螺纹

接液材质：

铜合金

304

316

外壳材质：

碳钢

304(L)

防爆型式：

非防爆

防护等级：

IP54

IP66
