All >> Pressure measurement >> Stainless Steel Diaphragm Pressure Gauge

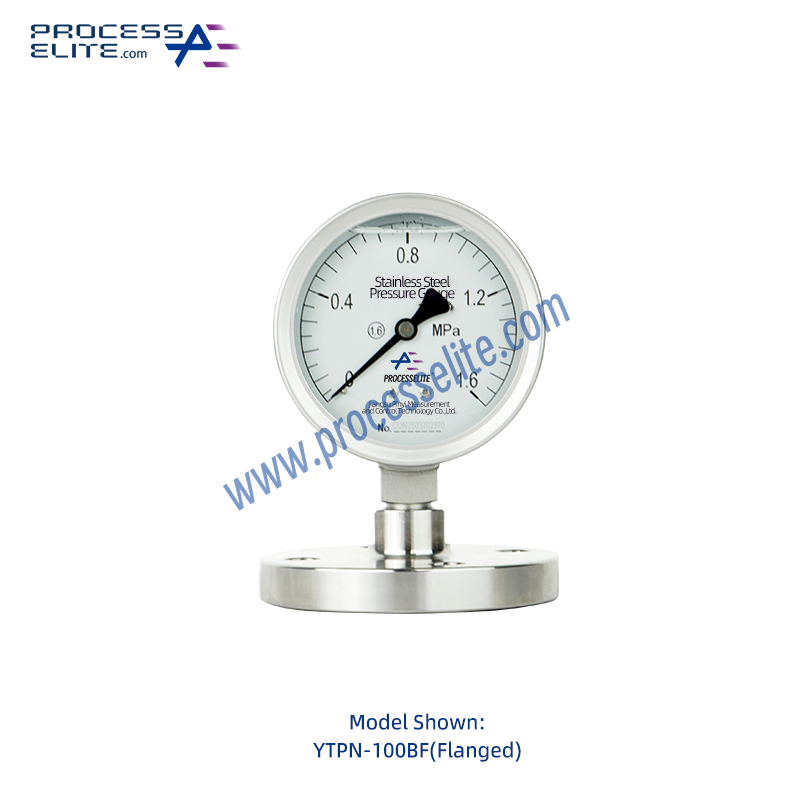

*Picture for reference only !

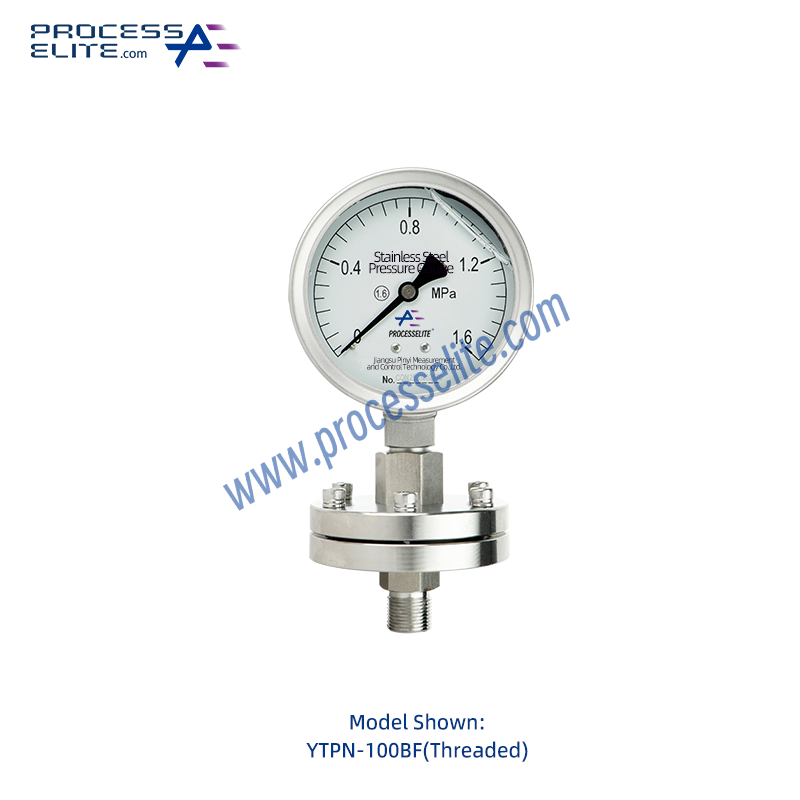

*Picture for reference only !

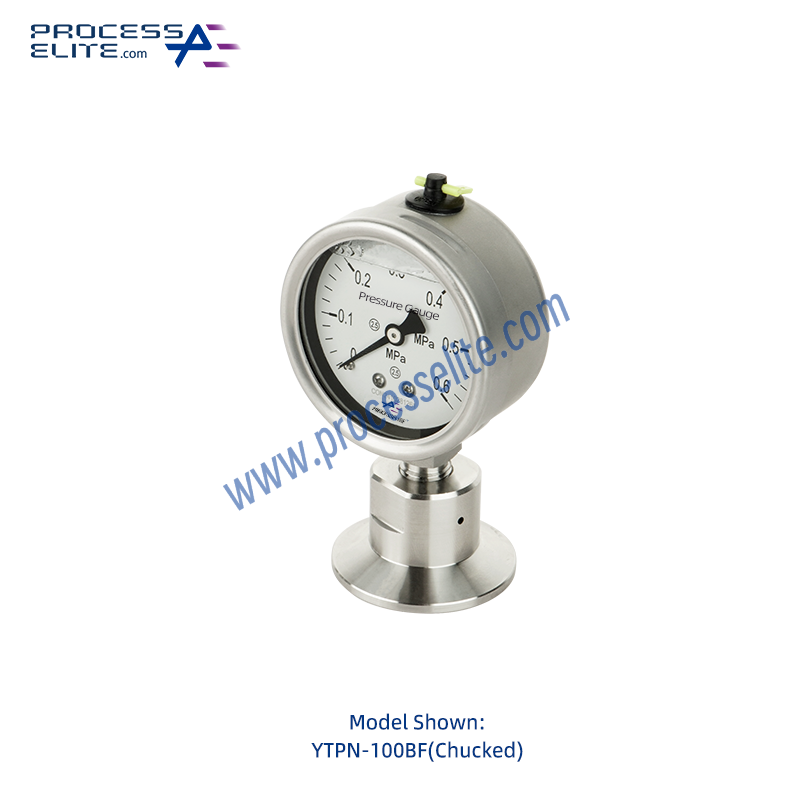

*Picture for reference only !
Product name:
Stainless Steel Diaphragm Pressure Gauge
Product series:

YTP (N) -BF

Product brand:
PE/PE
Product feature:
High Corrosion Resistance High Operational Safety Easy Installation & Maintenance
Favorite
Compare
Measuring principle:
The measuring principle of stainless steel diaphragm-seal pressure gauges relies on the deformation of elastic elements (i.e., diaphragms) to measure pressure. When the pressure of the measured medium acts on the diaphragm, the diaphragm deflects and compresses the sealing fluid inside the measuring system of the pressure gauge, generating a pressure difference (ΔP) equivalent to the pressure of the measured medium. If the diaphragm possesses sufficiently low rigidity, the pressure formed within the gauge’s measuring system approximates the pressure of the measured medium. Specifically, a diaphragm-seal pressure gauge forms a complete measuring system consisting of a diaphragm isolator and a general-purpose pressure gauge. As process pressure P acts on the diaphragm, the diaphragm deforms and compresses the fill fluid sealed inside the system, creating a pressure difference ΔP matching pressure P. This pressure is transmitted through the fill fluid and causes corresponding elastic deformation and displacement of the elastic element (such as a Bourdon tube) inside the pressure gauge. Finally, the measured pressure value is displayed in accordance with the operating principle of the matched pressure gauge.
Product positioning:
Standard
Using scenario:
Stainless steel diaphragm-seal pressure gauges are suitable for measuring the pressure of corrosive, high-viscosity, crystallizable, easily solidifiable liquid, gaseous or particulate solid media. They are widely used in petrochemical, food & beverage, pharmaceutical and other industries: 1. Petrochemical Industry: Petrochemical Industry. 2. Food & Beverage Industry: Precise control of fluid pressure is required during food and beverage processing. Stainless steel diaphragm-seal pressure gauges deliver excellent corrosion resistance and comply with hygiene standards, meeting application scenarios with stringent requirements for food safety and product quality. 3. Pharmaceutical Industry: Pharmaceutical processes usually require precise proportioning of various raw materials, solvents and reactants, together with rigorous control of reaction conditions. Diaphragm-seal pressure gauges can monitor pressure variations inside reactors to support refined management and control.
