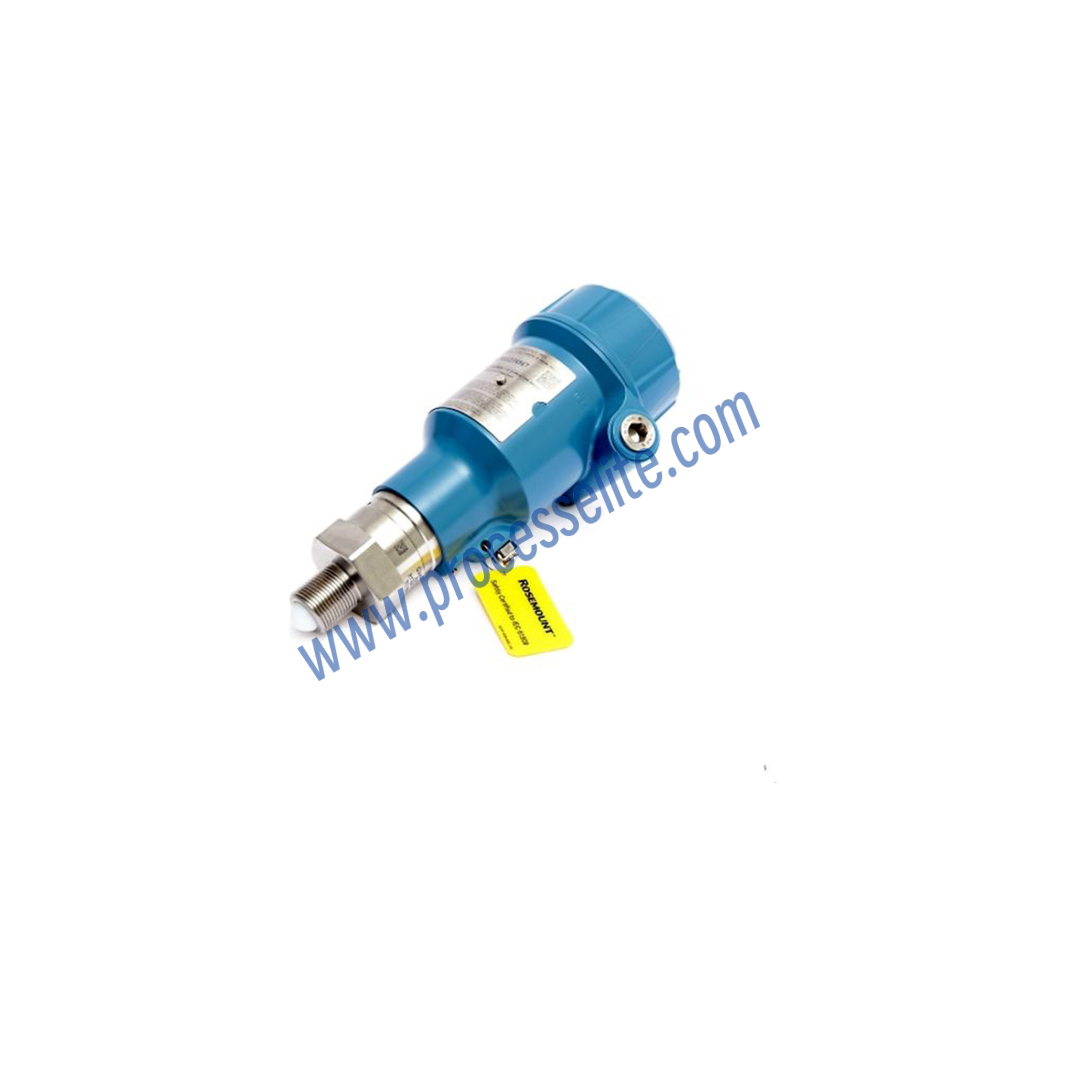

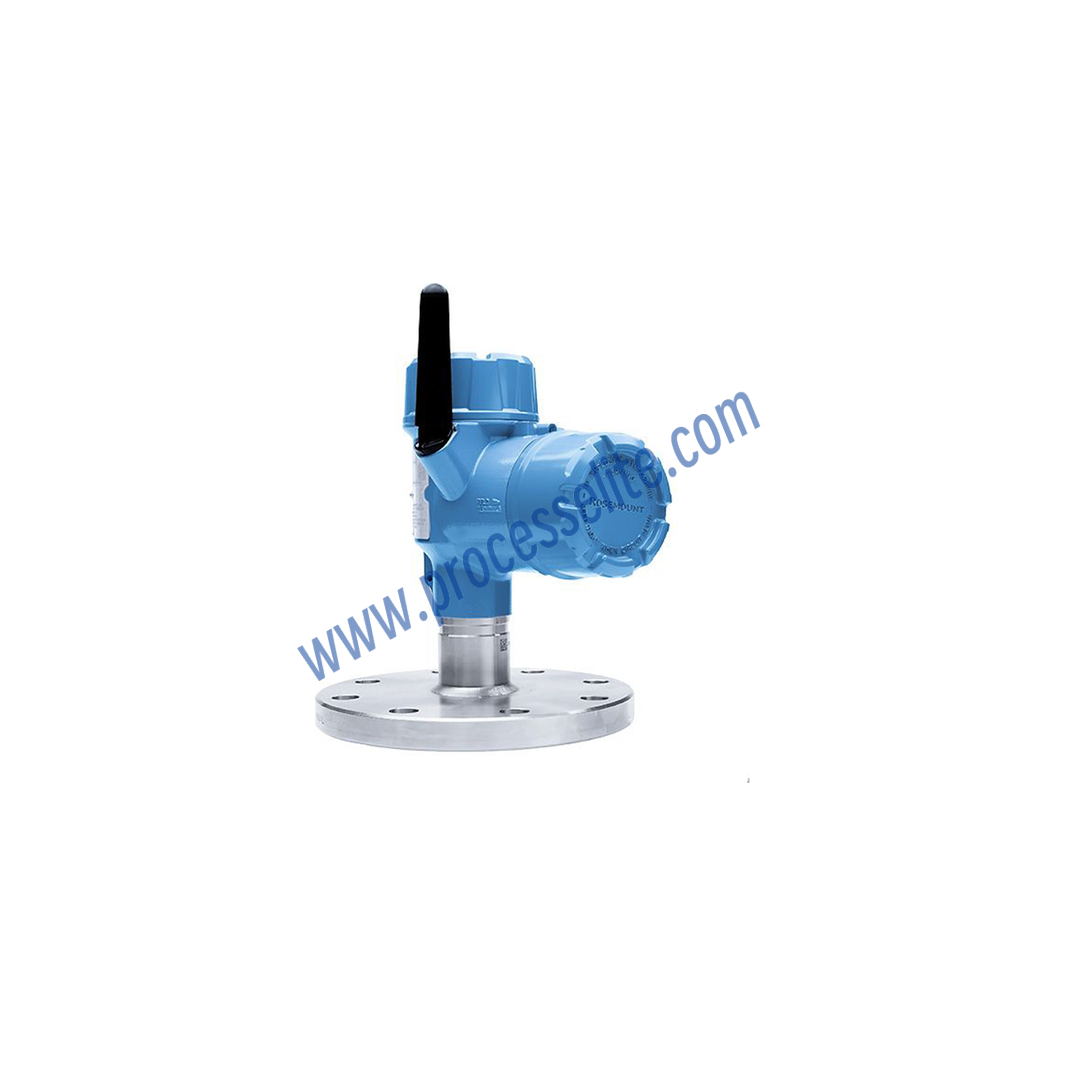

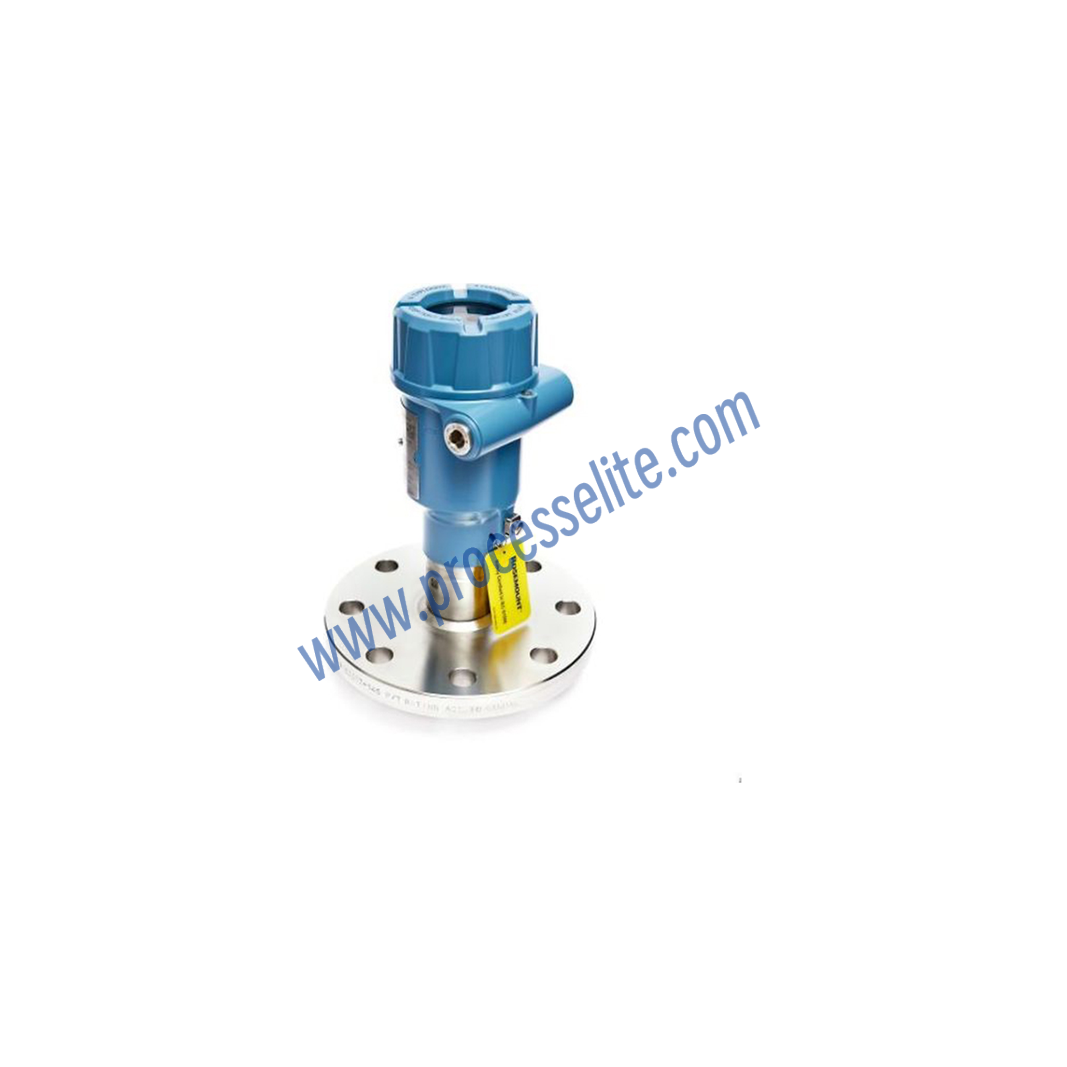

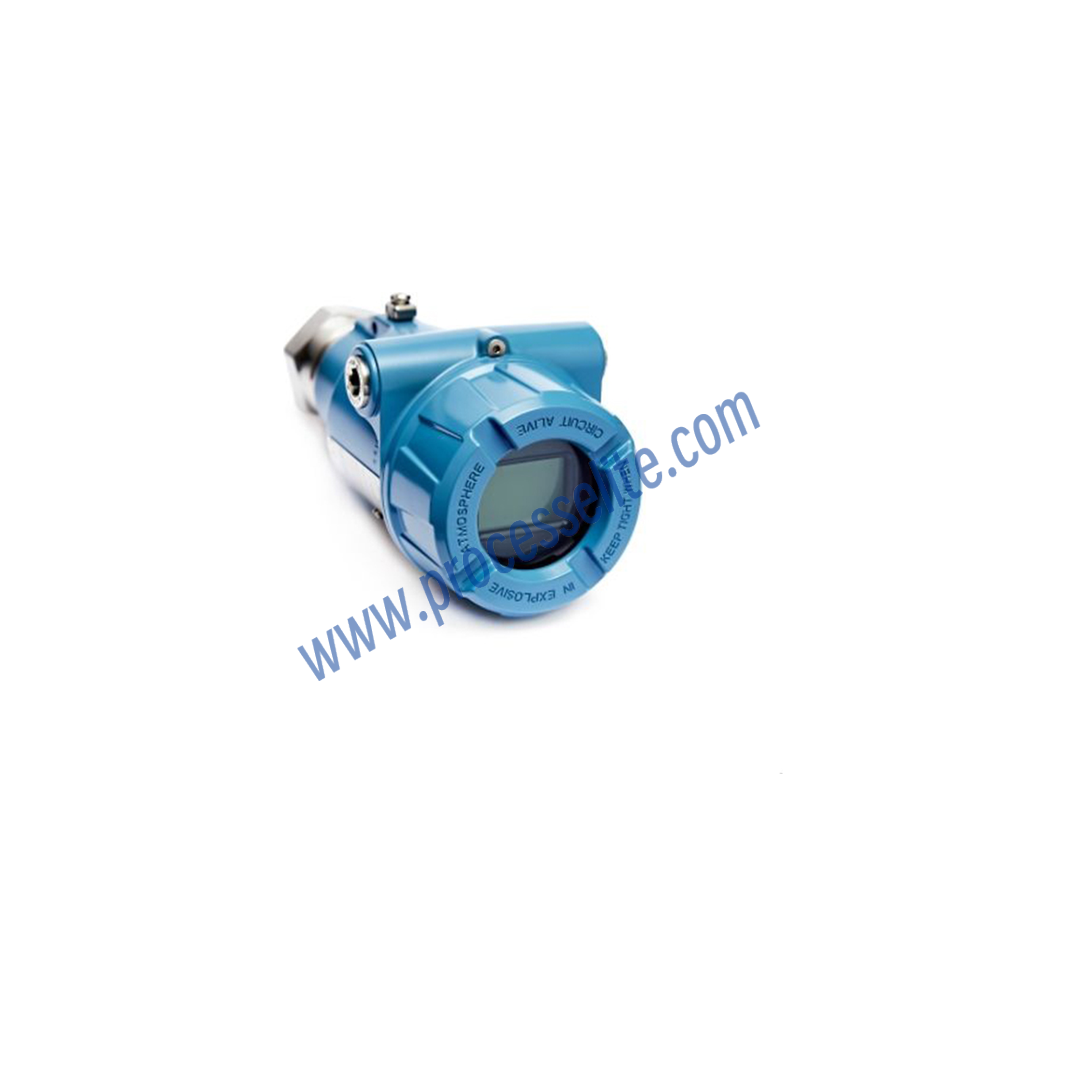

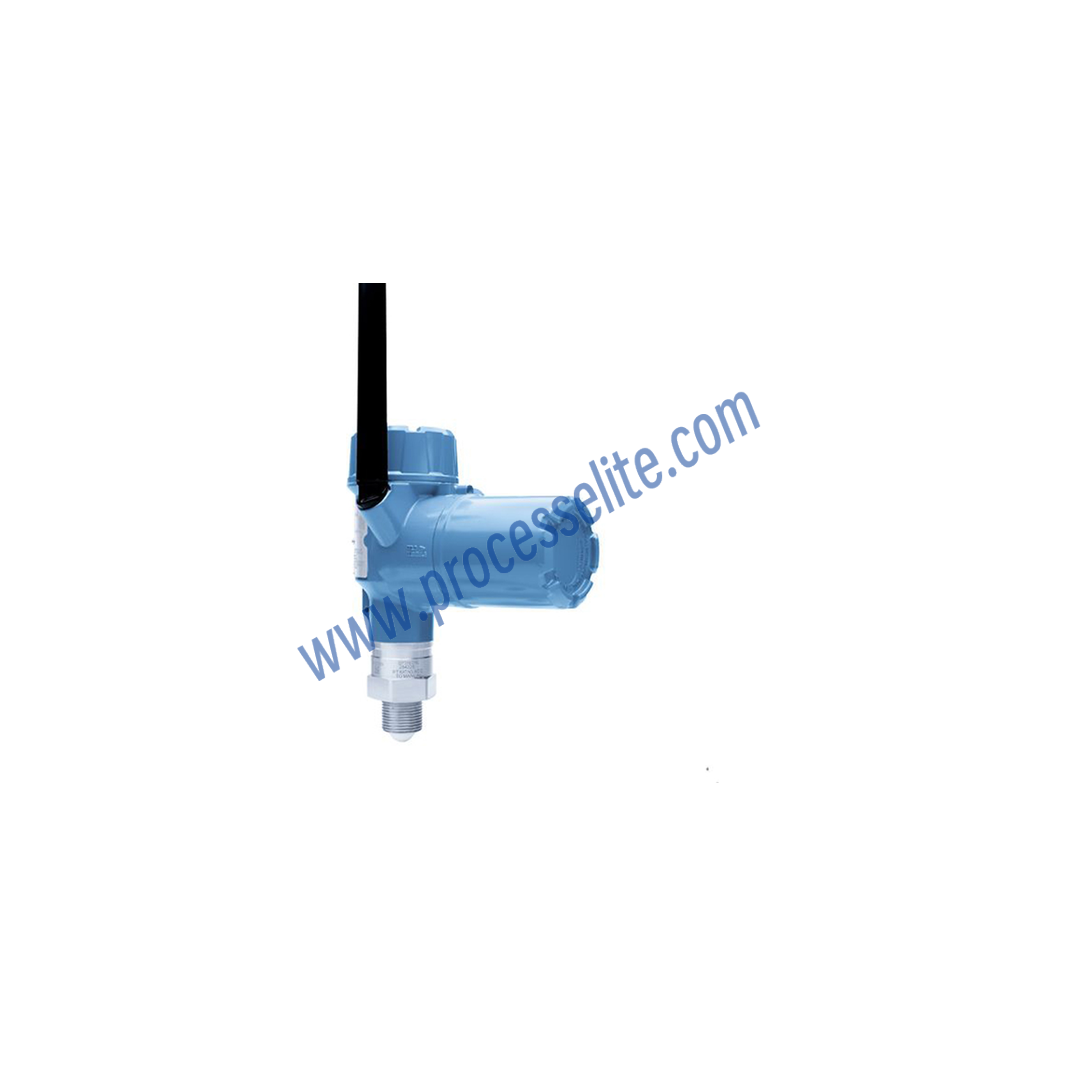

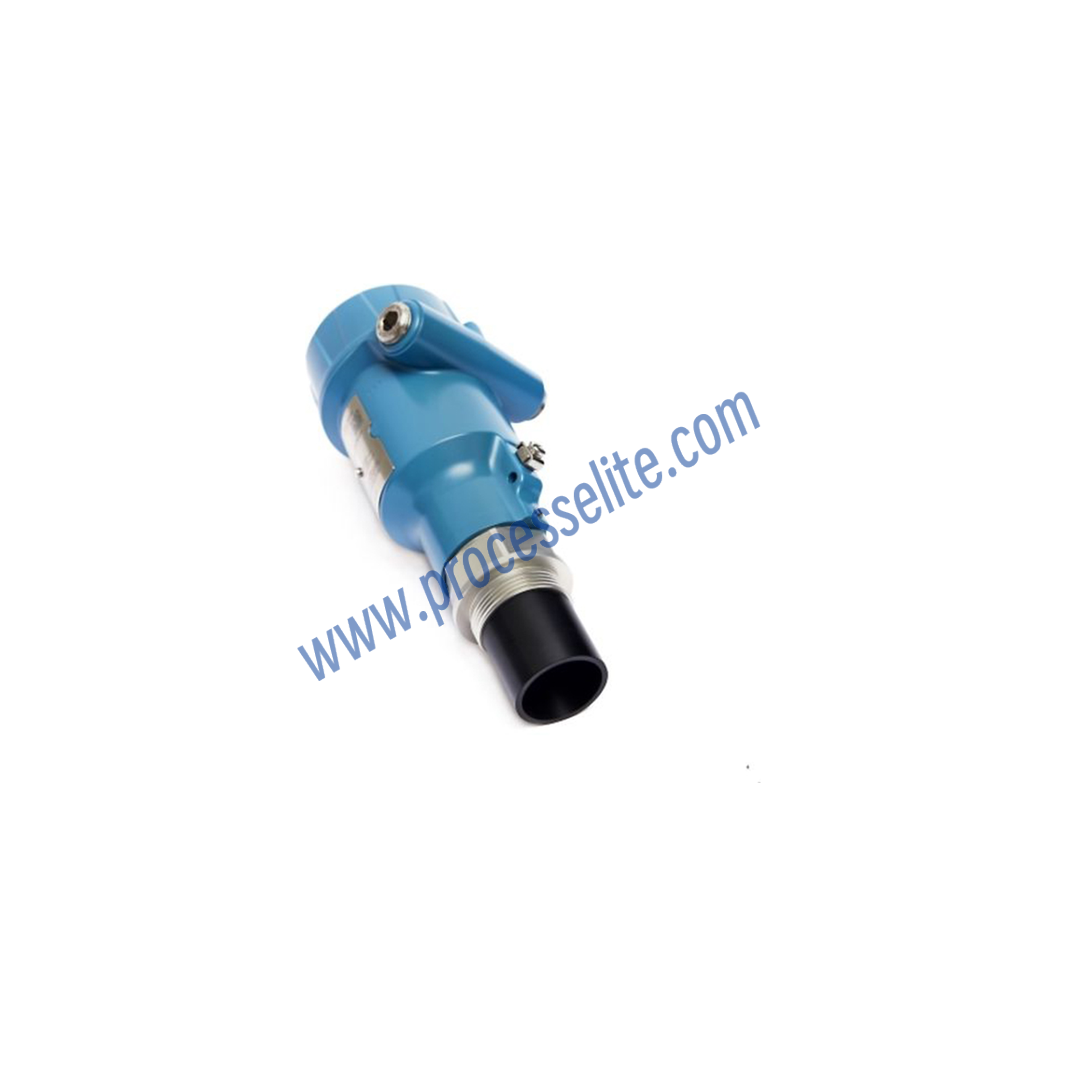

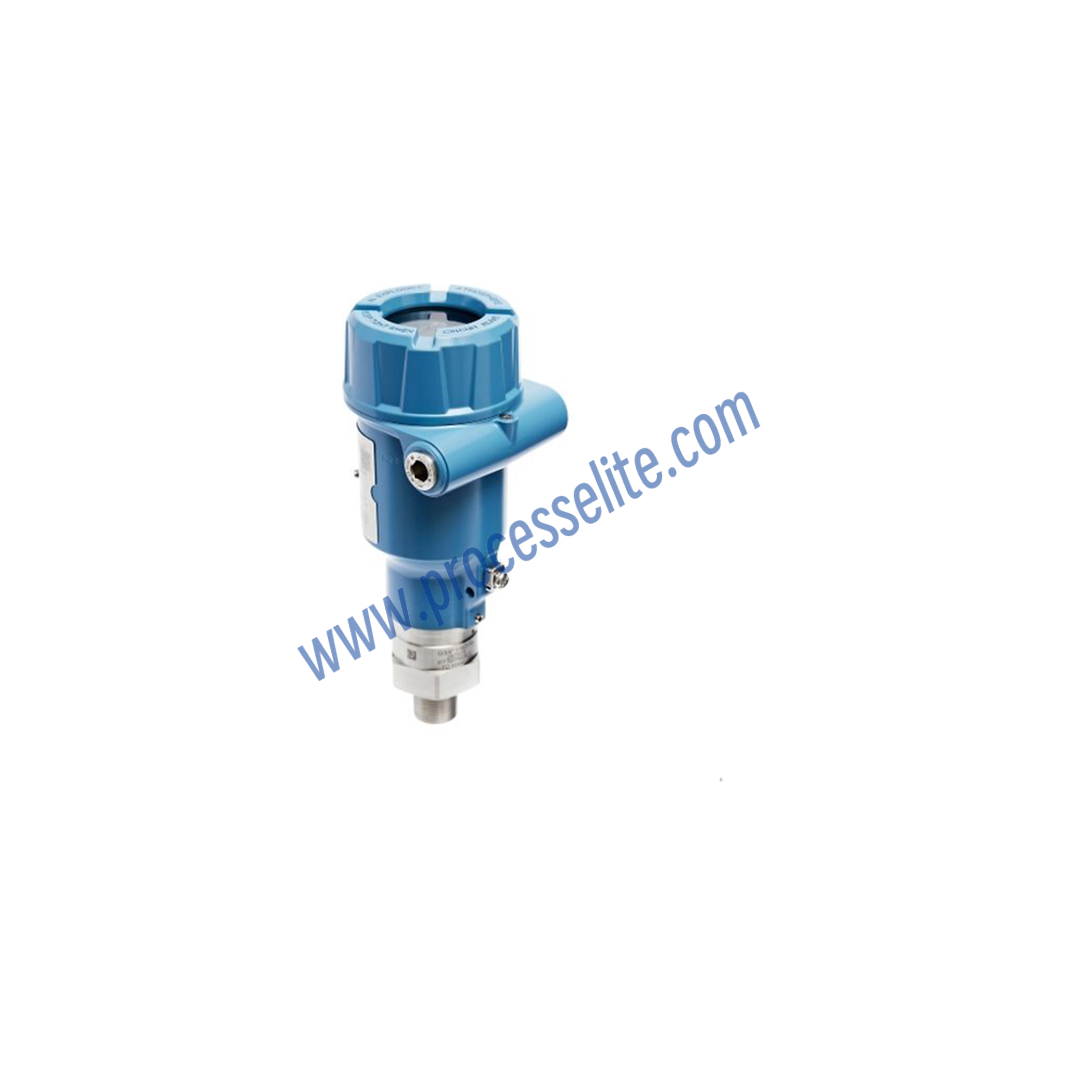

3408 Radar Level Transmitter - Processelite

*Picture for reference only !

Product name:

Radar Level Transmitter

Product series:

3408

Product brand:

Emerson/Emerson

Product feature:

• Rosemount non-contact radar products using Smart Echo Supervision™ technology automatically track all echoes, including echoes from obstructions within the container, and distinguish them from the actual product surface echo. This ensures reliable and accurate reporting of the actual product level/level. • Lens antenna suitable for very small process connections (3/4") with optional bracket • All PTFE wetted parts allow use in harsh conditions, such as corrosive media • Optional Bluetooth technology for easy configuration and maintenance •

Favorite

Compare

Configure

Measuring principle:

The non-contact radar level/level transmitter is a key instrument utilizing microwave technology for continuous, non-contact measurement of solid material or liquid surface height. It accurately and reliably remotely detects and measures the distance between the material/level in containers, tanks, or silos and a reference point (typically the meter mounting flange). The instrument emits microwave pulses (pulse radar) or frequency modulated continuous wave (FMCW radar) signals through the antenna. After the signal propagates to the measured material surface and is reflected, the receiving antenna captures the echo. By precisely calculating the time difference (time domain reflectometry principle) or frequency

Product positioning:

Industrial applications

Using scenario:

The Rosemount 3408 non-contact radar level/level transmitter uses Smart Echo Supervision™ technology, suitable for level/level measurement and overfill protection. Wireless technology options enable automation in areas where wiring is difficult to cover, while eliminating wiring costs. Intelligent diagnostic functions enable proactive maintenance, while optional Bluetooth® can be used for wired communication, ensuring configuration simplicity. Scheduled manual or automatic verification can be performed at any time without process interruption. Onboard functions allow remote and in-situ verification.

防爆型式：

非防爆

Ex i

Ex d

测量频率：

W波段 (≈80GHz)

最大量程：

30m

精度：

±1mm

最高过程温度：

200℃

最大过程压力：

≤2.5MPa

天线类型：

水滴型

通讯方式：

4-20mA

4-20mA HART

Bluetooth

过程连接：

螺纹

法兰

防护等级：

IP65

IP66

IP67

IP68

供电电源：

24V DC

人机界面：

无显示&不可操作

有显示&不可操作

SIL认证：

SIL2 (单表)

SIL3 (双表)
