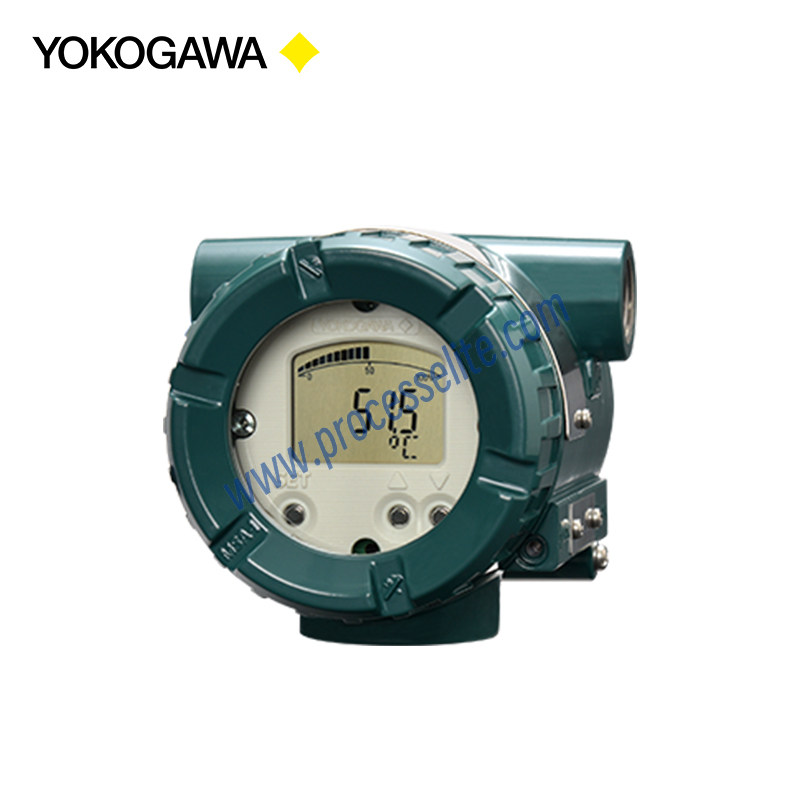

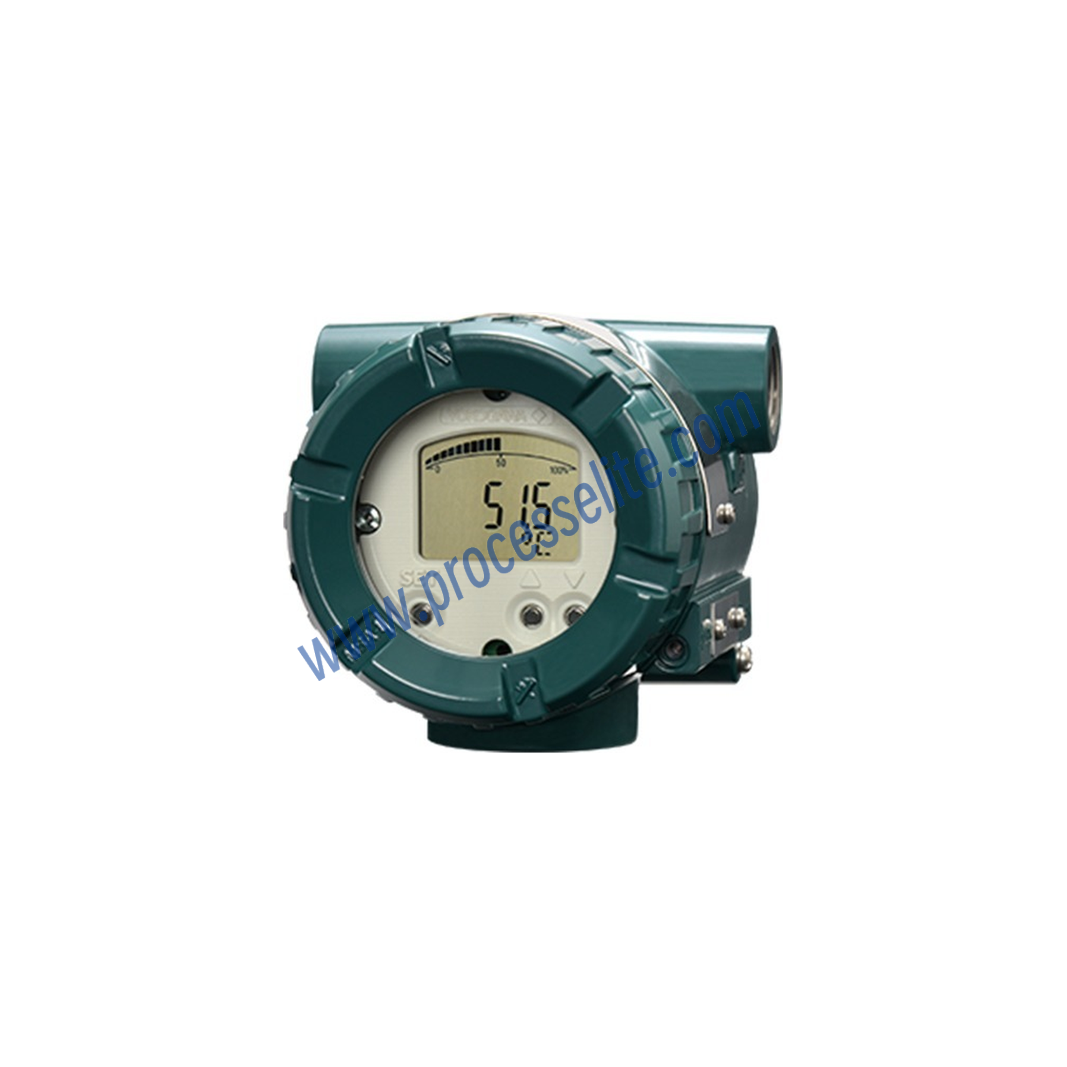

YTA710 Temperature Transmitter - Processelite
*Picture for reference only !
YTA710 Temperature Transmitter - Processelite
Product name:
Temperature Transmitter
Product series:

YTA710

Product brand:
YOKOGAWA/YOKOGAWA
Product feature:
• Dual-chamber housing structure • HART 7, BRAIN protocol, FOUNDATION™ Fieldbus ITK 6 protocol • Local parameter setting • Advanced diagnostics • High reliability: Two-chamber construction allows use even in harsh environments. • Multiple input signals: Options include 12 types of thermocouples (T/C), 7 types of RTDs, resistance, and DC voltage signals. • Digital signals: HART 7, BRAIN, FOUNDATION Fieldbus • Indicator with on-site parameter setting function: Basic parameters can be set using the indicator buttons. • Self-diagnostic function: Long-term stability can be achieved and costs reduced through the self-diagnostic function. • Dual sensor input type: Supports dual sensor inputs for thermocouples, RTDs, etc. Additionally, it can measure temperature difference and average temperature. Using dual sensors also enables redundant system functionality.
Favorite
Compare
Measuring principle:
Using a dual-chamber enclosure structure, it effectively prevents moisture, dampness, or other contaminants from entering the electronic components. It can be configured with single or dual sensor inputs, accepting signals from resistance temperature detectors (RTDs), thermocouples, DC millivolt, and ohm inputs, and converting them into 4–20 mA DC analog signals or digital signal outputs. The dual sensor input accepts signals from two sensors, providing differential and average values, as well as a backup function. The backup function automatically switches to the backup sensor when the primary sensor fails, and local parameter settings can be configured via the display meter.
Product positioning:
Using scenario:
The YTA710 temperature transmitter provides precise, stable, and reliable temperature measurement. It features a dual-chamber housing structure that effectively prevents moisture, dampness, or other contaminants from entering the electronic components. It is used for signal conversion of thermocouples, RTDs, and other types of temperature sensors in petroleum, natural gas, petrochemical, chemical, power, and other industrial plants, and transmits the signals to the plant monitoring system.
