How it works
During turbidity measurement, when a light beam directed into the process medium encounters opaque particles, such as suspended solids, the beam changes its original propagation direction. This phenomenon is known as light scattering.
The incident light is scattered in multiple directions. Scattered light at two angles is particularly relevant to turbidity measurement: 90° scattered light is mainly used for measuring turbidity in drinking water, while 135° scattered light is used for measurements at higher particle concentrations.
At low concentrations of suspended solids in the process medium, most of the light is scattered at 90°, while relatively little light is scattered at 135°. As the concentration of suspended solids increases, the ratio changes: the intensity of 135° scattered light increases, while the intensity of 90° scattered light decreases.
Key features
• One sensor for all applications: The “one for all” concept reduces inventory requirements, speeds up project execution, and simplifies lifecycle management.
• Optimum adaptation to different measuring tasks: The sensor covers all measuring ranges through a wide range of integrated analytical models.
• Fast and easy commissioning: The sensor is factory-calibrated and preconfigured for quick installation and commissioning.
• Enables unattended plant operation: Intelligent design provides advanced self-cleaning capabilities and minimizes maintenance requirements.
• Optimal process adaptation: Fast and flexible sensor positioning with the Flexdip CYA112 and CYH112 holder and assembly system.
Typical applications

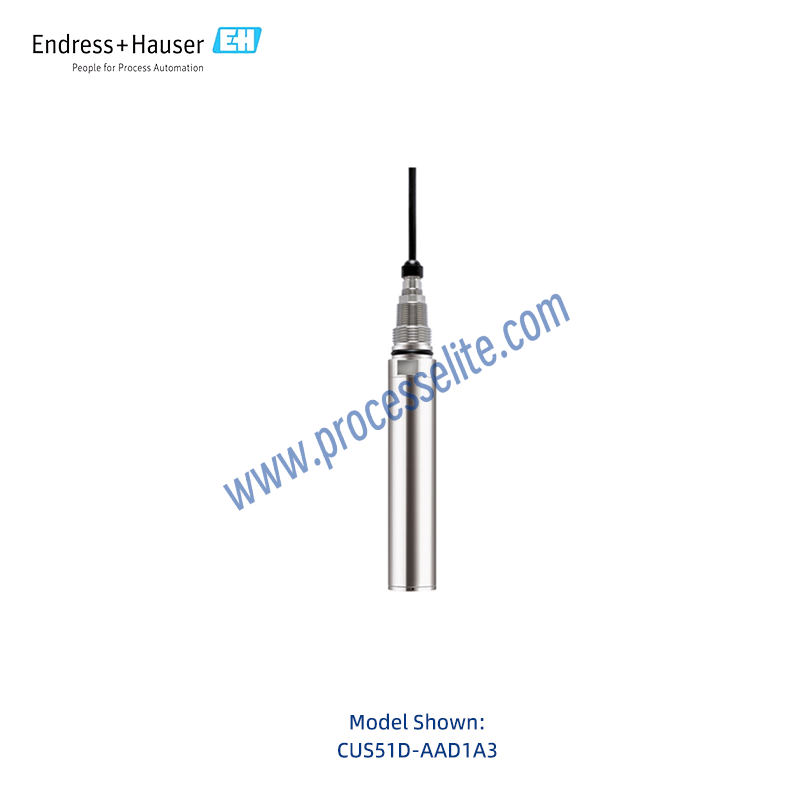

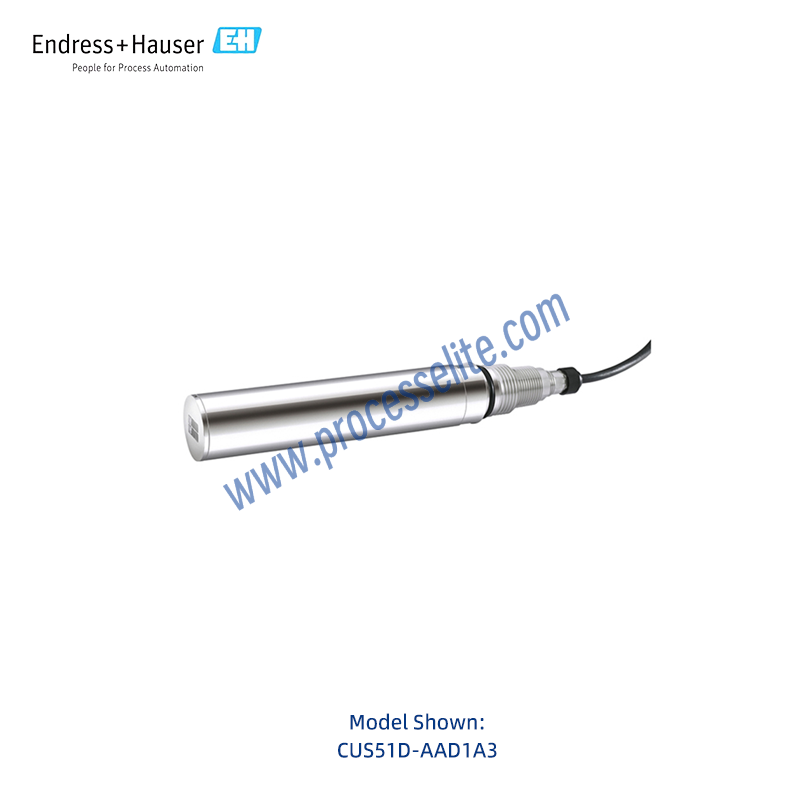

The Turbimax CUS51D is an intelligent sensor for measuring suspended solids concentration and turbidity, enabling unattended operation during measurement. Its robust design provides excellent durability, while the integrated self-cleaning function significantly reduces maintenance requirements.
Different integrated analytical models can be selected to adapt the sensor to specific applications. Based on Memosens digital technology, the CUS51D combines maximum process and data integrity with simple operation. It is resistant to corrosion and moisture and can be calibrated in the laboratory.
The Turbimax CUS51D is suitable for suspended solids and turbidity measurement in:
• Wastewater treatment plants
• Drinking water and process water
• Utilities across various industries
